Steel Moulds for Concrete Blocks
Steel Moulds for Concrete Blocks

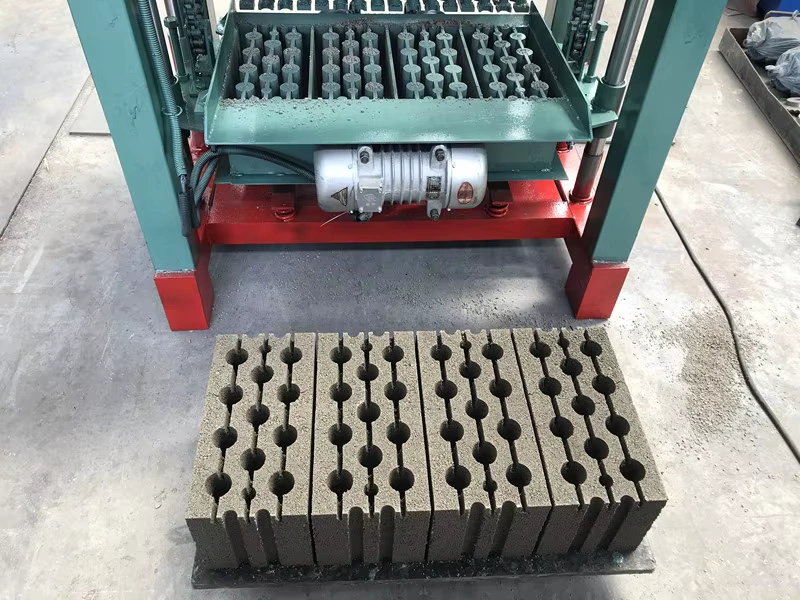

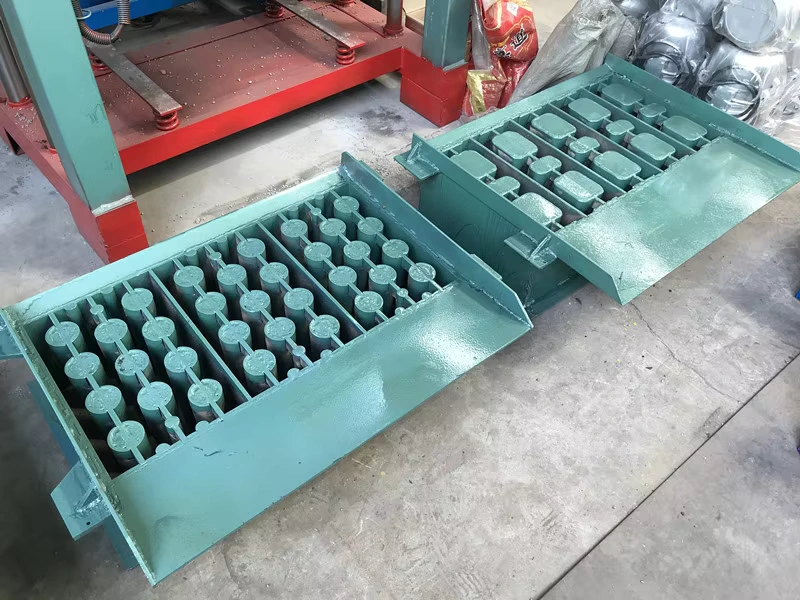

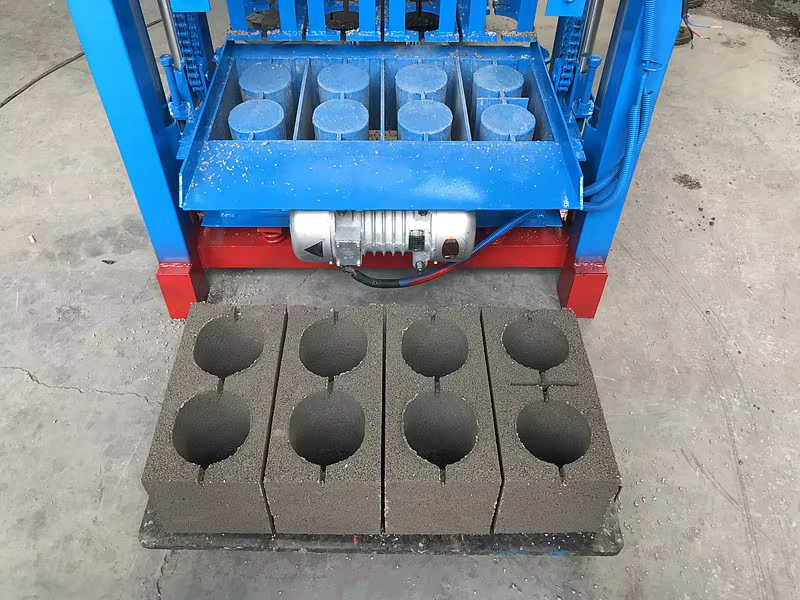

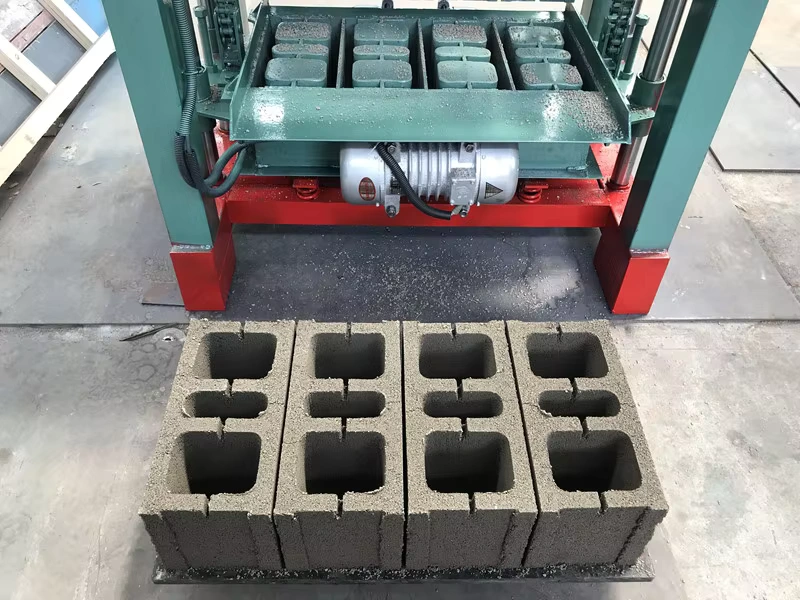

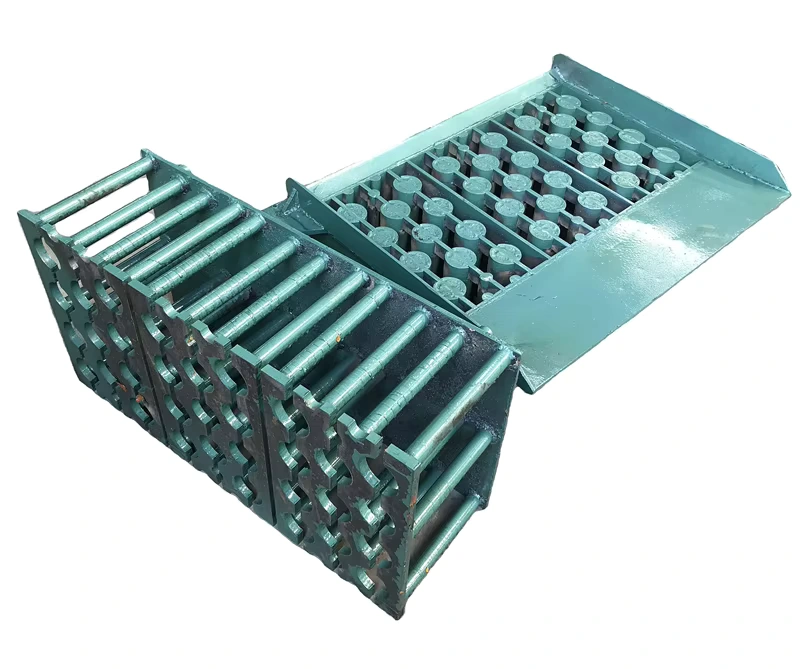

These steel moulds define the block cavities used in a compatible block-making machine. The photographs show loose moulds, installed examples and finished blocks; the host machine is not part of the mould unless separately quoted.
- Product and application
- Choosing this configuration
- Machine interface and cavity drawing
- What is supplied
Technical Specifications
| Block-size examples; mould-dependent | 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm |
|---|---|
| Listed weight | 100 kg |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
These steel moulds define the block cavities used in a compatible block-making machine. The photographs show loose moulds, installed examples and finished blocks; the host machine is not part of the mould unless separately quoted.
Choosing this configuration
The source dimensional field overlaps a finished-block size and is not used as the overall mould measurement. Supply the host-machine drawing, mould fastening points, cavities and required block dimensions instead of ordering from appearance alone.
Machine interface and cavity drawing
Match the mould box, fastening layout, tamper head and available stroke to the host machine. Specify finished-block size, wall layout, cavity count and demoulding direction. Similar block shapes do not establish machine compatibility.
What is supplied
Confirm the mould box and matching upper pieces, spare wear components and handling provisions. Ask for a drawing and material specification. Finished-block and machine photographs illustrate possible use, not supplied equipment or guaranteed output.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
These steel moulds define the block cavities used in a compatible block-making machine. The photographs show loose moulds, installed examples and finished blocks; the host machine is not part of the mould unless separately quoted.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Which mould should I order?
Start with the finished-block drawing and match its cavities and machine interfaces.
Is the shift output guaranteed?
A source capacity field needs a defined mould, mix, operating cycle and handling workflow before it can be compared.
Is mixing and curing equipment included?
Only if listed separately in the quotation. The forming machine does not replace these operations.
Can photographs prove block strength?
No. Ask for material trials and the testing applicable to the proposed block and use.
What needs checking for this particular listing?
The source dimensional field overlaps a finished-block size and is not used as the overall mould measurement. Supply the host-machine drawing, mould fastening points, cavities and required block dimensions instead of ordering from appearance alone.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
