DC350 Built-In Concrete Floor Grinder
DC350 concrete floor grinder with listed 350 mm width, 3 kW motor and built-in dust collection. Choose tooling for the substrate and required finish.
View product →
Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
DC350 Floor Grinder with External Fan
DC350 Floor Grinder with External Fan
This DC350 arrangement combines a floor-grinding head with a dust box and an externally mounted fan. It offers a compact arrangement for surface preparation where the abrasive and dust-handling setup are agreed for the job.
- Product and application
- Choosing this configuration
- Floor and abrasive selection
- Supply and service agreement

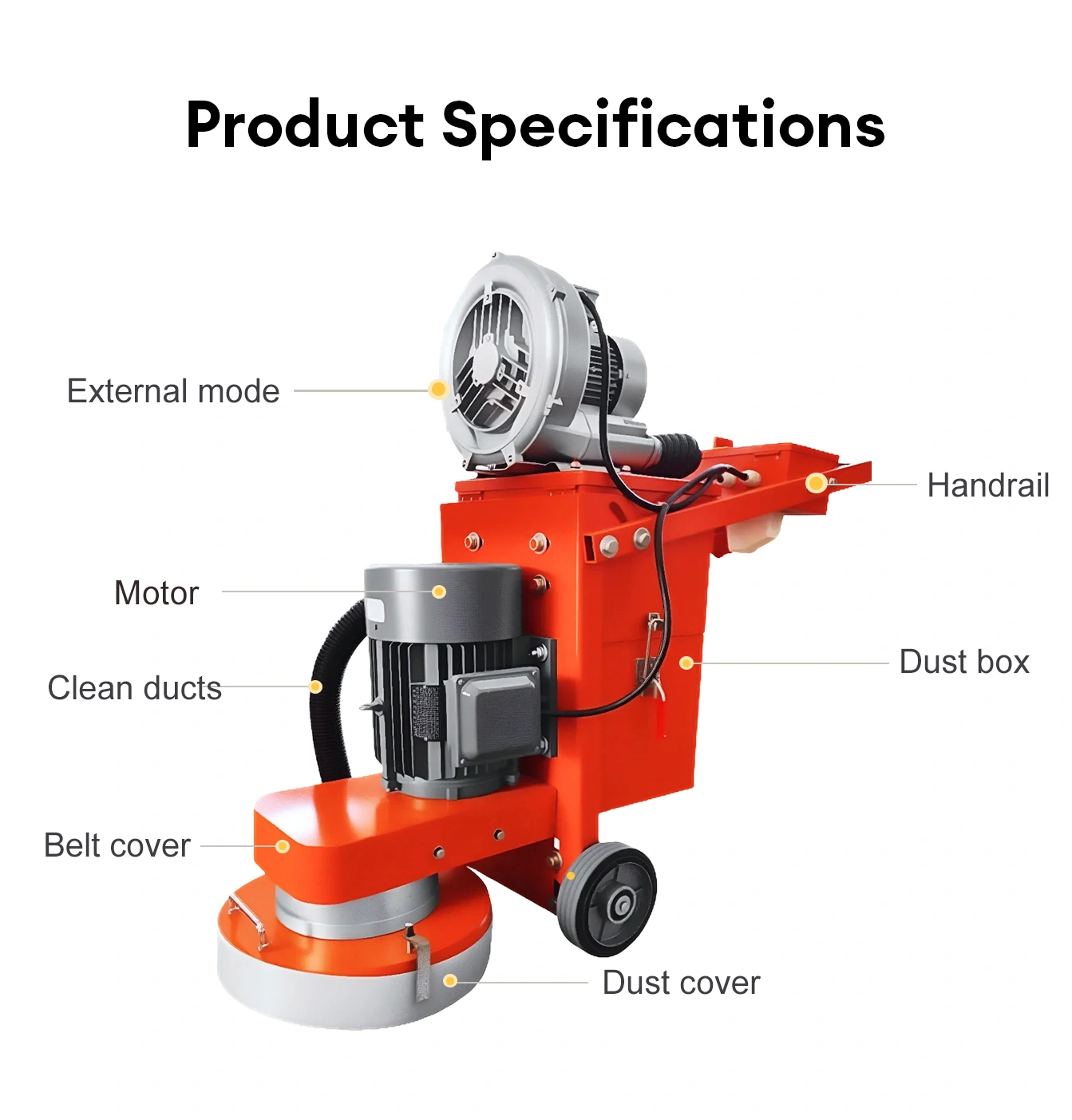

Technical Specifications
| Voltage options; exact motor to confirm | 220V/380V |
|---|---|
| Source power field | 3KW |
| Source overall dimensions; scope to confirm | 875*535*1190mm |
| Source weight; unit retained if stated | 137 kg |
| Grinding-head shape options | round disc /triangle disc |
| Source working-width field; scope to confirm | 350/400mm |
| Dust-handling fan rating | 0.75 KW |
| Dust-hopper volume | 24L |
| Working-width options | 350mm |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
This DC350 arrangement combines a floor-grinding head with a dust box and an externally mounted fan. It offers a compact arrangement for surface preparation where the abrasive and dust-handling setup are agreed for the job.
Choosing this configuration
Select the quoted working width and motor supply. The fan rating and hopper volume describe components, not verified filtration efficiency or permission to work without separate dust-control measures.
Floor and abrasive selection
Describe the substrate, coating and required result: cleaning, removing material or polishing. Agree the working head, tooling bond, speed and wet or dry arrangement. Surface examples are not universal compatibility tests.
Supply and service agreement
Request the exact model plate, operating manual, parts references and itemised delivery list. Quoted accessories, consumables and configuration choices should be recorded separately; workshop stock does not define the delivered set.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
This DC350 arrangement combines a floor-grinding head with a dust box and an externally mounted fan. It offers a compact arrangement for surface preparation where the abrasive and dust-handling setup are agreed for the job.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Do all pads suit every floor?
No. Select tooling for the actual surface and desired result.
Is dust-control performance established by the photo?
No. Confirm the collection equipment and its documented performance for the work.
What job information should I provide?
Describe the substrate, coating and required result: cleaning, removing material or polishing. Agree the working head, tooling bond, speed and wet or dry arrangement. Surface examples are not universal compatibility tests.
What is needed for spare parts?
Identify the delivered model, component reference and measured mounting interface.
What needs checking for this particular listing?
Select the quoted working width and motor supply. The fan rating and hopper volume describe components, not verified filtration efficiency or permission to work without separate dust-control measures.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
