Original supplier photographs and component panels. Engine, colour, fitted equipment and packing examples may differ from the quoted delivery.
Model to be confirmed
Concrete Mixer Drum Assembly

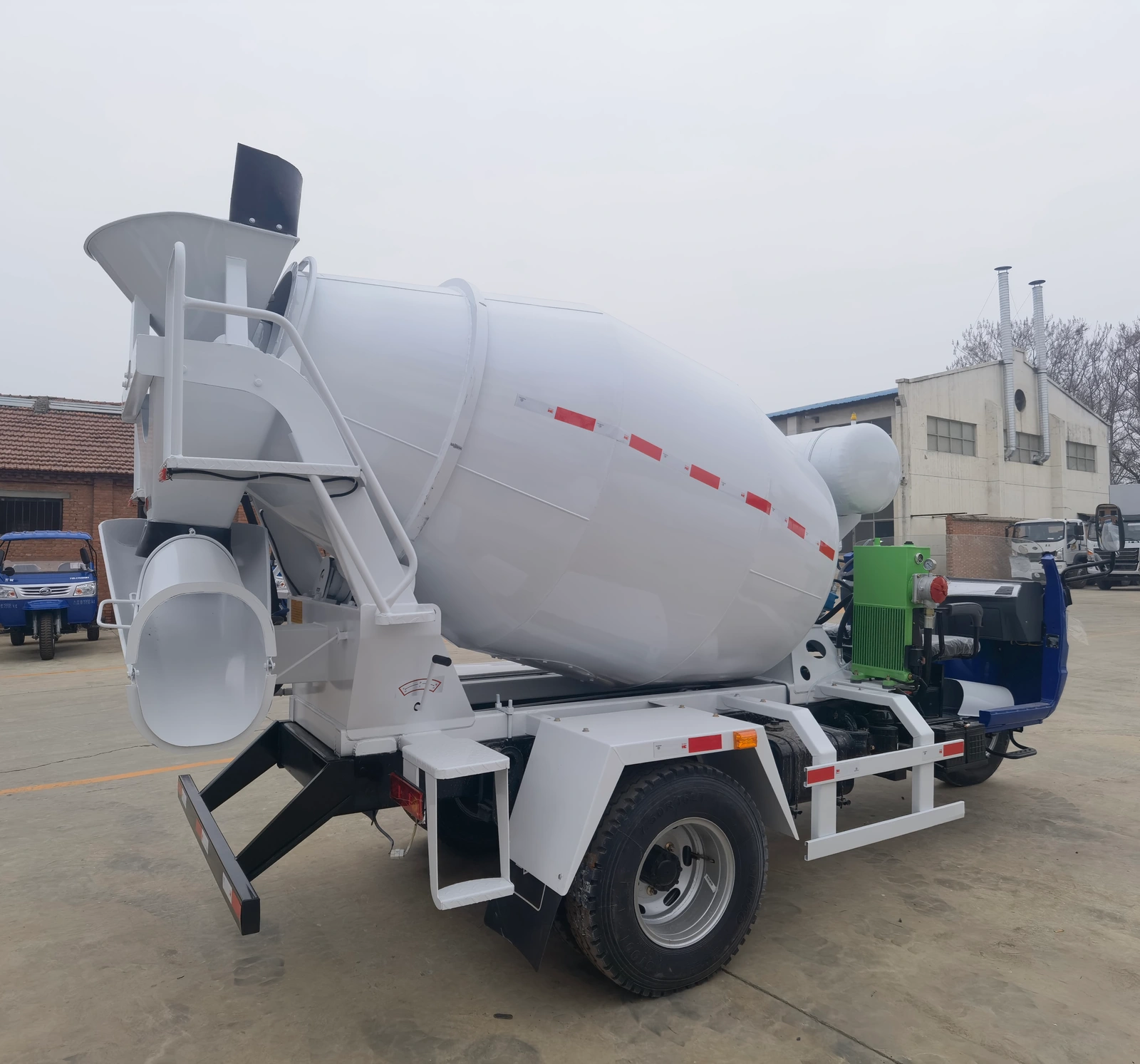

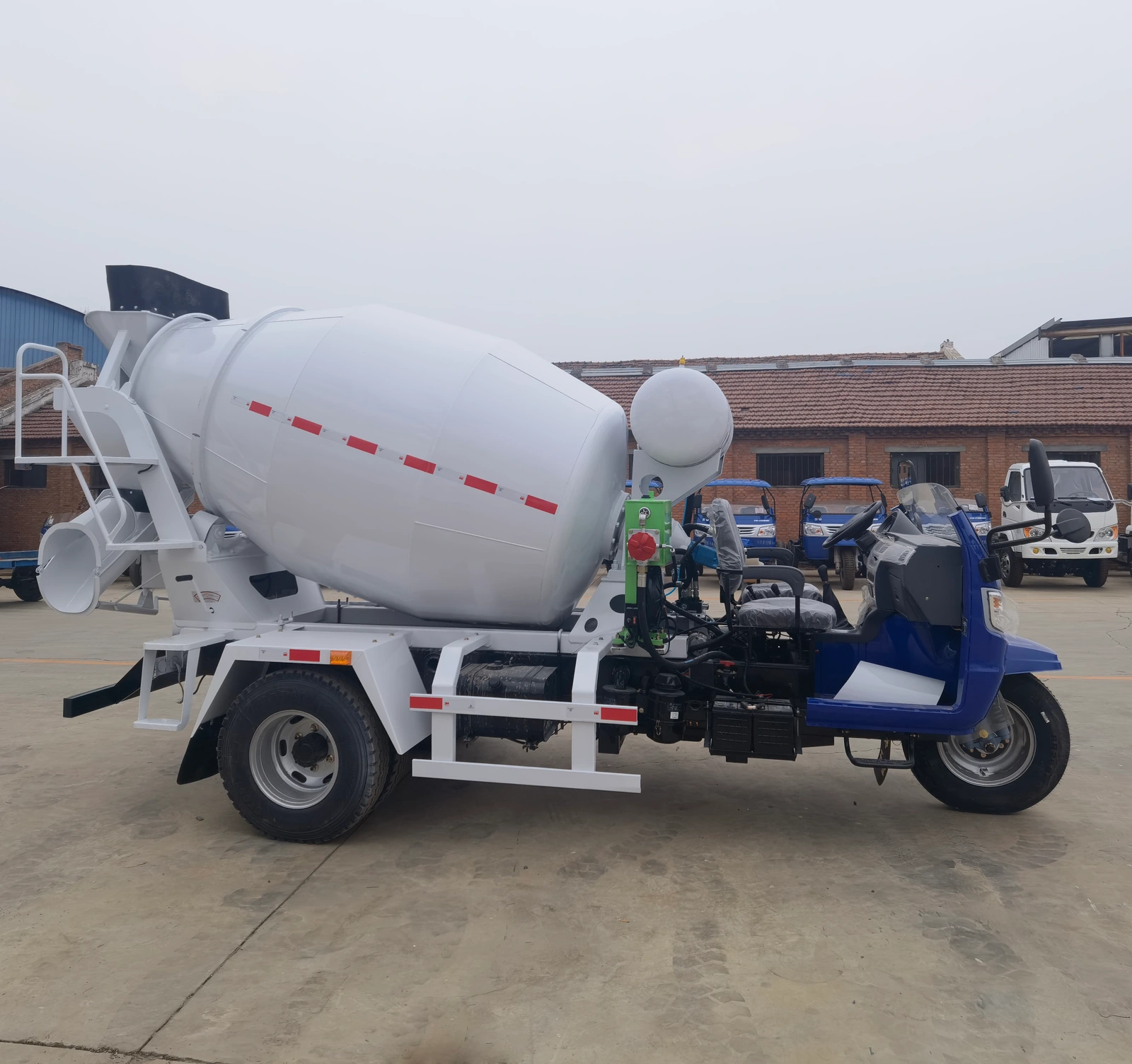

The photographs include a standalone drum assembly with its drive, water tank and hoppers, and separate examples fitted to a small vehicle. The product must be quoted as either an assembly or a complete mounted configuration.
- What this product is for
- Configuration and specification checks
- Confirm the host and usable load
- Agree the installation package
Technical Specifications
| Listed machine weight | 1050 kg |
|---|---|
| Listed overall dimensions | 3399 * 1500 * 1710mm |
| Geometric drum volume; not rated concrete payload | 3.1m ³ |
| Source-listed drum diameter | 1.5M |
| Source-listed drum inclination | 13 ° |
| Source-listed drum rotation | 0-10r/min |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for
The photographs include a standalone drum assembly with its drive, water tank and hoppers, and separate examples fitted to a small vehicle. The product must be quoted as either an assembly or a complete mounted configuration. A vehicle photograph does not establish that the chassis, transport approval or every accessory is included.
Configuration and specification checks
The old title refers to 1.5m³, while the source gives geometric volume 3.1m ³ and cylinder diameter 1.5M. These are different quantities: diameter and geometric volume do not establish rated concrete payload. Request the actual mixing/transport capacity, mounting drawing, centre of gravity, drive and host-vehicle suitability.
Confirm the host and usable load
Provide the host frame dimensions, available payload and proposed mounting points. Ask for the assembly mass, mounting reactions and rated mix/transport capacity, with the required hydraulic and power connections. Images of an installed example are useful for layout discussion but do not establish structural or road-use suitability for your vehicle.
Agree the installation package
List the drum, drive, supports, hoppers, water system and controls that the quotation includes. Request mounting and operation documents, inspections and service access requirements. Determine who is responsible for fitting and verifying the host installation before treating a pictured mounted machine as a complete deliverable.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
The photographs include a standalone drum assembly with its drive, water tank and hoppers, and separate examples fitted to a small vehicle. The product must be quoted as either an assembly or a complete mounted configuration. A vehicle photograph does not establish that the chassis, transport approval or every accessory is included.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is the vehicle included?
Some originals show installation examples. The host chassis must be explicitly listed in the quotation.
Does geometric volume establish payload?
No. Request separately rated concrete mixing and transport capacity and host loading limits.
What mounting information is needed?
Send host dimensions and mounting layout; request support reactions, drive connections, clearances and installation responsibilities.
Which service documents should be supplied?
Request drum and drive manuals, hydraulic circuit and parts lists, inspection requirements and the installation drawing for the quoted assembly.
What needs confirmation in this particular listing?
The old title refers to 1.5m³, while the source gives geometric volume 3.1m ³ and cylinder diameter 1.5M. These are different quantities: diameter and geometric volume do not establish rated concrete payload. Request the actual mixing/transport capacity, mounting drawing, centre of gravity, drive and host-vehicle suitability.
What should I send to select this product?
Provide the host frame dimensions, available payload and proposed mounting points. Ask for the assembly mass, mounting reactions and rated mix/transport capacity, with the required hydraulic and power connections. Images of an installed example are useful for layout discussion but do not establish structural or road-use suitability for your vehicle.
