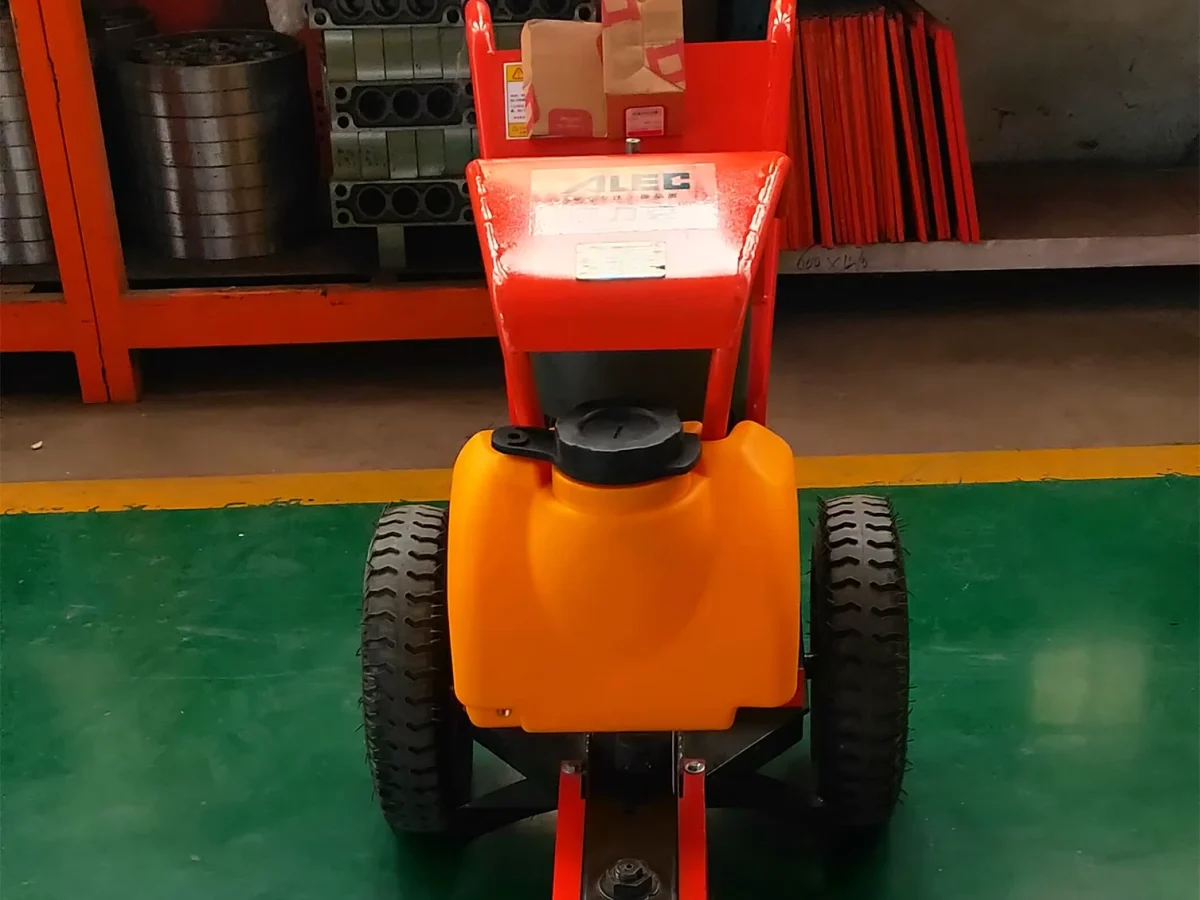

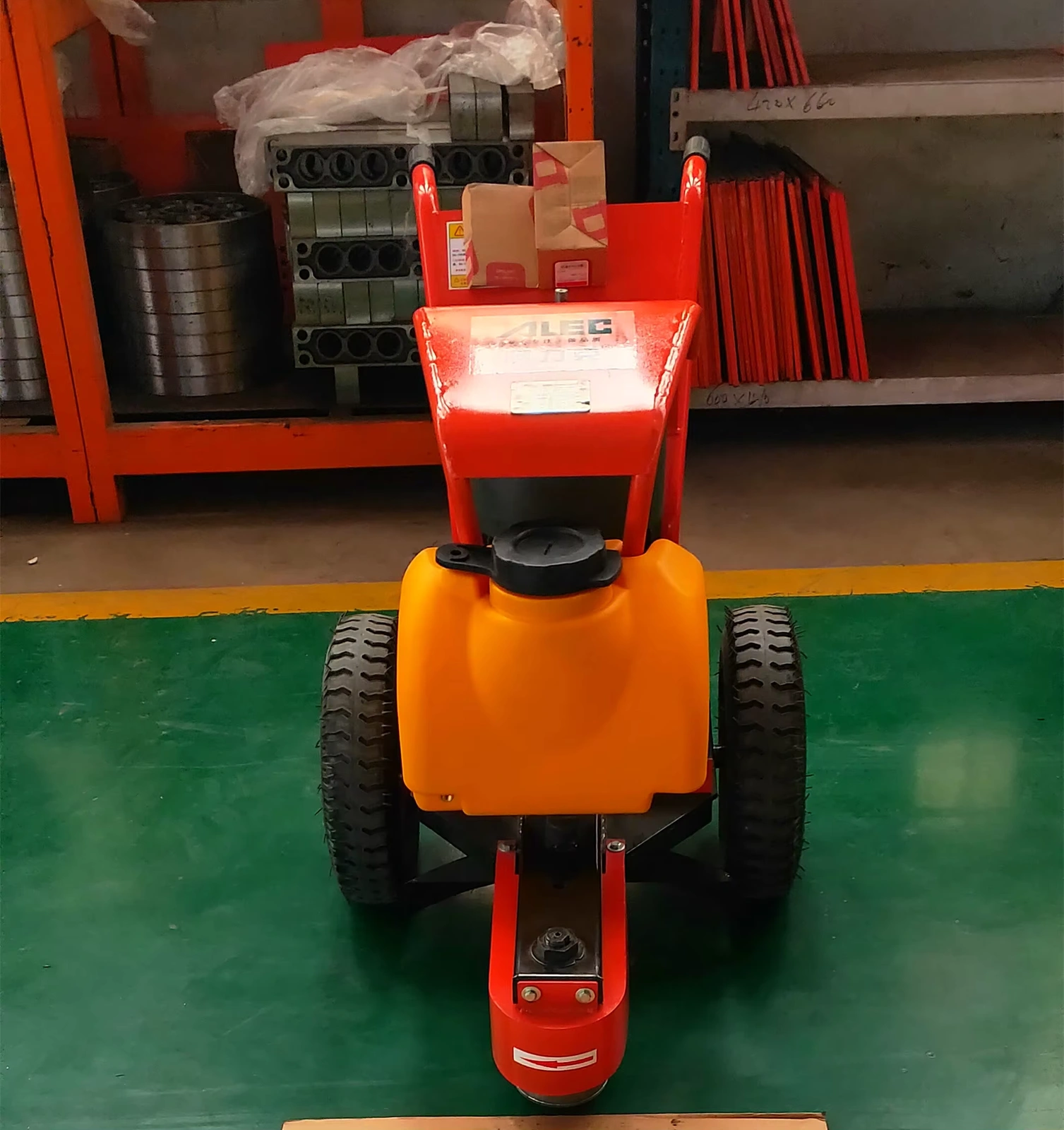

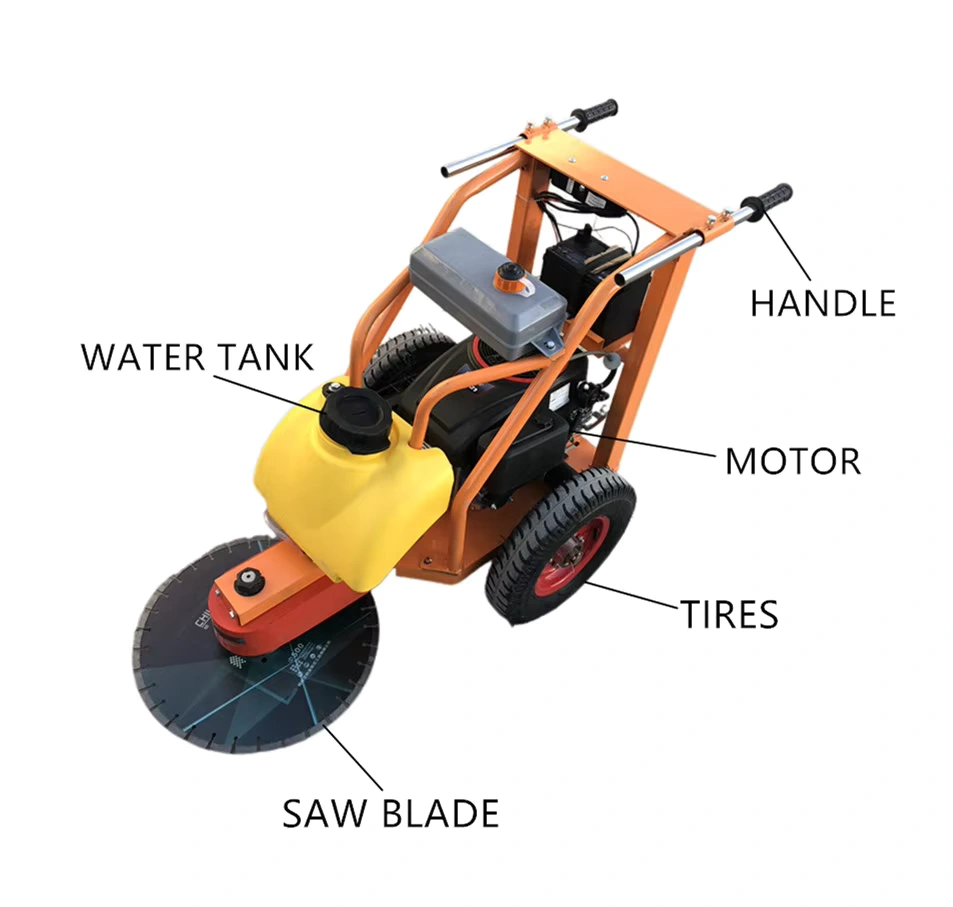

Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
Hand-Push Concrete Pile Cutting Saw
Hand-Push Concrete Pile Cutting Saw
The source photographs show a wheeled electric cutting machine with a circular blade, water tank and push handles. The saw and its support geometry must be selected for the intended pile cut; it is not a hydraulic crushing ring.
- Product and application
- Choosing this configuration
- Cut geometry and site setup
- Order and service details
Technical Specifications
| Listed mass | 180 kg |
|---|---|
| Power options or source rating | 7.5kw/9kw/11kw |
| Source engine type | Electric Motor |
| Voltage options; exact motor to confirm | 220V/380V/415V/440V/customized |
| Source speed field | 2900r/min |
| Source working-width field; scope to confirm | 400-800mm |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The source photographs show a wheeled electric cutting machine with a circular blade, water tank and push handles. The saw and its support geometry must be selected for the intended pile cut; it is not a hydraulic crushing ring.
Choosing this configuration
The source contains an unrelated slurry-extraction use field and a working-width range without a defined cutting-depth relationship. Confirm pile shape, reinforcement, blade diameter, mounting and actual reach; motor and voltage lists describe options, not simultaneous ratings.
Cut geometry and site setup
Provide concrete dimensions, reinforcement and the intended cut or core. Confirm the selected diamond tool, drive interface, water arrangement and support or anchoring. A supplied motor rating does not establish cutting depth or bit diameter by itself.
Order and service details
Request the delivered model identification, operating manual, parts list and an itemised equipment schedule. Consumables, accessories and transport items shown separately must be confirmed in the quote rather than assumed included.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The source photographs show a wheeled electric cutting machine with a circular blade, water tank and push handles. The saw and its support geometry must be selected for the intended pile cut; it is not a hydraulic crushing ring.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Are blade and core bit interchangeable?
No. Select the tool and mounting for the actual saw or drilling spindle.
Does the listing prove every reinforcement capacity?
Material and tool conditions need confirmation; a broad application field is not a universal test result.
Which configuration should I request?
Provide concrete dimensions, reinforcement and the intended cut or core. Confirm the selected diamond tool, drive interface, water arrangement and support or anchoring. A supplied motor rating does not establish cutting depth or bit diameter by itself.
What is required for replacement parts?
Use the delivered model and component identification together with photographs and measured mounting interfaces.
What needs checking for this particular listing?
The source contains an unrelated slurry-extraction use field and a working-width range without a defined cutting-depth relationship. Confirm pile shape, reinforcement, blade diameter, mounting and actual reach; motor and voltage lists describe options, not simultaneous ratings.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
