30 Diesel Concrete Pump
Diesel concrete pump 30 with listed 66 kW engine and theoretical 15–18 m³/h output. Review the mixture, route and hydraulic configuration.
Technical Specifications
| Listed engine power | 66 kW |
|---|---|
| Listed delivery capacity | 15–18 m³/h theoretical |
| Listed maximum pressure | 18 MPa |
| Listed maximum particle size | ≤30 mm |
| Listed vertical conveying limit | 70–90 m |
| Listed horizontal conveying limit | 150–180 m |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
Product Description
Diesel model 30 for concrete delivery
This is the diesel model 30 concrete pump, not the electric version with the same model number. The source lists a 66 kW engine, theoretical 15–18 m³/h output, 18 MPa and aggregate ≤30 mm. Confirm the engine model and pumping configuration for the mixture to be supplied.
Quoted reach needs the actual line layout
The archived listing gives 70–90 m vertically and 150–180 m horizontally as separate limits. These are not a guarantee for a route combining both extremes. Send the line length, lift, bends and mix details; hydraulic-pump data and final transport dimensions should be stated in the quotation.
Confirming the supplied machine
Send the concrete mixture, required output, vertical lift, horizontal route and site power or fuel arrangements. Request the current key parameters, hydraulic-pump specifications, delivery-line diameter and final supply scope. Listed delivery rates and distance limits depend on configuration and material and are not guaranteed site output. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.
Views show configurations in the source materials. The quotation defines the supplied configuration.
Packaging & Shipping
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Configuration Options
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
Product FAQ
Can electric model 30 data be used for this pump?
No. This diesel entry has its own engine and pressure ratings. Compare only the specified configuration.
Do the two distance ranges describe one guaranteed route?
No. They are separate listing limits. The combined site route must be checked with the material and delivery line.

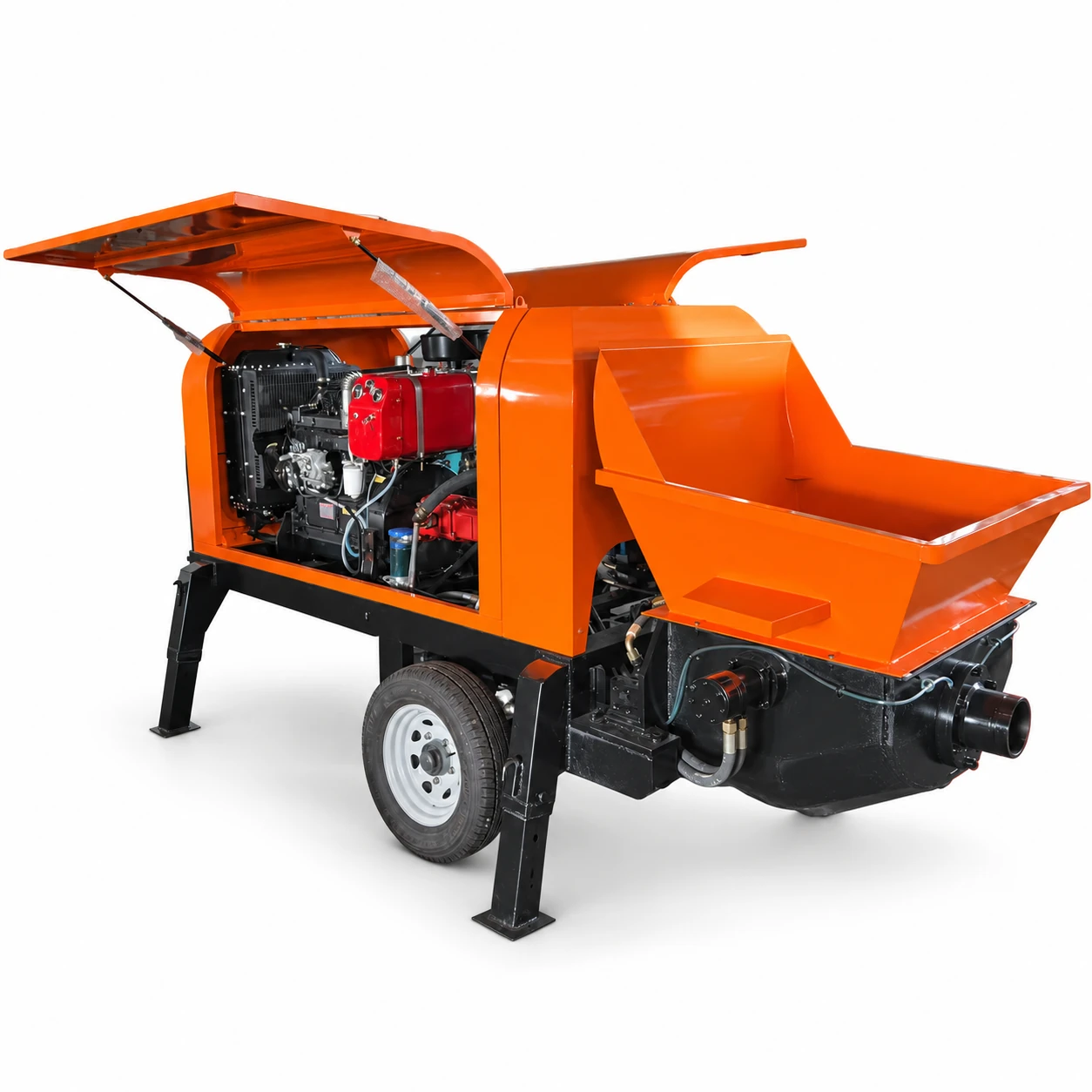

Is the pictured engine the final supplied engine?
The view shows a source configuration. Have the engine make, model, access arrangement and accessory list confirmed before order.
