Model to be confirmed

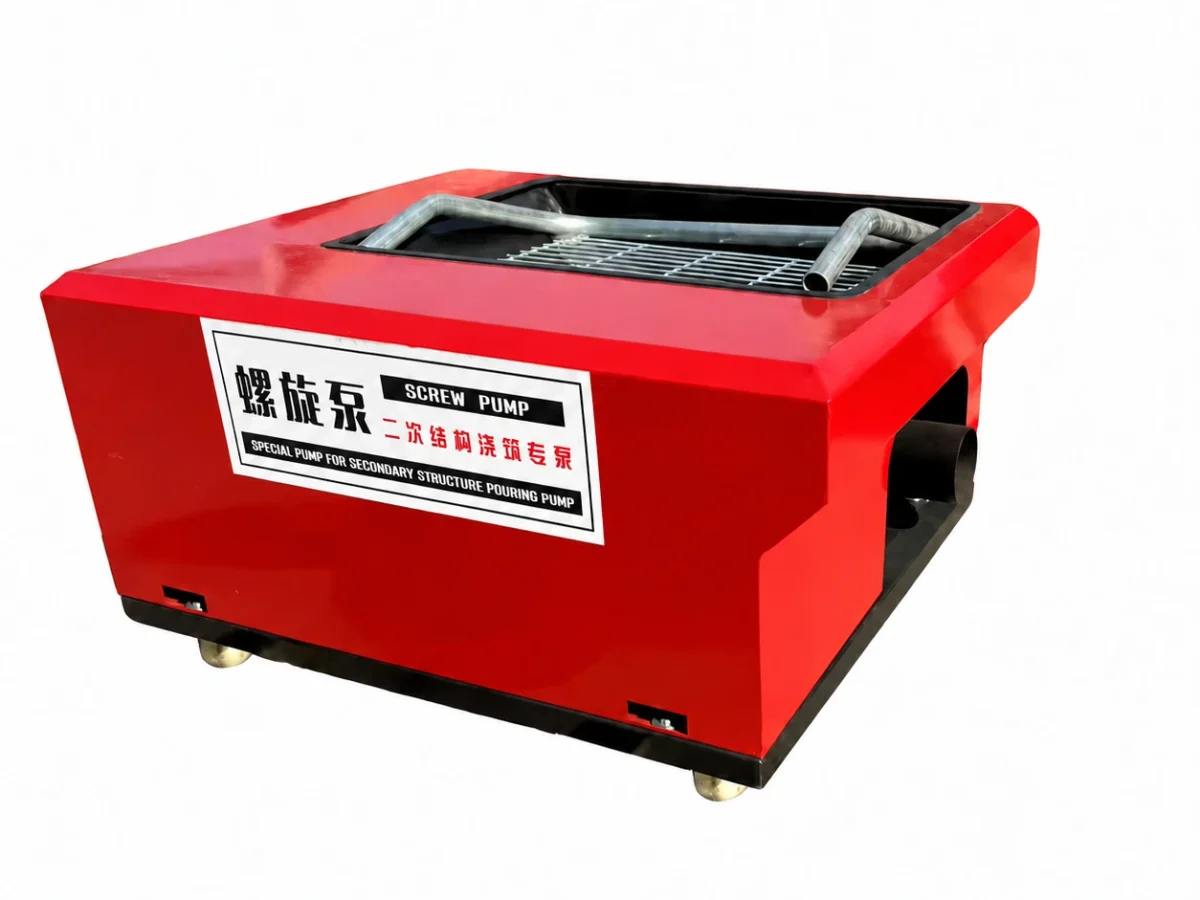

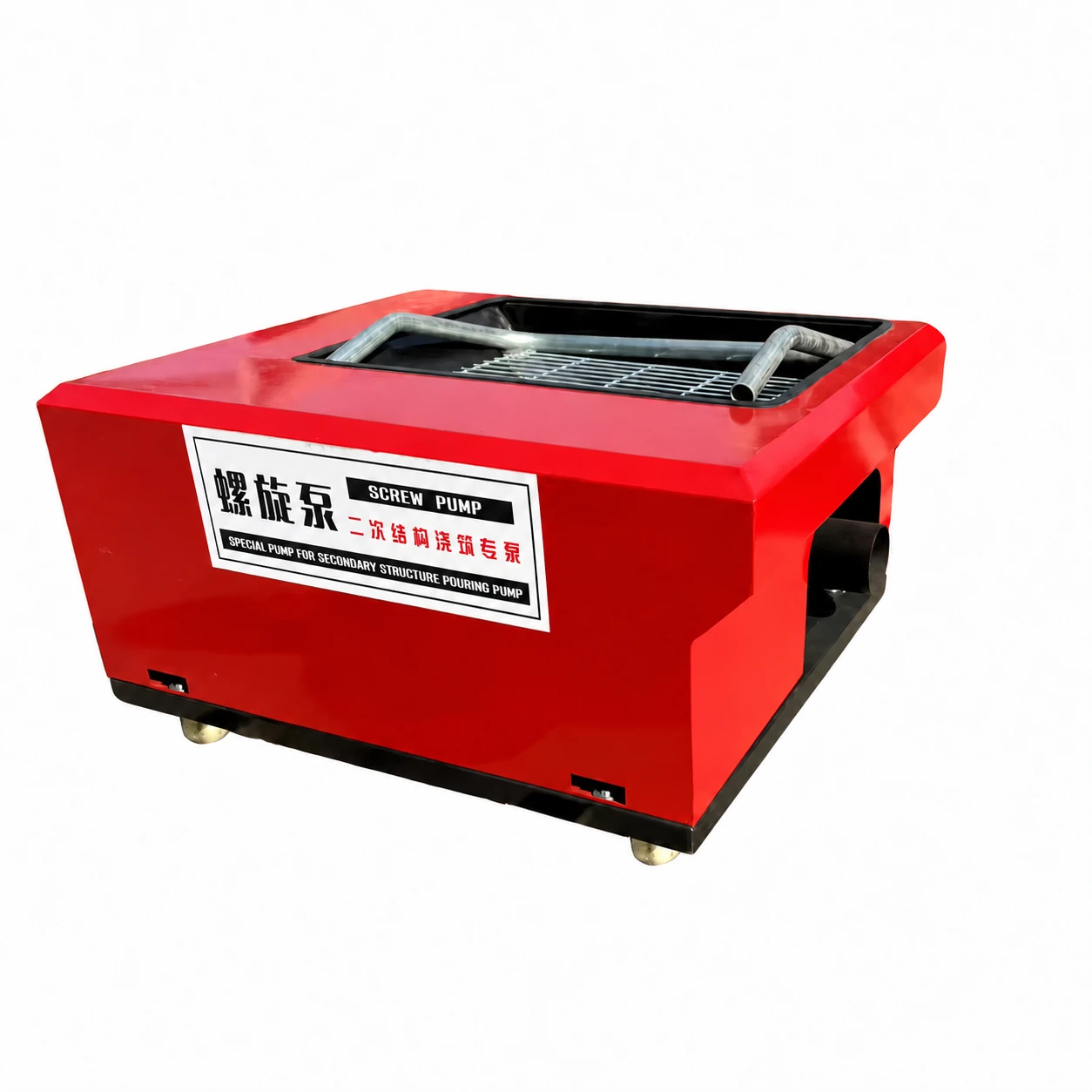

7.5 kW Compact Electric Screw Concrete Pump
Compact electric screw concrete pump with listed 7.5 kW and 5–8 m³/h feed. Check aggregate, mixture and the short delivery route before selection.
Technical Specifications
| Listed motor power | 7.5 kW |
|---|---|
| Listed supply option | 220 / 380 V options |
| Listed delivery capacity | 5–8 m³/h |
| Listed vertical conveying limit | 8–10 m |
| Listed horizontal conveying limit | 10 m |
| Listed maximum particle size | 0–2 cm |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
Product Description
Compact concrete transfer through a delivery hose
This electric screw concrete pump is listed with a 7.5 kW motor and 5–8 m³/h feed. It is a candidate for transferring a compatible mixture along a configured delivery line. The source particle figure is 0–2 cm; it does not replace an assessment of grading, consistency and pump suitability.
Check the route and electrical configuration

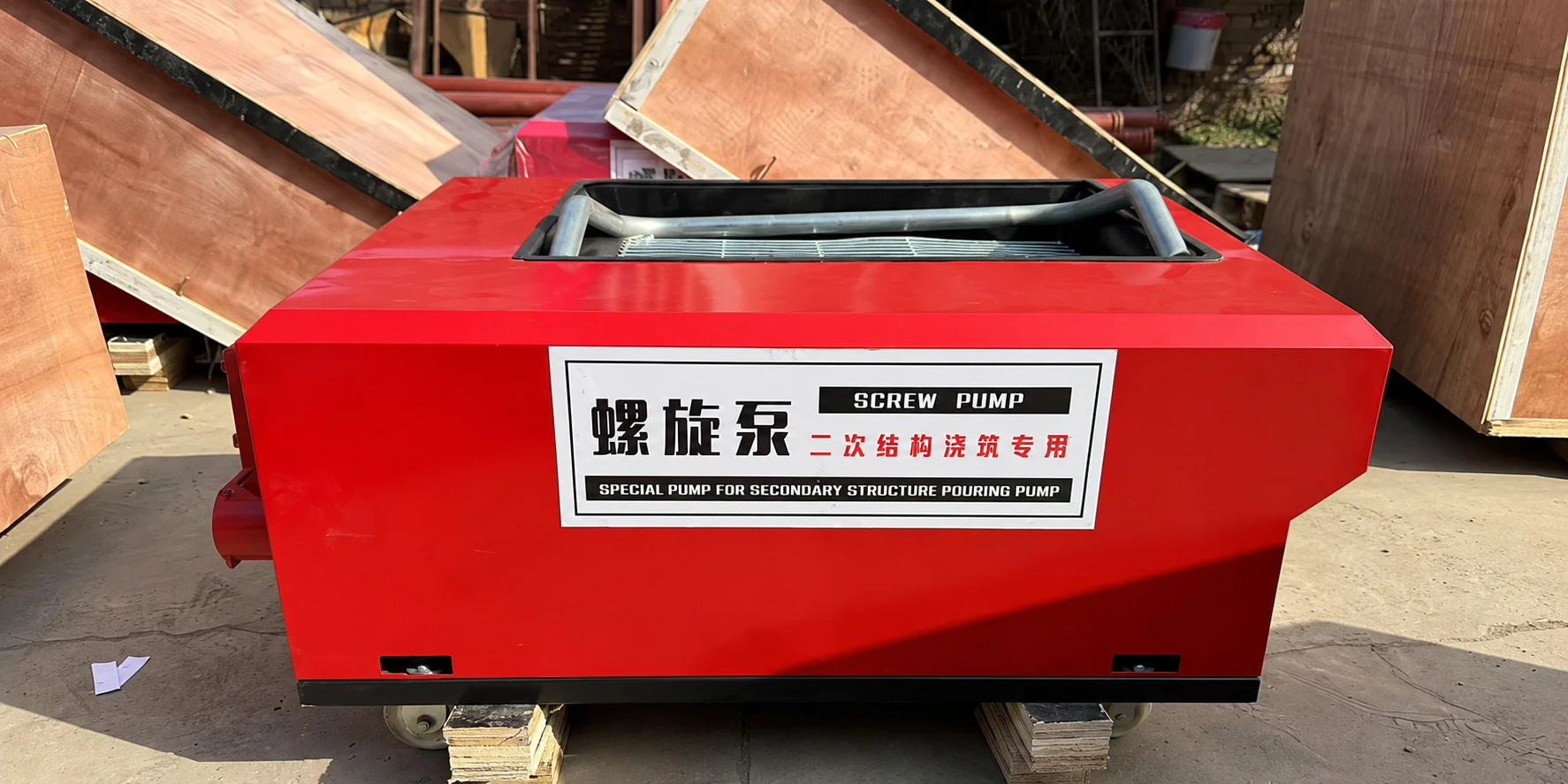

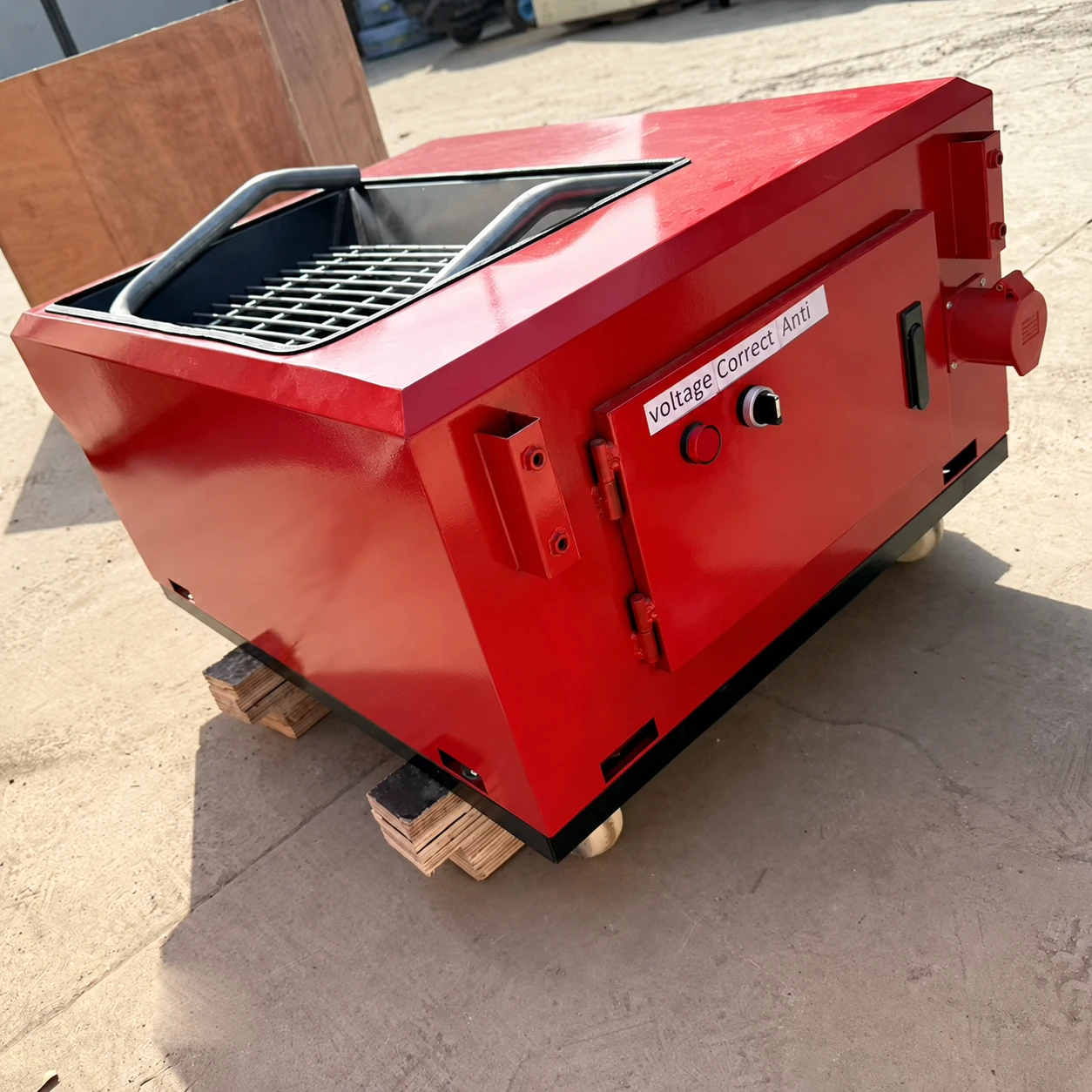

The reviewed listing gives 8–10 m vertical reach and 10 m horizontal reach as separate values. It also describes 220/380 V options. Confirm the supplied motor, circuit requirements, hose diameter and pressure before ordering. The source photos show the machine and accessible controls, not a guaranteed accessory package.
Confirming the supplied machine
Send the concrete mixture, required output, vertical lift, horizontal route and site power or fuel arrangements. Request the current key parameters, hydraulic-pump specifications, delivery-line diameter and final supply scope. Listed delivery rates and distance limits depend on configuration and material and are not guaranteed site output. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.
Views show configurations in the source materials. The quotation defines the supplied configuration.
Packaging & Shipping
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Configuration Options
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
Product FAQ
Is it the same as the multi-power compact pump?
This entry is the listed 7.5 kW configuration. Compare the selected motor and body arrangement rather than assuming compact pumps are identical.
Is 5–8 m³/h guaranteed on the jobsite?
No. It is the source-listed feed range. The actual mixture and delivery line must be assessed for the required output.
Can it pump any concrete with small aggregate?
Particle size alone is insufficient. Provide the grading and mix consistency so suitability can be confirmed.
