XHBT30D-66
XHBT30D-66 Concrete Pump

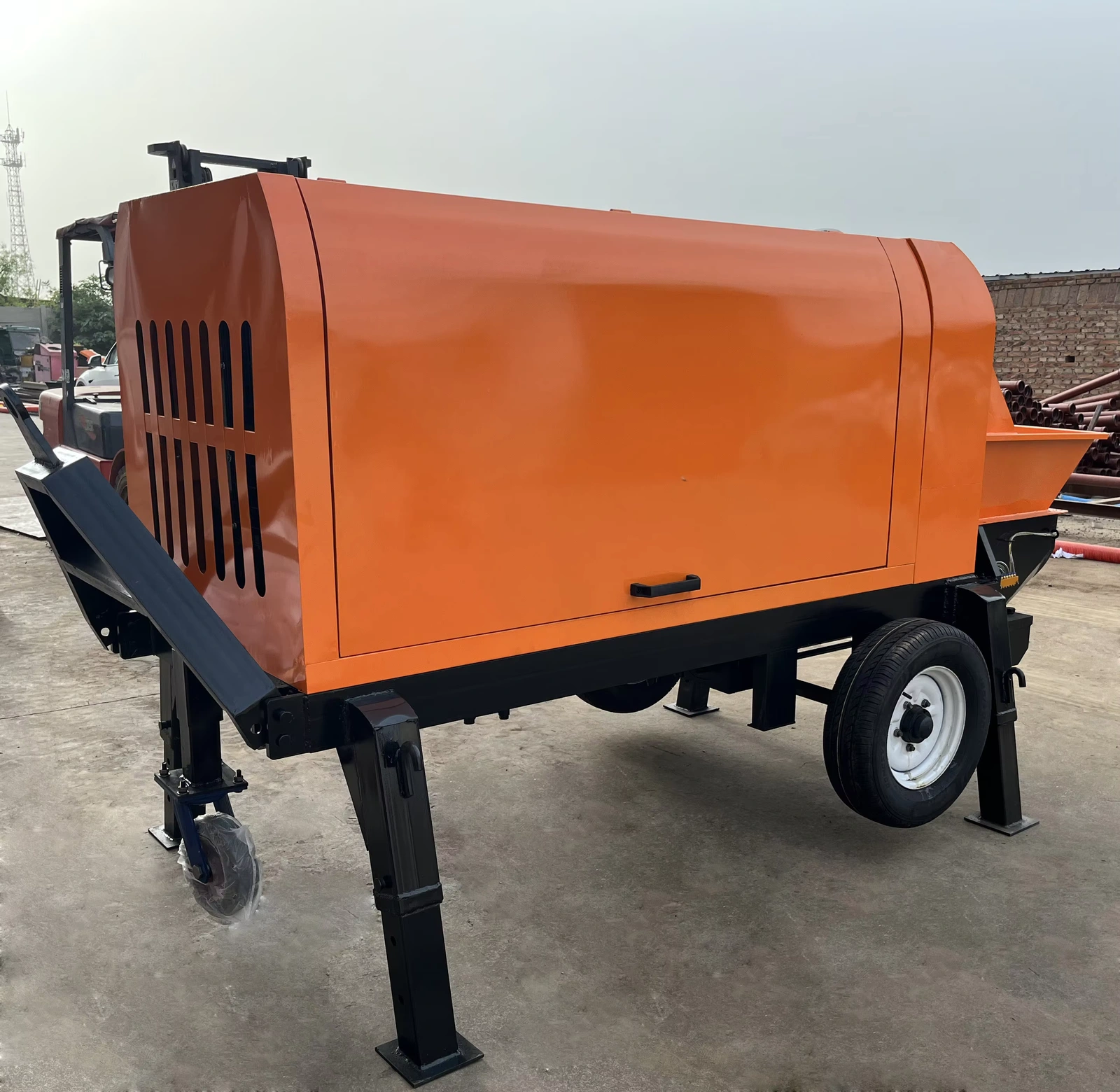

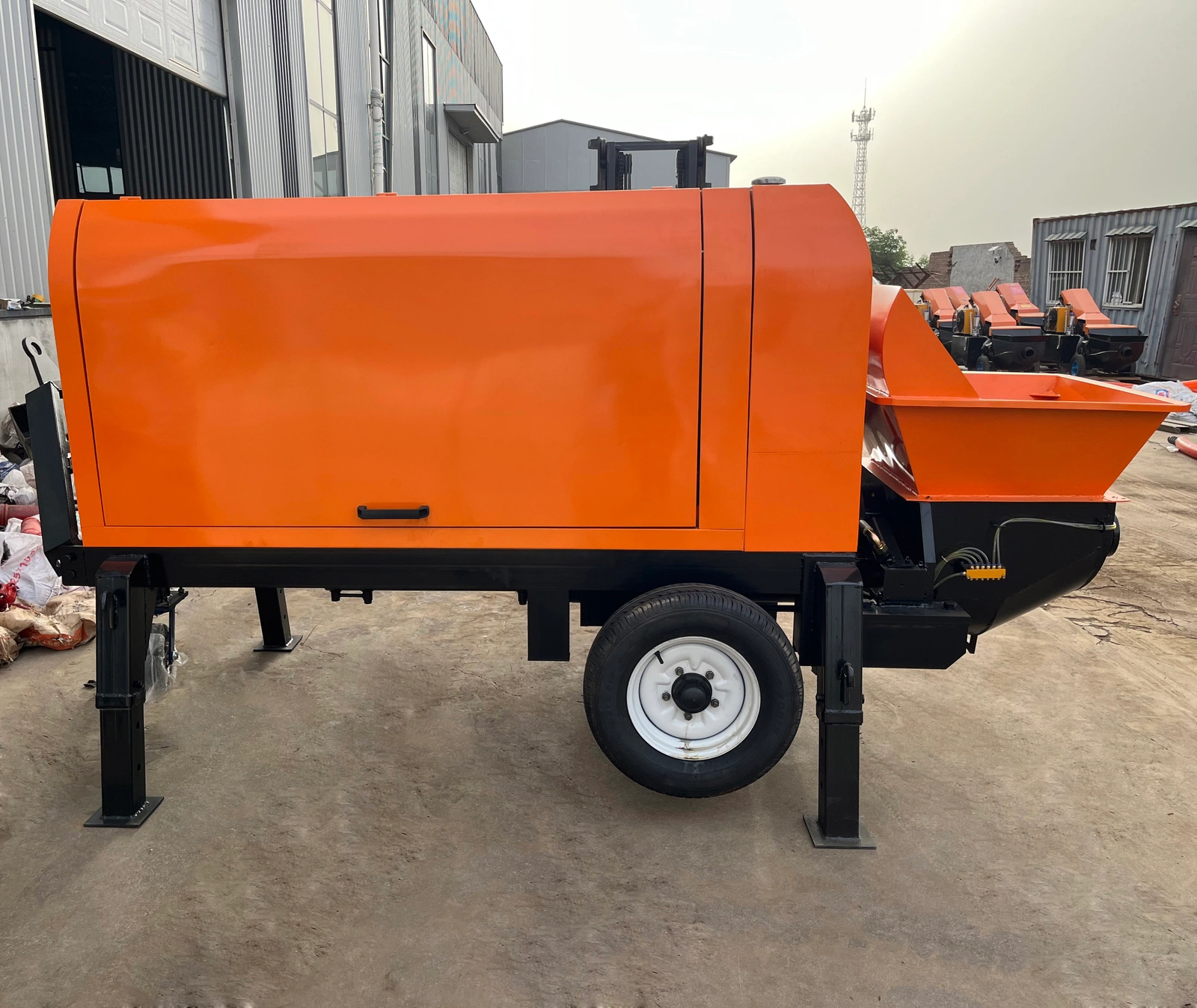

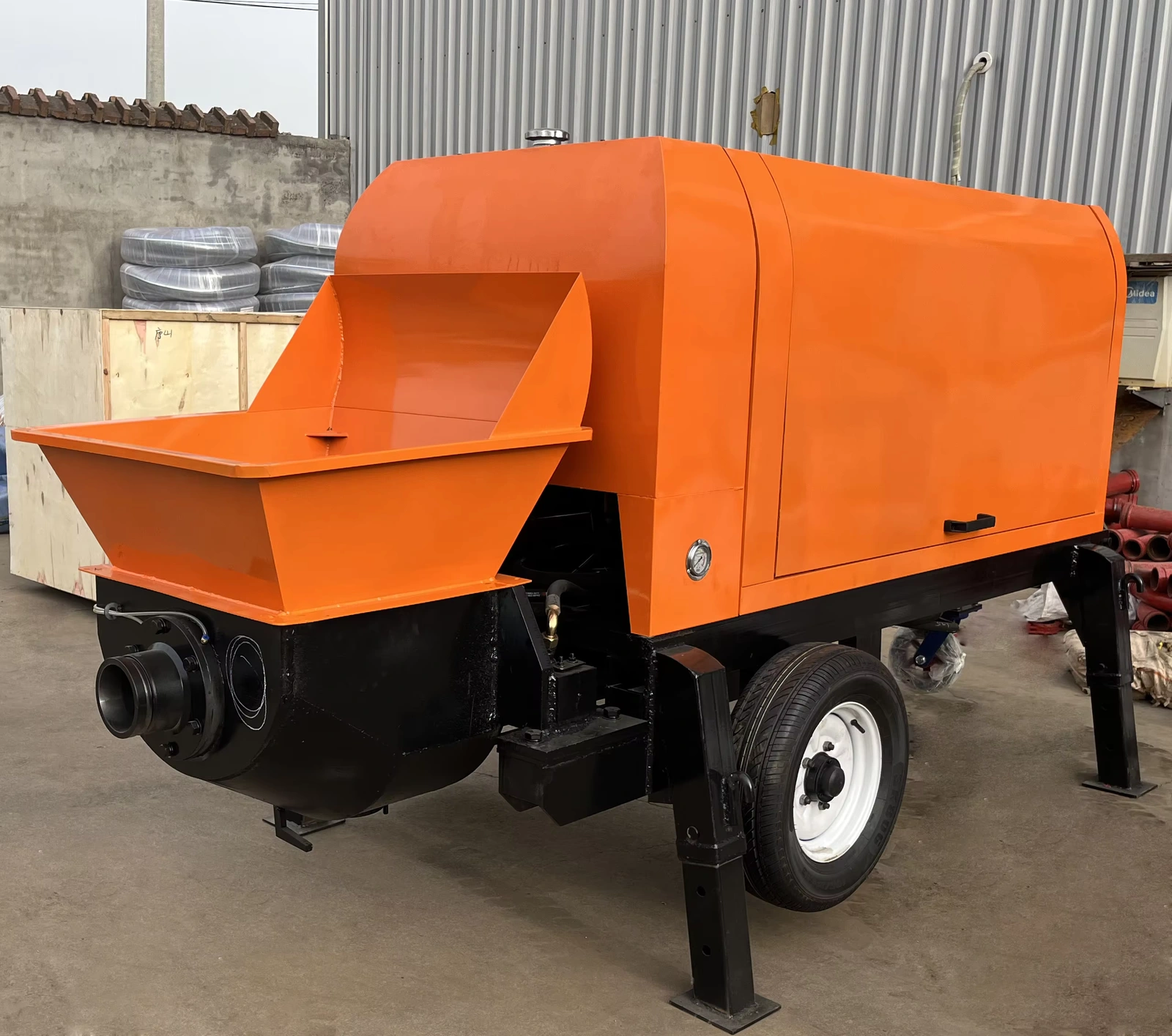

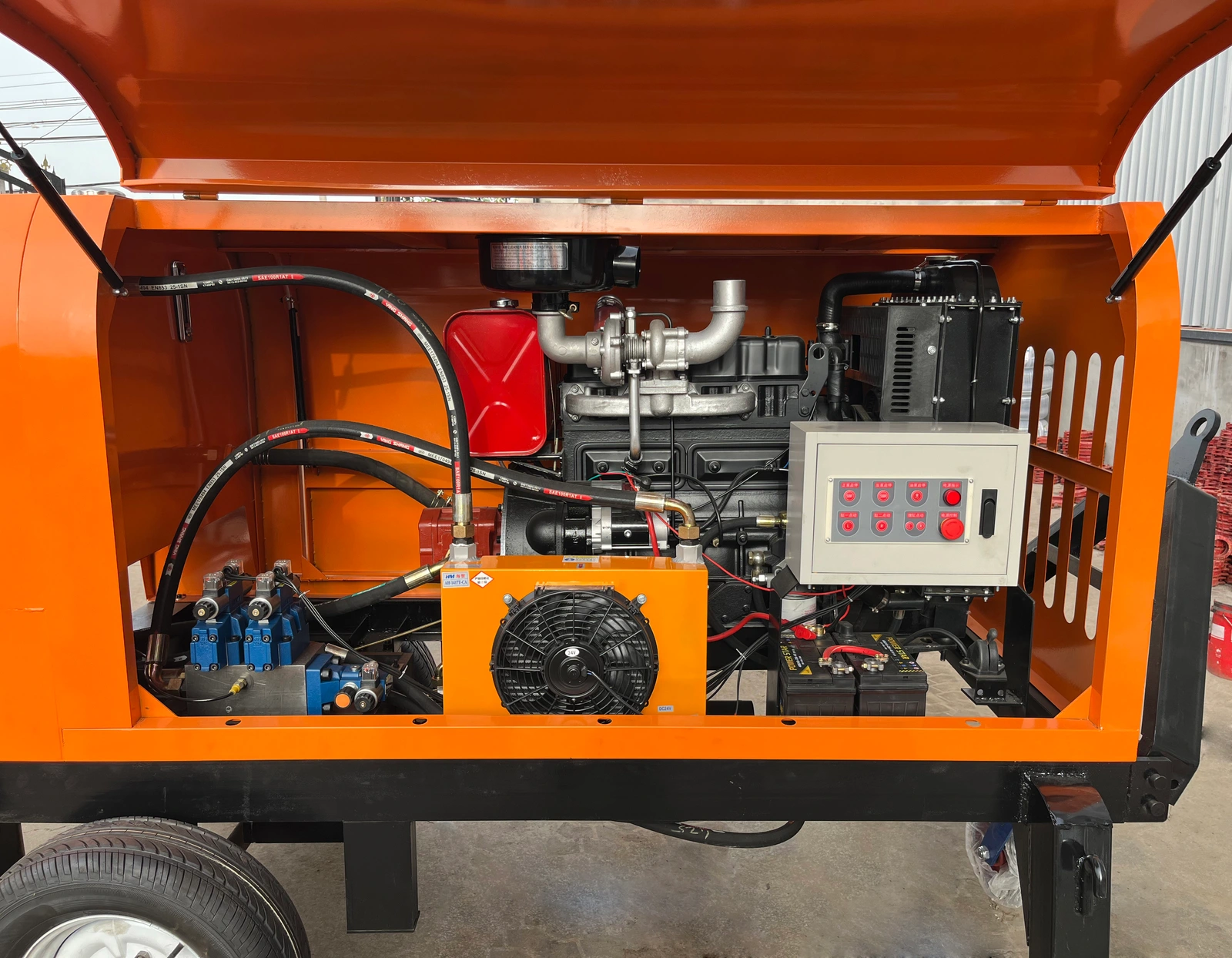

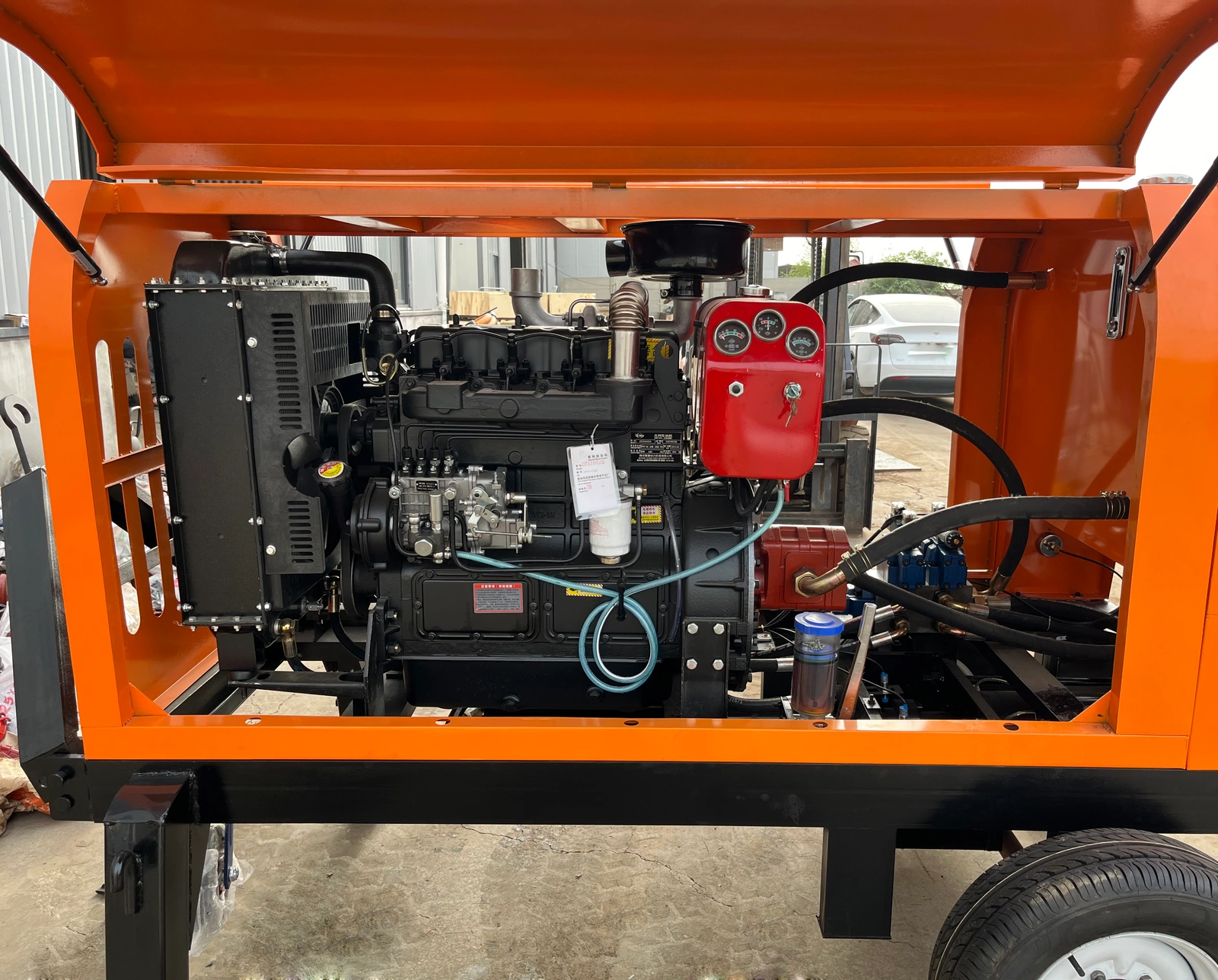

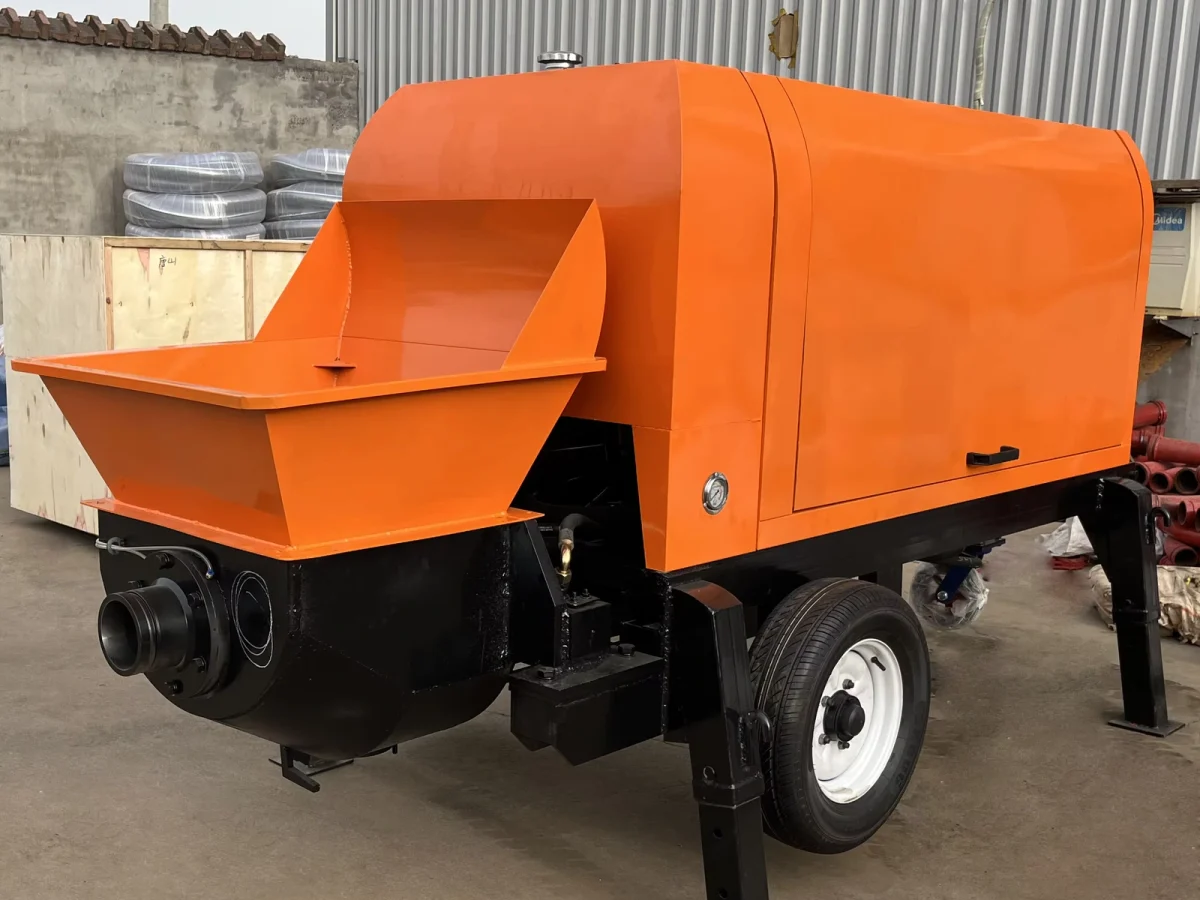

The XHBT30D-66 listing shows an enclosed, wheeled concrete pump with a receiving hopper and pipe connection. Several original workshop photographs show the outside and the open drive compartment.
- What this product is for
- Configuration and specification checks
- Plan the mix and pipeline together
- Check the delivery and service scope
Technical Specifications
| Listed machine weight | 2000 kg |
|---|---|
| Listed overall dimensions | 3800*1450*1600mm |
| Supplier output claim; site conditions to confirm | 15-18m3/h |
| Source-listed aggregate limit; mix suitability to confirm | ≤ 30mm |
| Source-listed maximum pressure; circuit meaning to confirm | 18mpa |
| Source-listed cylinder dimensions; drawing to confirm | 140*700mm |
| Source-listed drive power | 66KW |
| Source-listed delivery pipe options | 100mm |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for
The XHBT30D-66 listing shows an enclosed, wheeled concrete pump with a receiving hopper and pipe connection. Several original workshop photographs show the outside and the open drive compartment. It is an option for placing suitable pumpable concrete through a planned pipeline, not a self-loading mixer or a complete truck.
Configuration and specification checks
Listed figures include 15-18m3/h, aggregate ≤ 30mm, a 100mm pipe and 66KW. Diesel/Electric appears as a drive choice, not two included drives. The 70-90m vertical and 150-180m horizontal figures are not simultaneous route guarantees. Oil pump power is recorded as 100L/S, which is not a power unit; request a corrected hydraulic specification.
Plan the mix and pipeline together
Give the concrete composition, maximum aggregate size, required delivery rate and a route drawing showing rise, total length, bends and hose sections. The pump, line and mix must be assessed together. Maximum distance, pressure and output fields cannot be combined into an assumed performance point. Request a route-specific quotation and supporting operating information.
Check the delivery and service scope
Agree the pipe and hose lengths, clamps, reducers, cleaning equipment, electrical or fuel arrangement and initial spare parts in the quotation. Ask for the pressure-rated component list and the manufacturer’s operating, inspection and cleaning procedures. Original workshop photographs show access to components; they do not replace those documents or confirm road-towing approval.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
The XHBT30D-66 listing shows an enclosed, wheeled concrete pump with a receiving hopper and pipe connection. Several original workshop photographs show the outside and the open drive compartment. It is an option for placing suitable pumpable concrete through a planned pipeline, not a self-loading mixer or a complete truck.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Are maximum distance and output achieved together?
That is not established. Request a performance point for the proposed mix, line size, bends and elevation.
Are delivery pipes and hoses included?
Agree each line component, length, connection and pressure rating in an itemised quotation.
What information is needed to assess the mix?
Send the mix composition, aggregate grading, required rate and full route drawing. A maximum aggregate field alone is insufficient.
Can the pictured wheeled pump be road-towed?
Road approval, towing equipment and legal suitability are not established by these photos. Request the relevant supplier documents before transport planning.
What needs confirmation in this particular listing?
Listed figures include 15-18m3/h, aggregate ≤ 30mm, a 100mm pipe and 66KW. Diesel/Electric appears as a drive choice, not two included drives. The 70-90m vertical and 150-180m horizontal figures are not simultaneous route guarantees. Oil pump power is recorded as 100L/S, which is not a power unit; request a corrected hydraulic specification.
What should I send to select this product?
Give the concrete composition, maximum aggregate size, required delivery rate and a route drawing showing rise, total length, bends and hose sections. The pump, line and mix must be assessed together. Maximum distance, pressure and output fields cannot be combined into an assumed performance point. Request a route-specific quotation and supporting operating information.
