Source photographs and explicitly labelled close-up crops are shown. Five gallery materials do not imply five camera angles. Accessories, model variations and the delivered configuration require confirmation.
Model to be confirmed
Sectional Concrete Truss Screed

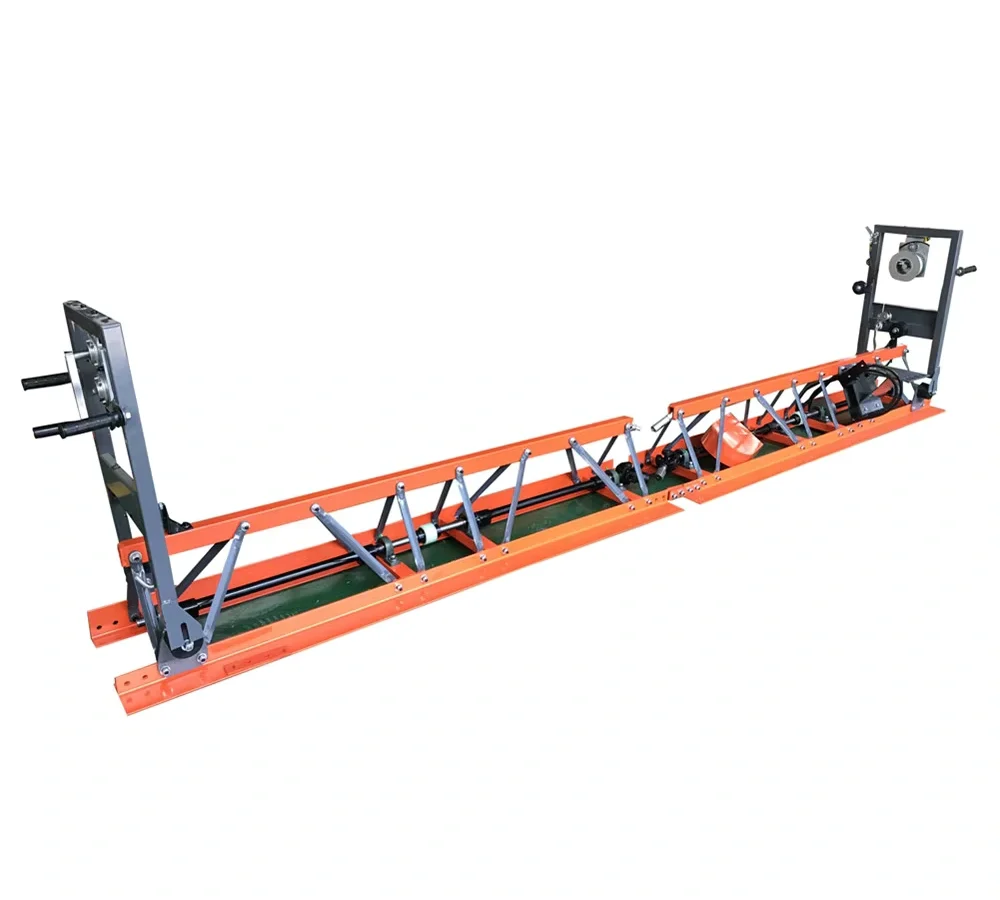

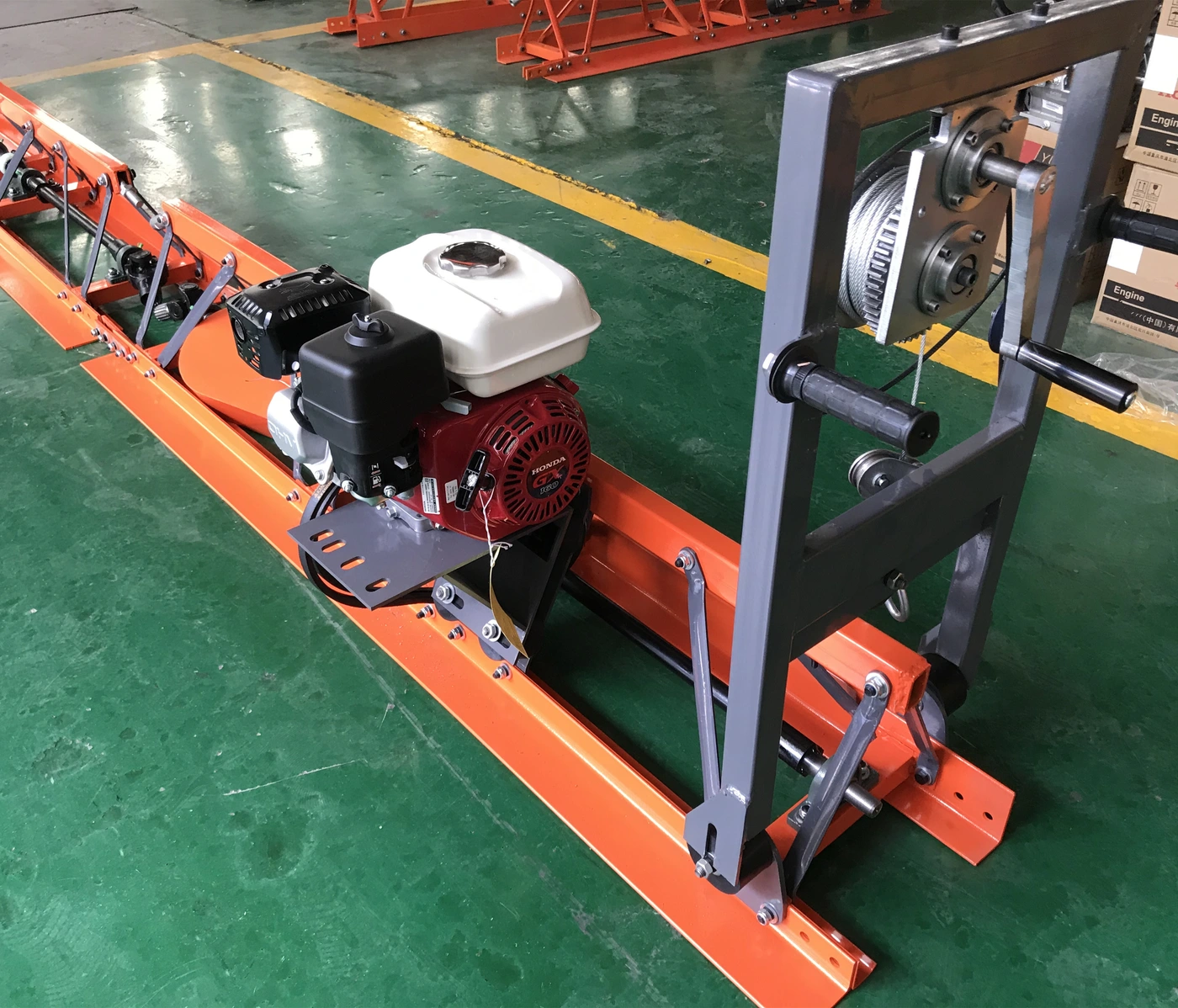

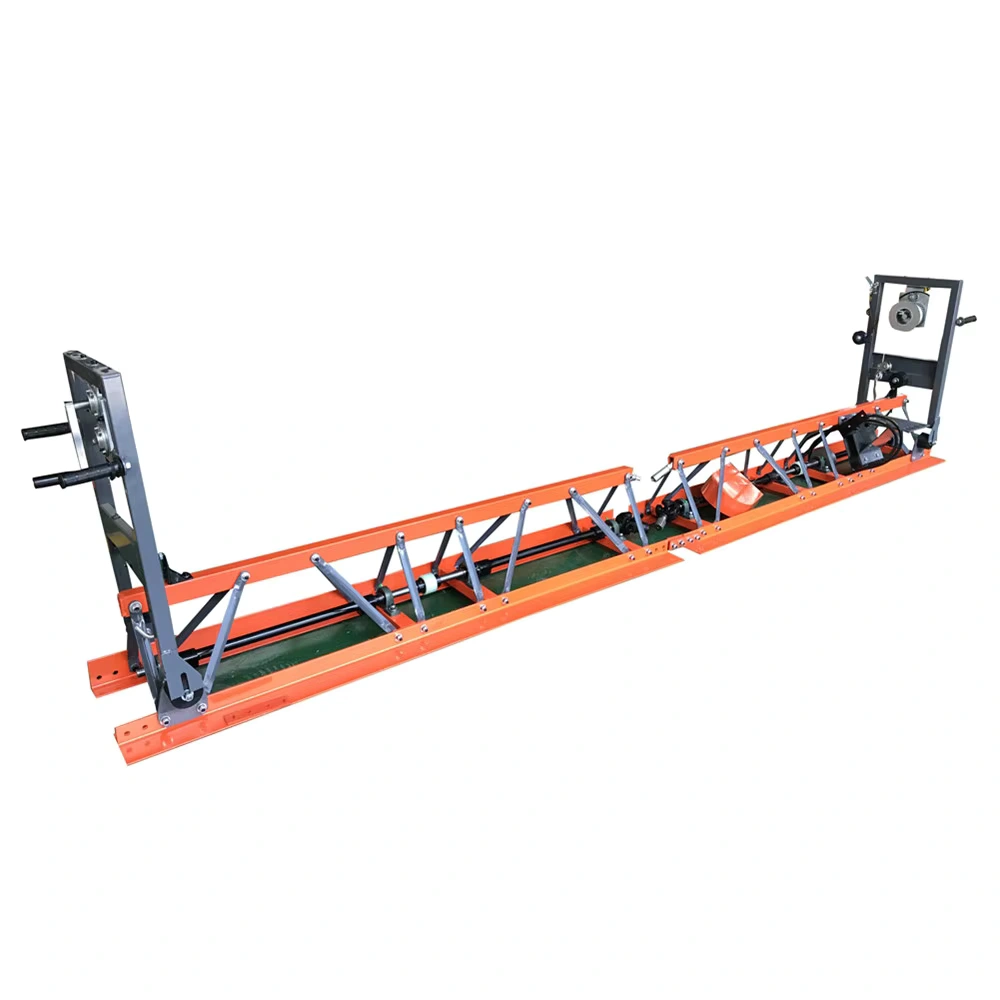

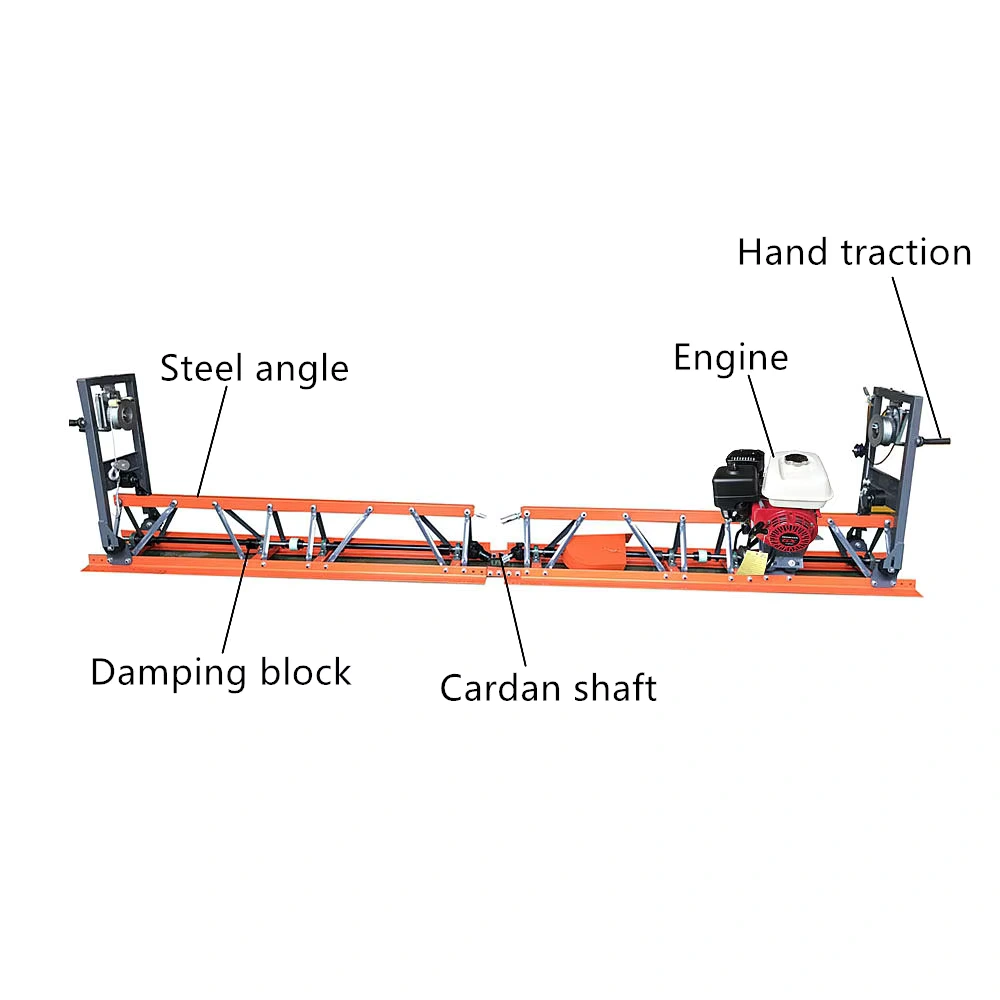

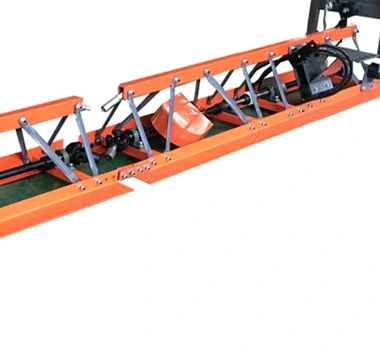

This truss screed is assembled from beam sections to span a fresh-concrete placement. The source shows the frame, drive and end assemblies. Select the assembled length for the pour and confirm the support and movement arrangement with the supplier.
- An assembled beam for concrete placement
- Quote the complete beam, not one section
Technical Specifications
| Source-listed drive power | 5.5hp |
|---|---|
| Source-listed section lengths | 1 meter per section/2 meters per section |
| Source-listed travel speed | 1-5m/min |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
Product Description
An assembled beam for concrete placement
This truss screed is assembled from beam sections to span a fresh-concrete placement. The source shows the frame, drive and end assemblies. Select the assembled length for the pour and confirm the support and movement arrangement with the supplier.
Quote the complete beam, not one section

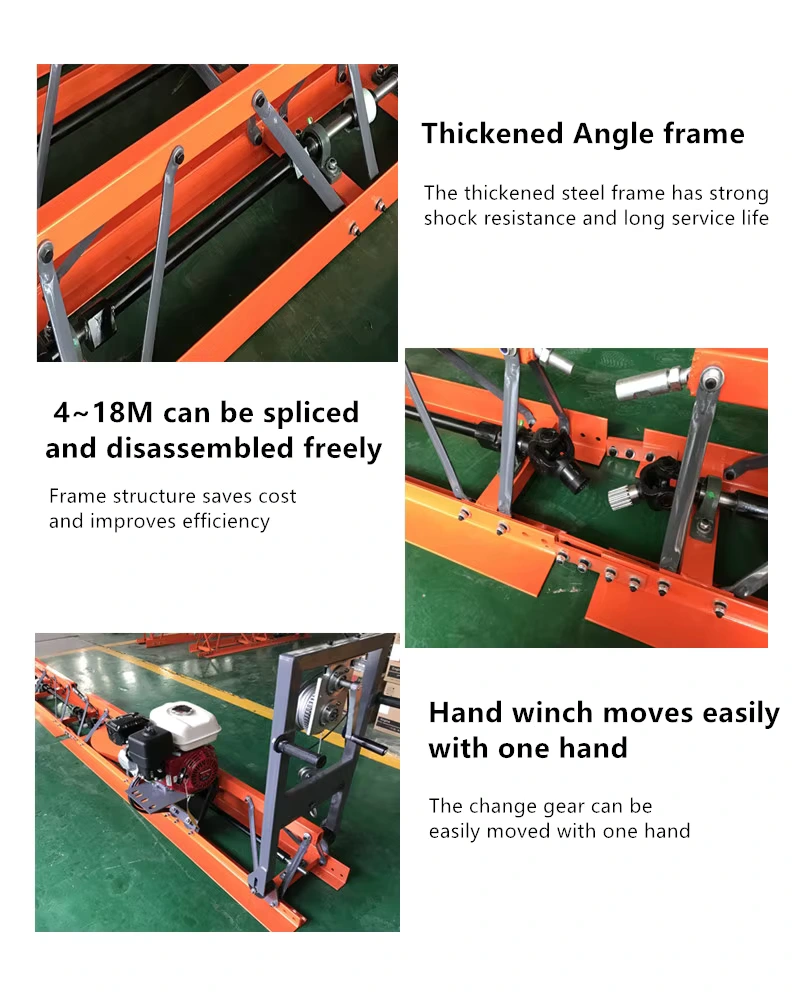

The source gives 1m and 2m sections and a 5.5hp drive, but different panels advertise different total-length ranges. It also mixes a weight entry with a weight-per-length entry. Obtain the complete assembly dimensions and weight before planning transport or handling.
Before ordering
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
Applications
This truss screed is assembled from beam sections to span a fresh-concrete placement. The source shows the frame, drive and end assemblies. Select the assembled length for the pour and confirm the support and movement arrangement with the supplier.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
Product FAQ
What length is included?
An offered range is not the supplied length. Specify the assembled span and list the sections in the quotation.
Is the section weight the total weight?
No. Request the total configured weight including the drive and end assemblies.
What should I send with an enquiry?
Send the slab width, rail spacing, concrete conditions and transport restrictions. Request a drawing listing every section, total assembled span, drive and handling weight.
