Model to be confirmed
Portable Electric Concrete Vibrator Drive

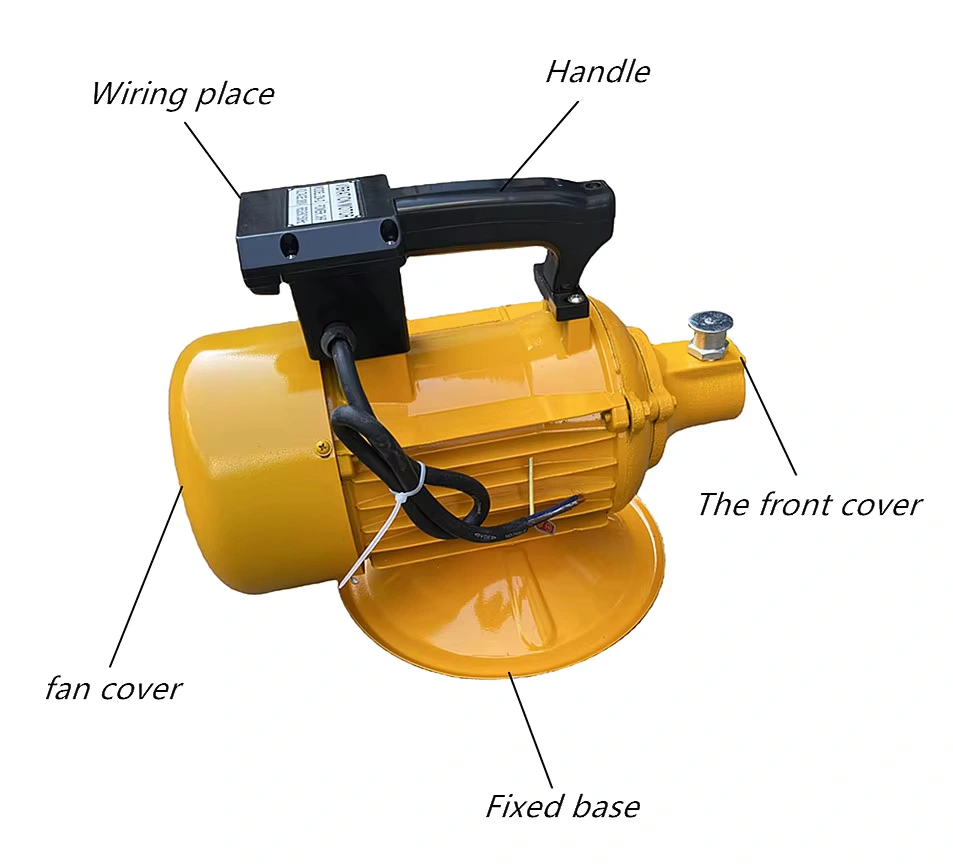

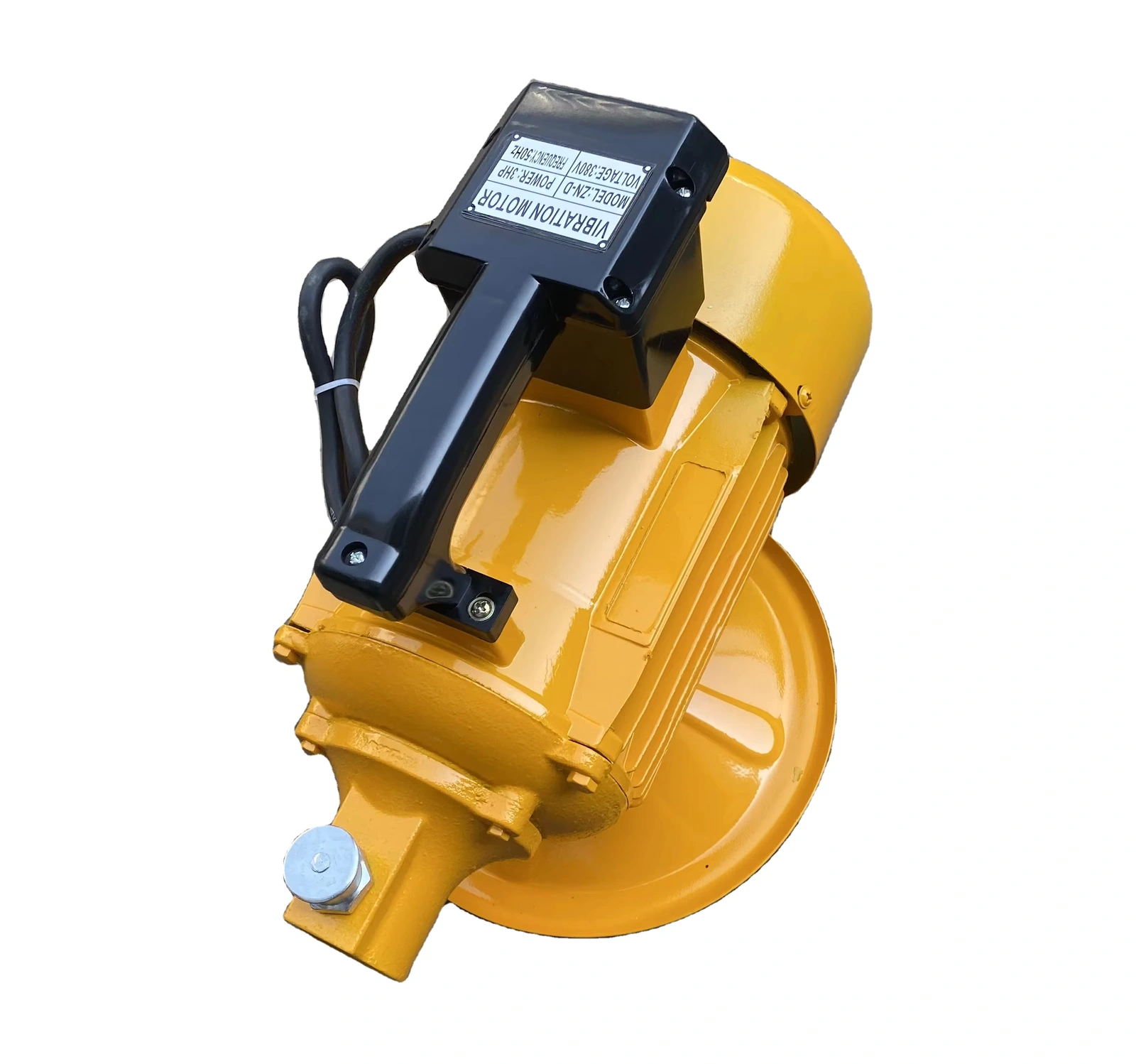

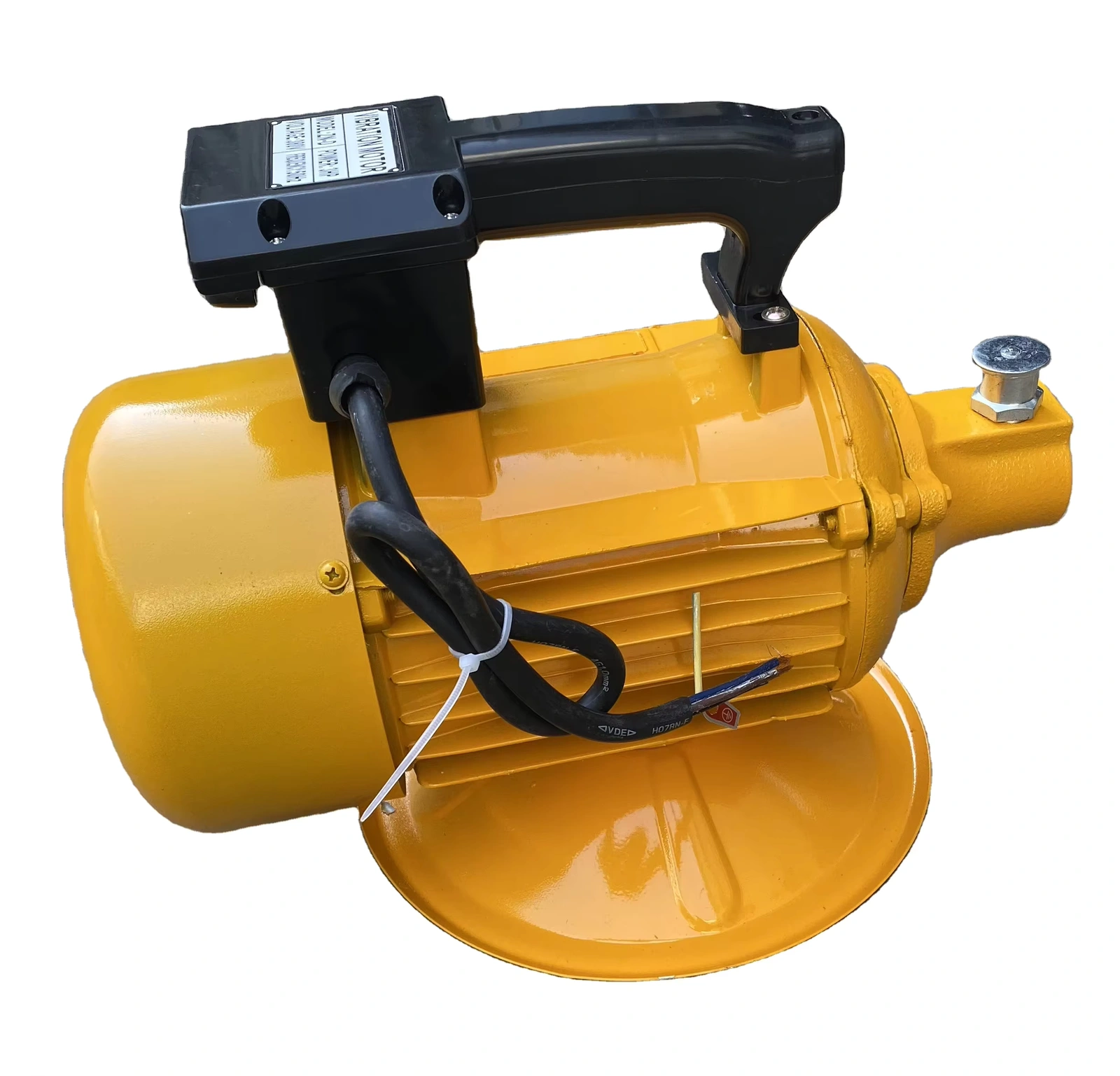

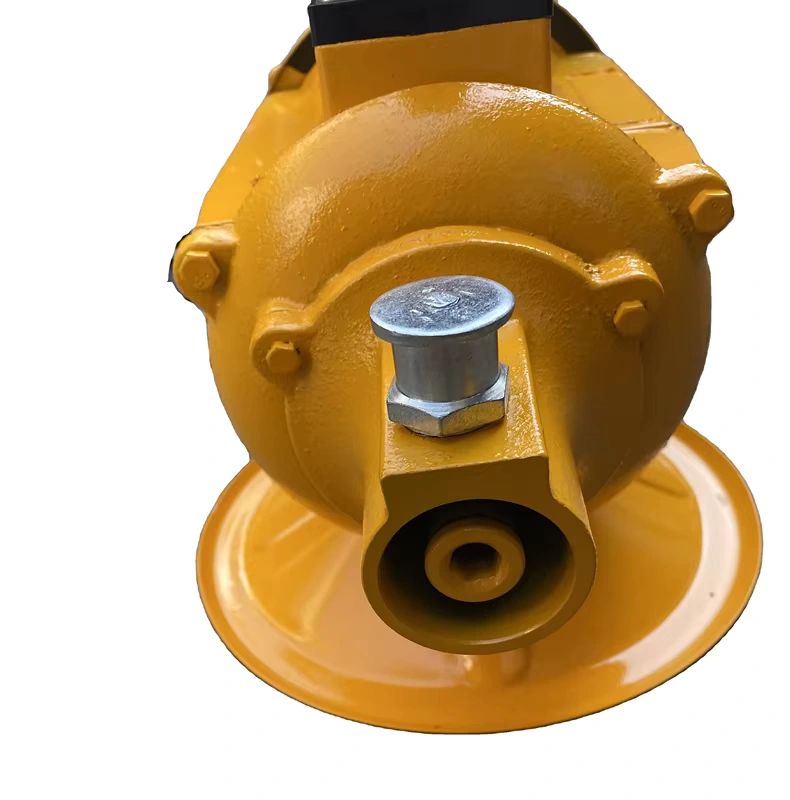

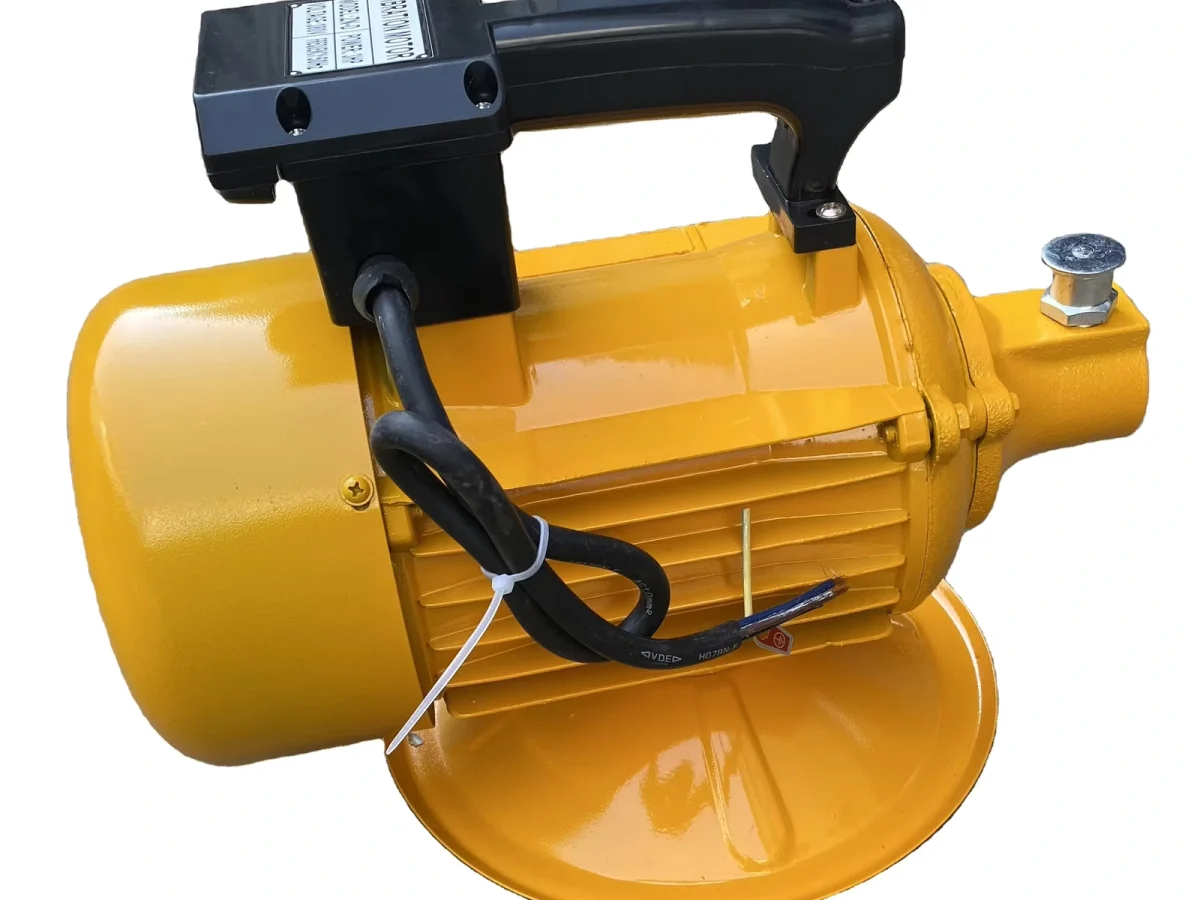

A carrying handle, motor housing, base and front shaft connection identify the pictured unit as a portable drive. Used with a compatible flexible shaft and poker, it is intended for fresh-concrete consolidation.
- What this product is for
- Configuration and specification checks
- Matching the drive to the pour
- What to have ready on site
Technical Specifications
| Source-listed amplitude; conditions unspecified | 0.9mm |
|---|---|
| Listed flexible-shaft options | 2-6m |
| Electrical options; selected version to confirm | 220V/380V |
| Listed machine weight | 14 kg |
| Listed overall dimensions | 385*280*300mm |
| Source-listed power | 2.2kw |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for

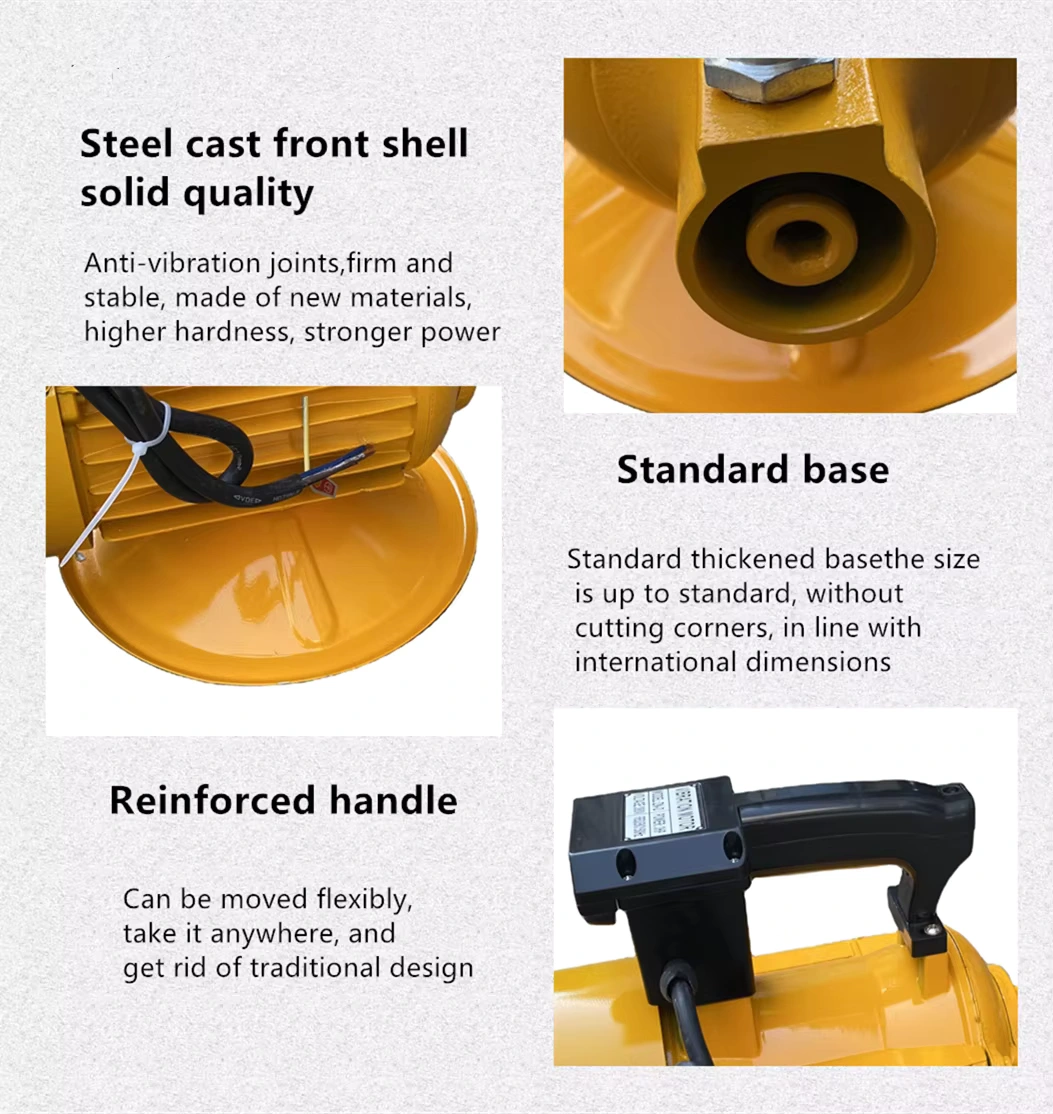

A carrying handle, motor housing, base and front shaft connection identify the pictured unit as a portable drive. Used with a compatible flexible shaft and poker, it is intended for fresh-concrete consolidation. The shaft shown in the supplier panel is a pairing example, not proof that it is included in the motor price.
Configuration and specification checks
The data lists 2.2kw, 220V/380V, shaft lengths 2-6m and 2850r/min. The picture also compares other power and length options. Do not combine those options into one rating or assume both voltages on one motor. The words internal, surface and high frequency are mixed in the source; confirm the drive plate and actual poker specification.
Matching the drive to the pour
Select the poker for the reinforcement spacing and access to the pour, then match its shaft and coupling to the drive. A compact motor or frame makes transport easier but does not determine the poker’s reach or the consolidation result. Send the proposed pour details and existing connector before ordering a replacement assembly.
What to have ready on site
Request the operating manual for the delivered drive and poker, the specified inspection and maintenance schedule, and the list of shaft, coupling and bearing service parts. Confirm whether the price covers the drive only or the matched shaft and poker as well. The photographs do not establish the complete delivery contents.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
A carrying handle, motor housing, base and front shaft connection identify the pictured unit as a portable drive. Used with a compatible flexible shaft and poker, it is intended for fresh-concrete consolidation. The shaft shown in the supplier panel is a pairing example, not proof that it is included in the motor price.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is the shaft and poker included?
Not established by the photographs. Request an itemised drive, coupling, shaft length and poker specification.
Can I use my existing flexible shaft?
Only after the supplier confirms the connector and rated compatibility for that drive. Send its model and connector dimensions.
Does the frequency field specify poker performance?
Not necessarily. Source frequency fields mix drive information and vibration terminology; request separate electrical, shaft and poker ratings.
What documents and spares should be requested?
Request the delivered assembly’s operating manual, inspection schedule and available coupling, shaft and bearing parts.
What needs confirmation in this particular listing?
The data lists 2.2kw, 220V/380V, shaft lengths 2-6m and 2850r/min. The picture also compares other power and length options. Do not combine those options into one rating or assume both voltages on one motor. The words internal, surface and high frequency are mixed in the source; confirm the drive plate and actual poker specification.
What should I send to select this product?
Select the poker for the reinforcement spacing and access to the pour, then match its shaft and coupling to the drive. A compact motor or frame makes transport easier but does not determine the poker’s reach or the consolidation result. Send the proposed pour details and existing connector before ordering a replacement assembly.
