Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
Model to be confirmed

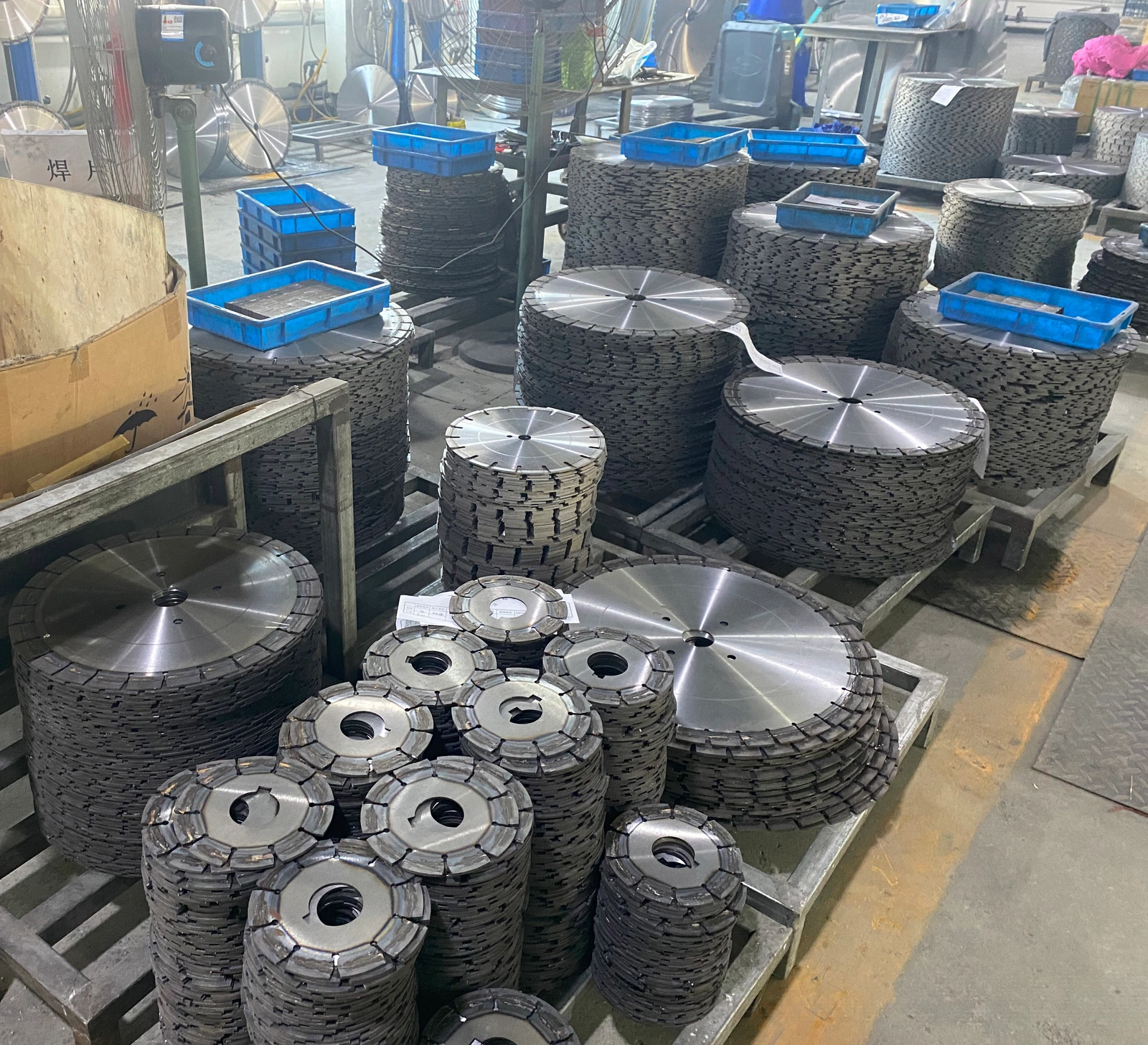

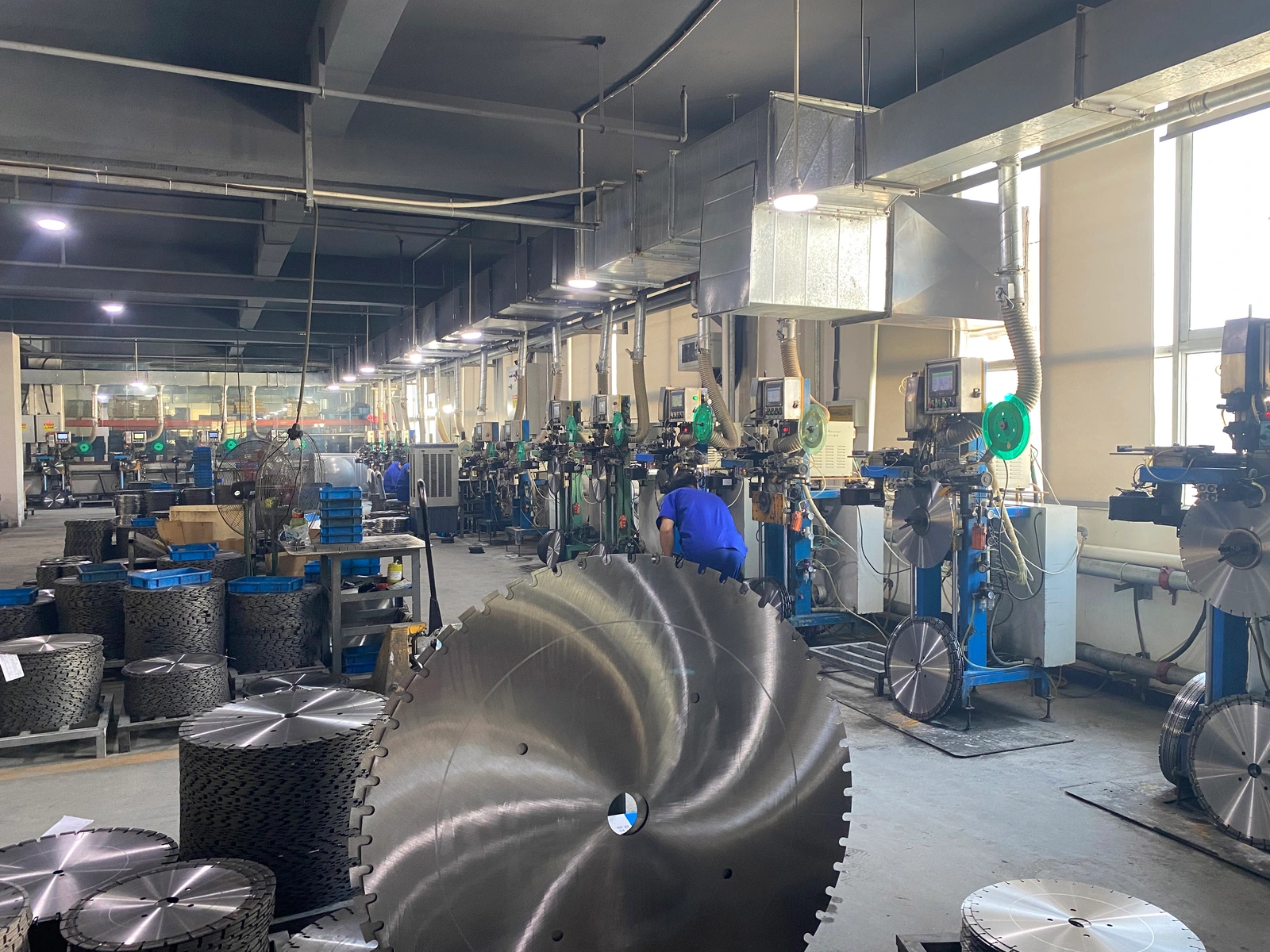

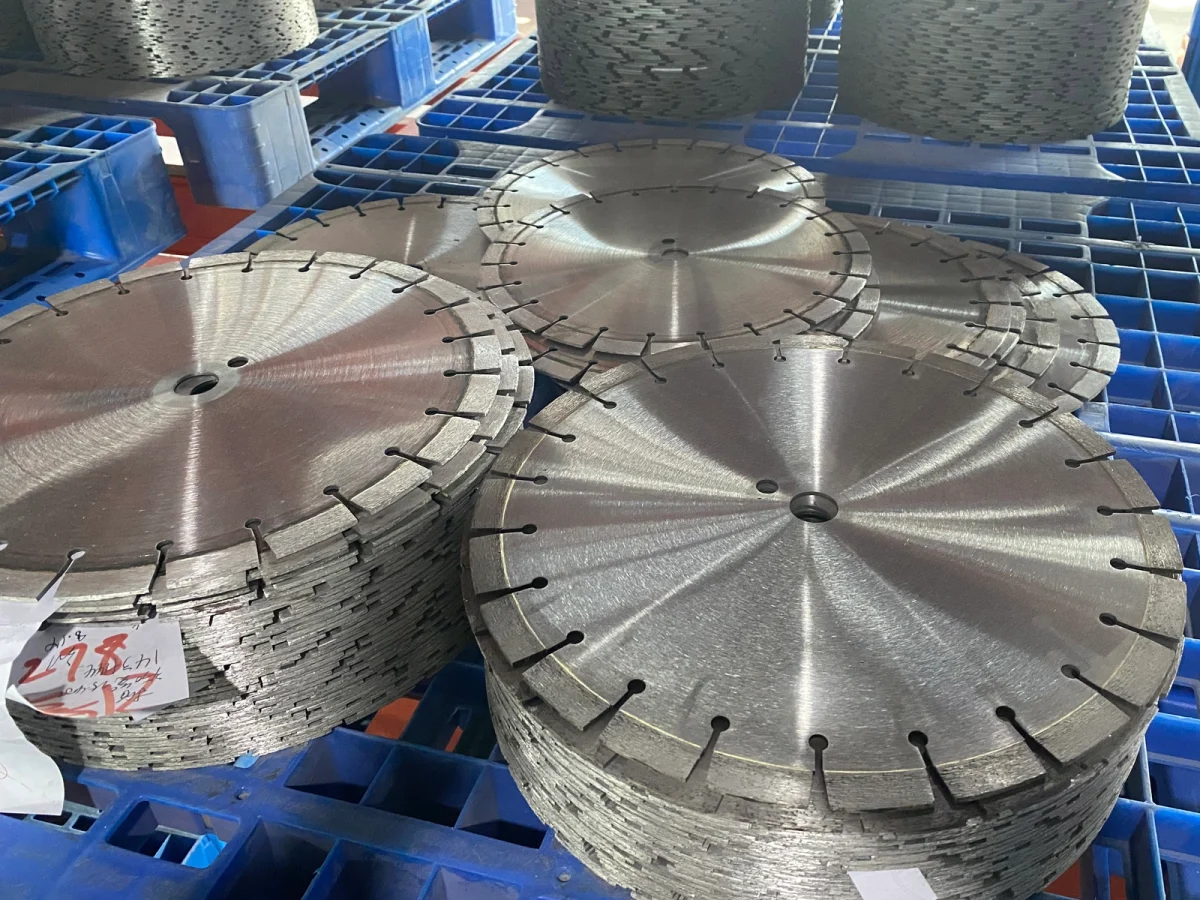

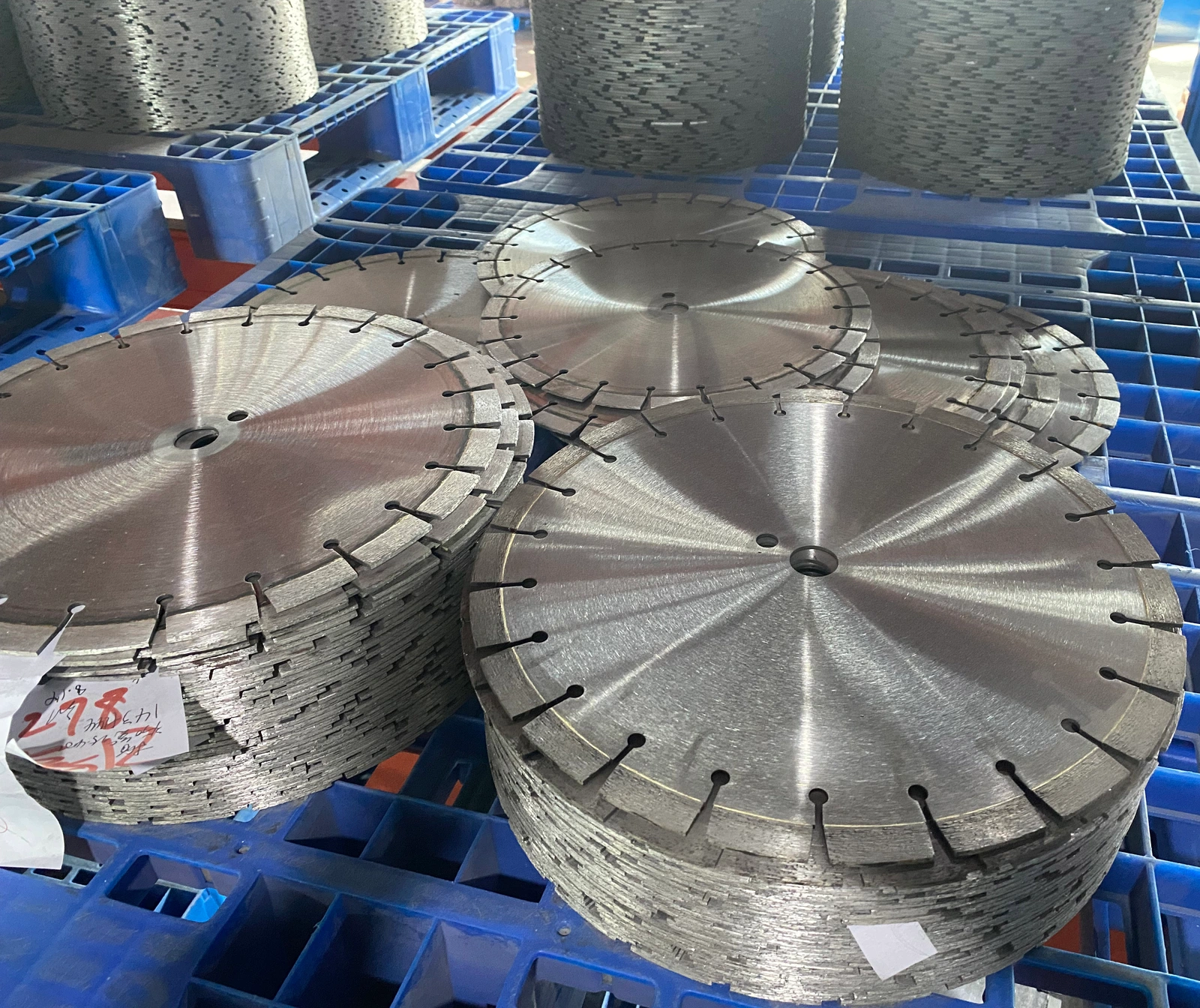

These segmented diamond blades are offered for concrete and reinforced-concrete cutting. The original workshop photographs show individual blades, stacked steel cores and production equipment.
| Source weight; supply scope to confirm | 5 kg |
|---|---|
| Source dimensions; assembled/packed scope to confirm | 350*350mm |
| Source application | Concrete / Reinforced Concrete |
| Thickness options | Customized |
| Size options; units/version to confirm | 350 / 400 / 500 or Customized |
| Material field | Customized |
| Packing field | Carton Case |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |
These segmented diamond blades are offered for concrete and reinforced-concrete cutting. The original workshop photographs show individual blades, stacked steel cores and production equipment. They illustrate the supplier’s range; a blade diameter, hole pattern or printed marking visible in one photograph does not specify every blade available from this listing.
The source offers 350 / 400 / 500 sizes or customization, but gives 350 × 350 mm in a separate dimension field. Units and the selected version must be confirmed together with bore, segment width and rated speed. The 5 kg weight and 0–18 cm cutting-depth field are not applied to every size. Blade choice follows the actual saw and material, not the colour of the painted core.
Send the saw model, outside diameter, bore and any pin-hole pattern, along with the material to cut. Agree segment dimensions, allowable speed and the supplier’s approved water or dry-cutting arrangement for that blade. Painted colours and workshop stacks do not certify an individual blade’s rating.
Request a dimensioned blade drawing, material/application designation and markings for the exact supplied version. Confirm quantity, packaging and whether mounting hardware is needed. Keep the saw’s own specifications separate from the replacement blade; a fitted machine in a source photograph is an application example.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
These segmented diamond blades are offered for concrete and reinforced-concrete cutting. The original workshop photographs show individual blades, stacked steel cores and production equipment. They illustrate the supplier’s range; a blade diameter, hole pattern or printed marking visible in one photograph does not specify every blade available from this listing.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
This is a blade listing. Machines shown with a fitted blade illustrate use and are not assumed to be included.
No. Confirm bore, mounting holes, guard clearance and the allowable speed for the actual saw.
The source does not establish that for the ordered version. Obtain the supplier’s approved wet/dry application and rating before selection.
No. Request the material/application grade, segment dimensions and exact blade marking.
No. The source lists several sizes and customization. State the required outside diameter and mounting dimensions; request the exact blade specification rather than ordering from the photograph alone.
The source offers 350 / 400 / 500 sizes or customization, but gives 350 × 350 mm in a separate dimension field. Units and the selected version must be confirmed together with bore, segment width and rated speed. The 5 kg weight and 0–18 cm cutting-depth field are not applied to every size. Blade choice follows the actual saw and material, not the colour of the painted core.
A 500 mm segmented diamond saw blade listed for concrete and reinforced-concrete cutting. It is a consumable cutting tool rather than a powered machine. Select it against the saw’s mounting interface, permitted blade diameter and speed, and the material to be cut.
