600A
600A Dual-Station Diesel Generator Welder
Dual-station diesel generator welder listed at 600 A and 45 kVA. Confirm current sharing, duty cycle, auxiliary output and whether the tow chassis is included.
- Welding power for work away from a mains connection
- Distinguish the welding current from generator capacity
Technical Specifications
| Listed welding current | 600 A |
|---|---|
| Generator rating | 45 kVA |
| Listed output voltage | 230/400 V |
| Fuel tank | 60 L |
| Listed weight | 1080 kg |
| Parameters to confirm | Send an enquiry to confirm: Current sharing and duty cycle per station; Available simultaneous welding/auxiliary output; Tow chassis included and road registration; Delivered engine/generator configuration. |
Product Description
Welding power for work away from a mains connection

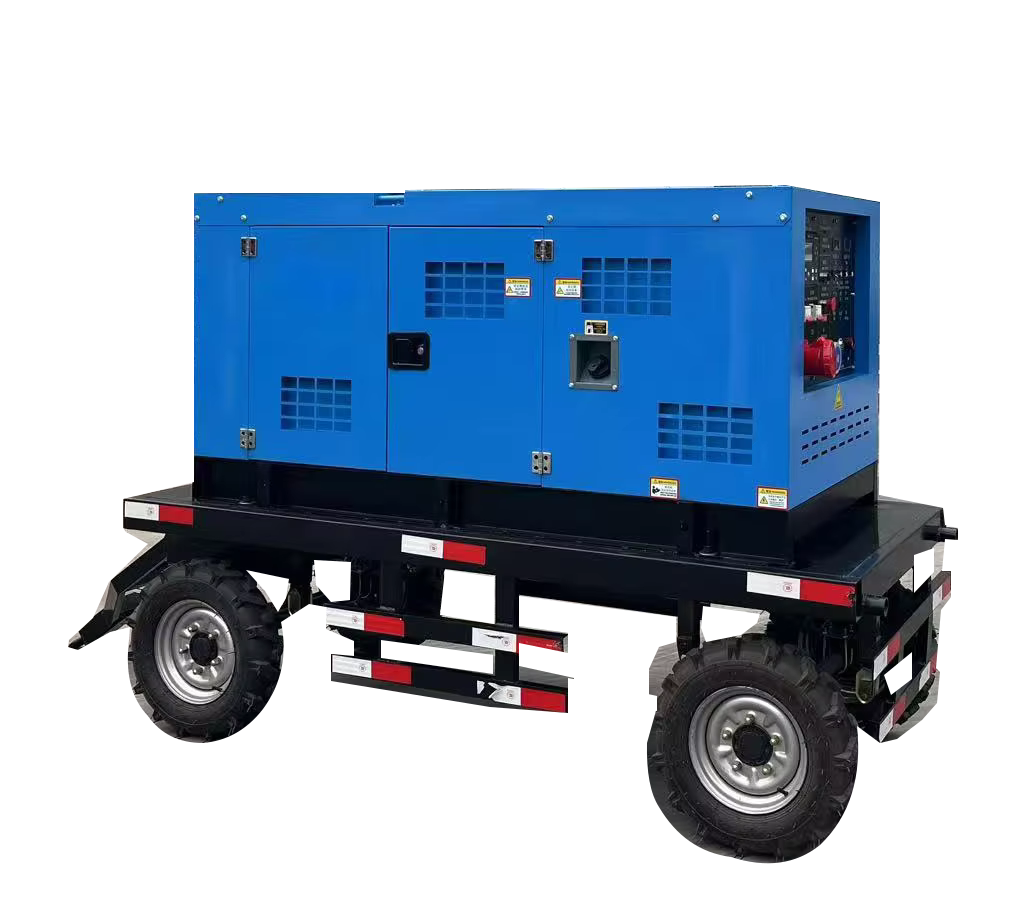

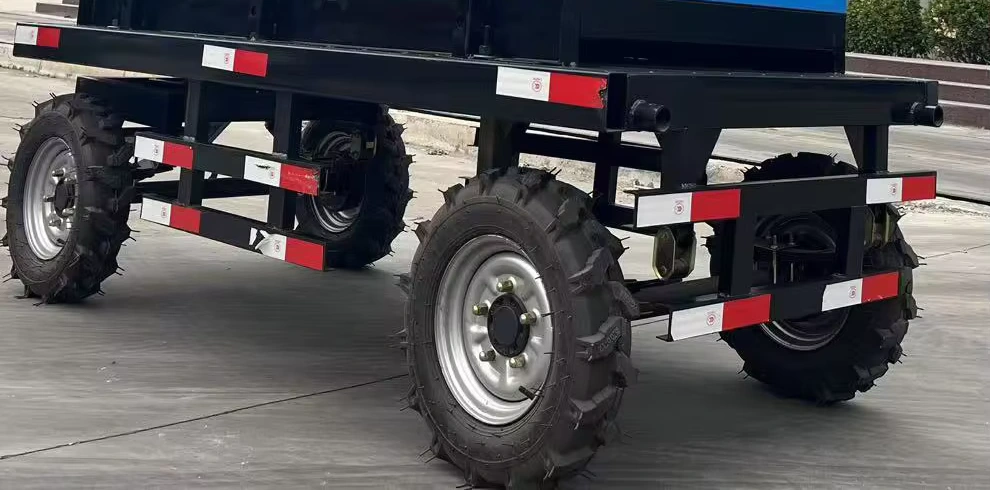

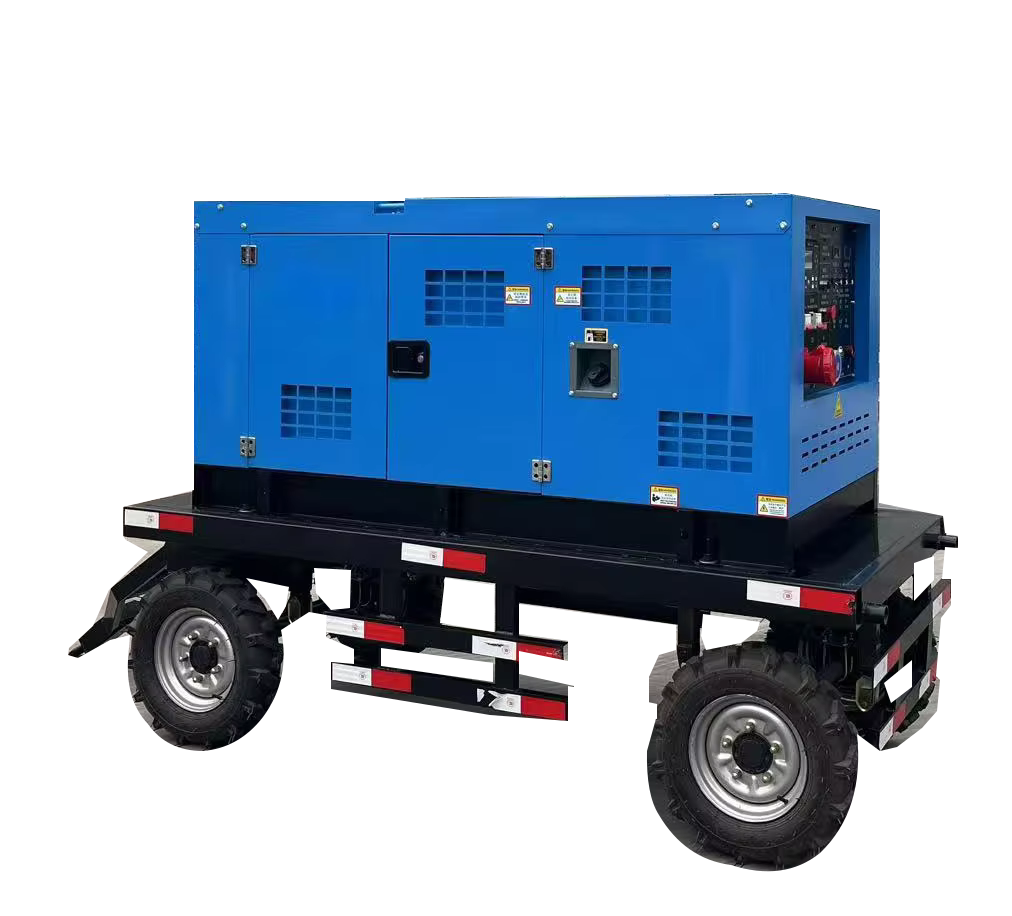

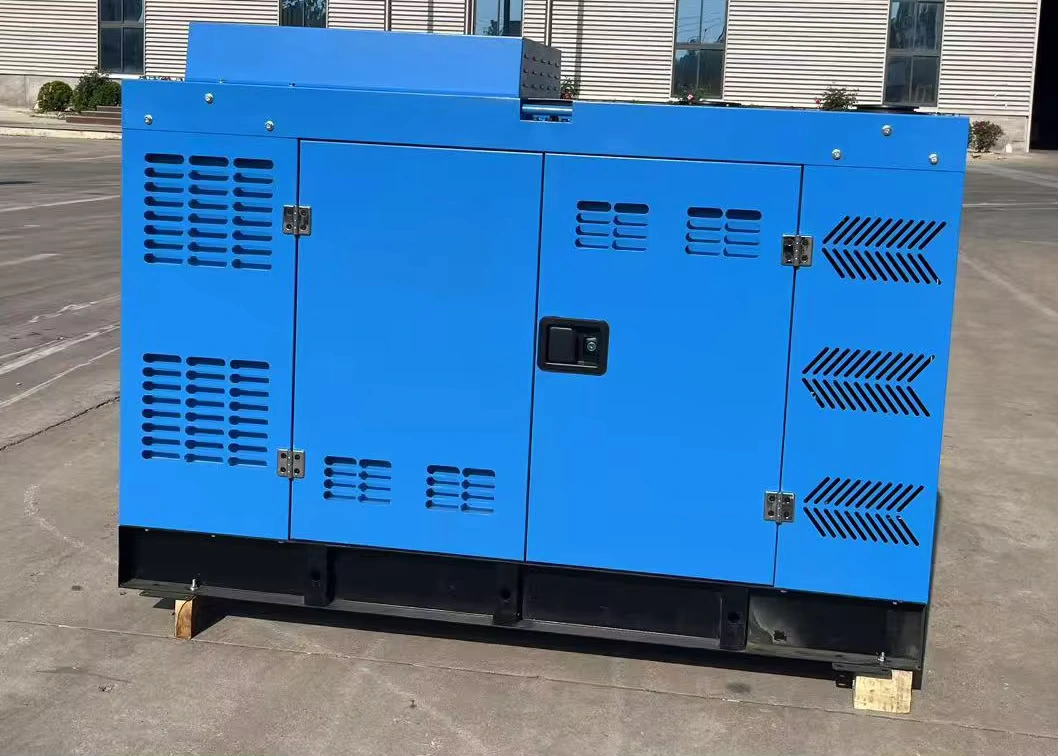

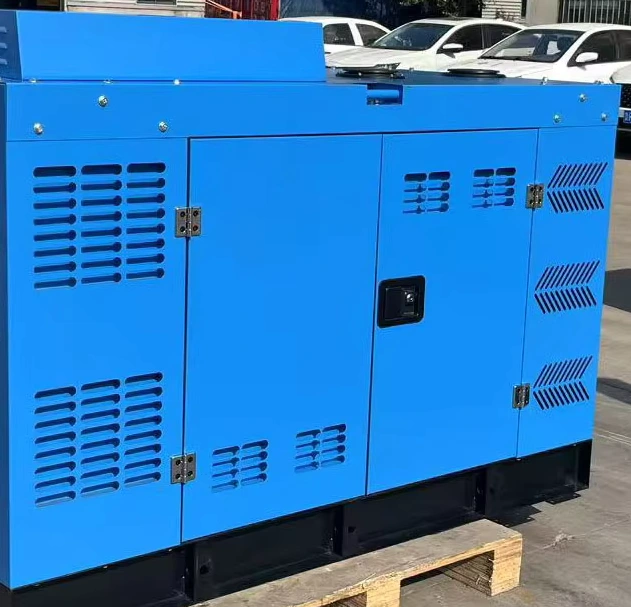

This source listing is a diesel generator-welding unit with two welding stations. Supplier photographs show both a tow-chassis arrangement and stationary cabinet versions. It is considered for site welding where an independent power unit is required. The chosen cabinet, engine and transport arrangement should be identified together in the quotation.
Distinguish the welding current from generator capacity
The source lists 600 A, 45 kVA, 230/400 V and a 60 L fuel tank. It does not establish 600 A simultaneously at each welding station, nor a complete duty-cycle or auxiliary-load schedule. Request the current sharing, welding process support and combined-load limits. The listed 1080 kg also needs its supply scope confirmed before handling or transport planning.
Before ordering
Send an enquiry to confirm: Current sharing and duty cycle per station; Available simultaneous welding/auxiliary output; Tow chassis included and road registration; Delivered engine/generator configuration.
Applications
This source listing is a diesel generator-welding unit with two welding stations. Supplier photographs show both a tow-chassis arrangement and stationary cabinet versions. It is considered for site welding where an independent power unit is required. The chosen cabinet, engine and transport arrangement should be identified together in the quotation.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm: Current sharing and duty cycle per station; Available simultaneous welding/auxiliary output; Tow chassis included and road registration; Delivered engine/generator configuration.
Product FAQ
Can both stations weld at 600 A at once?
That is not verified by the source rating. Request the two-station output schedule and duty cycle.
Does 45 kVA mean 45 kW of welding power?
No. The listed apparent generator rating is not a verified welding power or simultaneous auxiliary-load rating.
Is the pictured trailer approved for public roads?
No road approval is established here. Confirm chassis inclusion and the documentation required for the intended transport use.
