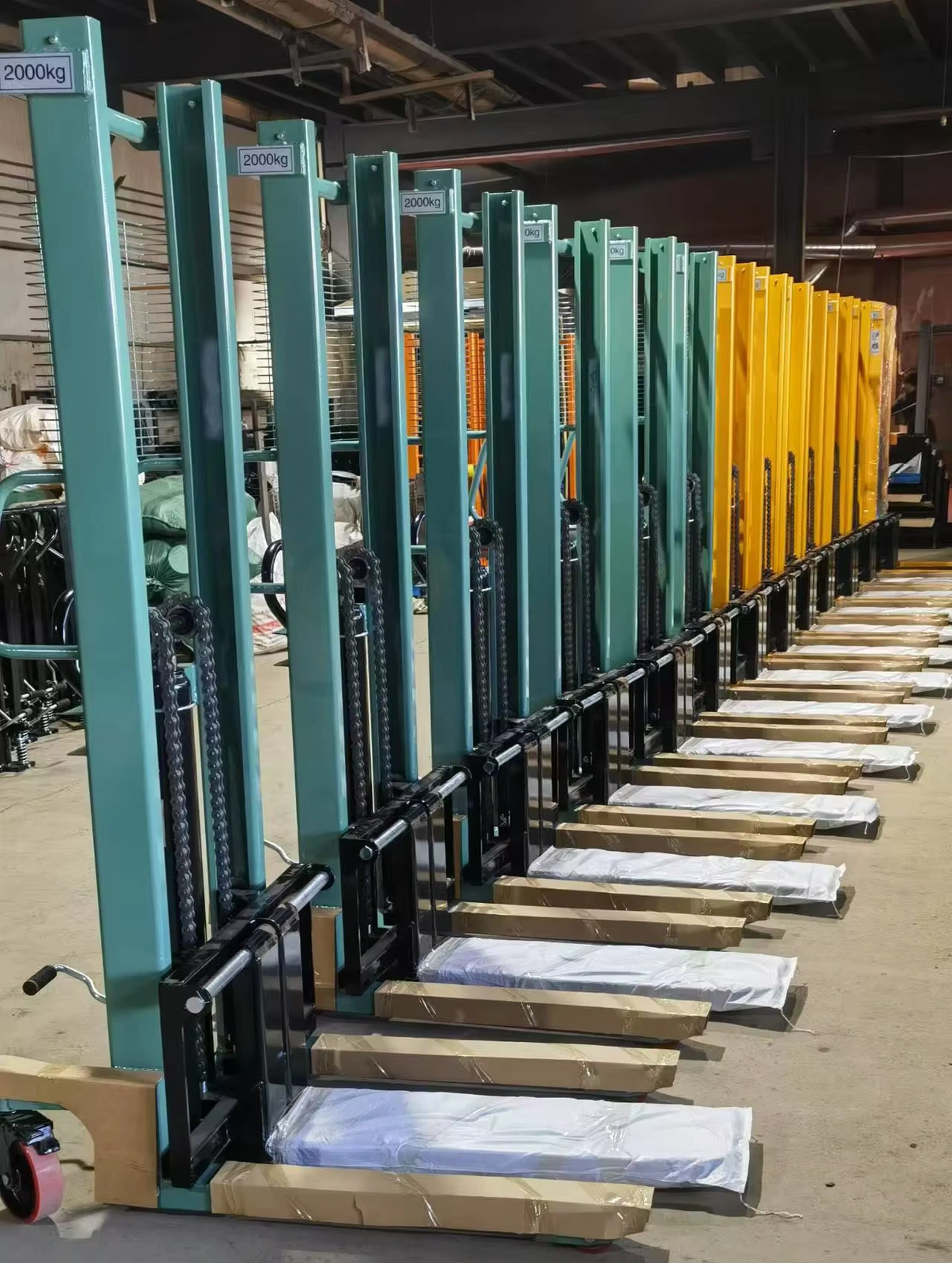

This manually moved hydraulic stacker has adjustable forks, a mast and a hand or foot-operated lifting arrangement. The source photographs show handling controls and examples of the assembled chassis.
View product →

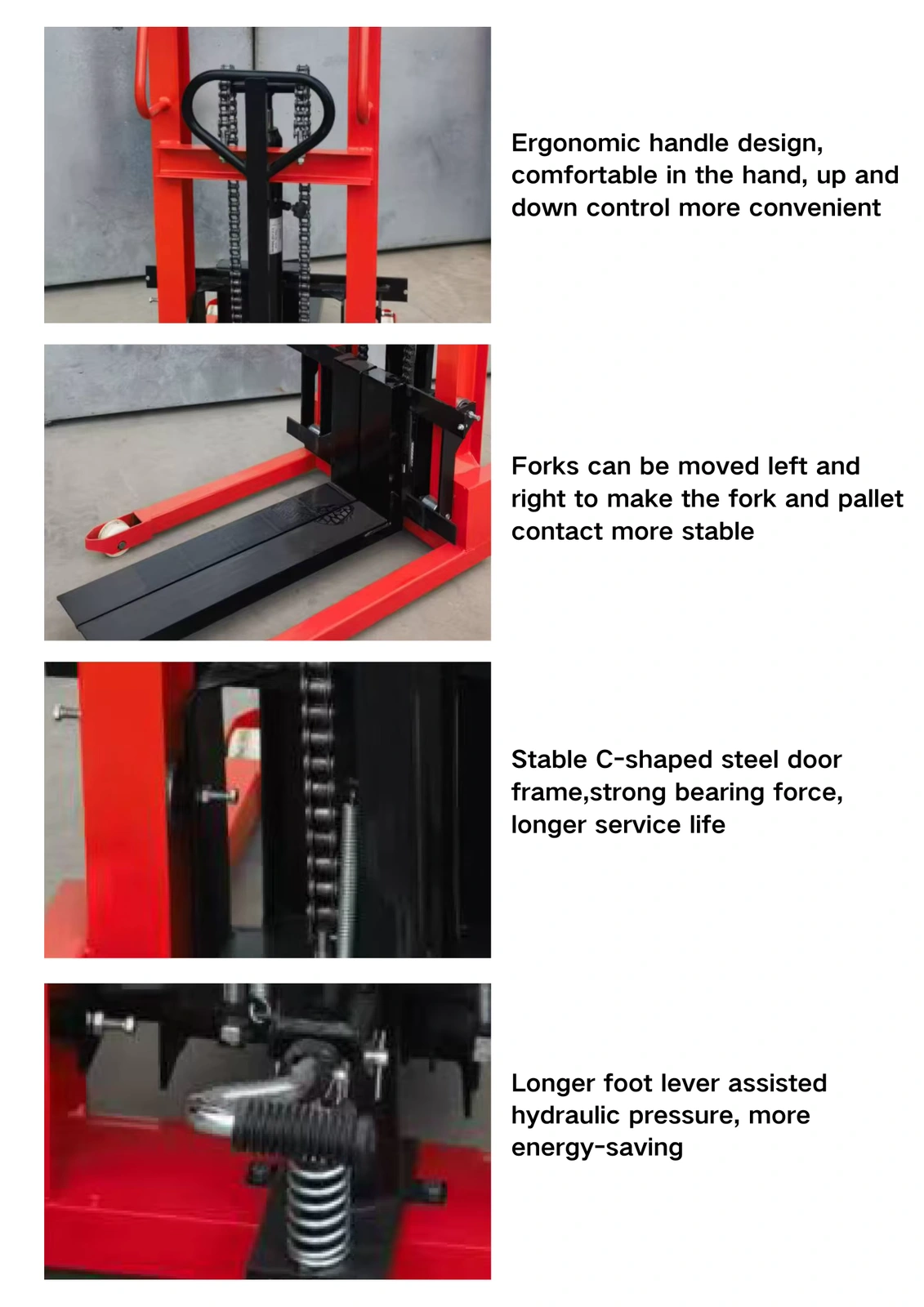

Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
1 Ton Manual Hydraulic Stacker
1 Ton Manual Hydraulic Stacker

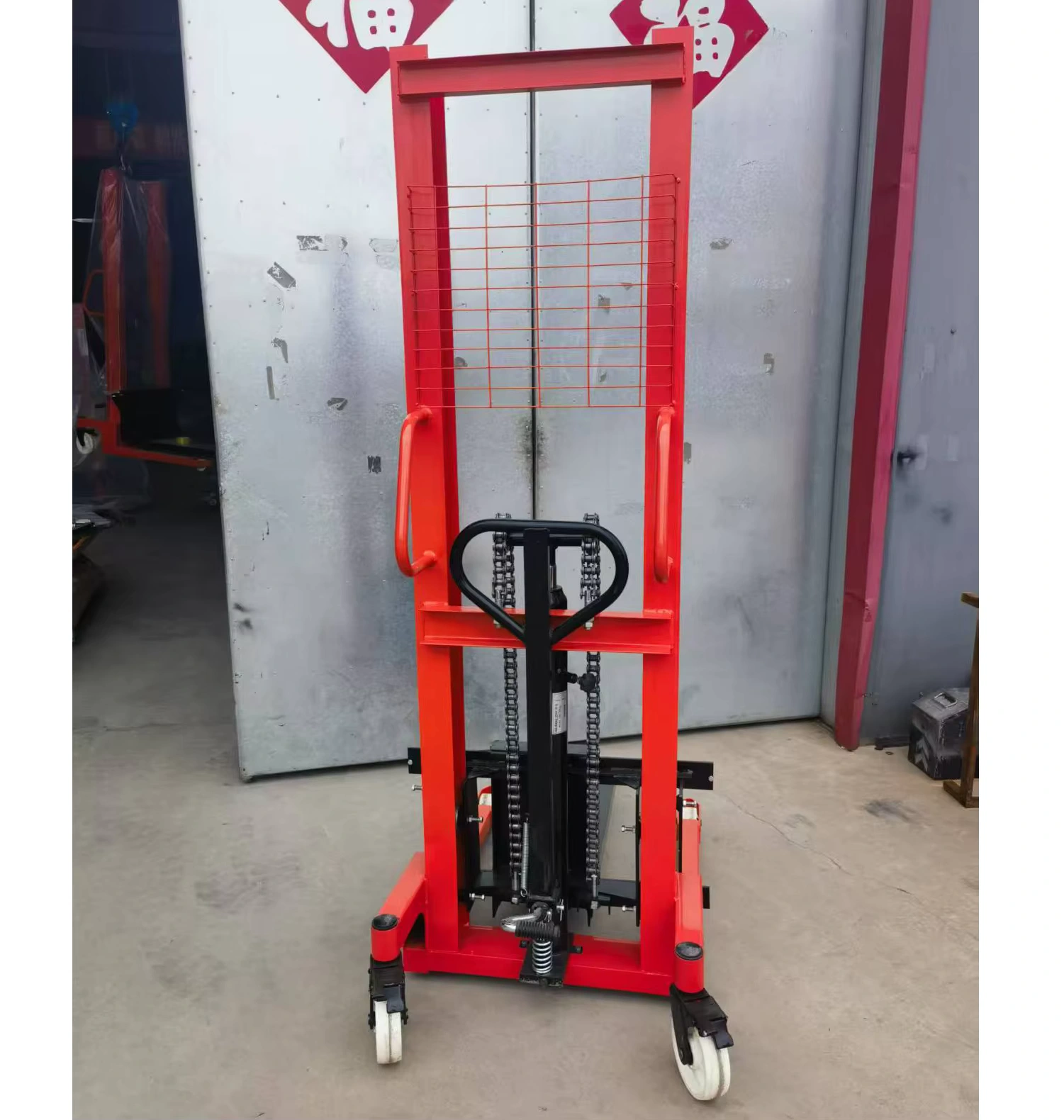

This manually moved stacker lifts its forks through a hydraulic mechanism. It is suited to discussing pallet placement and lifting within a store or workshop; it is not an electrically driven forklift.
- Product and application
- Choosing this configuration
- Pallet and aisle compatibility
- Manual handling and documentation
Technical Specifications
| Listed weight | 124 kg |
|---|---|
| Rated lifting capacity; load chart required | 1000kg |
| Maximum lifting height | 1600mm |
| Vehicle width | 750mm |
| Vehicle height | 2050mm |
| Vehicle length | 1300mm |
| Minimum fork height | 85mm |
| Fork length | 840mm |
| Single fork width | 100mm |
| Fork width adjustment | 215-725mm |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
This manually moved stacker lifts its forks through a hydraulic mechanism. It is suited to discussing pallet placement and lifting within a store or workshop; it is not an electrically driven forklift.
Choosing this configuration
Check pallet openings, fork length and width adjustment against the actual load. The rated capacity and maximum height are separate fields; request the manufacturer load chart and load-centre conditions rather than assuming full capacity at every height.
Pallet and aisle compatibility
Measure the pallet openings, load footprint and access route. Check the forks and support legs together: an adjustable fork width alone does not prove compatibility with a closed pallet. Ask for turning space and the specified load-centre conditions.
Manual handling and documentation
Confirm how lifting and lowering are controlled and which brakes or securing devices are supplied. Obtain the operating manual, inspection instructions and rated-load chart before use. This stacker is for goods, not personnel lifting.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
This manually moved stacker lifts its forks through a hydraulic mechanism. It is suited to discussing pallet placement and lifting within a store or workshop; it is not an electrically driven forklift.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Does rated capacity apply at every height?
Use the supplied rated-load chart and its load-centre conditions; the capacity and height fields alone do not answer this.
Will it fit my pallet?
Send pallet opening dimensions and underside layout; check forks and support legs together.
Is this an electric forklift?
No. This listing is for a manually moved hydraulic stacker.
What documents should accompany it?
Request the operating manual, inspection instructions and the load chart for the delivered model.
What needs checking for this particular listing?
Check pallet openings, fork length and width adjustment against the actual load. The rated capacity and maximum height are separate fields; request the manufacturer load chart and load-centre conditions rather than assuming full capacity at every height.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
