51WS
51WS Hose Crimping Machine

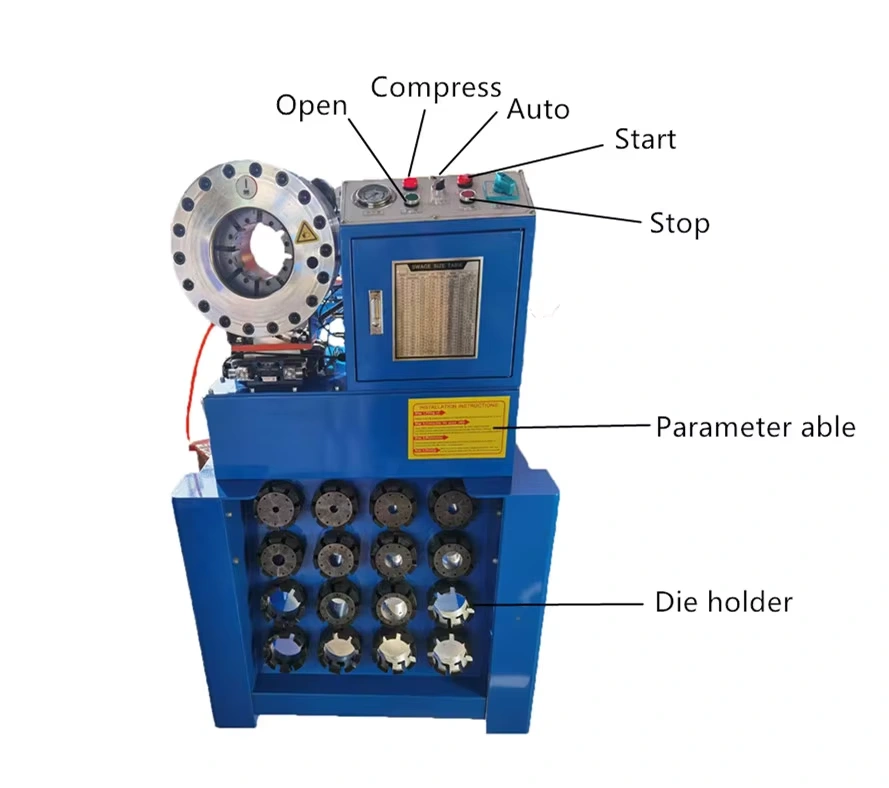

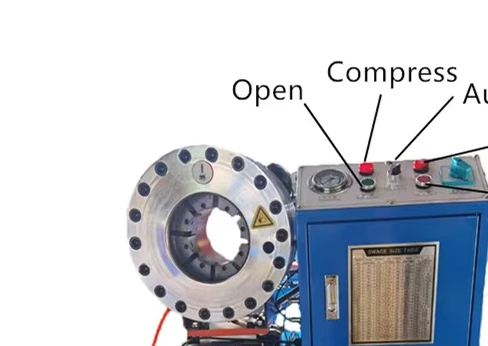

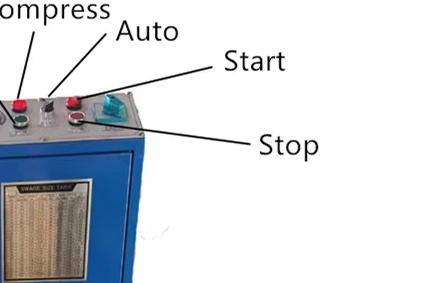

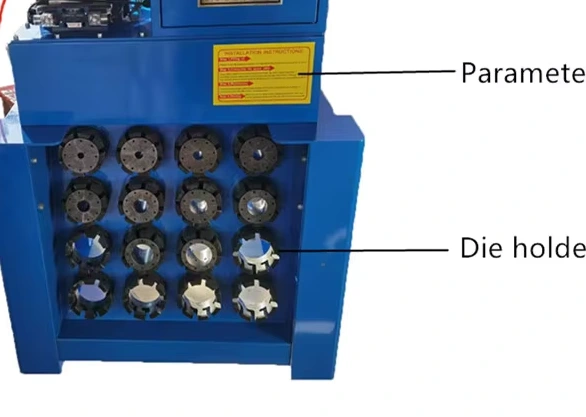

The 51WS compresses a fitting around a hose with a selected die set. The source shows the circular head, controls and die storage. Ordering it requires the hose construction and ferrule dimensions, not just the nominal hose diameter.
- Crimping a hose and ferrule assembly
- Select dies for the actual assembly
Technical Specifications
| Listed electrical configuration | 380V |
|---|---|
| Source-listed motor power | 3kw |
| Listed machine dimensions | 730*480*740mm |
| Source-listed weight | 245 kg |
| Listed crimping range; hose/ferrule match required | 6-51 mm |
| Source-listed die set quantity; quote to confirm | 10 sets |
| Source-listed accuracy; acceptance conditions to agree | 0.01mm |
| Listed hydraulic system pressure | 31.5mpa |
| Listed maximum opening | 114 mm |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
Product Description
Crimping a hose and ferrule assembly
The 51WS compresses a fitting around a hose with a selected die set. The source shows the circular head, controls and die storage. Ordering it requires the hose construction and ferrule dimensions, not just the nominal hose diameter.
Select dies for the actual assembly
The listing gives a 6-51 mm crimping range, 10 die sets and a 3kw motor. These do not establish a complete compatibility chart. Ask for die sizes, the target crimp diameter and the inspection procedure for your hose-and-fitting combination.
Before ordering
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
Applications
The 51WS compresses a fitting around a hose with a selected die set. The source shows the circular head, controls and die storage. Ordering it requires the hose construction and ferrule dimensions, not just the nominal hose diameter.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
Product FAQ
Are all hoses within the range suitable?
The range alone is insufficient. Confirm hose construction, fitting type and the die selection chart.
Is the listed output a production guarantee?
No operating conditions accompany 200 pcs/h. Agree the assembly and changeover requirements first.
What should I send with an enquiry?
Send the hose type, bore, reinforcement and ferrule dimensions, plus the assembly pressure requirement. Ask for the die chart and a crimped-sample acceptance procedure.
