G3 Mortar Spraying Machine
G3 mortar spraying machine with listed 20 L/min feed and 3 kW main motor. Review the mix, usable hopper volume and separate compressor requirement.
Technical Specifications
| Listed motor power | 3 kW |
|---|---|
| Listed supply option | 220 / 380 V options |
| Listed hopper capacity | 80 L nominal; 60–70 L actual |
| Listed delivery capacity | 20 L/min |
| Listed maximum pressure | 50 BAR |
| Listed maximum particle size | 4 mm |
| Listed compressor power | 1.45 kW |
| Listed vertical conveying limit | 15 m |
| Listed horizontal conveying limit | 30 m |
| Listed machine weight | 180 kg |
| Listed packing weight | 240 kg |
| Listed machine dimensions | 850 × 640 × 1650 mm |
| Listed packing dimensions | 1230 × 710 × 1320 mm |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
Product Description
G3 for feeding and applying compatible mortar
The G3 is a mortar spraying machine with a hopper and delivery arrangement for compatible mixes. The reviewed source lists 20 L/min feed, 50 BAR, a 4 mm particle figure and a 3 kW main motor. The actual mortar formulation still has to suit the supplied pumping and spray components.
Usable hopper volume and packing data
The source distinguishes an 80 L nominal hopper from an actual 60–70 L volume. It also separates the 180 kg machine from 240 kg packed weight and gives different machine and packing dimensions. These distinctions matter when planning feeding, access and shipment. The 1.45 kW compressor is listed separately from the main motor.
Confirming the supplied machine
Send the mixture, particle grading, required delivery rate, hose route and available electrical supply. Request the current key parameters, pressure, usable hopper capacity, weight, dimensions and included accessories. Source-listed conveying limits are separate values, not a guarantee of simultaneous vertical and horizontal reach. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.

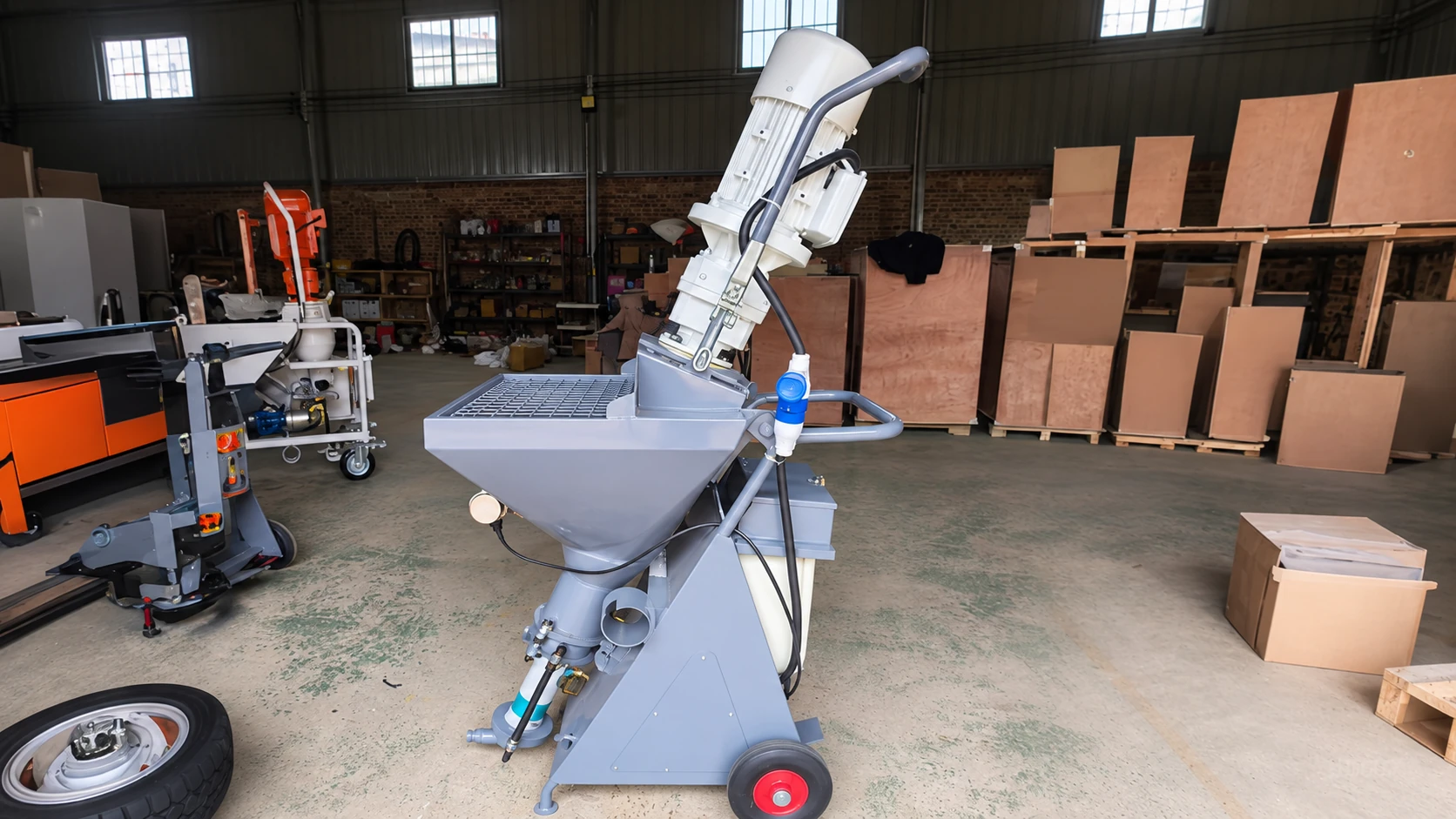

Views show configurations in the source materials. The quotation defines the supplied configuration.
Packaging & Shipping
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Configuration Options
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
Product FAQ
Is 80 L the working fill volume?
It is the nominal figure. The reviewed source also lists 60–70 L actual volume; confirm the operating fill instructions.
Does the main motor cover all electrical demand?
No. The compressor and water-supply arrangement must also be checked. Request the complete electrical configuration.
What can the factory views tell me?
They show the reviewed machine and component arrangement. They do not establish included hoses, spare parts or the final accessory quantities.
