311 Mortar Spraying Machine — Hopper Options
311 Mortar Spraying Machine — Hopper Options

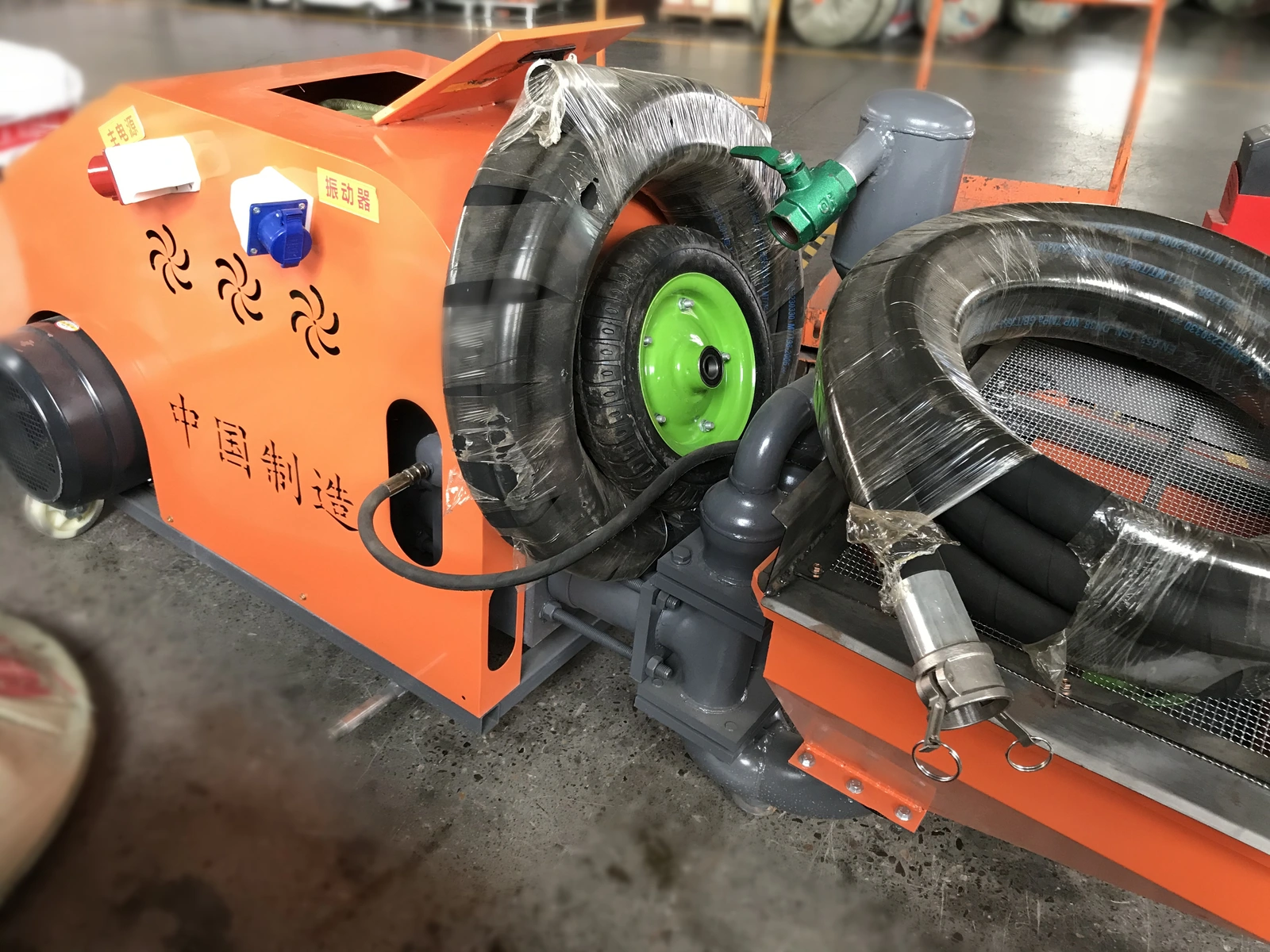

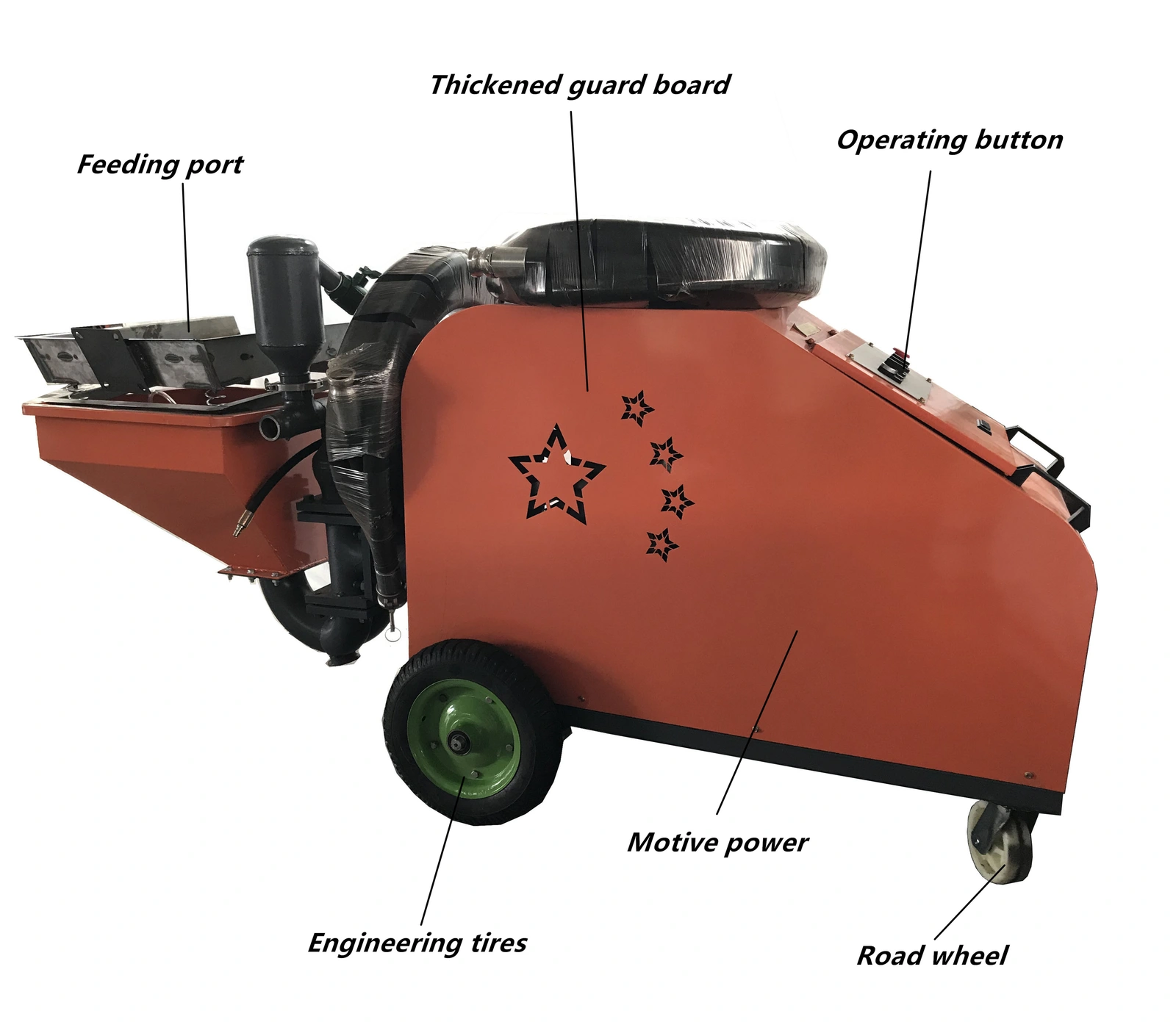

The wheeled station carries a feed hopper, pumping enclosure and connections for hose and spray equipment. It conveys a prepared compatible mortar to the working point; mixing and surface preparation are not replaced by the pump.
- Product and application
- Choosing this configuration
- Material and hose route
- Order and service details
Technical Specifications
| Source overall dimensions; scope to confirm | 1600*700*1000mm |
|---|---|
| Source weight; unit retained if stated | 150 kg |
| Power options or source rating | 4kw |
| Source vertical reach; test conditions absent | 20 m |
| Source horizontal reach; test conditions absent | 100-200m |
| Source hopper capacity | 50 L |
| Voltage options; exact motor to confirm | 220v/ 380v |
| Source hopper-volume options | 50-130L |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The wheeled station carries a feed hopper, pumping enclosure and connections for hose and spray equipment. It conveys a prepared compatible mortar to the working point; mixing and surface preparation are not replaced by the pump.
Choosing this configuration
The source lists one hopper capacity alongside a wider hopper-volume range and several model options. Confirm the exact version, material grading, hose bore and total route. Conveying distances have no stated mix or hose test conditions and are not universal limits.
Material and hose route
State aggregate grading, mix consistency, hose bore, length and elevation. Confirm the pump wear parts and spray nozzle for that material. Long horizontal and vertical runs cannot be combined from maximum source fields without an agreed test condition.
Order and service details

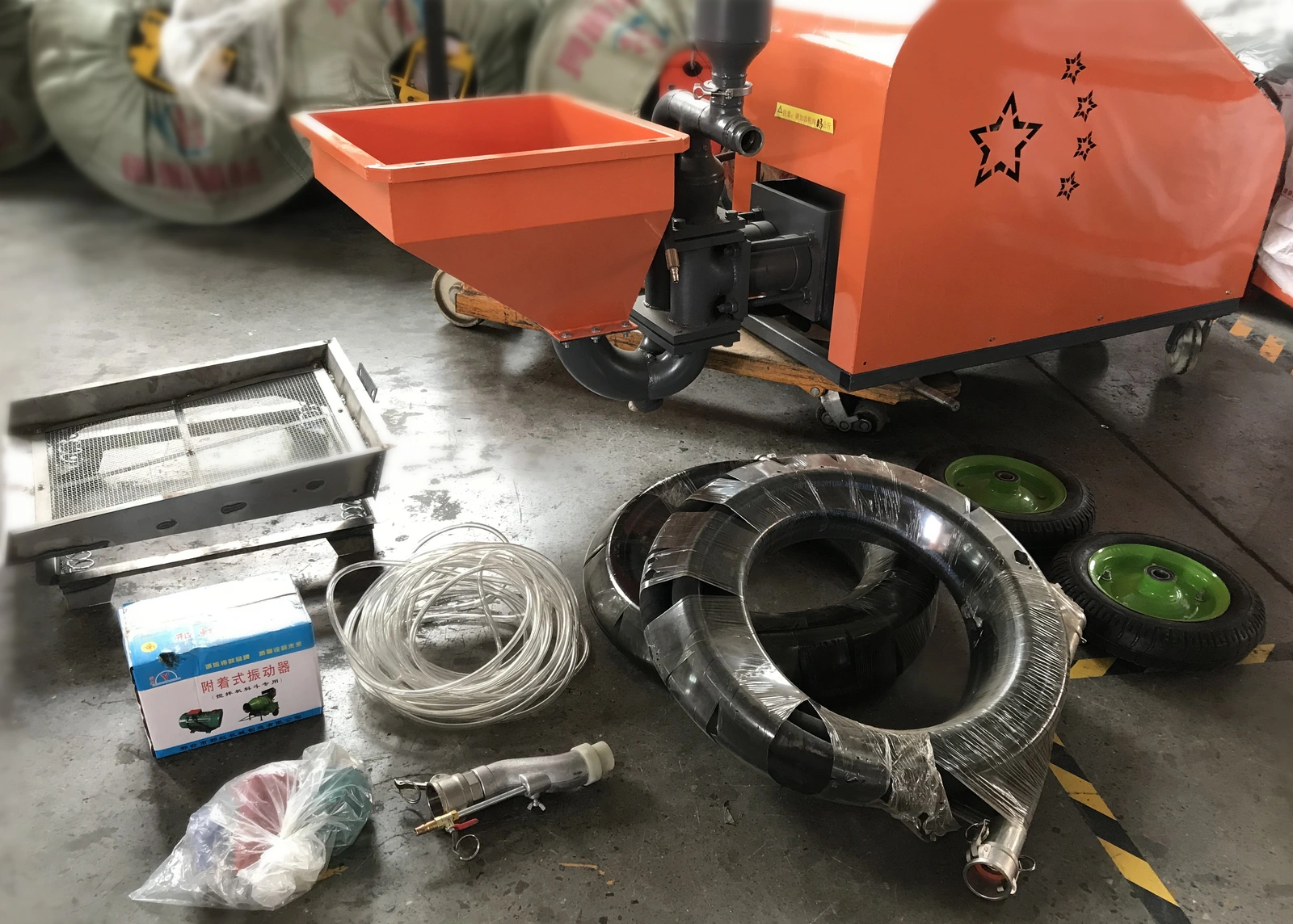

Request the delivered model identification, operating manual, parts list and an itemised equipment schedule. Consumables, accessories and transport items shown separately must be confirmed in the quote rather than assumed included.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The wheeled station carries a feed hopper, pumping enclosure and connections for hose and spray equipment. It conveys a prepared compatible mortar to the working point; mixing and surface preparation are not replaced by the pump.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Is every hopper size included?
No. Choose the model and hopper volume as a specific configuration.
Is mixing equipment supplied automatically?
Only separately listed mixing equipment is included.
Which configuration should I request?
State aggregate grading, mix consistency, hose bore, length and elevation. Confirm the pump wear parts and spray nozzle for that material. Long horizontal and vertical runs cannot be combined from maximum source fields without an agreed test condition.
What is required for replacement parts?
Use the delivered model and component identification together with photographs and measured mounting interfaces.
What needs checking for this particular listing?
The source lists one hopper capacity alongside a wider hopper-volume range and several model options. Confirm the exact version, material grading, hose bore and total route. Conveying distances have no stated mix or hose test conditions and are not universal limits.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
