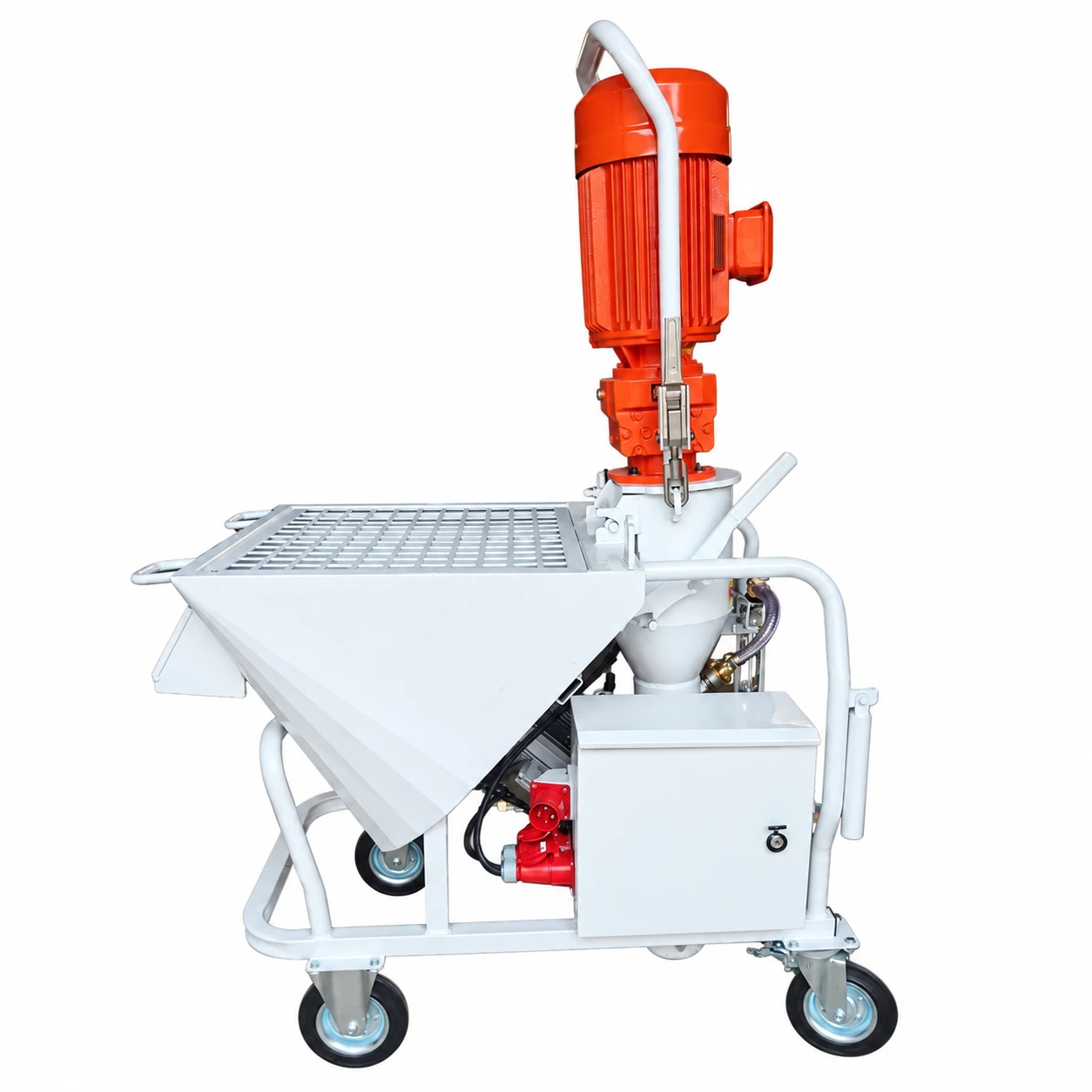

M9 Mortar Spraying Machine
M9 mortar spraying machine with listed 5.5 kW main motor, 115 L hopper and 30 L/min feed. Confirm the mixture, connection and included spray accessories.
View product →
Images show configurations in the source materials. Confirm the supplied machine configuration before ordering.
M10

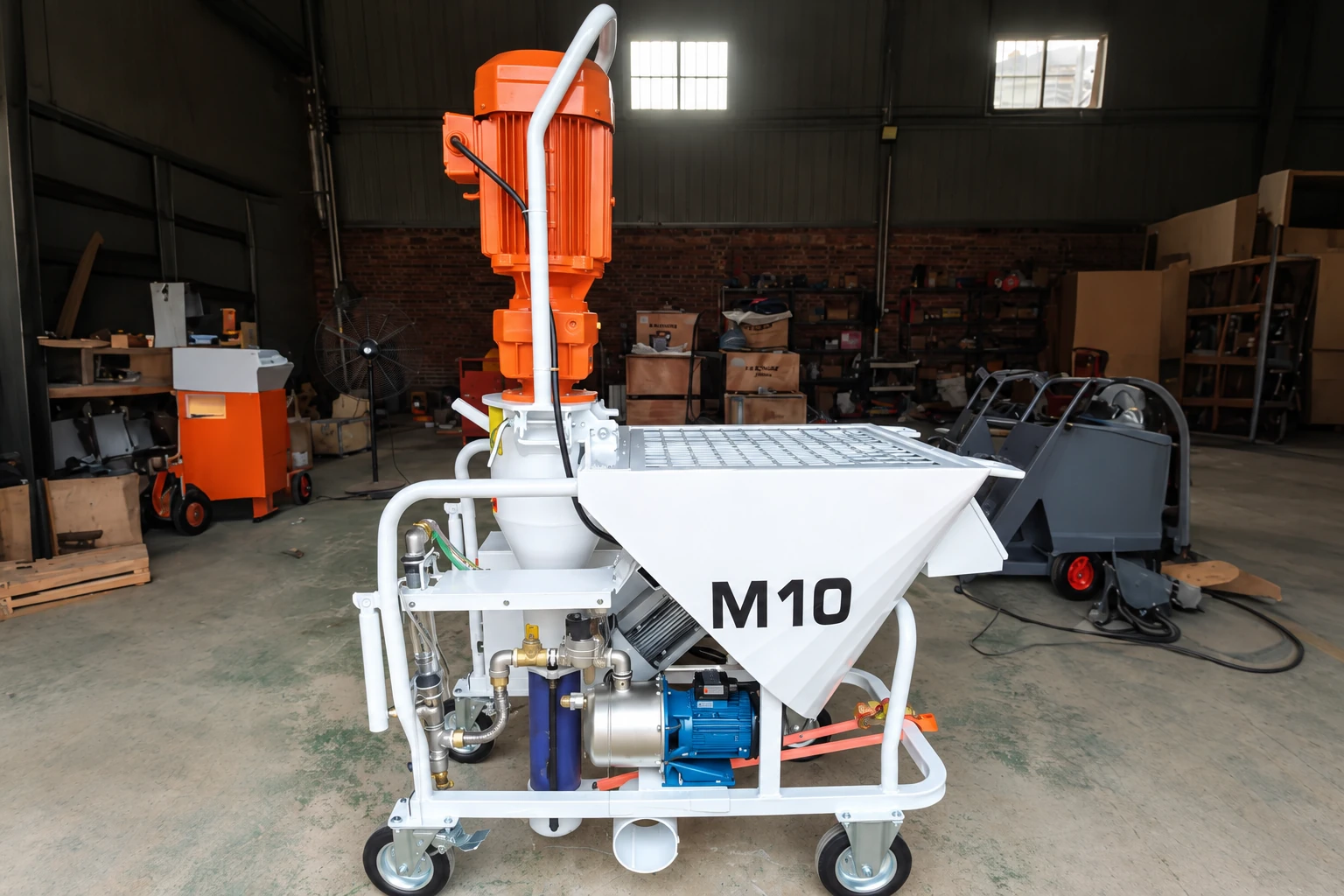

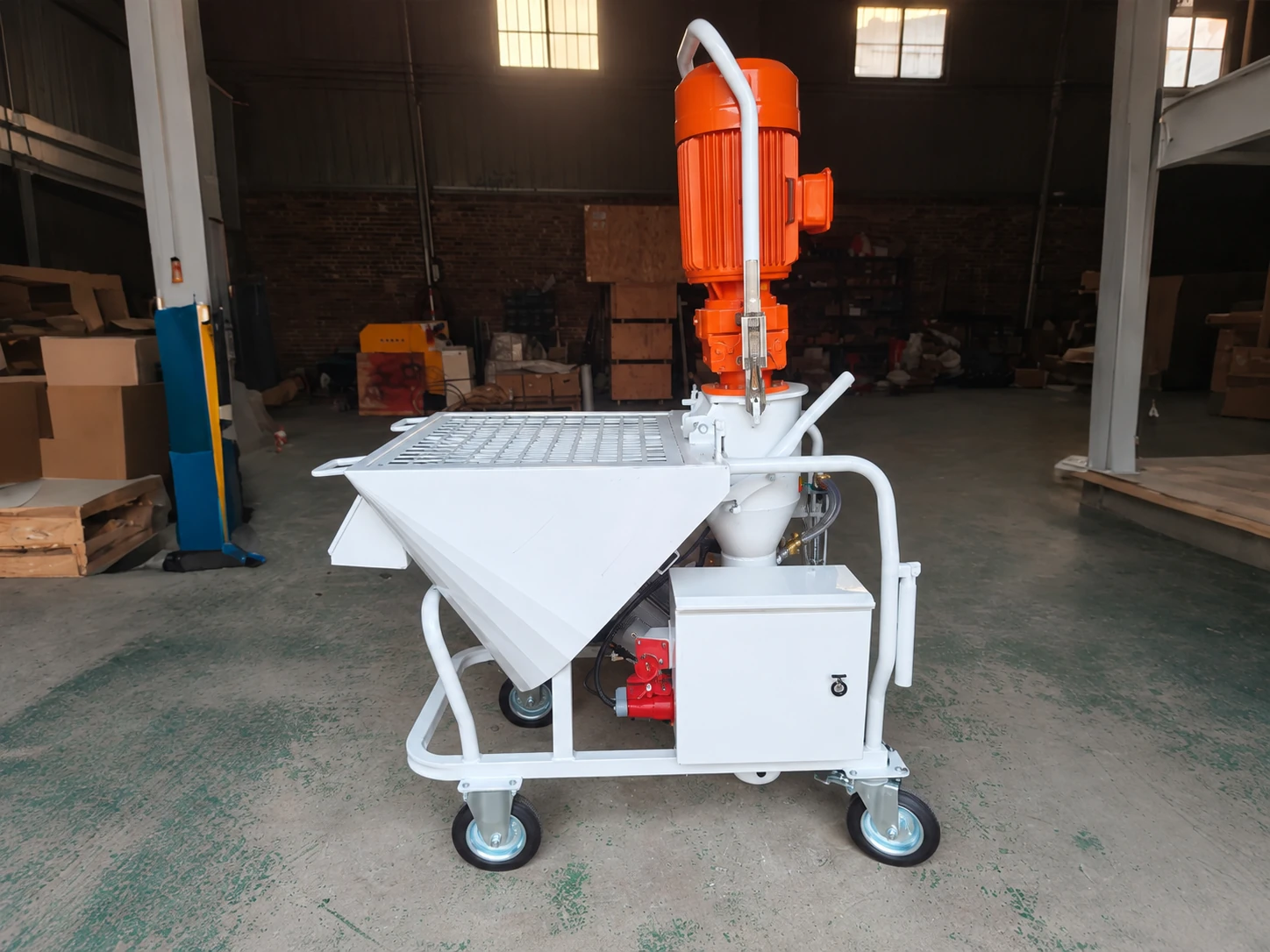

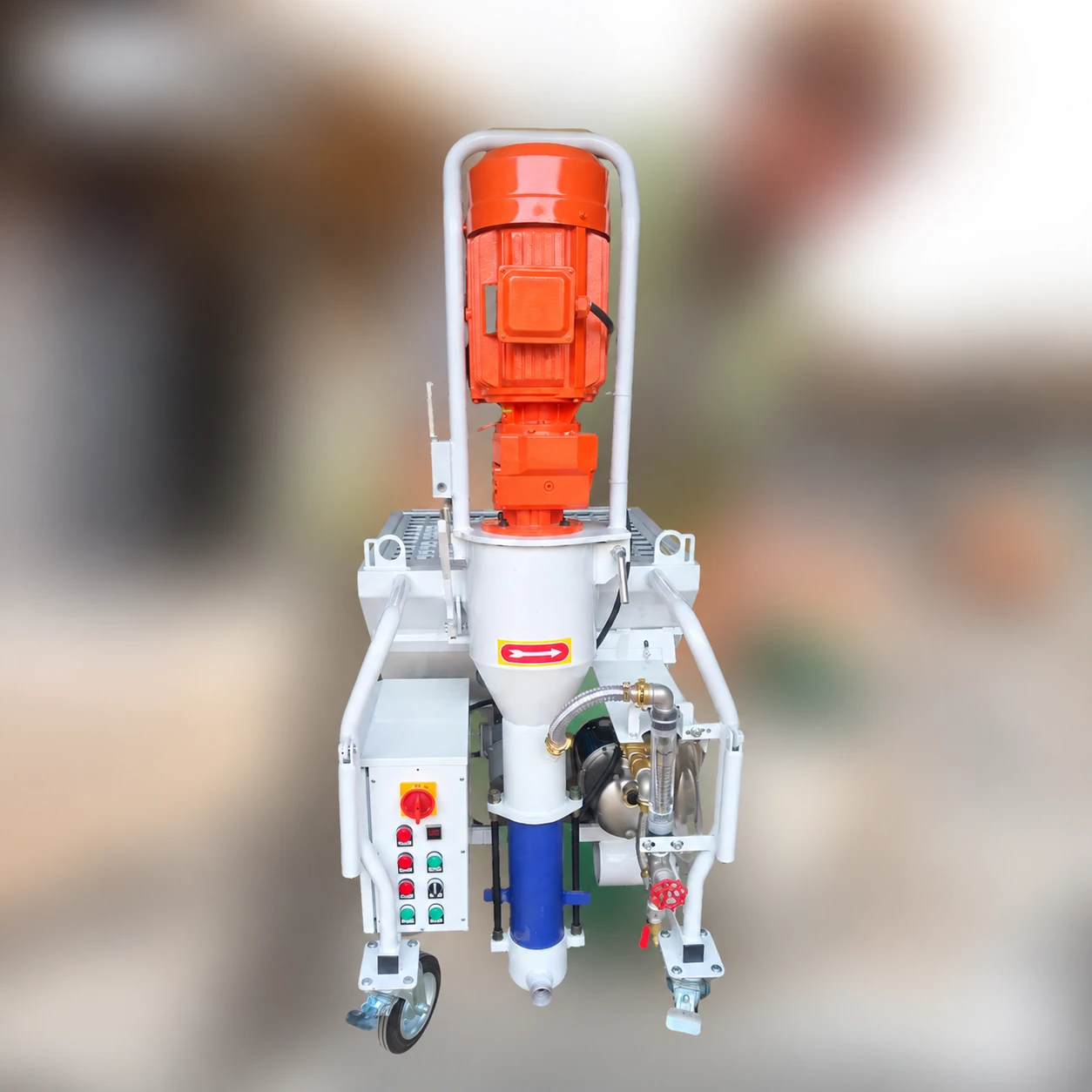

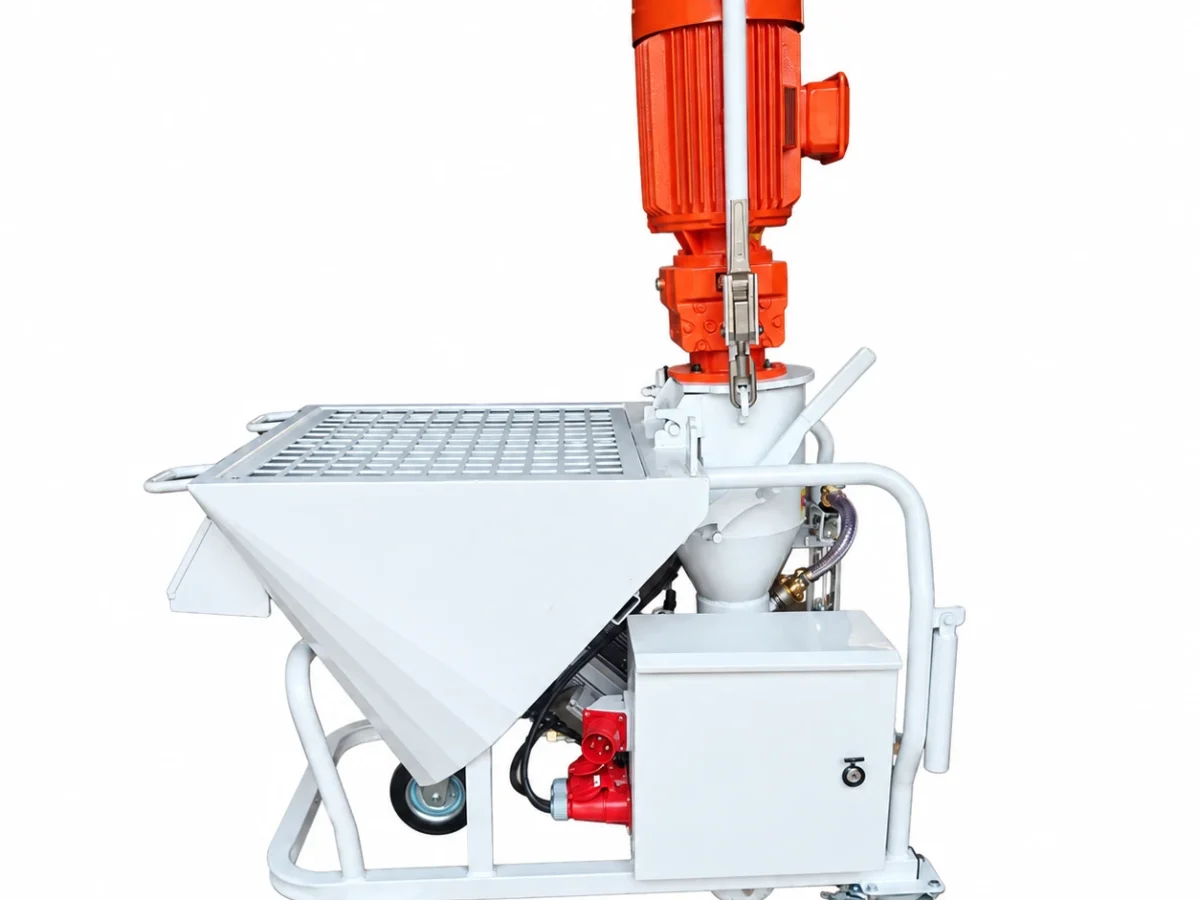

M10 Gypsum Mixing and Pumping Machine
M10 mixing and pumping machine for compatible gypsum self-leveling mixes. Listed 7.5 kW main power and 115 L hopper; confirm water demand and pump setup.
Technical Specifications
| Listed motor power | 7.5 kW |
|---|---|
| Listed loading-motor power | 1.5 kW |
| Listed supply option | 380 V / 50 Hz |
| Listed hopper capacity | 115 L |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
Product Description
Preparing and feeding a gypsum-based floor mix
The M10 is listed as a mixing and pumping machine for gypsum-based self-leveling material. The material formulation and required water demand are central to selection. Provide the mix manufacturer’s datasheet and intended floor application so the machine configuration can be checked against the material.
Use M10 data rather than a neighbouring model table
The reviewed M10 values are 7.5 kW main power, 1.5 kW loading-motor power, 380 V / 50 Hz and a 115 L hopper. A G10-labelled table is not used as an M10 specification. Pressure, output and conveying distances remain subject to a current model-specific confirmation.
Confirming the supplied machine
Send the mixture, particle grading, required delivery rate, hose route and available electrical supply. Request the current key parameters, pressure, usable hopper capacity, weight, dimensions and included accessories. Source-listed conveying limits are separate values, not a guarantee of simultaneous vertical and horizontal reach. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.
Views show configurations in the source materials. The quotation defines the supplied configuration.
Packaging & Shipping
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Configuration Options
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
Product FAQ
Can M10 process every self-leveling compound?
No universal compatibility is claimed. Confirm the binder, formulation, particle grading and water demand with the machine configuration.
Are G10 pressure figures valid for M10?
Not without model-specific confirmation. Conflicting pressure figures are deliberately excluded from this page.
Does the main motor rating include the loading motor?
No. The main and loading-motor ratings are stated separately. Request the total connected electrical load.
