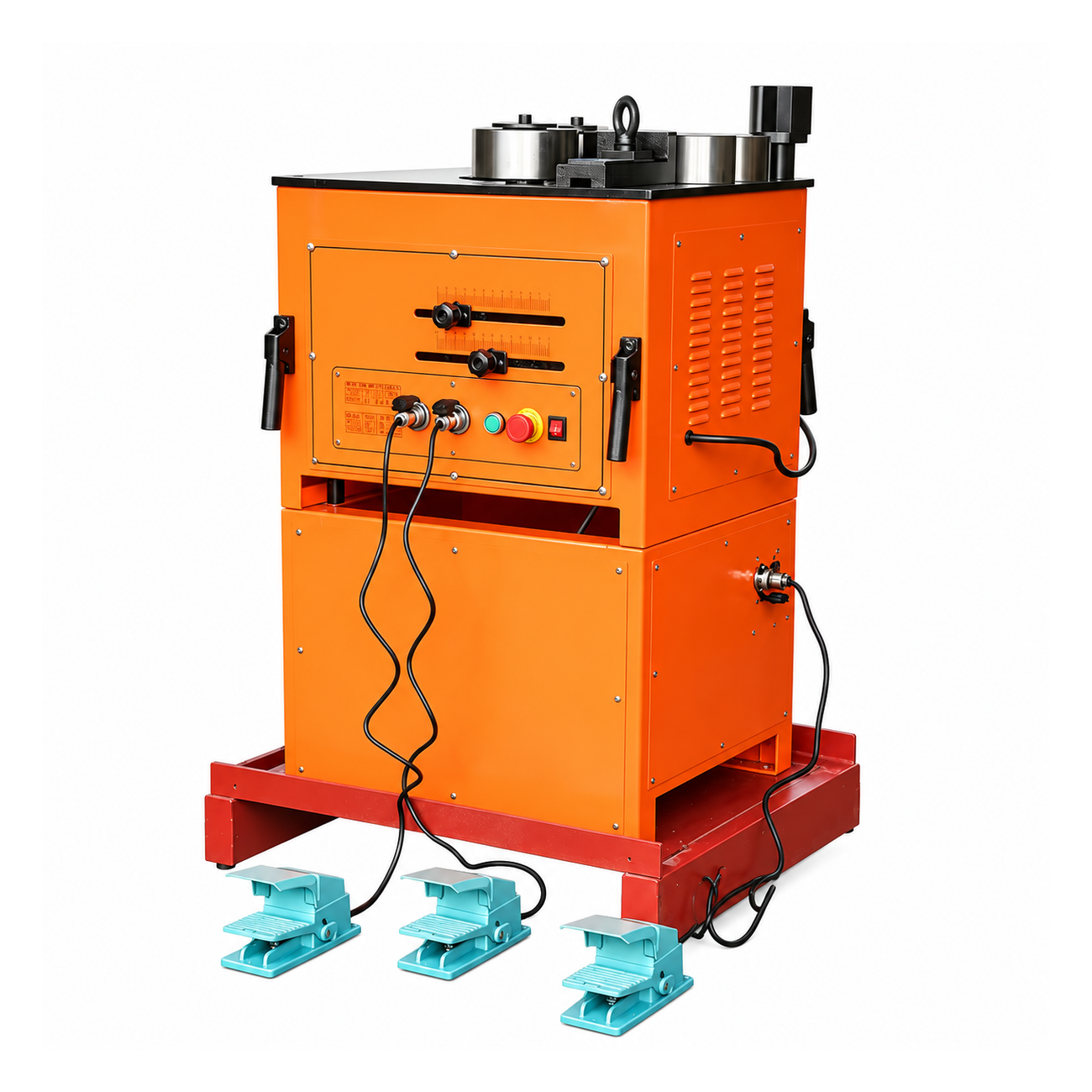

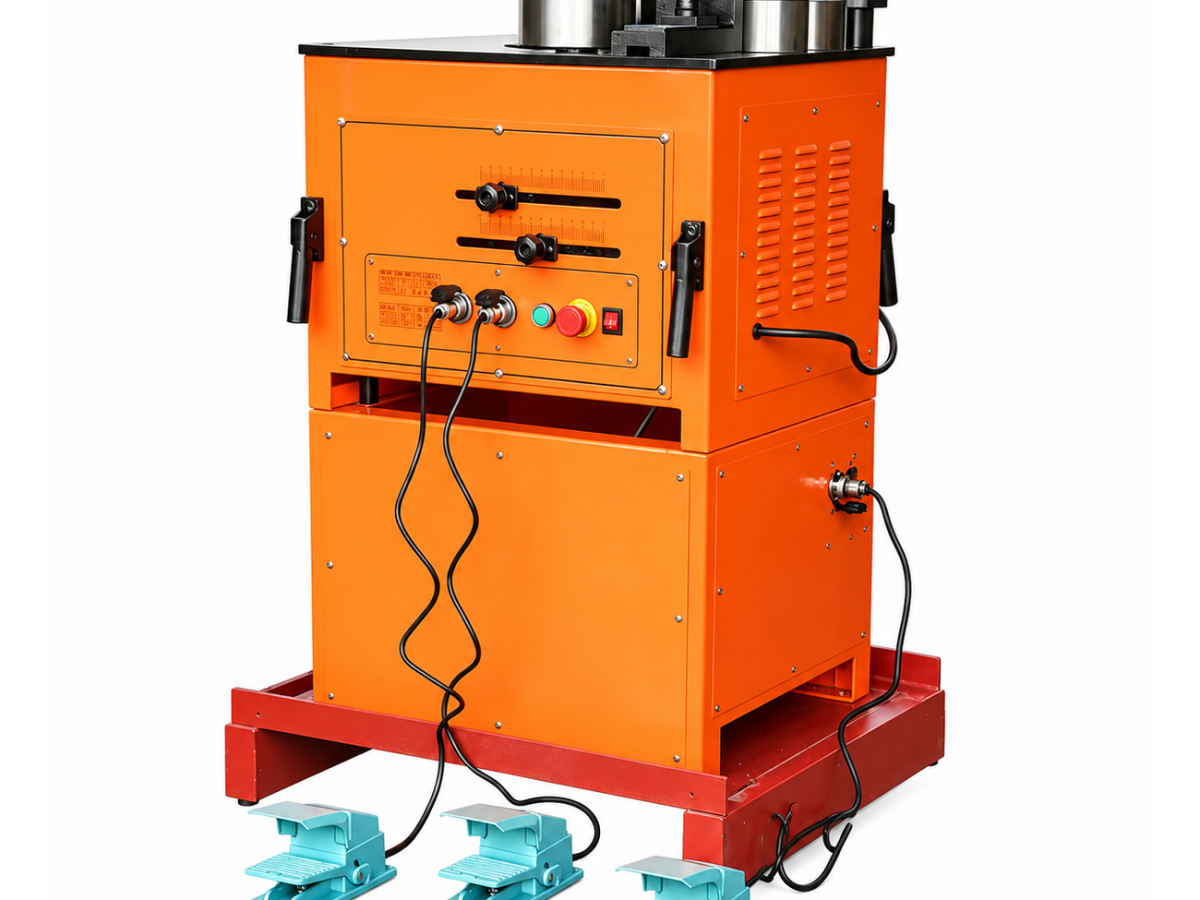

RBC-32
A combined rebar bending and cutting machine with source-listed 6–32 mm bar diameters and a 3 kW motor. It is a distinct equipment enquiry from RBC-25: confirm the RBC-32 capacity, tooling and electrical configuration rather than transferring another model’s detail-image labels.

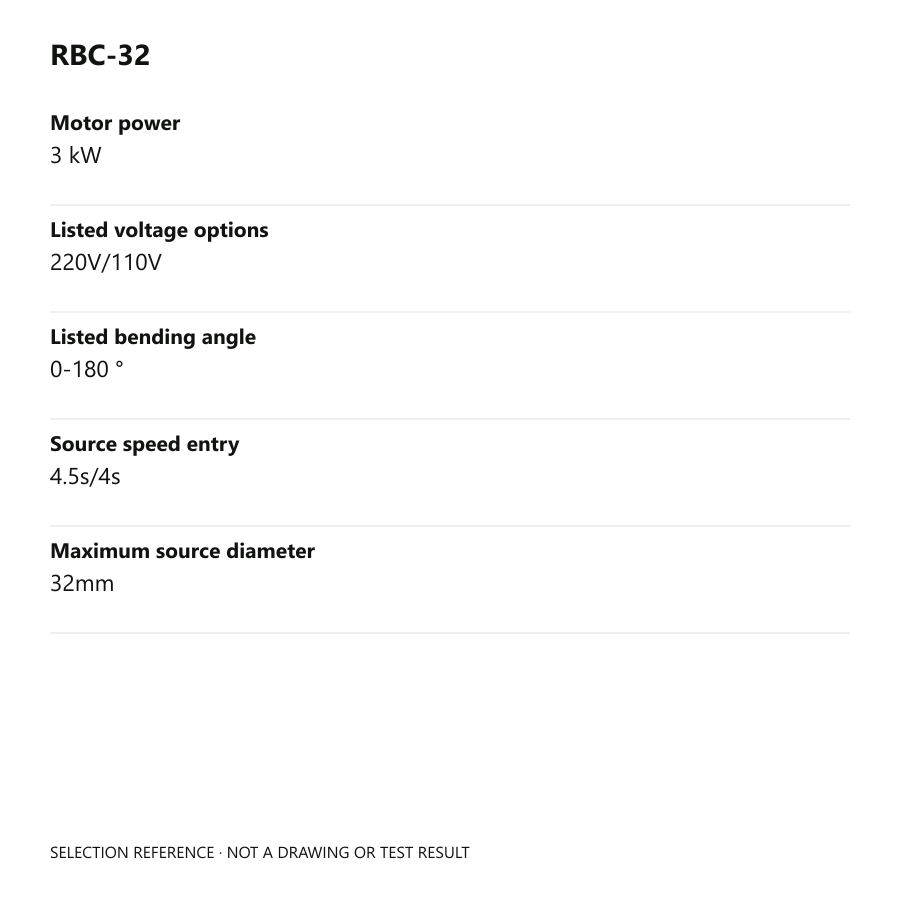

| Motor power | 3 kW |
|---|---|
| Listed voltage options | 220V/110V — Confirm the specific electrical version; not a verified automatic dual-voltage unit. |
| Listed bending angle | 0-180 ° |
| Source speed entry | 4.5s/4s — The attribute does not map each value to an operation; RBC-25 detail labels must not be reused as RBC-32 test data. |
| Maximum source diameter | 32mm |
| Minimum source diameter | 6mm |
| Source weight entry | 260 kg — 260 kg is listed as weight in the attribute and gross weight in a comparison graphic. Net machine weight remains unconfirmed. |
| Packing size, not machine dimensions | 745*665*1165mm |
Provide the largest and most frequent bar diameters, grade or strength designation, and the required bend drawing. The source maximum of 32 mm is not a universal allowance for every reinforcement grade, bend radius or simultaneous bar count. Require separate confirmation of cutting and bending capacities. Smaller repeated jobs may place different demands on setup and handling than occasional maximum-size work.

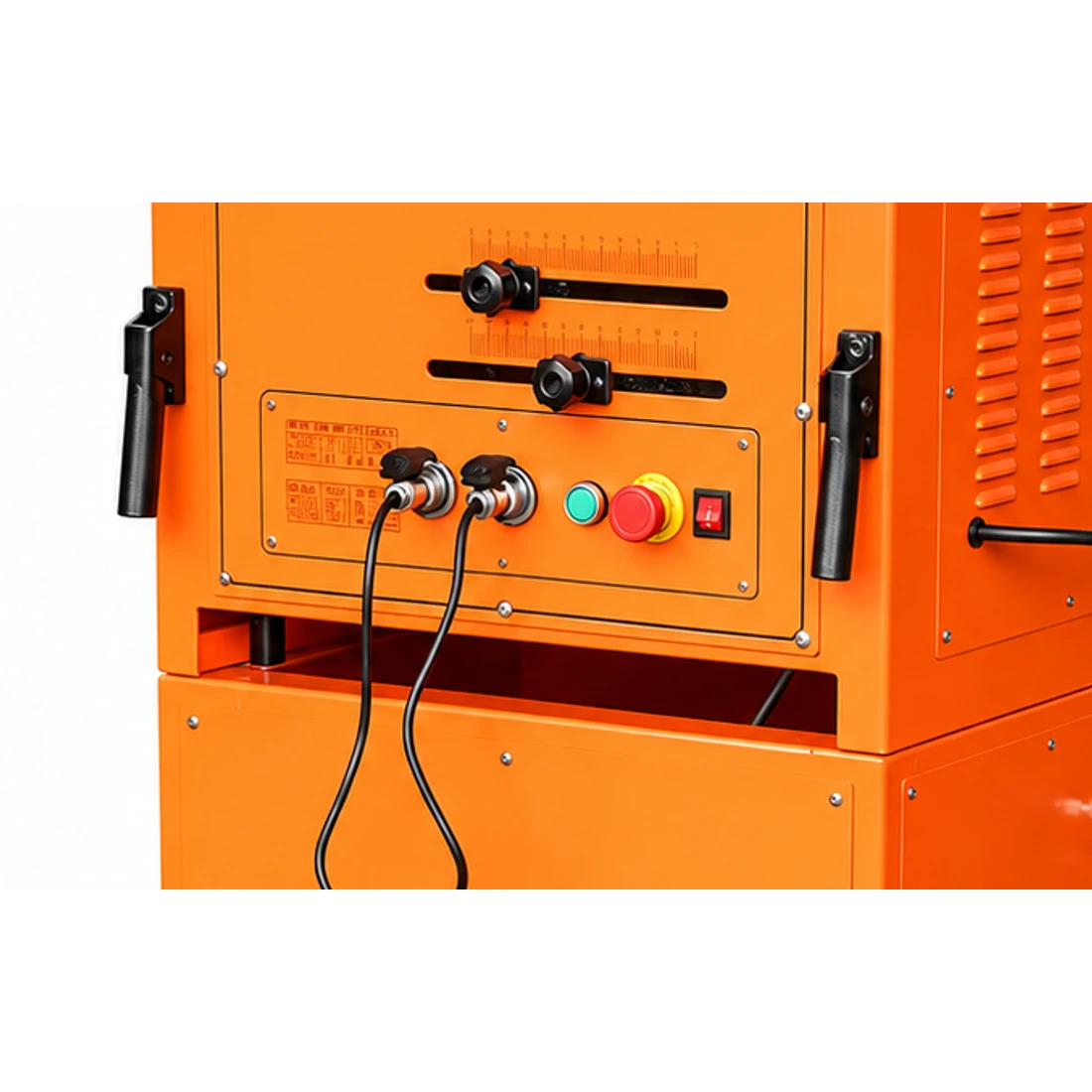

The source gallery contains machines with visibly different top tooling and control-panel arrangements. This page uses one edited source view and labelled crops of that same view; it does not imply that all source-series machines are identical. Confirm mandrels, rollers, blades and control accessories against the specific quotation. A foot control in a photograph is not by itself a written promise that the accessory is supplied.
The attribute “4.5s/4s” does not explicitly state which value belongs to cutting or bending. Shared source graphics showing another model’s times are not used to confirm RBC-32 output. Ask for a demonstration under the specified bar and setup conditions if cycle time is important to procurement. The 110 V/220 V source entry also requires selection of the delivered version, frequency and connection arrangement; motor power alone does not determine a suitable site circuit.
The source lists 260 kg, while its comparison graphic identifies the weight row as gross weight. The difference is not hidden by relabelling it net. Confirm machine mass, packed mass, lifting points and unloading requirements for the actual delivery. The 745 × 665 × 1165 mm entry is packaging size, not a machine clearance drawing. Request the installation envelope and working access as separate documentation.

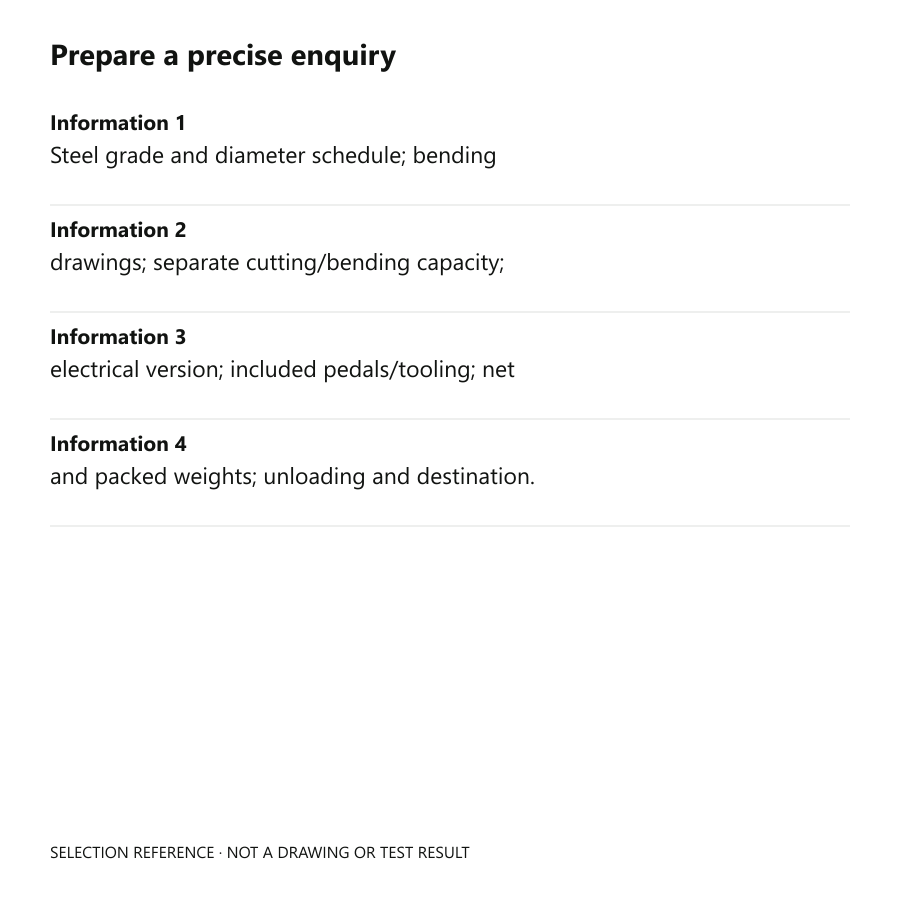

Steel grade and diameter schedule; bending drawings; separate cutting/bending capacity; electrical version; included pedals/tooling; net and packed weights; unloading and destination.
No. The comparison graphic calls the row gross weight; request separate net and packed values.
No. Model-specific capacity and cycle evidence must refer to the ordered RBC-32 version.
Their inclusion and function must be specified in the quotation, not inferred from the image.
