Images show configurations in the source materials. Confirm the supplied machine configuration before ordering.
RM800A

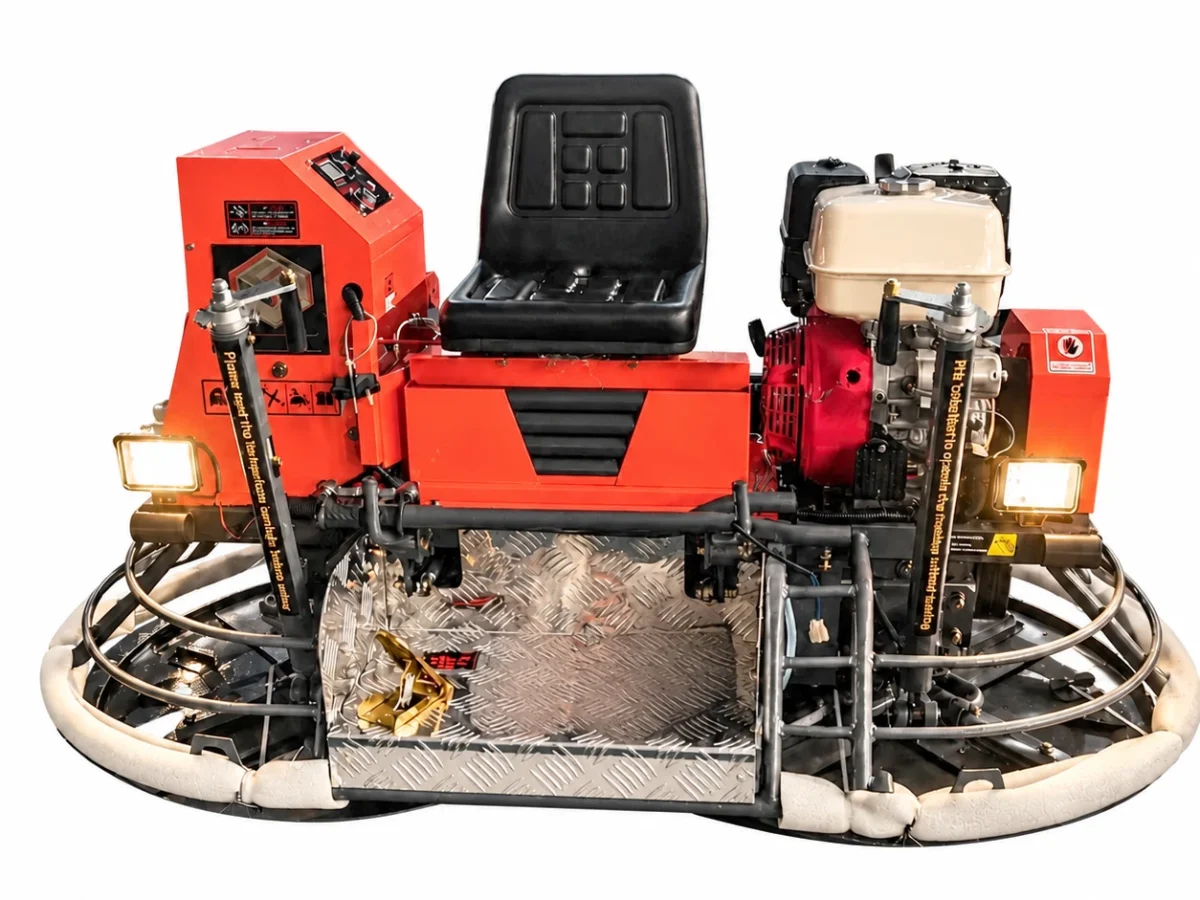

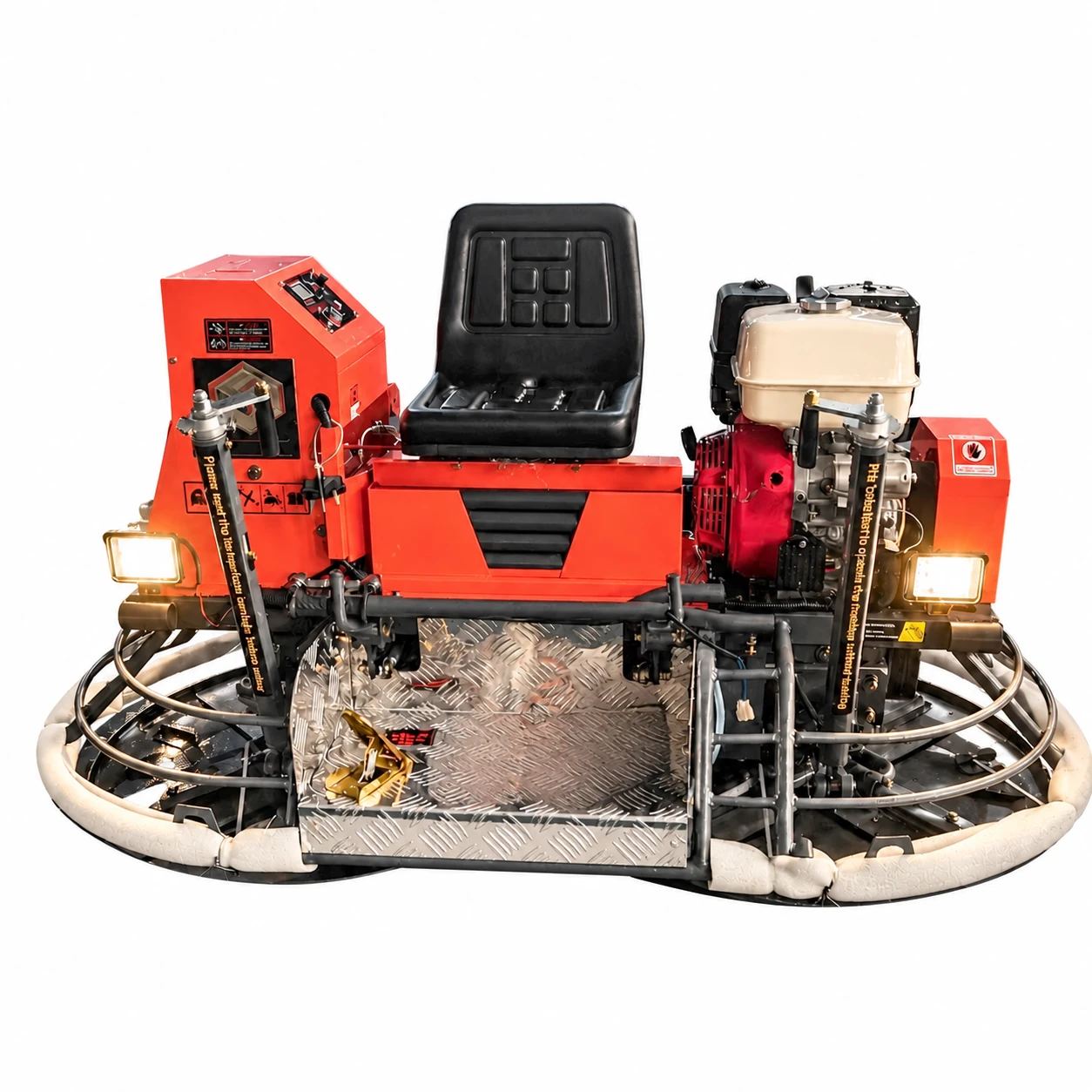

RM800A ride-on power trowel for concrete slab finishing. Review the engine and tool set; listed gross weight and packing dimensions are shipping data.
| Listed engine power | 13 HP |
|---|---|
| Listed working speed | 0–150 rpm |
| Listed working span | 1600 mm |
| Listed pan diameter | 780 mm × 2 |
| Number of blades | 8 |
| Blade dimensions | 270 × 150 × 2.0 mm |
| Listed packing weight | 315 kg |
| Listed packing dimensions | 1700 × 950 × 870 mm |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
The RM800A is a gasoline ride-on power trowel. Its operator seat and trowelling arrangement suit concrete slab finishing when the slab layout permits machine travel. The working plan should include access, obstructions and finishing requirements; a large floor area does not by itself determine the right machine.
The reviewed catalogue distinguishes gross weight and packing dimensions from the operating machine. Use those figures for shipment planning, not to judge the space needed for turning on the slab. Ask for the operating dimensions, engine model and supplied finishing tools for the RM800A.
Send the slab area, finishing stage, access restrictions and preferred engine configuration. Request the current key specifications, engine model, machine and packing dimensions, weight and included pans/blades before ordering. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
No. Gross weight includes the shipping arrangement. Request the net machine weight separately.
Not by themselves. Obtain the machine dimensions in the configuration used for moving through the site.
They are separate catalogue models. Have the quotation identify RM800A and its engine and finishing-tool configuration.
