Images show configurations in the source materials. Confirm the supplied machine configuration before ordering.
YH800B
YH800B gasoline ride-on trowel for concrete finishing, listed with 13 HP and eight blades. Confirm operating dimensions, tool configuration and engine model.
| Listed engine power | 13 HP |
|---|---|
| Listed working speed | 0–150 rpm |
| Listed pan diameter | 780 mm |
| Number of blades | 8 |
| Key parameters and configuration | Please send an enquiry to obtain the current key specifications and confirm the selected configuration. |
The YH800B is a gasoline ride-on power trowel for finishing concrete slabs. The reviewed listing specifies a 13 HP engine rating, eight blades and a listed speed range of 0–150 rpm. These figures describe the listed configuration, not a guaranteed finished area per hour.

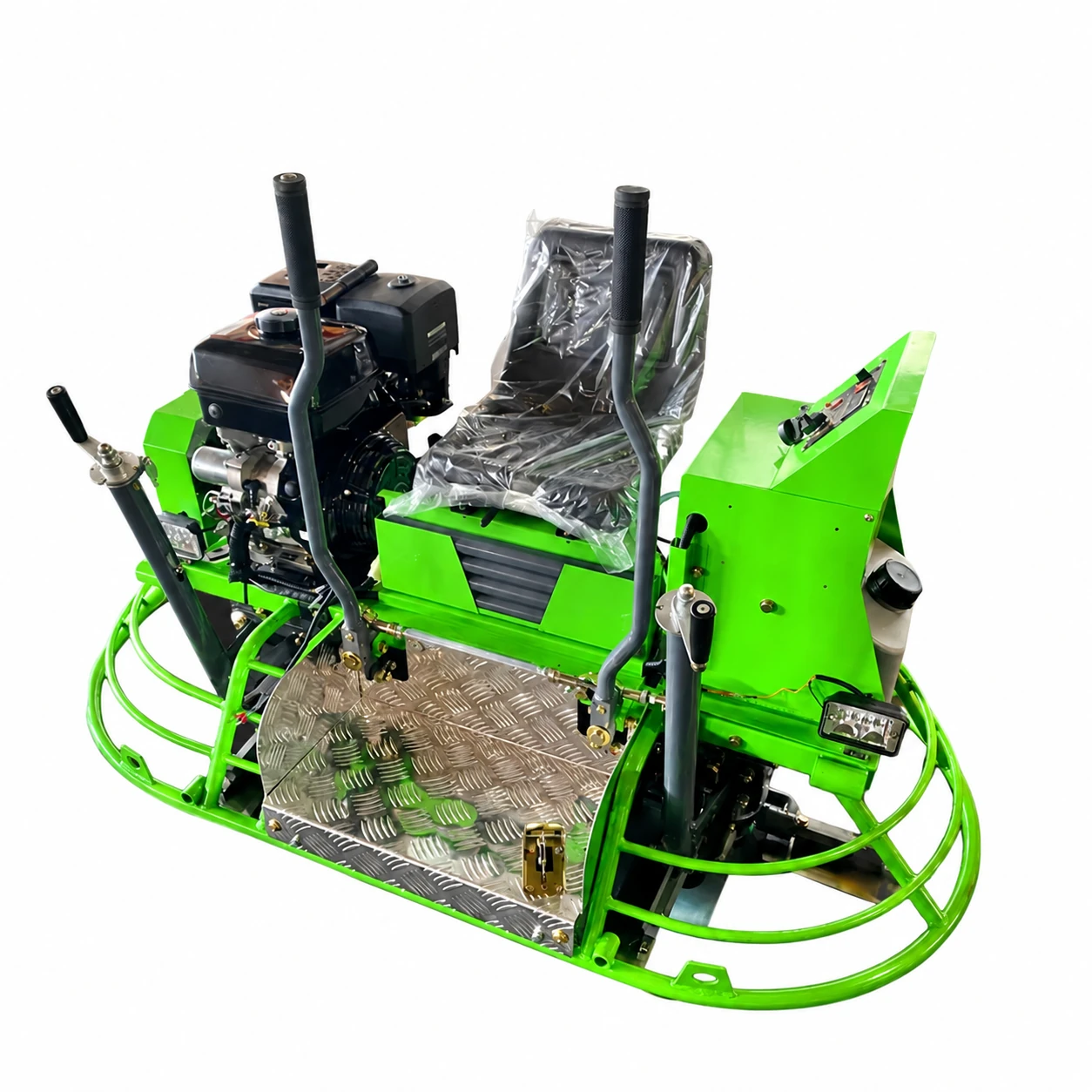

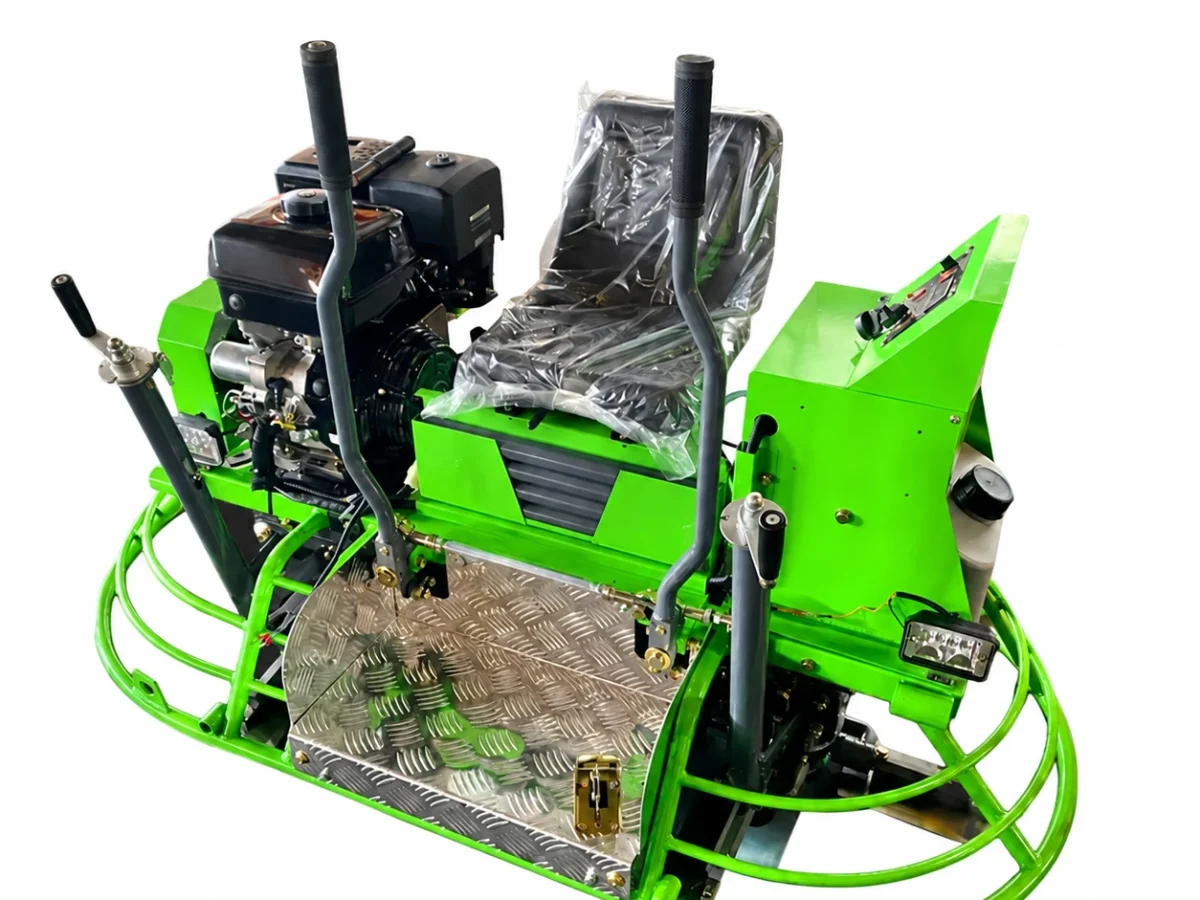

The catalogue lists a 780 mm working dimension, but transport and operating dimensions still need confirmation. Specify the floating or finishing task and the requested pan and blade set. The green machine shown is the reviewed YH800B view; other colours in a mixed catalogue are not evidence of the same configuration.
Send the slab area, finishing stage, access restrictions and preferred engine configuration. Request the current key specifications, engine model, machine and packing dimensions, weight and included pans/blades before ordering. Please send an enquiry to obtain the current key specifications and confirm the selected configuration.
Confirm packing weight and dimensions, transit protection, supplied accessories and delivery terms before ordering.
Confirm the selected configuration and compatibility for the material, available supply and working conditions. Any requested changes must be confirmed before ordering.
No. It is the listed power rating. Request the actual engine make and model with the quotation.
No. Rotational speed is not finished floor area. Output depends on the concrete, finishing stage and site layout.
Request a current net weight and lifting instructions for the supplied YH800B. Unresolved catalogue weights are not used here.
A gasoline ride-on power trowel identified as RM1200 in the source model selector. The listing records 37 HP, 510 kg, two 1170 mm pans and ten blades. Its 2400 mm working-diameter entry must be distinguished from each pan diameter and confirmed for the delivered arrangement.
View product →
A gasoline ride-on power trowel with a seated operator arrangement. The source lists 24 HP, 409 kg, two 940 mm pans and eight blades. Its 2000 mm working-diameter attribute and 940 mm working-diameter SKU entry have different apparent scopes; confirm those scopes with the machine and tooling drawings.
View product →
The DMJM100 is a seated twin-rotor concrete finishing machine with guarded blade assemblies and operator controls above the frame. Original workshop views show its engine and rotor layout rather than a floor-grinding head.
