Q500

Q500 Road and Concrete Cutter

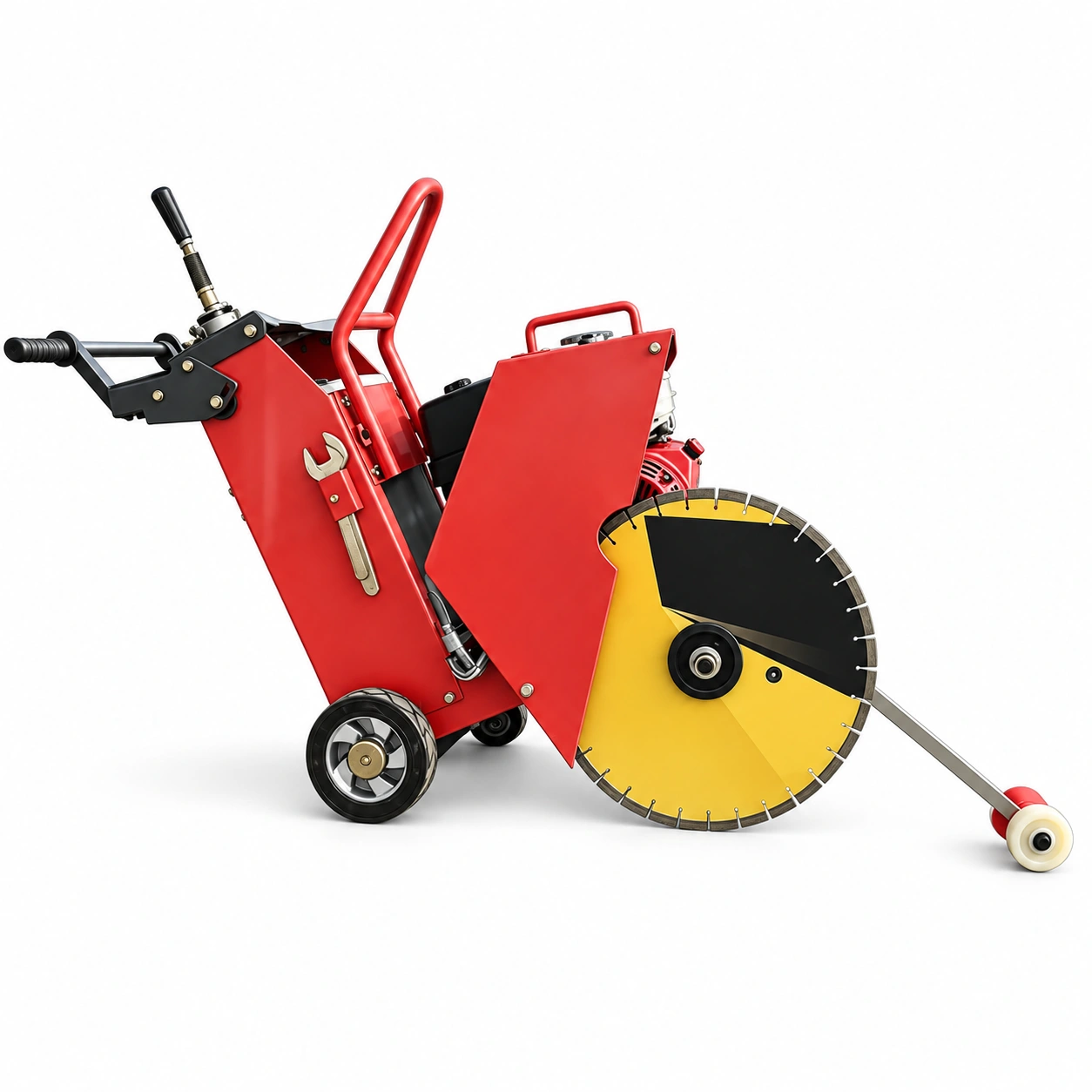

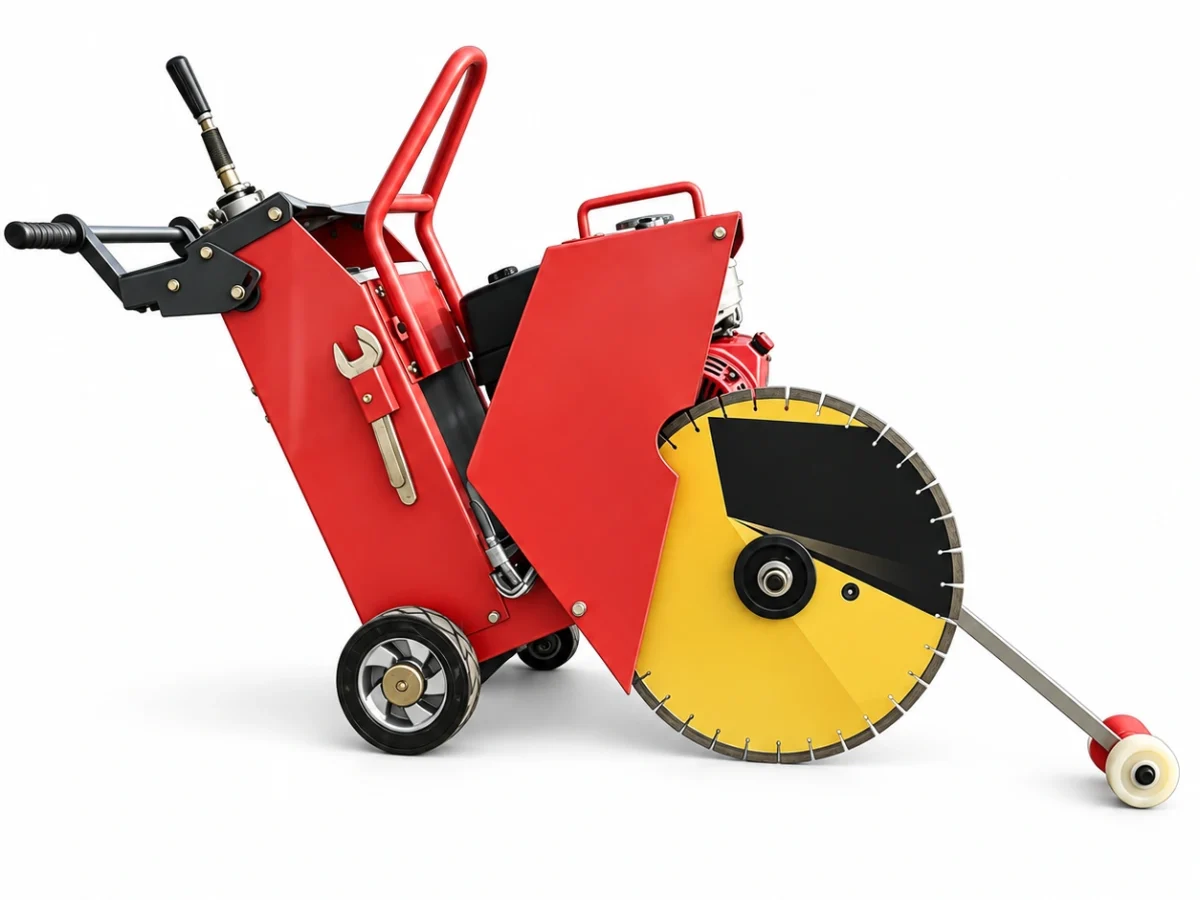

Q500 is a wheeled floor saw for cuts along road surfaces and concrete slabs. Its handle and guide arm help position the machine along the planned line, while the blade works below the side guard.

Product and application
Choosing this configuration
Match blade, material and depth
Transport and routine service

Get a Quote WhatsApp

Technical Specifications

Claimed cutting-depth field; configuration-dependent	0-180mm
Power field	13HP
Source weight; supply scope to confirm	136.1 kg
Source dimensions; assembled/packed scope to confirm	10060110cm
Source speed field; conditions unspecified	35-50m/h
Power type	Gasoline
Source application	Road Surface Cutting
Engine options	Honda GX390 Engine/Loncin engine/ Chinese engine/customize
Blade-size options	350-500mm
Engine-type options	Gasoline engine /Diesel engine
Blade-diameter selection	350-500mm
Parameters to confirm	Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product Description

Product and application

Q500 is a wheeled floor saw for cuts along road surfaces and concrete slabs. Its handle and guide arm help position the machine along the planned line, while the blade works below the side guard. Original factory and packing photographs show different engine and colour arrangements; the quote must identify the machine being supplied.

Choosing this configuration

This Q500 source gives 13 HP, blades 350–500 mm, depth 0–180 mm and 136.1 kg. The main power-type field says gasoline, while another field offers gasoline or diesel engines. Agree the engine, blade and depth adjustment together. The 35–50 m/h travel/cutting-speed field is a source claim without material and depth conditions, not an unconditional site output.

Match blade, material and depth

Specify concrete or the intended road material, reinforcement if present, cut depth and length. Have the supplier match the blade diameter, bore and rated speed to the chosen engine and guard. Confirm the depth-adjustment range and water equipment; a maximum-diameter figure alone does not establish performance in the required cut.

Transport and routine service

Confirm whether quoted weight includes the blade, engine fluids and accessories, then request packed dimensions and unloading requirements. Ask for the correct engine manual and belt, bearing, wheel and blade-arbor parts list. Factory lineups and packing samples show possible supply arrangements, not a promise of identical crates for every order.

Before ordering

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Blade, guide and engine component examples

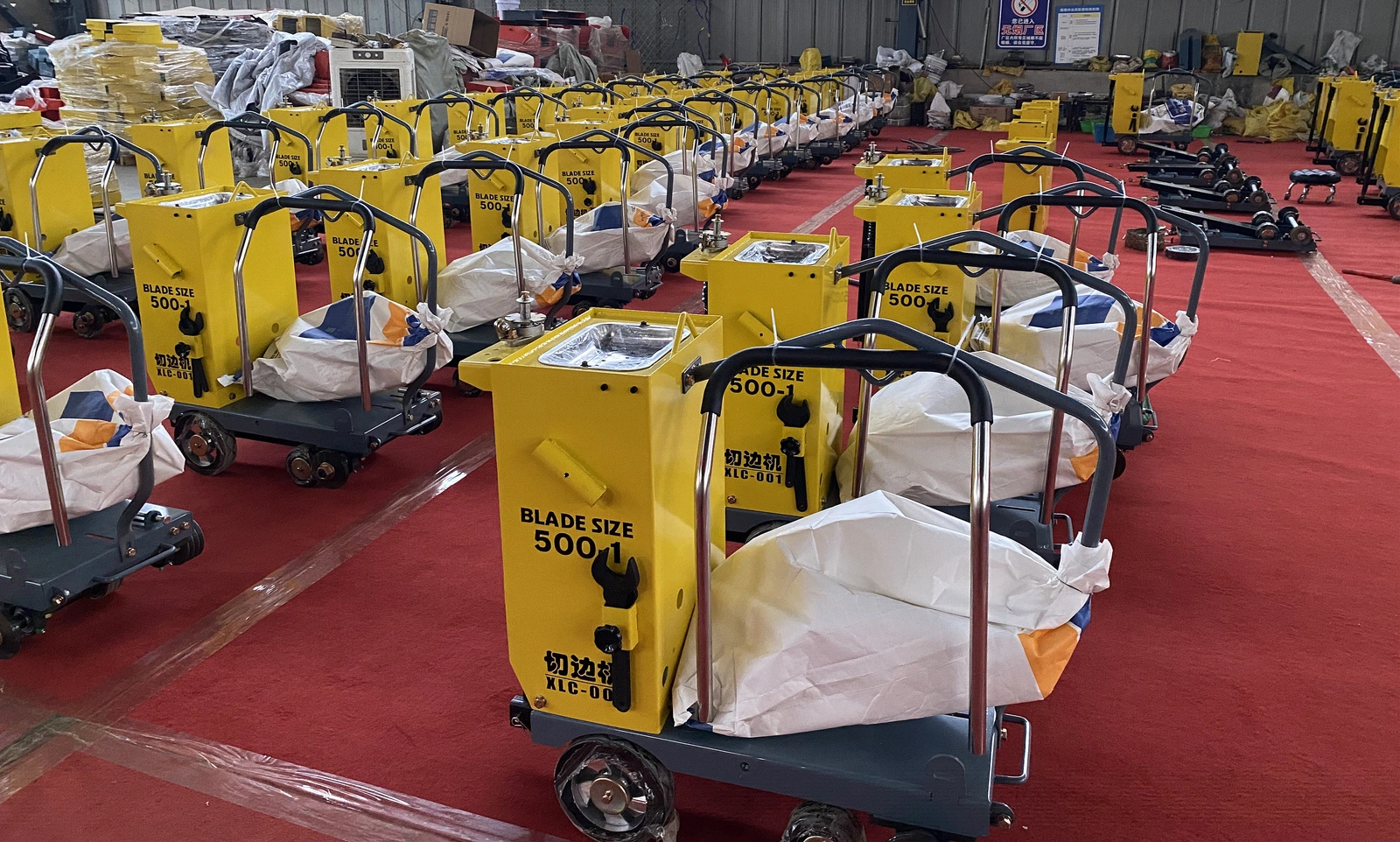

Workshop configuration examples

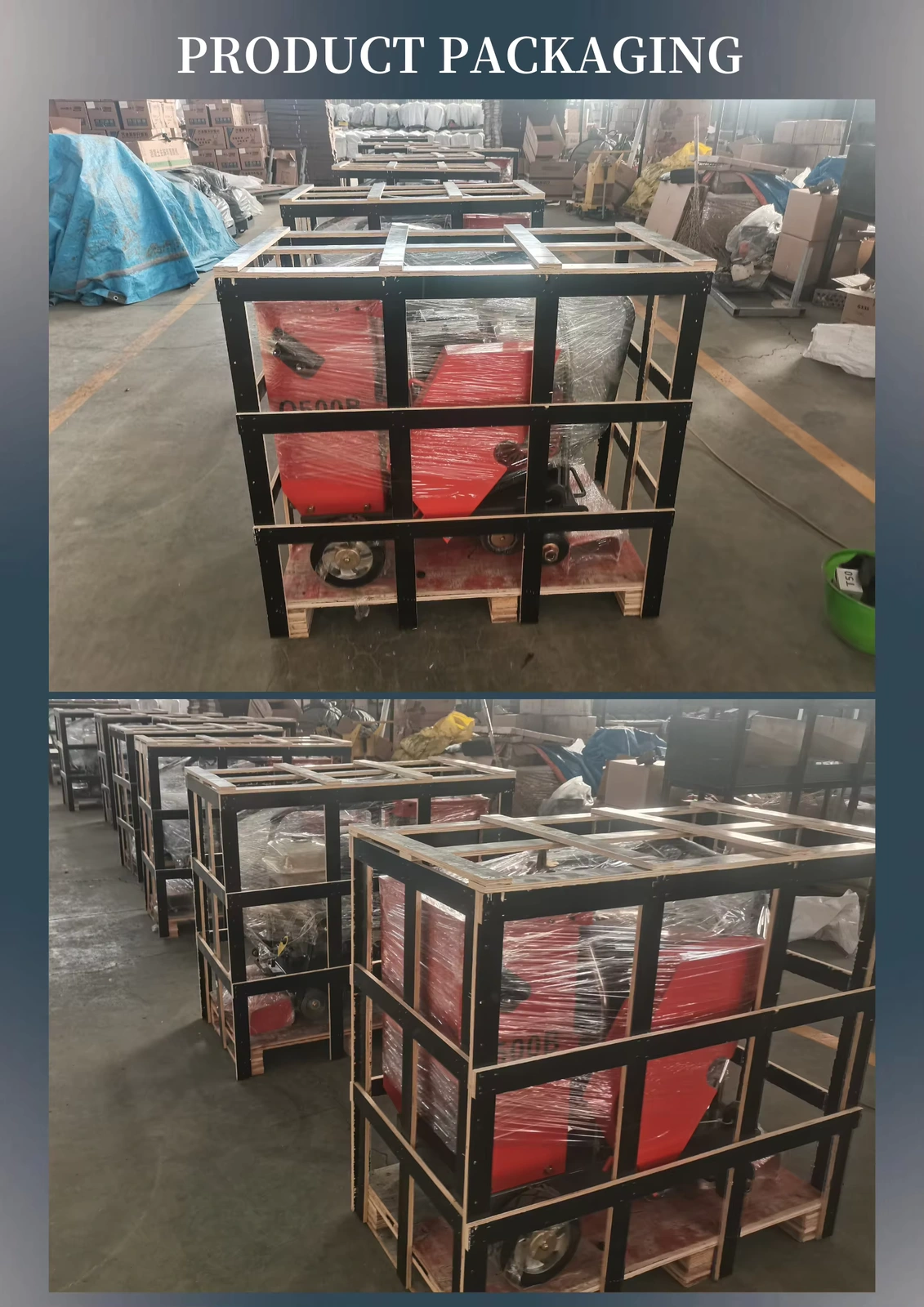

Packing examples

Applications

Q500 is a wheeled floor saw for cuts along road surfaces and concrete slabs. Its handle and guide arm help position the machine along the planned line, while the blade works below the side guard. Original factory and packing photographs show different engine and colour arrangements; the quote must identify the machine being supplied.

Packaging & Shipping

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.

Configuration Options

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product FAQ

Is 500 mm the usable cutting depth?

No. It is a blade-diameter option. Confirm depth with the actual blade, guard, arbor and depth adjustment.

Can I order for asphalt and concrete together?

State both materials if needed; have the supplier identify a suitable blade or separate blades and the approved machine configuration.

Does the quoted weight include all accessories?

The source does not give weighing conditions. Confirm machine versus packed weight and inclusion of the blade, water equipment and engine fluids.

Is the factory packing photograph my shipment?

It is an example. Agree the actual crate, packed dimensions and delivery contents for the quoted machine.

Which engine is included with Q500?

The listing names several engine options. Ask for the exact engine model and its rating in the quotation; the 13 HP field does not prove that every pictured engine has that rating.

What information is needed to confirm this configuration?
