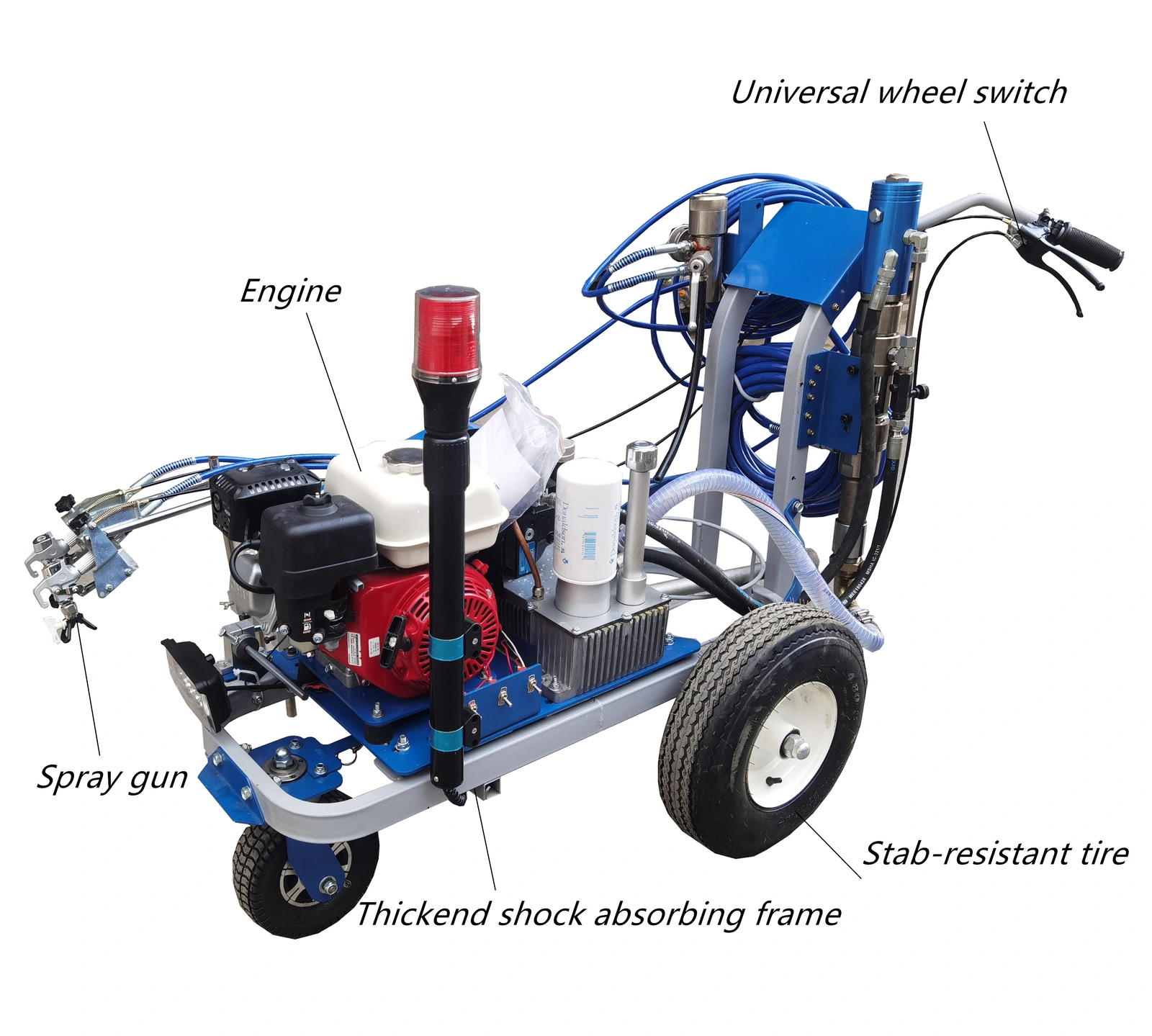

Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
Hand-Push Gasoline Road Marking Machine
Hand-Push Gasoline Road Marking Machine

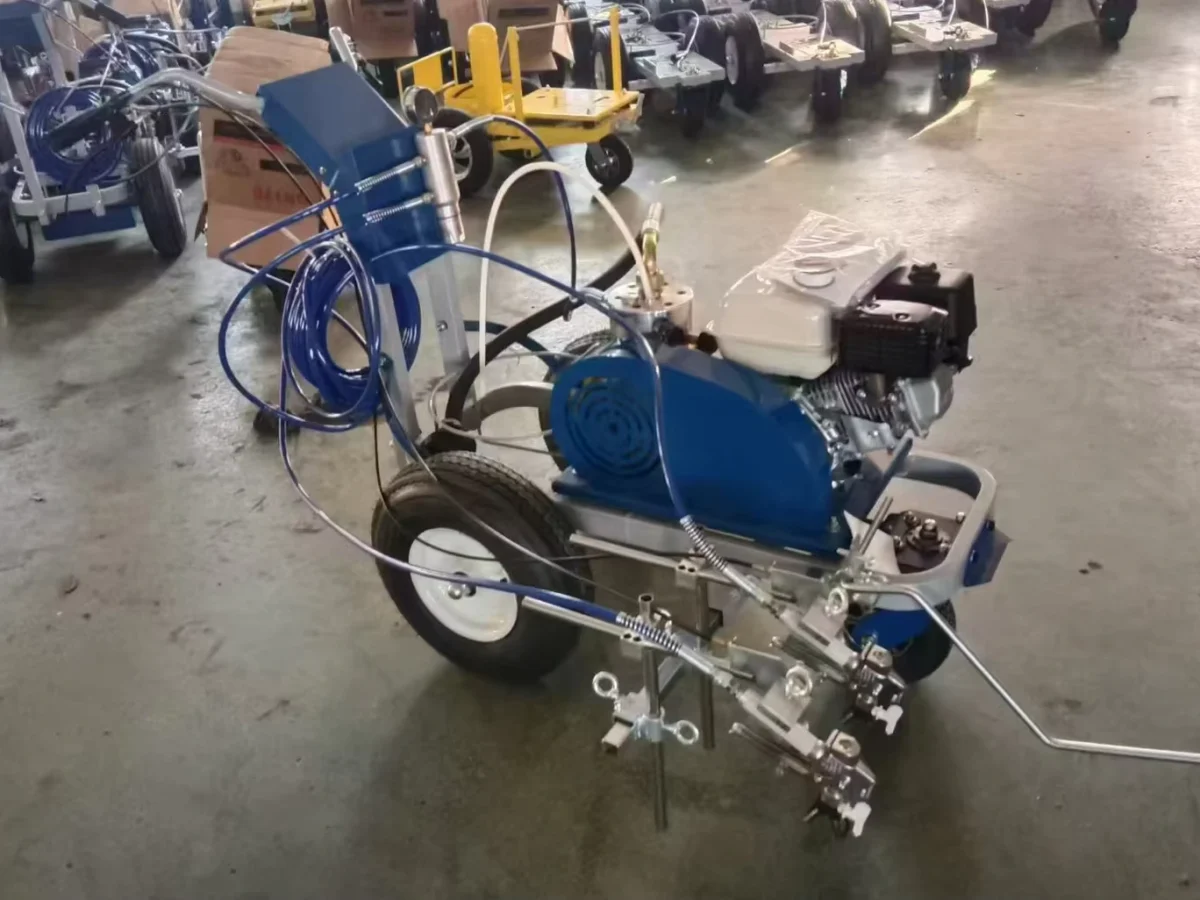

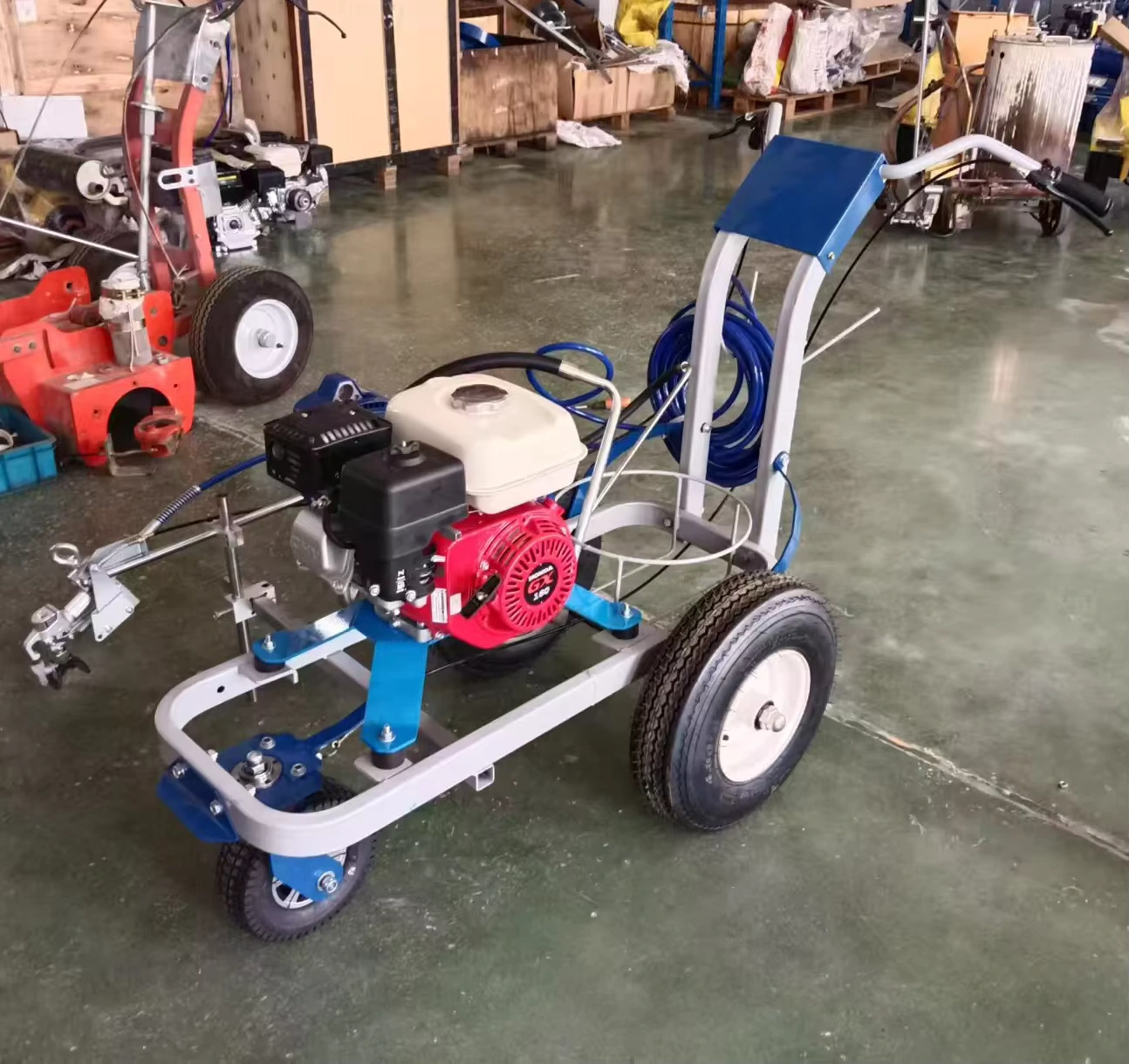

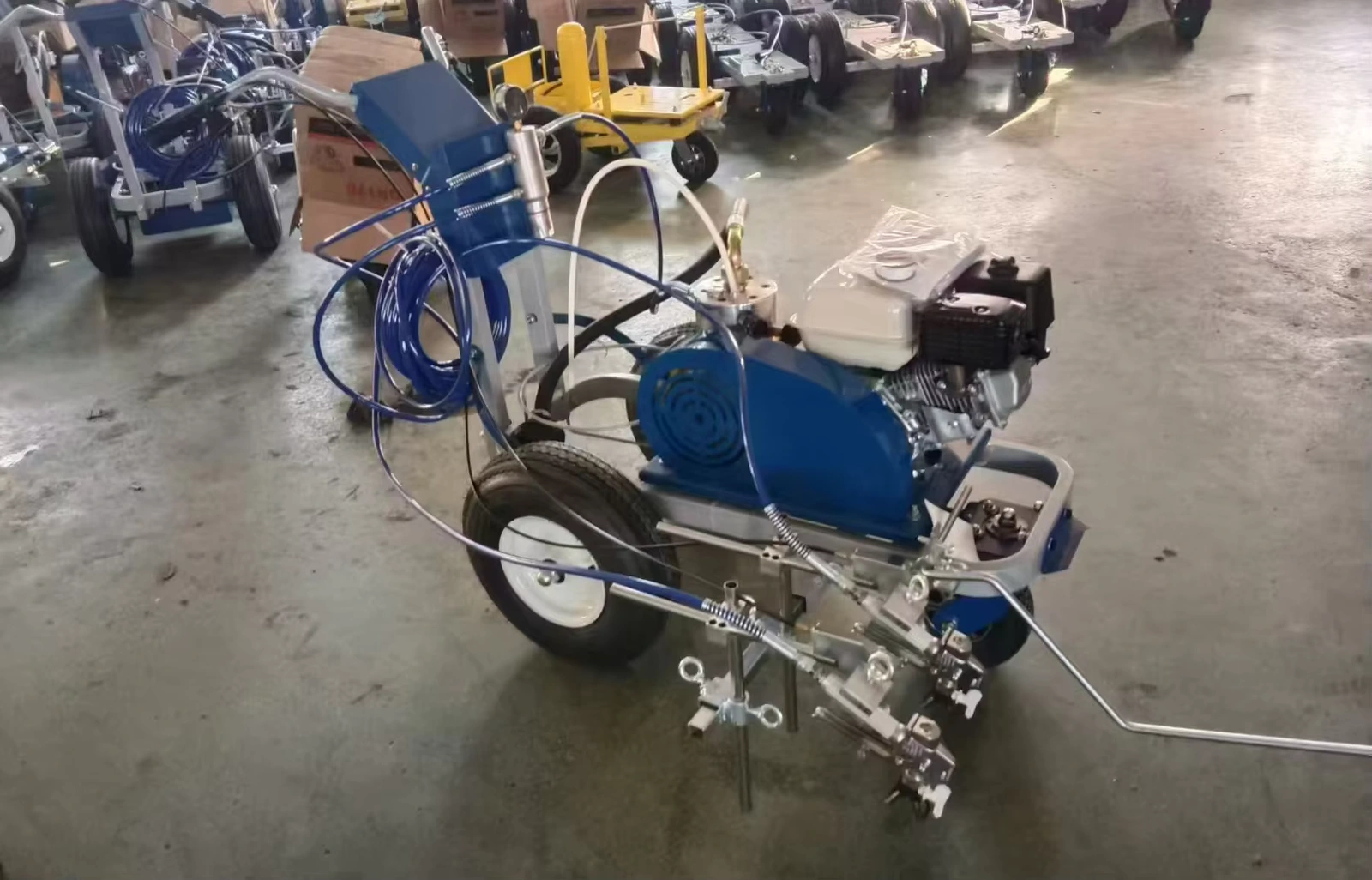

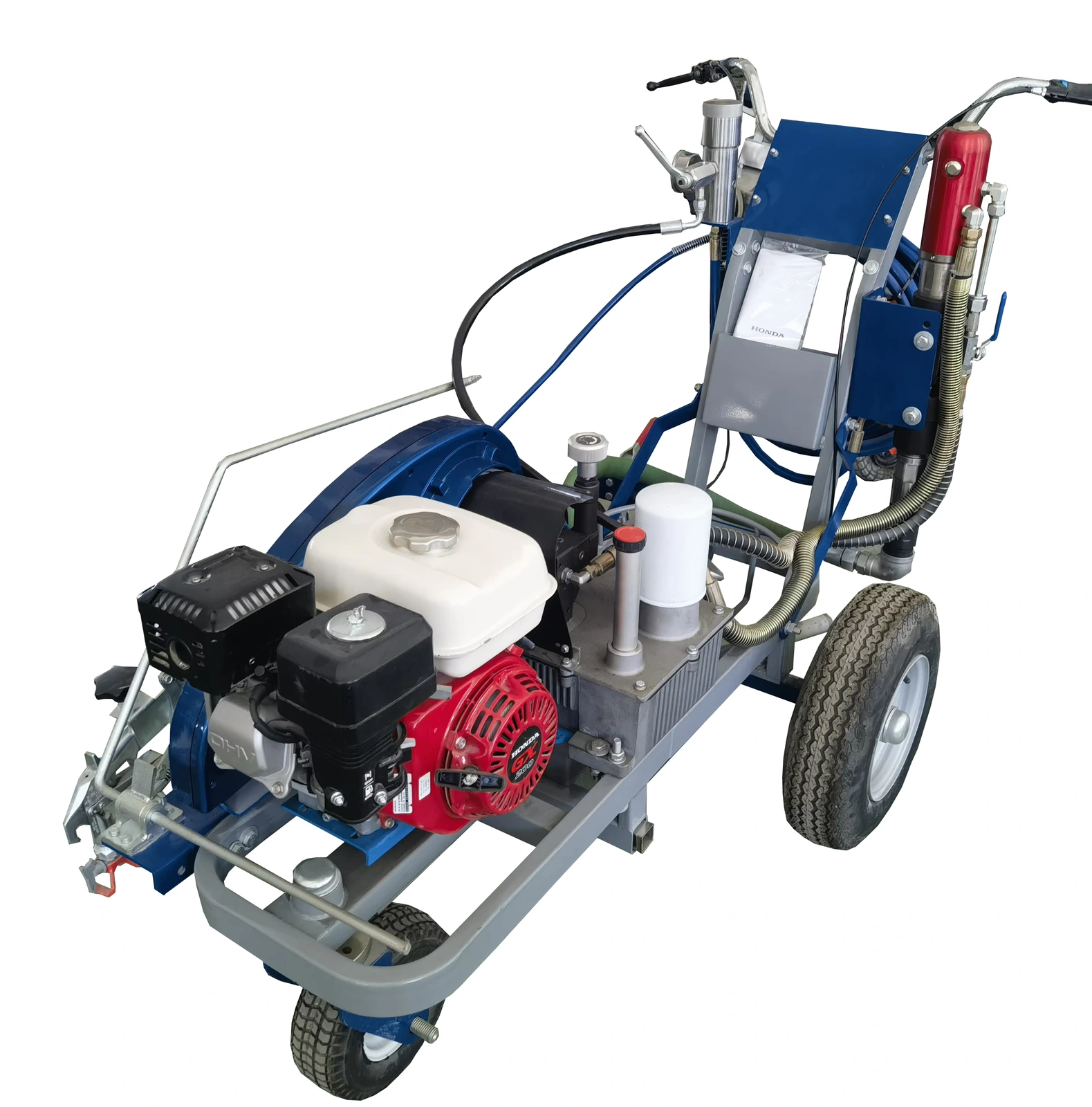

The machine has a walk-behind frame, gasoline engine and spray-gun mounting near the pavement. It applies selected liquid marking paint; the photos do not show a ride-on operator platform or a thermoplastic melting kettle.
- Product and application
- Choosing this configuration
- Paint, nozzle and line quality
- Order and service details
Technical Specifications
| Source power field | 5.5HP |
|---|---|
| Source overall dimensions; scope to confirm | 1250*900*950mm |
| Source weight; unit retained if stated | 85 kg |
| Source spray pressure range | 10-20MPa |
| Listed spray flow | 4L/min |
| Source gun-width range | 50-300mm (dual gun) |
| Source marking-width option | 8-25cm |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The machine has a walk-behind frame, gasoline engine and spray-gun mounting near the pavement. It applies selected liquid marking paint; the photos do not show a ride-on operator platform or a thermoplastic melting kettle.
Choosing this configuration
The source width fields use different ranges, including a dual-gun description. Match the gun count, nozzle, paint viscosity and required line width to the quotation. Maximum speed is a source claim, not a promise of acceptable coverage at that speed.
Paint, nozzle and line quality
Specify the liquid paint, target width, coverage requirement and site layout. Agree the gun and nozzle combination before comparing flow or travel speed; the machine does not certify the painted line by itself.
Order and service details
Request the delivered model identification, operating manual, parts list and an itemised equipment schedule. Consumables, accessories and transport items shown separately must be confirmed in the quote rather than assumed included.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The machine has a walk-behind frame, gasoline engine and spray-gun mounting near the pavement. It applies selected liquid marking paint; the photos do not show a ride-on operator platform or a thermoplastic melting kettle.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Is this a thermoplastic heater?
The selected photos show a spray-marking arrangement, not a melting kettle.
What decides the marking width?
Gun count, nozzle, setup and paint need to match the requested line.
Which configuration should I request?
Specify the liquid paint, target width, coverage requirement and site layout. Agree the gun and nozzle combination before comparing flow or travel speed; the machine does not certify the painted line by itself.
What is required for replacement parts?
Use the delivered model and component identification together with photographs and measured mounting interfaces.
What needs checking for this particular listing?
The source width fields use different ranges, including a dual-gun description. Match the gun count, nozzle, paint viscosity and required line width to the quotation. Maximum speed is a source claim, not a promise of acceptable coverage at that speed.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
