600C

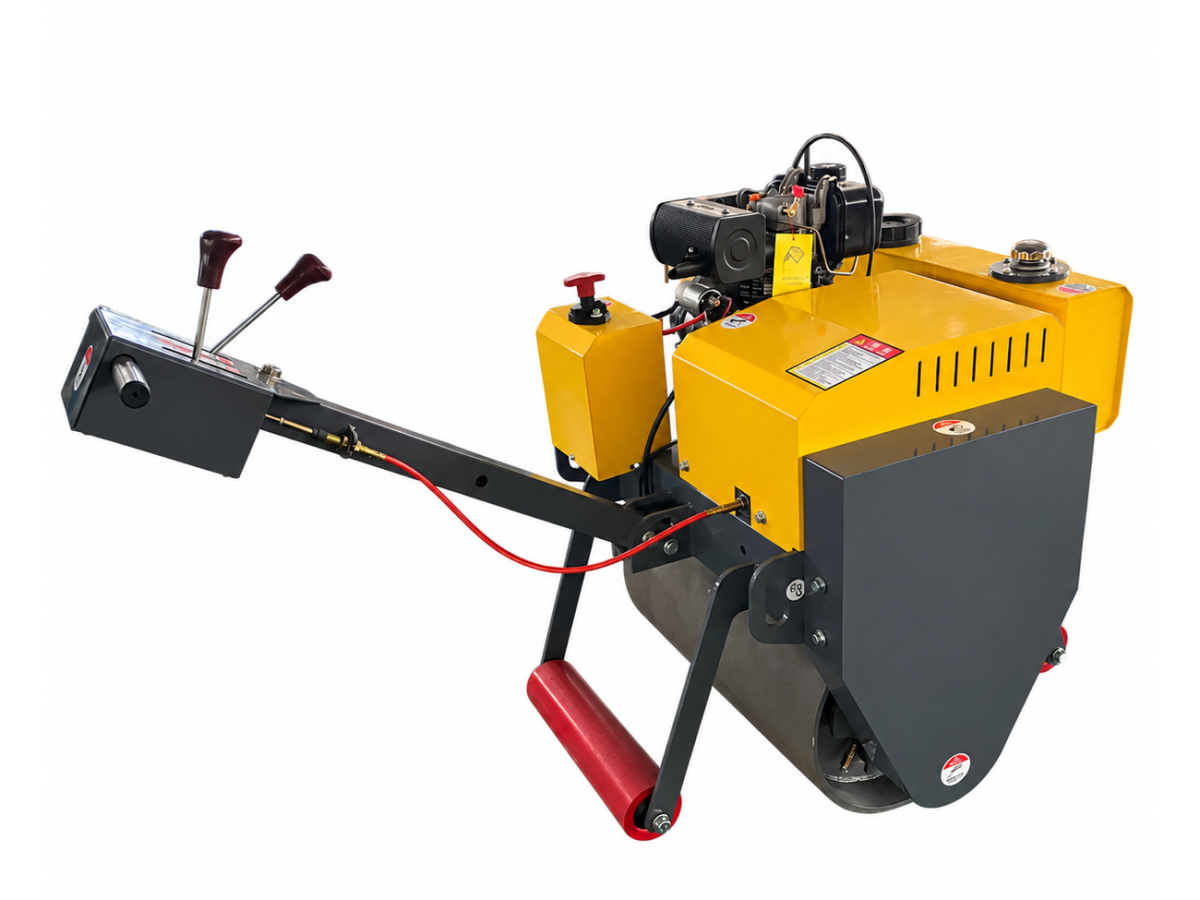

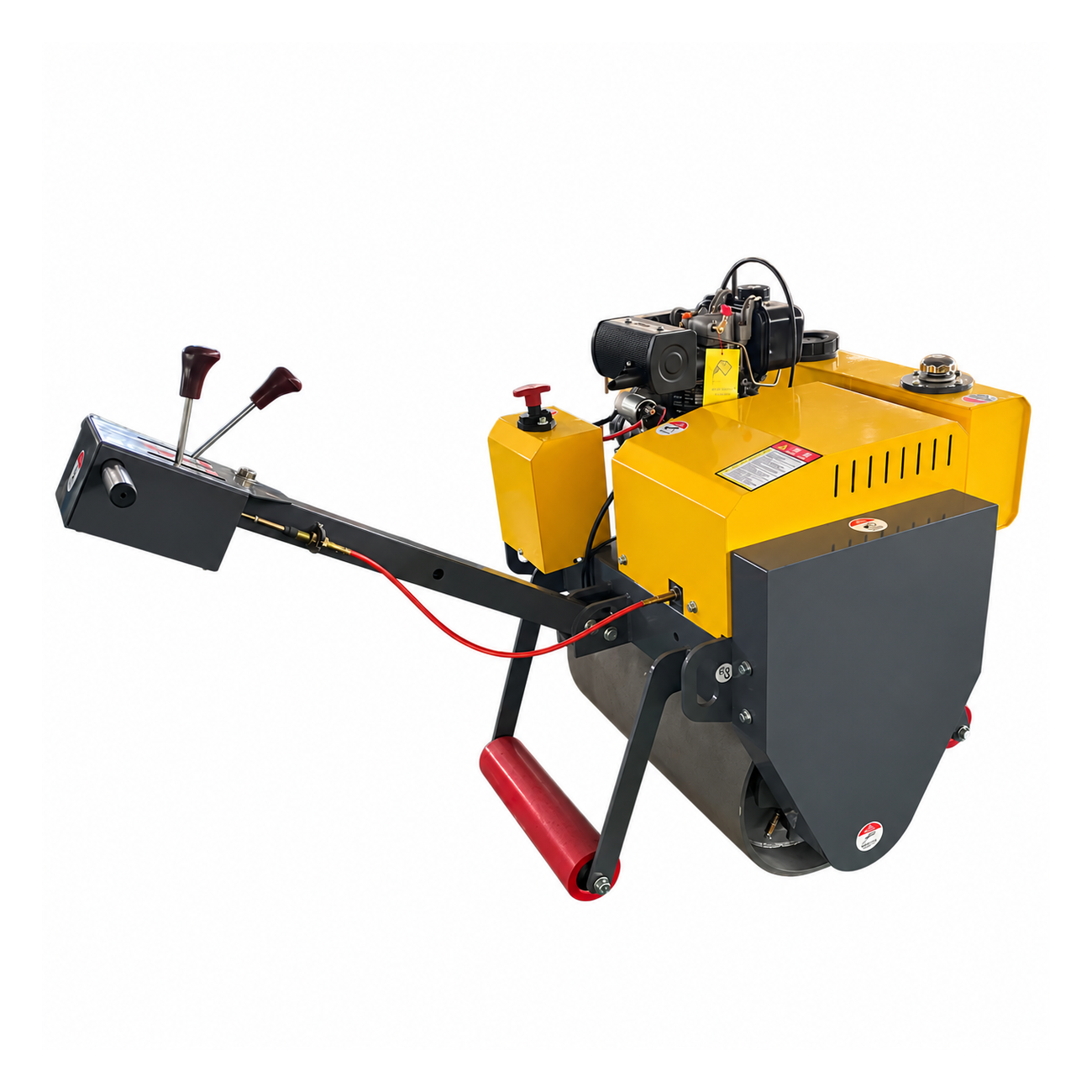

600C Walk-Behind Single-Drum Vibratory Roller
A walk-behind single-drum vibratory roller with an extended operating handle. The source lists 6 HP power, 18 kN excitation, 70 Hz vibration and 0–3 km/h travel. The image shows a single working drum and a small support-wheel arrangement; it is not a double-drum roller.
- Listed power: 6 HP
- Listed travel speed: 0–3 km/h
- Listed excitation force: 18 kN

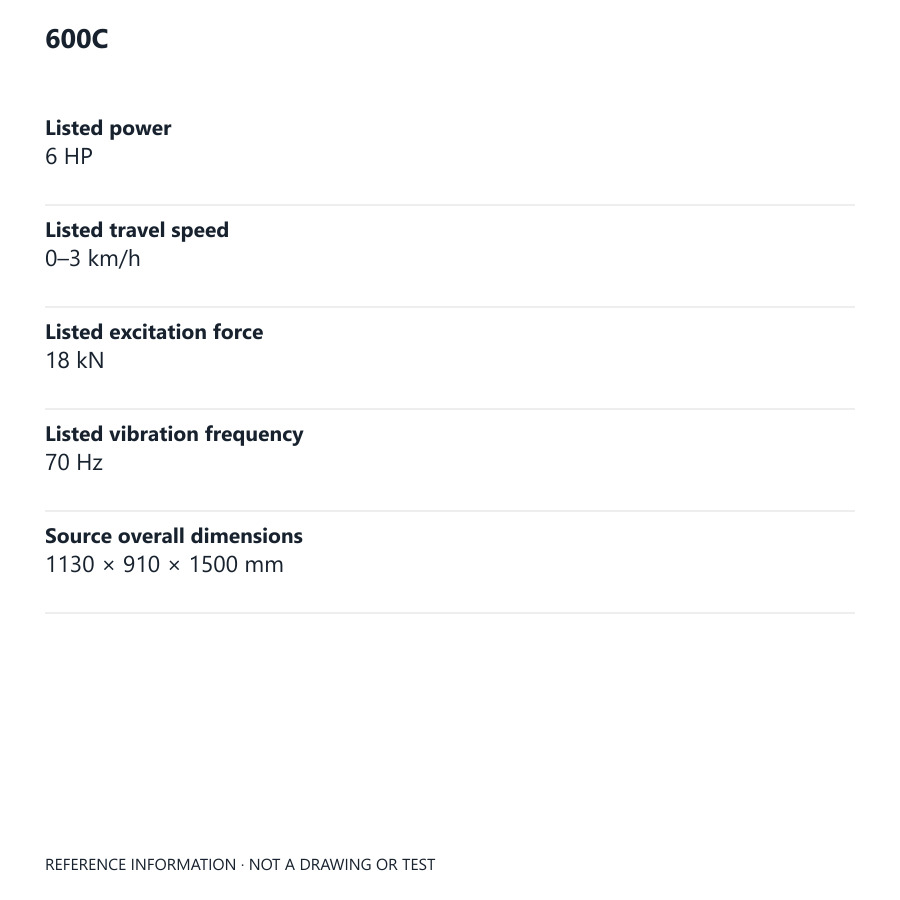

Technical Specifications
| Listed power | 6 HP |
|---|---|
| Listed travel speed | 0–3 km/h |
| Listed excitation force | 18 kN |
| Listed vibration frequency | 70 Hz |
| Source overall dimensions | 1130 × 910 × 1500 mm |
| Listed water tank | 30 L |
| Listed fuel tank | 6 L |
| Listed hydraulic tank | 18 L |
| Source gradeability; not a safe-slope approval | 20% |
| Source drum dimension; confirm diameter/width | 426*600mm |
| Source steel-wheel size; see dimension notes | 600*425mm |
| Starting options; confirm supplied version | manual+electric startup |
Product Description
Single-drum arrangement and access

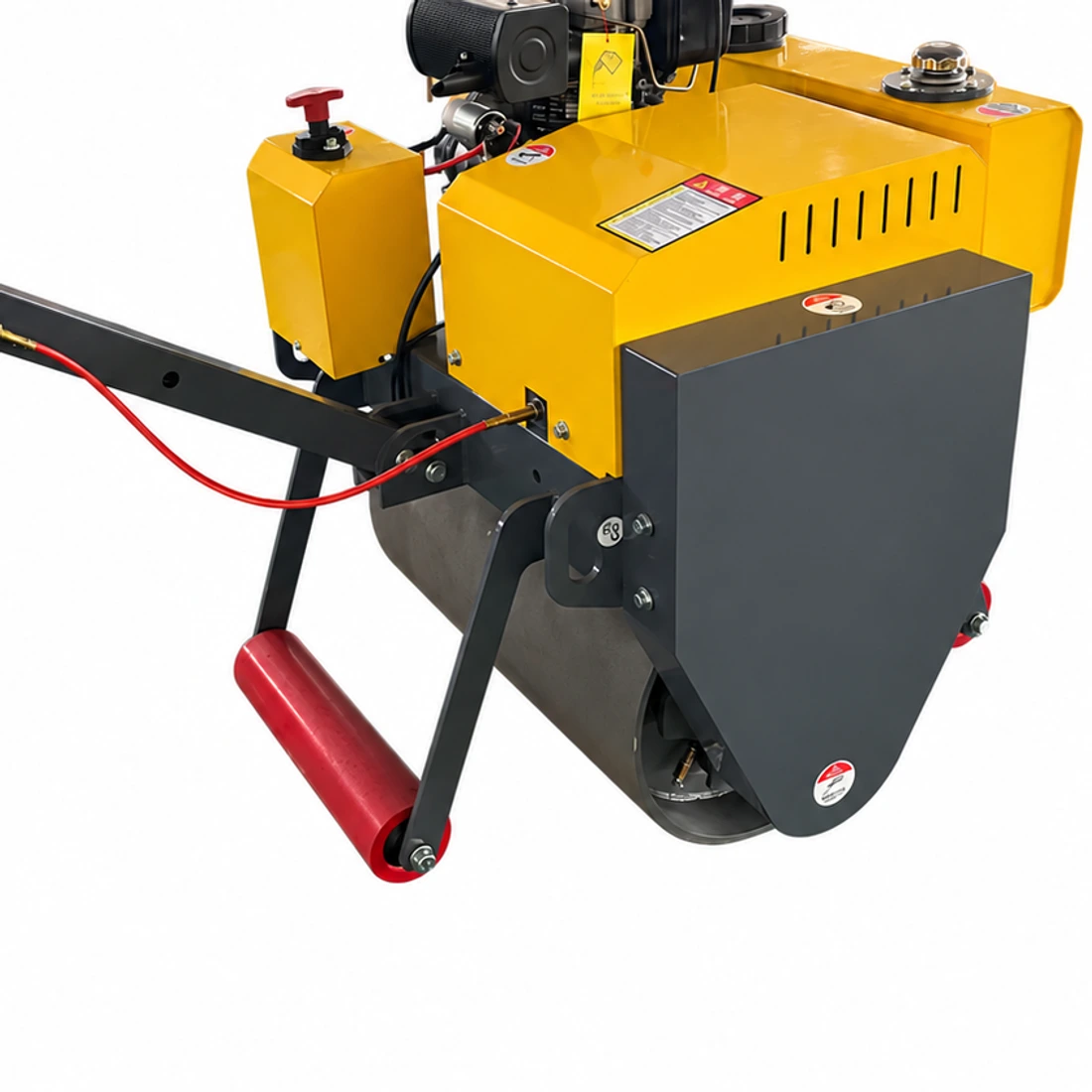

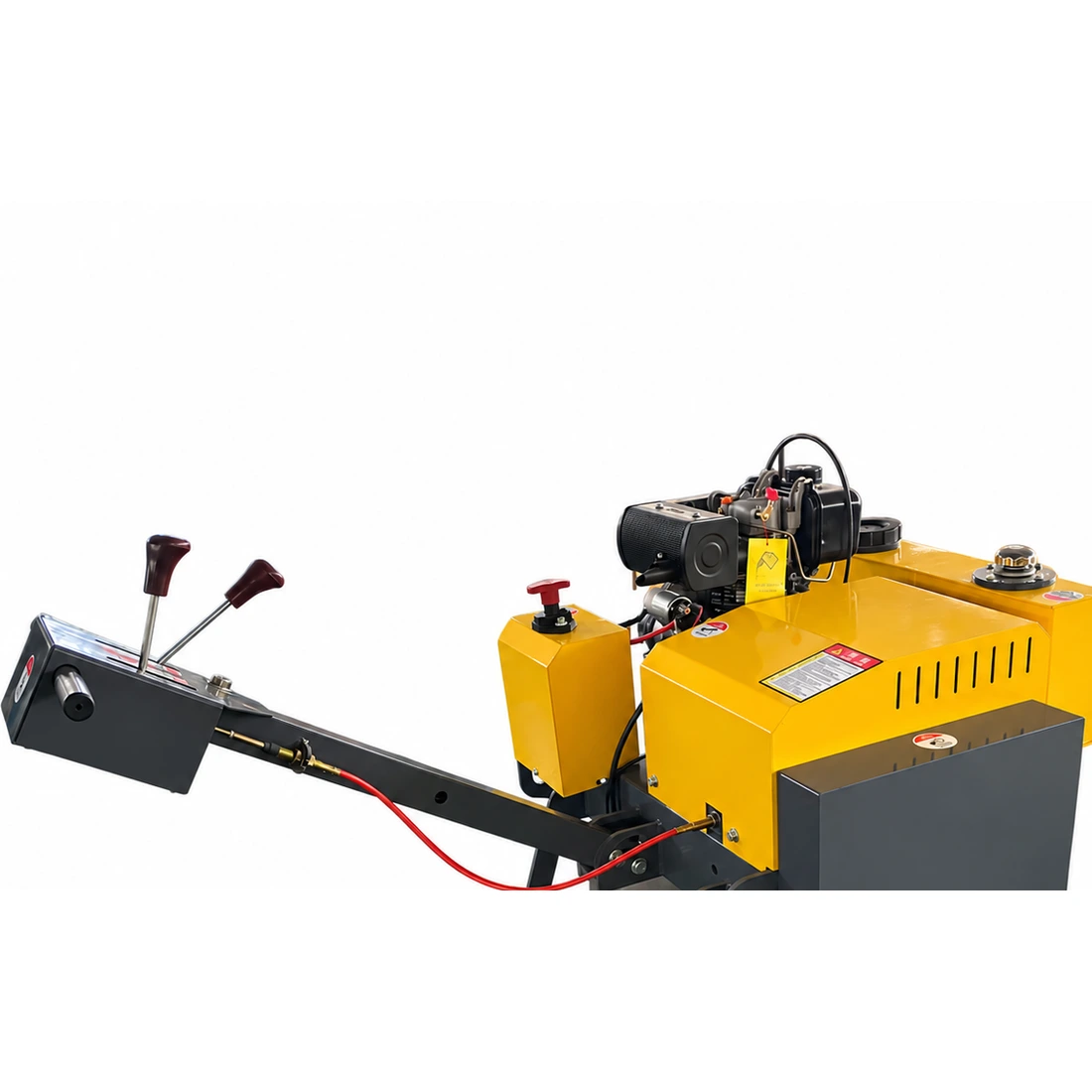

The source view shows the engine above the working drum, a long control handle and the small support wheel. Consider the whole assembled footprint and handle clearance, not just the drum, when assessing a narrow work area. Confirm operating and transport positions from the selected machine drawing. A support wheel does not establish lifting points or transport capacity.
Dimensions and title weight
The source lists 1130 × 910 × 1500 mm overall dimensions, but drum-related entries differ: 426 × 600 mm and 600 × 425 mm. Confirm their meaning with a drawing. A 310 kg claim appears in source title/detail marketing text, not a separate numeric weight attribute. Require the selected machine net weight and packing data instead of presenting 310 kg as verified.
Fuel and starting options
The power field lists gasoline/diesel alternatives, while the SKU lists gasoline. The start field combines manual and electric startup; it does not prove both are included in every version. Confirm engine identity, fuel, start equipment and supplied items in writing. Listed tank capacities are 6 L fuel, 30 L water and 18 L hydraulic tank; service-fill amounts remain governed by the applicable manual.
Compaction requirements, not universal promises
The 18 kN excitation, 70 Hz frequency and listed 20% gradeability require the configuration and working conditions to be understood. Do not treat them as proof of an achieved layer density or a safe slope limit. Send the material, layer, required test, site access and gradients so suitability can be assessed against the machine documentation.

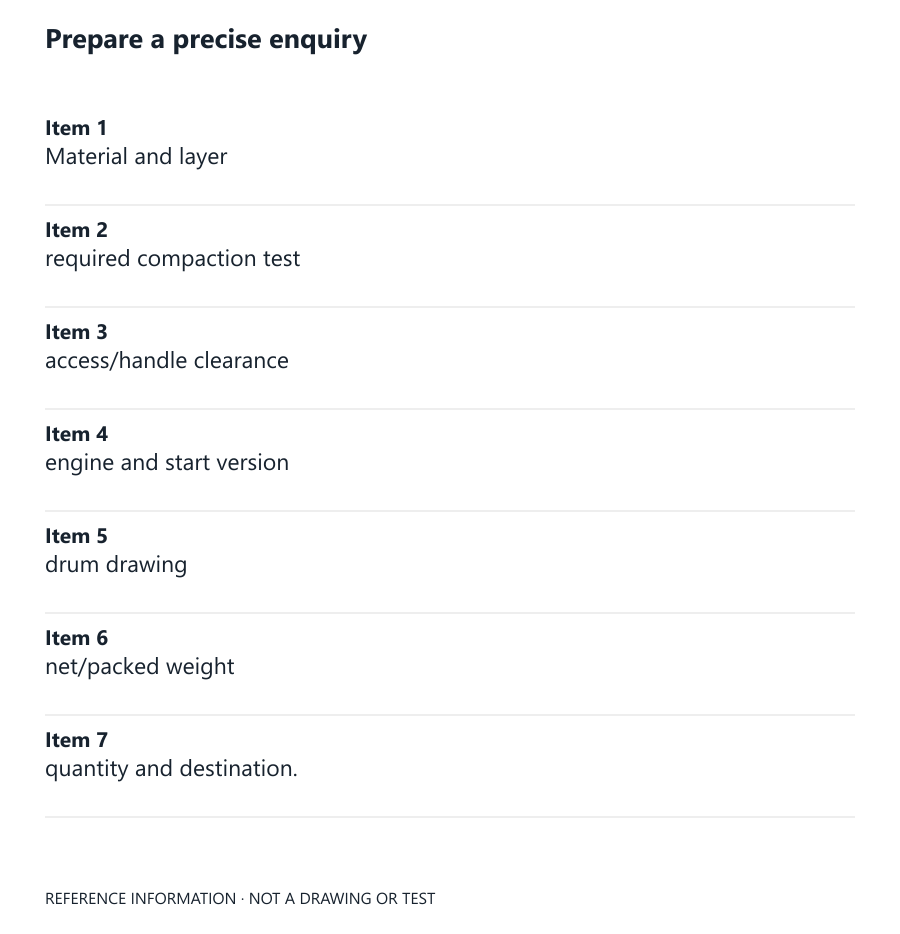

Prepare a clear product enquiry
Material and layer; required compaction test; access/handle clearance; engine and start version; drum drawing; net/packed weight; quantity and destination.
Product FAQ
Is this a double-drum roller?
No. The source identifies a single drum; the small support wheel is not a second compaction drum.
Is 310 kg verified for the order?
No. Confirm the net and packed mass for the chosen configuration.
Does every version have electric starting?
That is not established by the combined source start field. Specify the required start arrangement and obtain confirmation.
