Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
600C
The 600C holds the stone on a sliding worktable beneath a guarded circular blade. It is intended for preparing granite pieces where the workpiece can be supported on the table, rather than cutting an installed wall.
| Supply voltage | 380 V |
|---|---|
| Power field | 4 KW |
| Source dimensions; assembled/packed scope to confirm | 1720*900*1440mm |
| Source weight; supply scope to confirm | 320 kg |
| Blade diameter field | 400-600mm |
| Sawing length | 800mm |
| Head inclination | ≤45° |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |

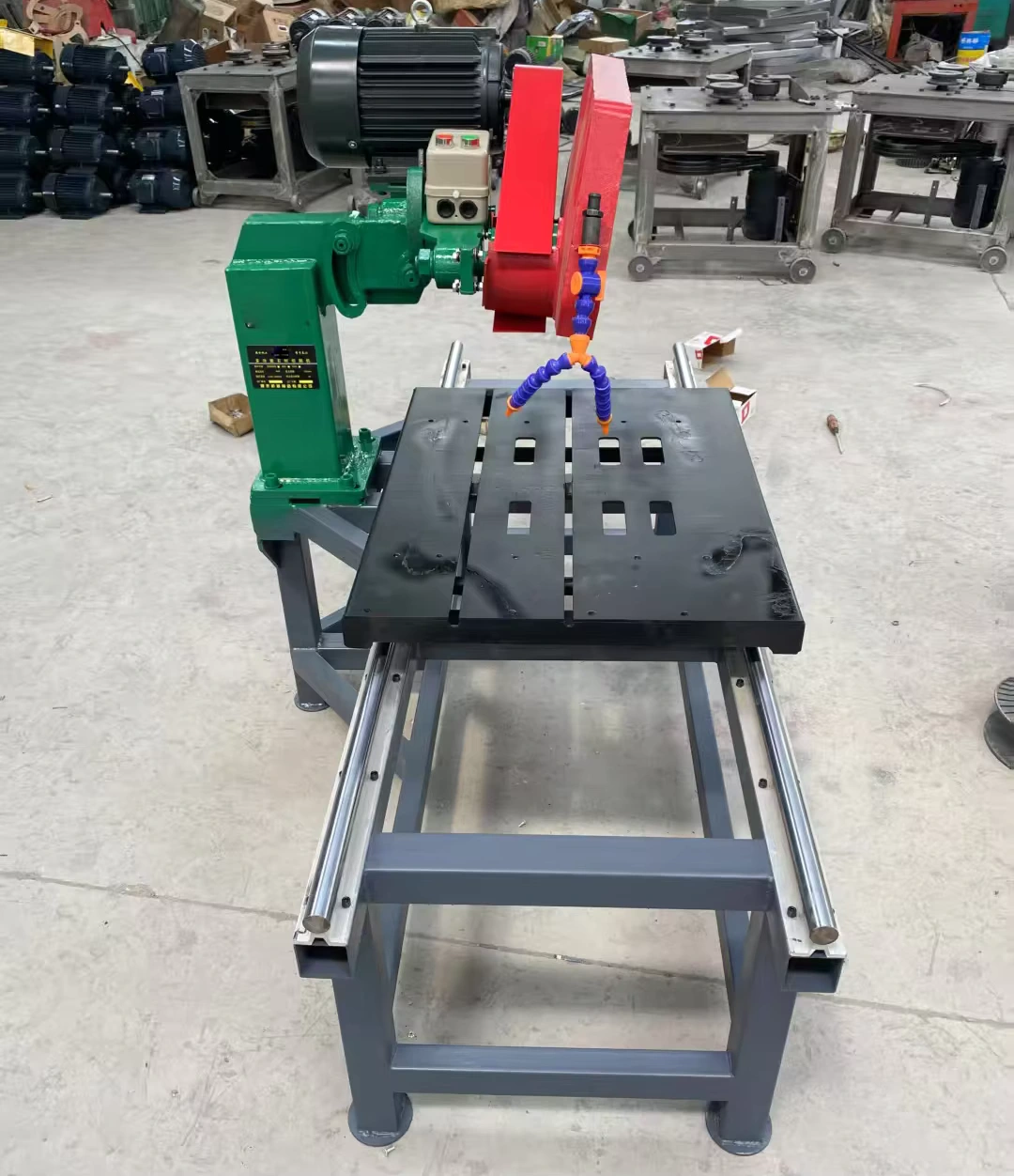

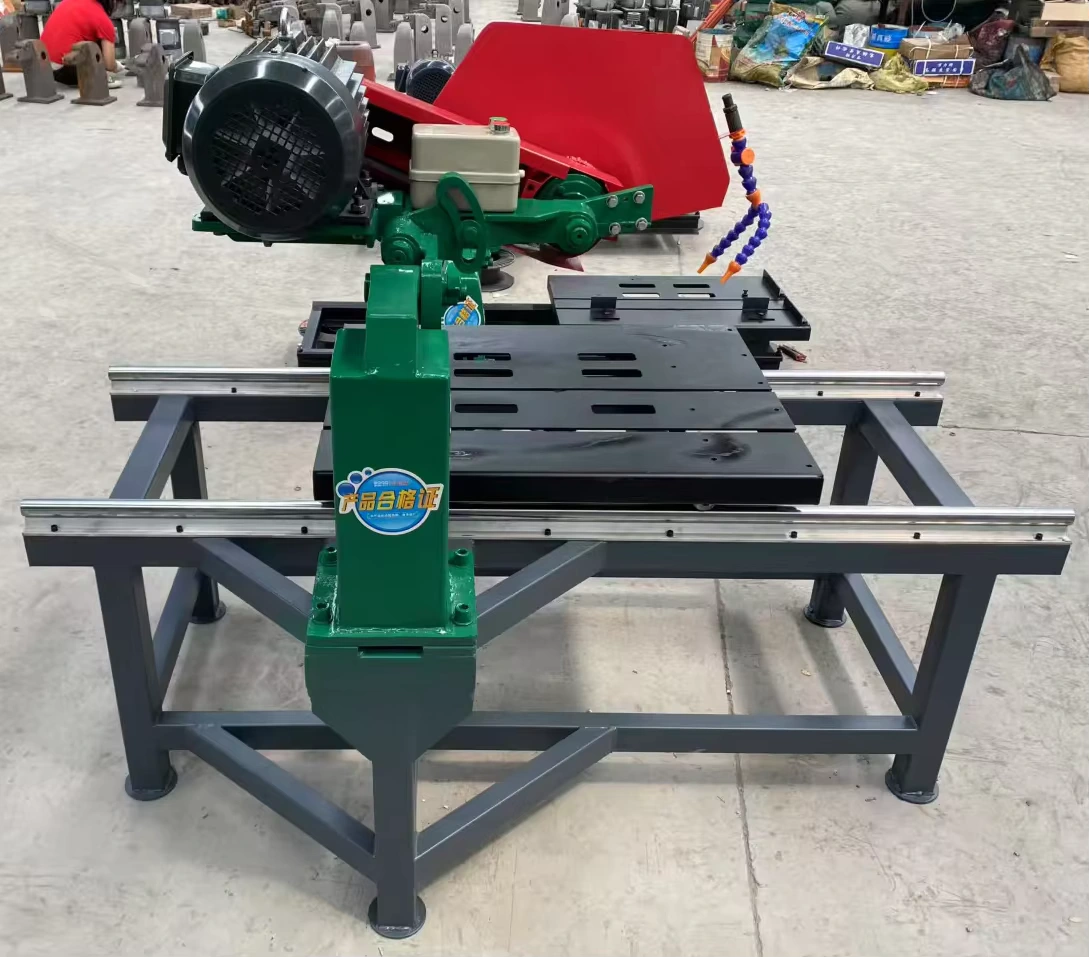

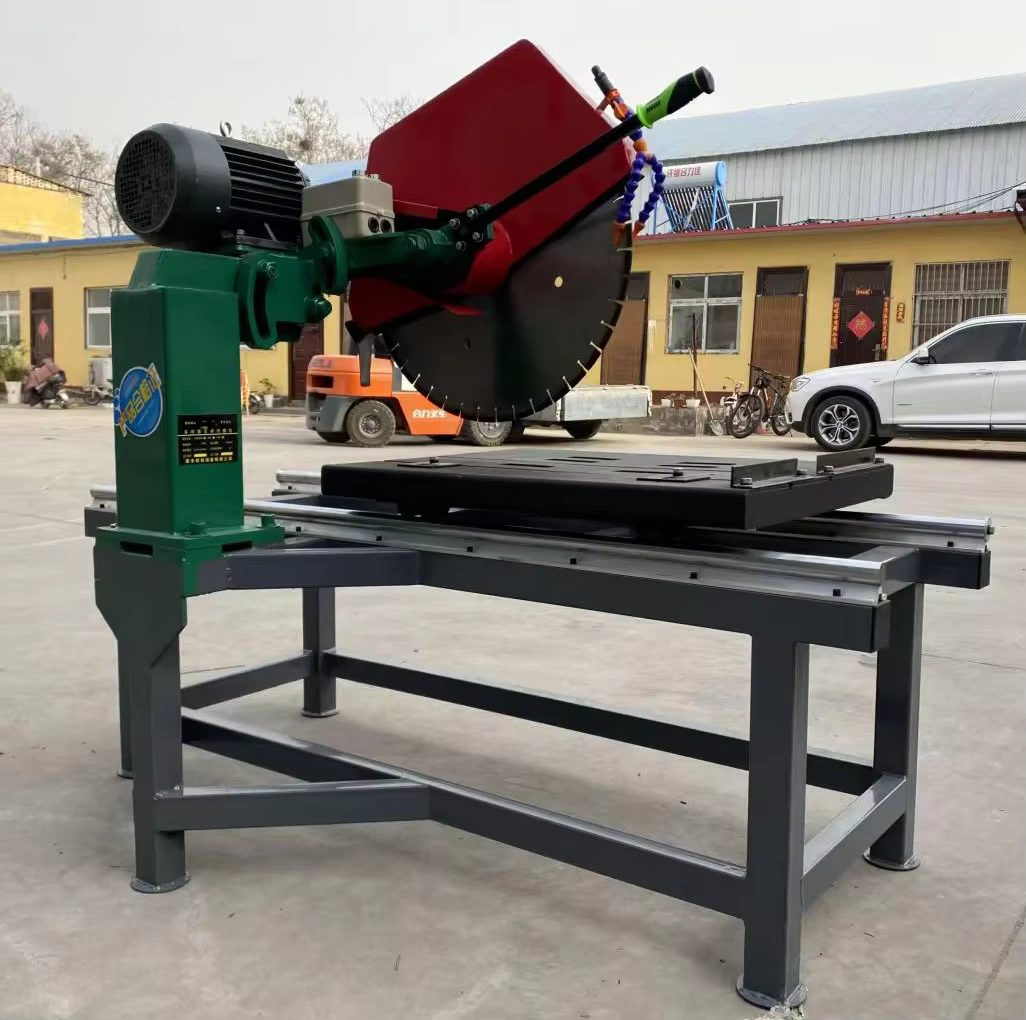

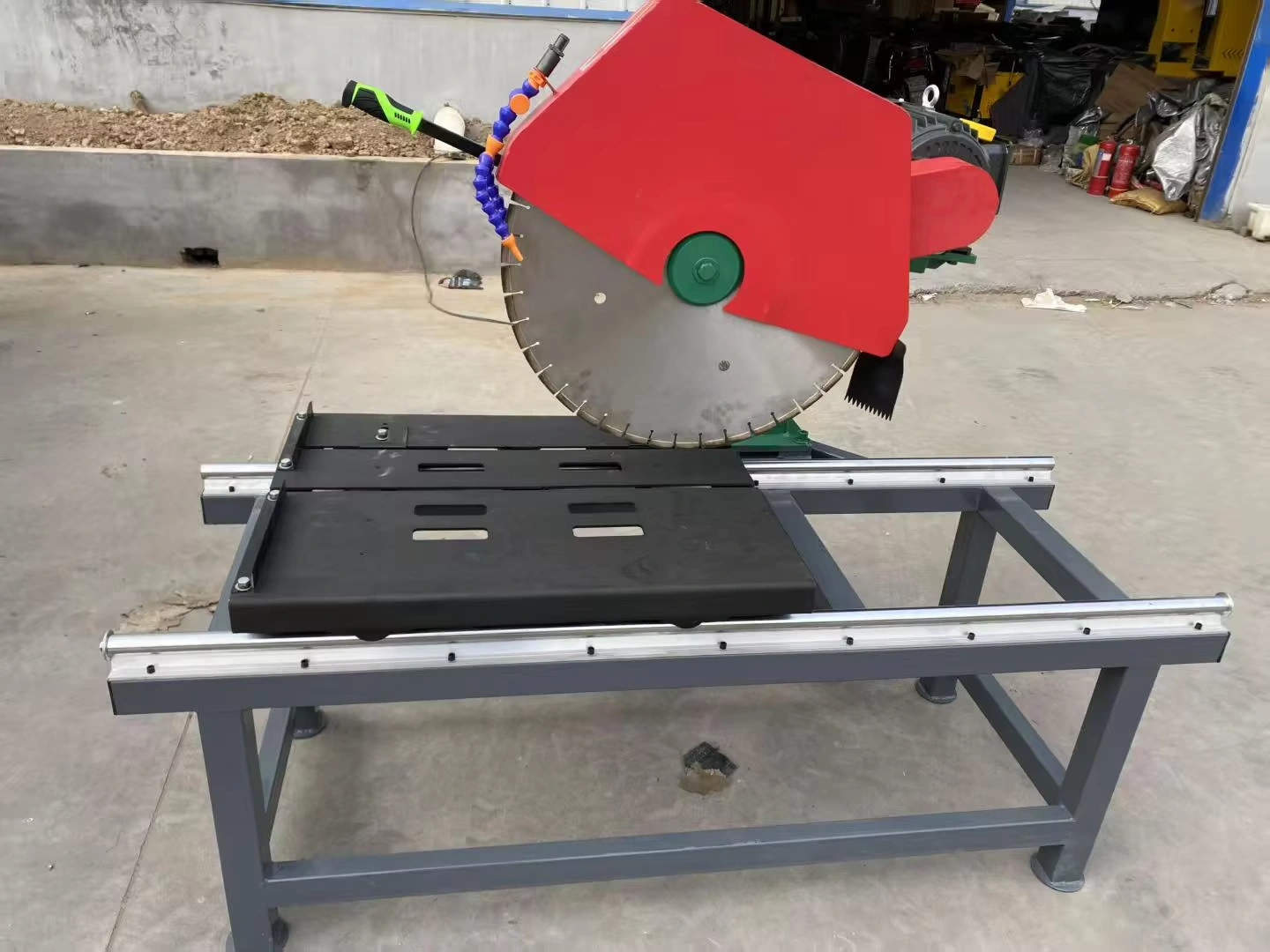

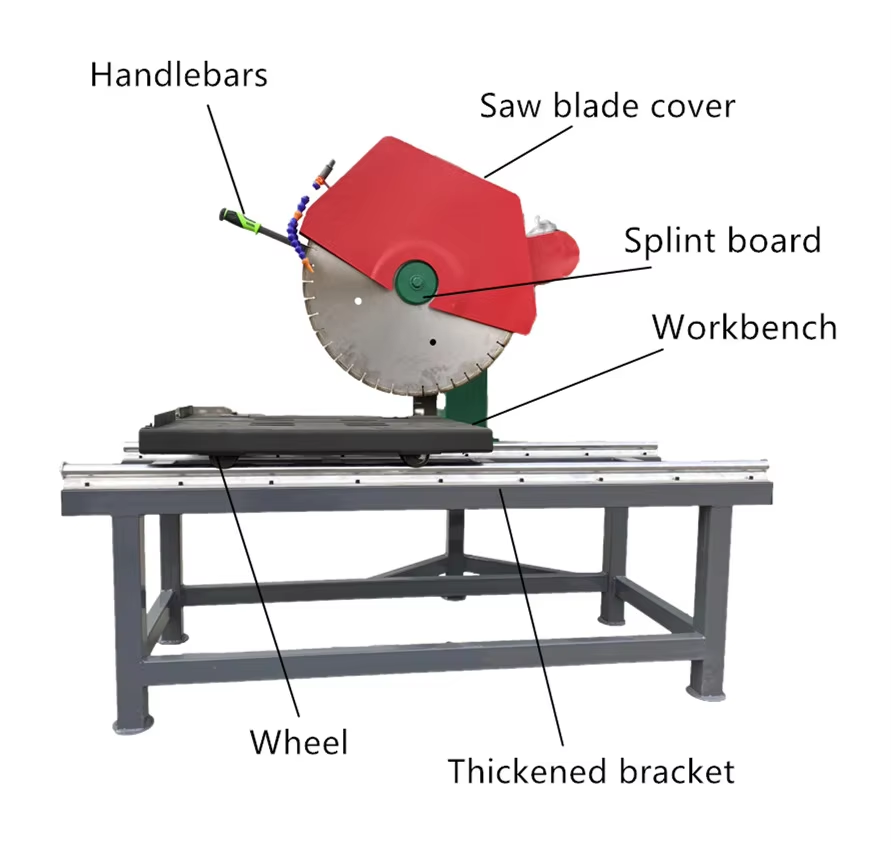

The 600C holds the stone on a sliding worktable beneath a guarded circular blade. It is intended for preparing granite pieces where the workpiece can be supported on the table, rather than cutting an installed wall. The workshop photographs show the frame, table travel and motor position; the annotated view helps identify the controls and supports.
For this listing, the supplier gives 4 kW, 380 V, blade options 400–600 mm, an 800 mm sawing length and head inclination up to 45°. Blade diameter is not cutting depth. The maximum-thickness field is blank, so send the stone thickness and required straight or angled cut before choosing the blade. The 320 kg weight and overall dimensions also matter for unloading and positioning.
Start with the stone dimensions, cut length and required edge finish. Ask how the workpiece is supported during table travel, which blade and bore suit the spindle, and what water equipment is supplied. A photo of a large blade does not establish that a large slab can be supported by the same table.
Agree the assembled and packed dimensions, unloading arrangement and included blade, pump and hoses. Ask for the operating manual and parts drawing for the spindle, table rollers, guards and electrical assembly. Identify the exact machine before buying replacement parts.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
The 600C holds the stone on a sliding worktable beneath a guarded circular blade. It is intended for preparing granite pieces where the workpiece can be supported on the table, rather than cutting an installed wall. The workshop photographs show the frame, table travel and motor position; the annotated view helps identify the controls and supports.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
No. Ask for the usable depth with the selected blade, spindle and guard, including angled cuts if required.
This is a table-supported stone saw, not a handheld wall saw. Discuss a different machine if the workpiece cannot be brought to and supported on the table.
They must be stated in the delivery list with the required fittings and blade specification. A labelled photograph is not an itemised quote.
Confirm assembled and packed dimensions, machine and shipment weight, supply connection, unloading and access around the moving table.
Send length, width, thickness and the required finished cut, including any angle. The 800 mm sawing-length figure does not establish the maximum unsupported slab size.
For this listing, the supplier gives 4 kW, 380 V, blade options 400–600 mm, an 800 mm sawing length and head inclination up to 45°. Blade diameter is not cutting depth. The maximum-thickness field is blank, so send the stone thickness and required straight or angled cut before choosing the blade. The 320 kg weight and overall dimensions also matter for unloading and positioning.
