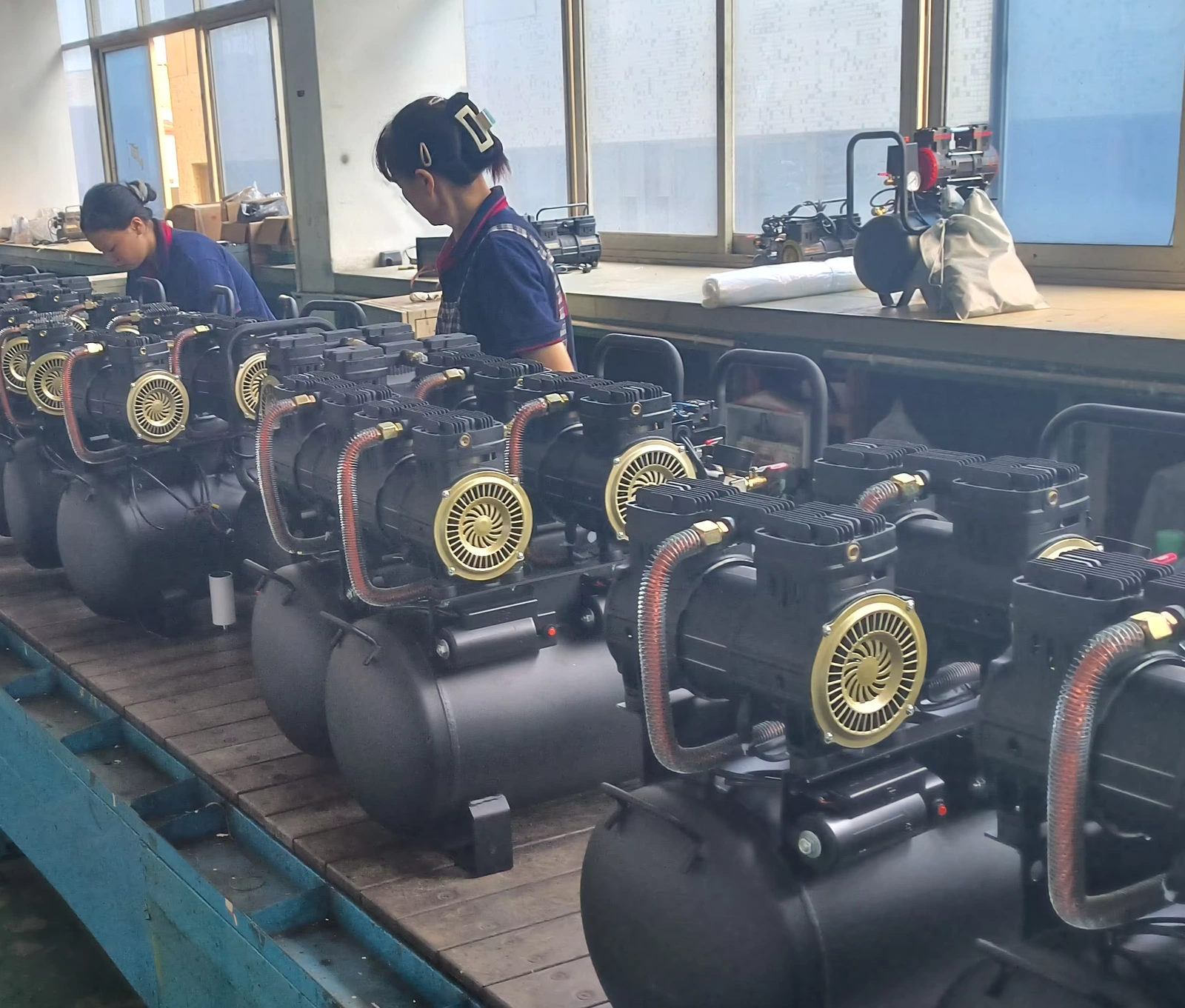

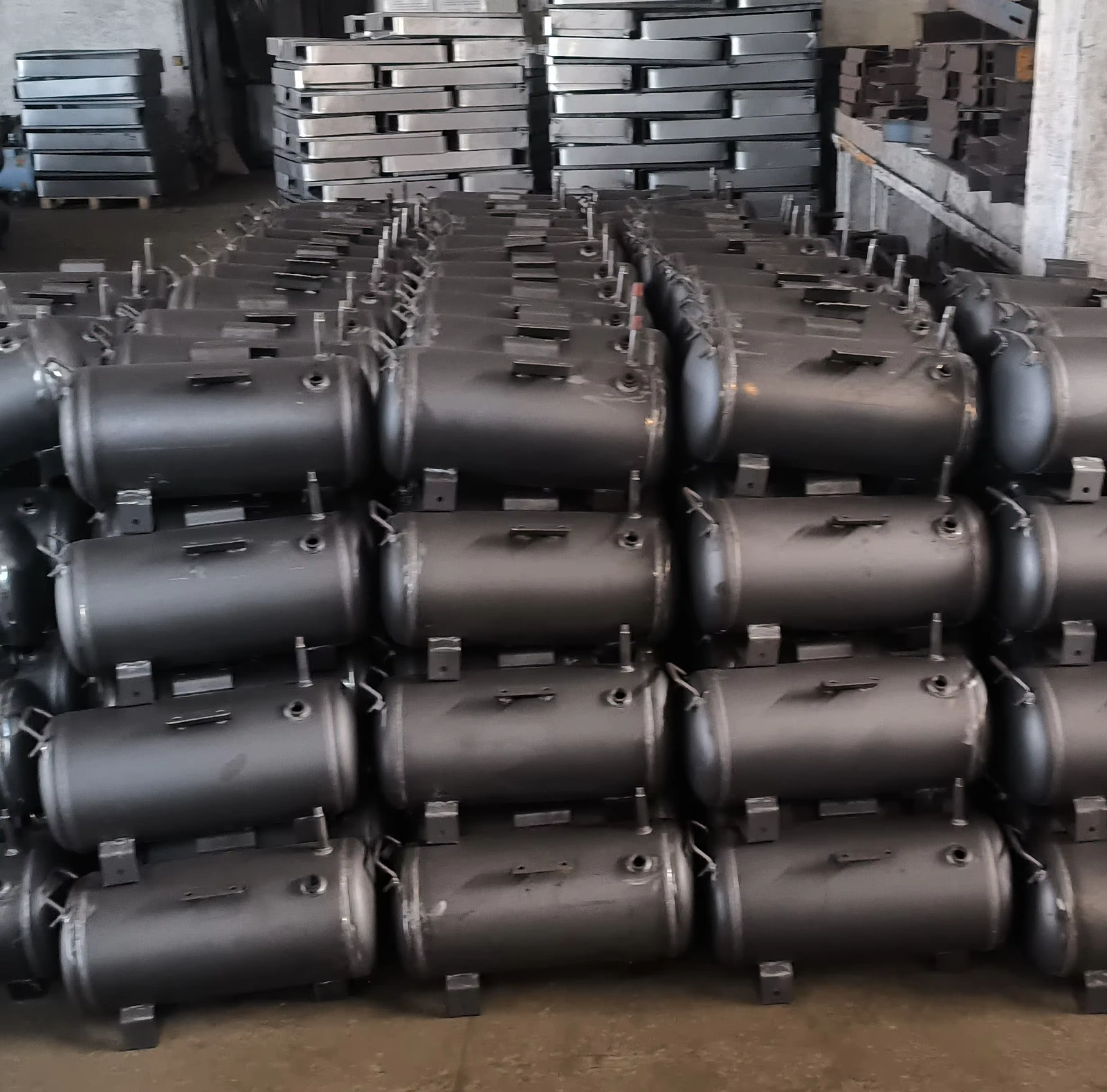

Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
OF550W-9L Oil-Free Air Compressor
OF550W-9L Oil-Free Air Compressor
The compact compressor has a tank, handle, pump assembly and pressure gauge. It provides compressed air for a specified demand; the factory photographs show other compressor assemblies rather than additional angles of the quoted unit.
- Product and application
- Choosing this configuration
- Delivered air and tool demand
- Supply and service agreement
Technical Specifications
| Voltage options; exact motor to confirm | 220 V |
|---|---|
| Source overall dimensions; scope to confirm | 470*200*490mm |
| Listed mass | 15 kg |
| Cooling arrangement | Air Cooled |
| Source speed field | 1450rpm |
| Source motor power | 0.55kw / 0.75hp |
| Source air displacement; delivery pressure not defined | 107L/min |
| Source maximum pressure | 8bar |
| Receiver volume | 9L |
| Selected power option | 0.55 kW |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The compact compressor has a tank, handle, pump assembly and pressure gauge. It provides compressed air for a specified demand; the factory photographs show other compressor assemblies rather than additional angles of the quoted unit.
Choosing this configuration
The source air-displacement figure is not defined as delivered flow at working pressure. Match the tool demand and duty cycle, and ask for that measured flow. The word silent is not a documented noise rating, and the source cylinder field is not a usable bore drawing.
Delivered air and tool demand
List air-tool flow and pressure requirements and the intended duty cycle. Confirm delivered free-air flow at the relevant pressure, hose loss and receiver inspection documentation. Maximum pressure is not continuous delivered flow.
Supply and service agreement
Request the exact model plate, operating manual, parts references and itemised delivery list. Quoted accessories, consumables and configuration choices should be recorded separately; workshop stock does not define the delivered set.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The compact compressor has a tank, handle, pump assembly and pressure gauge. It provides compressed air for a specified demand; the factory photographs show other compressor assemblies rather than additional angles of the quoted unit.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Is source displacement the delivered working flow?
That condition is not defined; request measured delivery at the selected pressure.
Is silent a noise certificate?
No measured noise conditions are supplied with that label.
What job information should I provide?
List air-tool flow and pressure requirements and the intended duty cycle. Confirm delivered free-air flow at the relevant pressure, hose loss and receiver inspection documentation. Maximum pressure is not continuous delivered flow.
What is needed for spare parts?
Identify the delivered model, component reference and measured mounting interface.
What needs checking for this particular listing?
The source air-displacement figure is not defined as delivered flow at working pressure. Match the tool demand and duty cycle, and ask for that measured flow. The word silent is not a documented noise rating, and the source cylinder field is not a usable bore drawing.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
