HCD-110

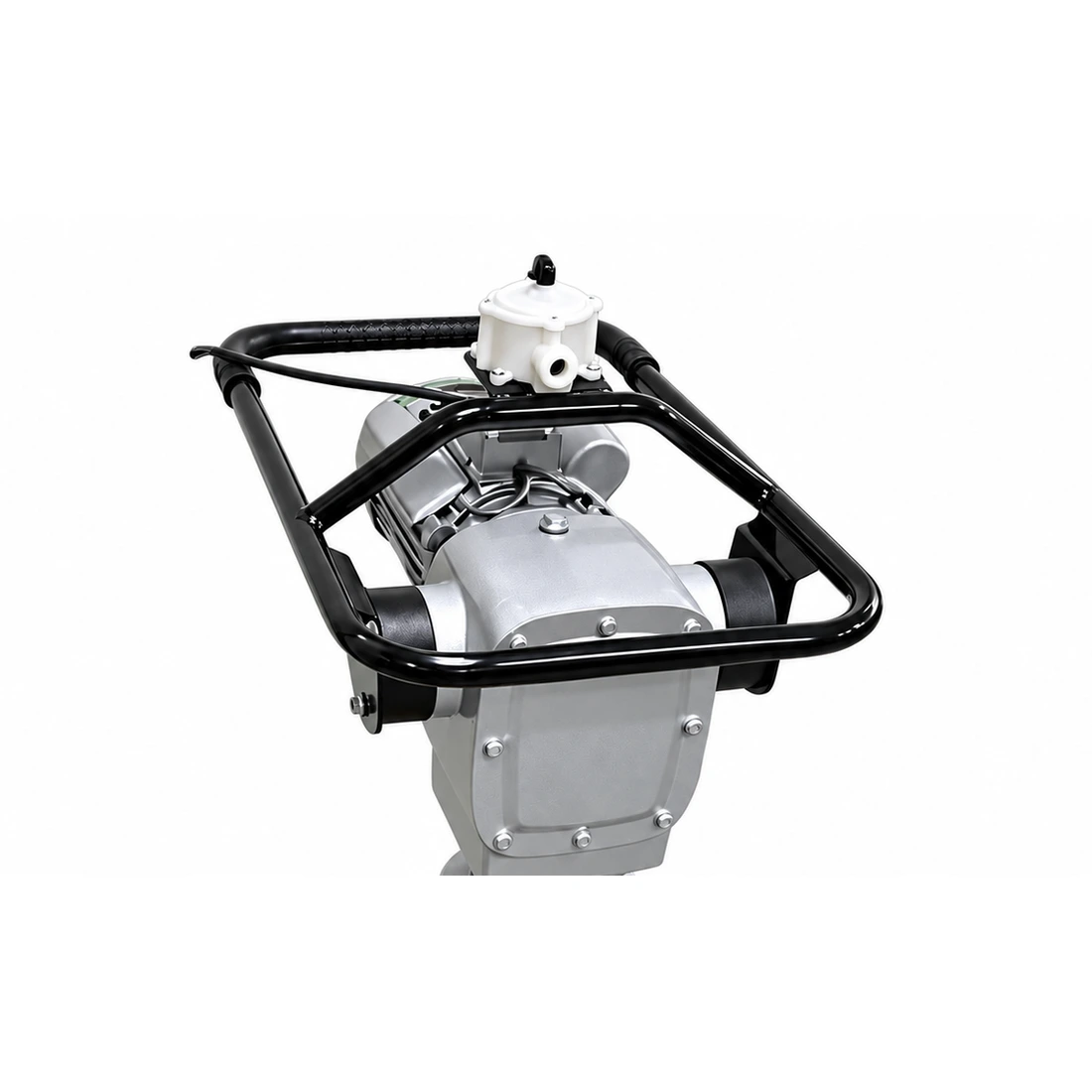

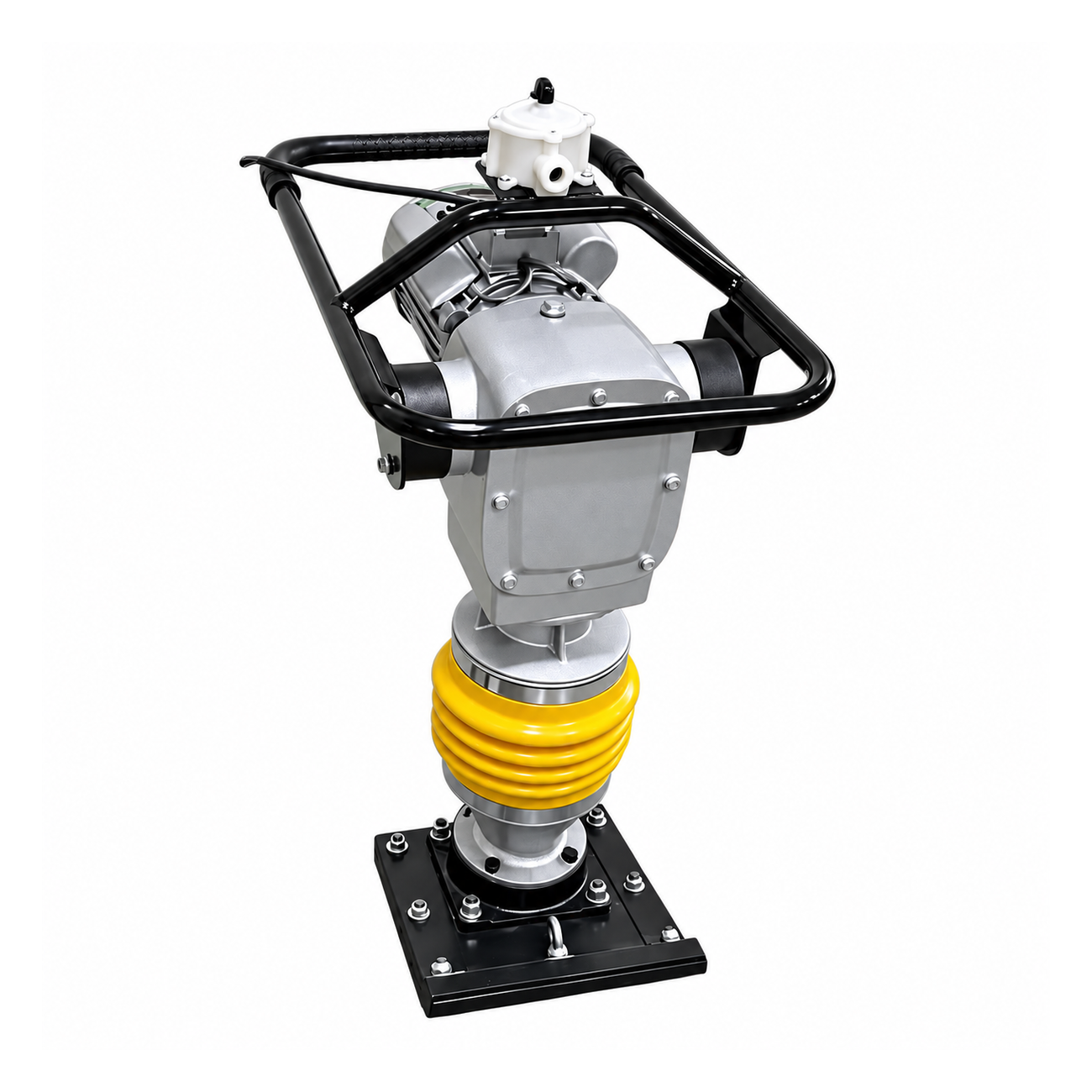

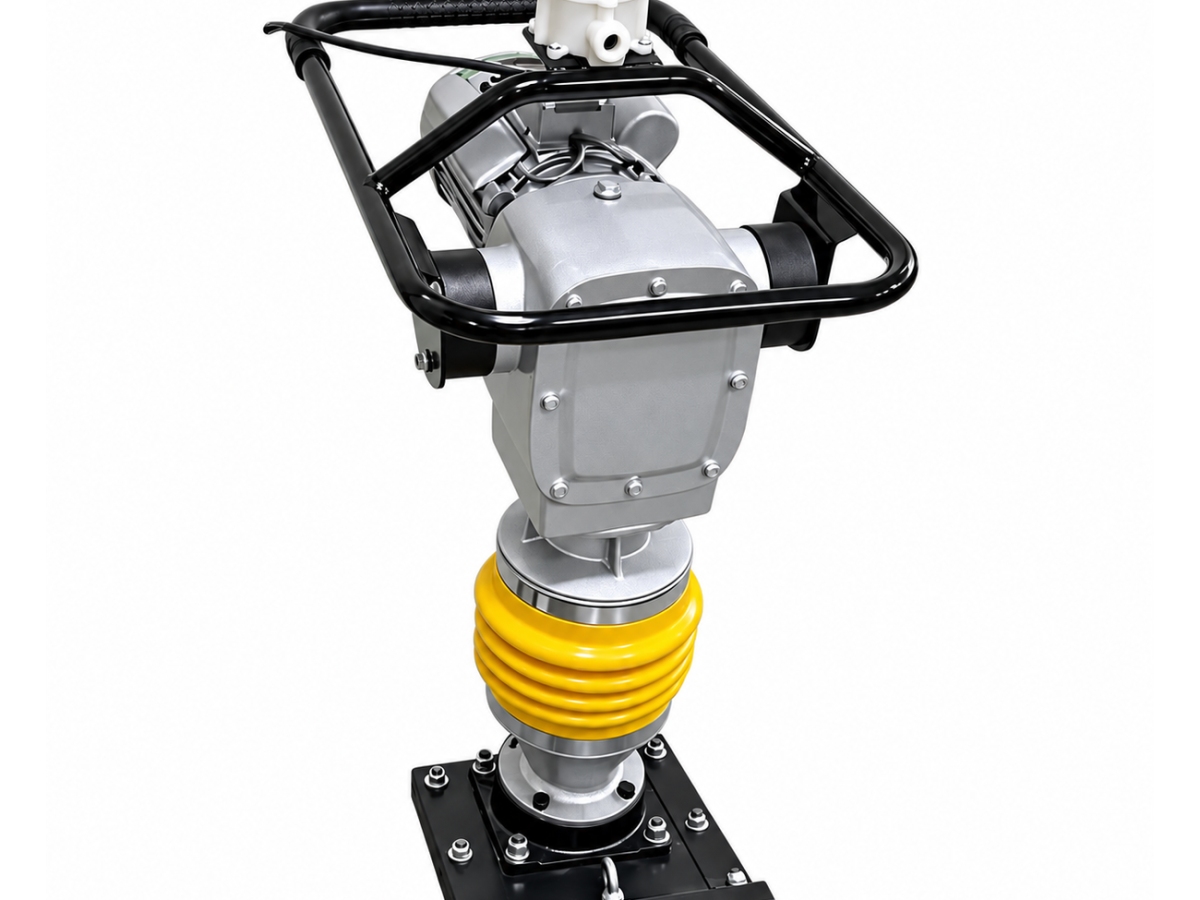

HCD-110 Electric Tamping Rammer
The HCD-110 listing identifies an electric tamping rammer with 3 kW power and 59 kg source mass. It lists 220 V/380 V options and a 280 × 320 mm or customized foot. The title, power and voltage entries support the electric listing; the separate generic diesel/gasoline/electric field must not be interpreted as three drives in one machine.
- Listed power: 3 kW
- Source mass; scope to confirm: 59 kg
- Voltage options, select one version: 220 / 380 V

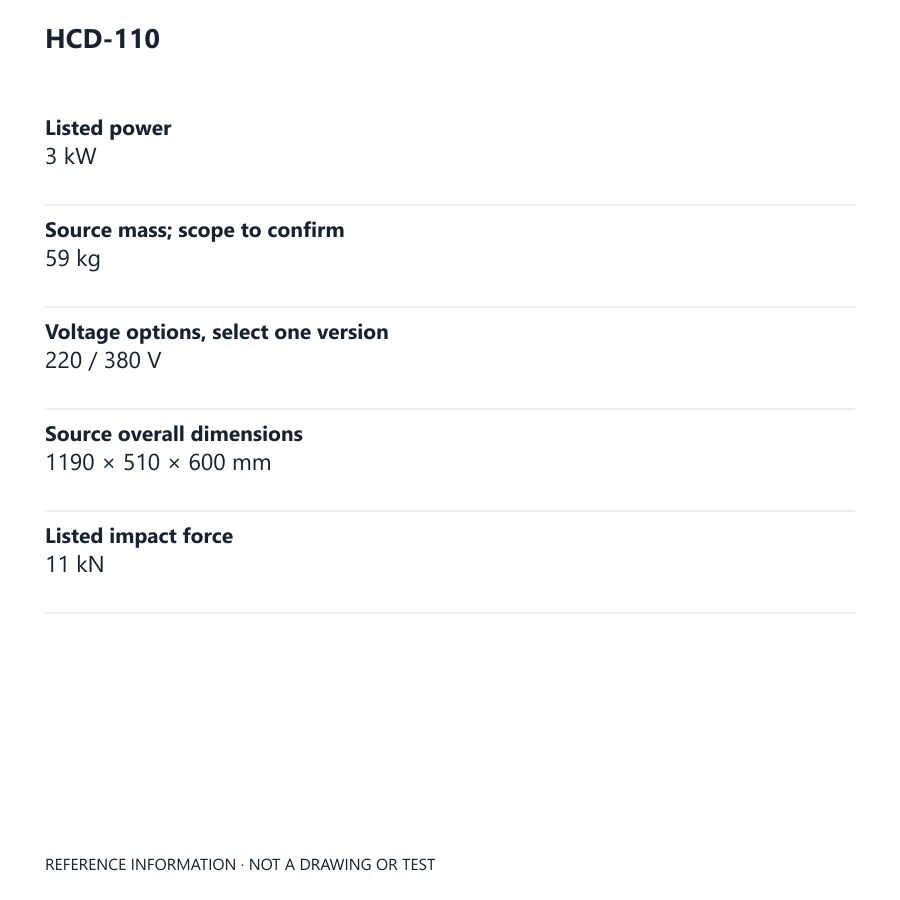

Technical Specifications
| Listed power | 3 kW |
|---|---|
| Source mass; scope to confirm | 59 kg |
| Voltage options, select one version | 220 / 380 V |
| Source overall dimensions | 1190 × 510 × 600 mm |
| Listed impact force | 11 kN |
| Source impact notation; see unit notes | 450-700 Times/Min |
| Listed travel speed | 9-13m/min |
| Source depth; soil/layer/test conditions absent | 35cm |
| Listed jump; test conditions not supplied | 45-65mm |
Product Description
Resolve the drive and electrical version
Keep the electric machine enquiry separate from gasoline and diesel alternatives. Confirm the motor nameplate, one ordered voltage version, phase, frequency, current and required electrical protection. The source does not define automatic switching between 220 V and 380 V or give a wiring diagram. Installation and connection must follow the applicable machine documentation and qualified assessment.

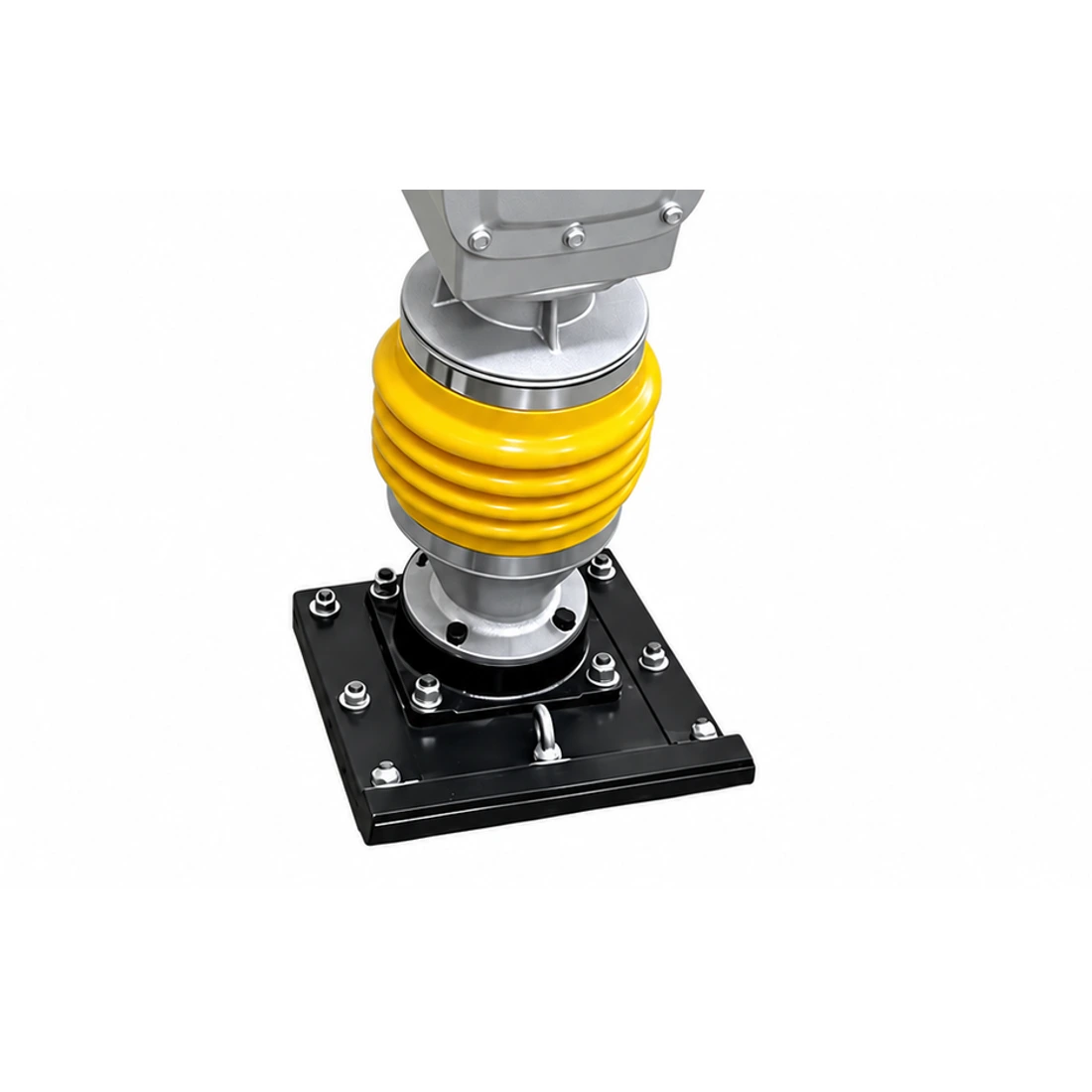

Standard-size and customized feet
The source foot entry says 280 × 320 mm or customized. This is an option description, not proof of two included feet or compatibility with other HCD/HCR models. Send the mounting drawing or existing part photographs for replacement enquiries. Confirm material, layer construction, fastening interface and the actual supplied dimensions rather than copying another rammer’s foot specification.
Listed performance and its limits
The attributes record 11 kN listed impact force, 450–700 times/min, 45–65 mm jump height and 9–13 m/min travel. The 35 cm depth entry has no soil, moisture or pass conditions. These figures do not establish an achieved density or a guaranteed site output. Define the material and layer, target result and verification method before choosing the machine.
Mass, service information and delivery
The listing gives 59 kg and 1190 × 510 × 600 mm. Confirm net/packed mass and whether dimensions describe operation or transport. Source photographs are not service instructions for the bellows or mechanical drive. Request the HCD-110 manual, spare-part references and a written packing list identifying the foot, electrical equipment and any spares. No lubricant or service interval is assigned without that documentation.

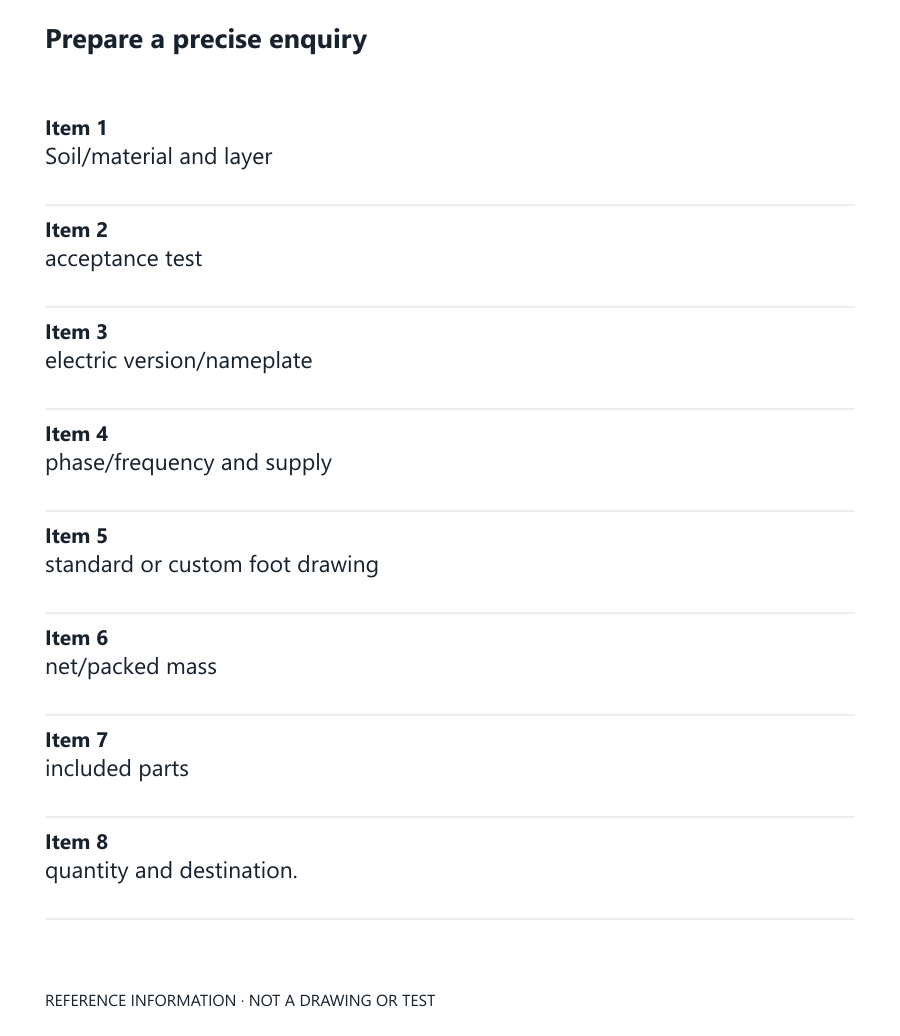

Prepare a clear product enquiry
Soil/material and layer; acceptance test; electric version/nameplate; phase/frequency and supply; standard or custom foot drawing; net/packed mass; included parts; quantity and destination.
Product FAQ
Does the machine have three power sources?
No three-drive machine is established. The generic field lists alternatives; this enquiry concerns the documented electric configuration.
Does the custom foot fit another model?
Compatibility is not established by the size alone. Require mounting and part identification.
Is 59 kg the packed weight?
The source does not define the mass scope. Obtain separate net and packed figures.
