HCR-130D

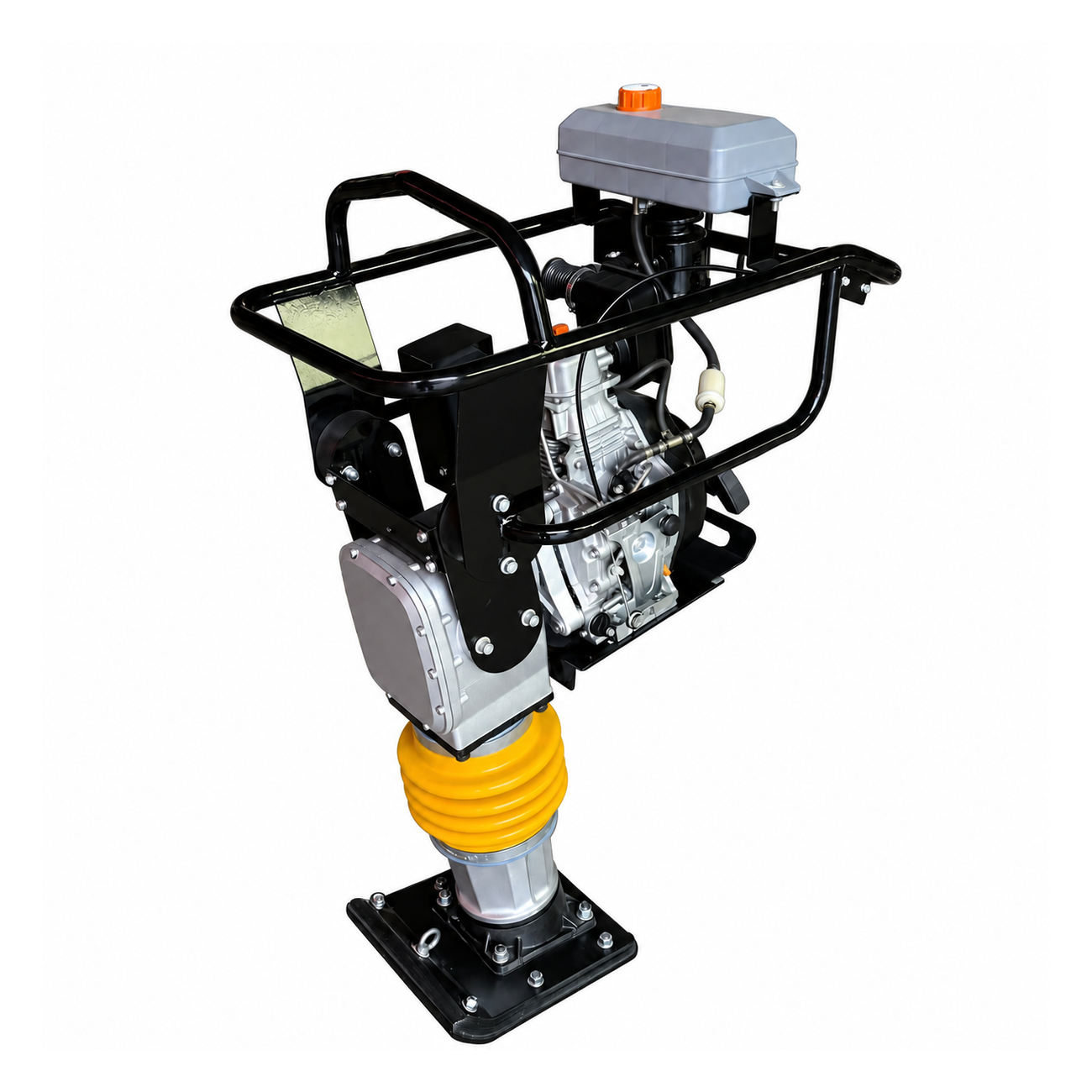

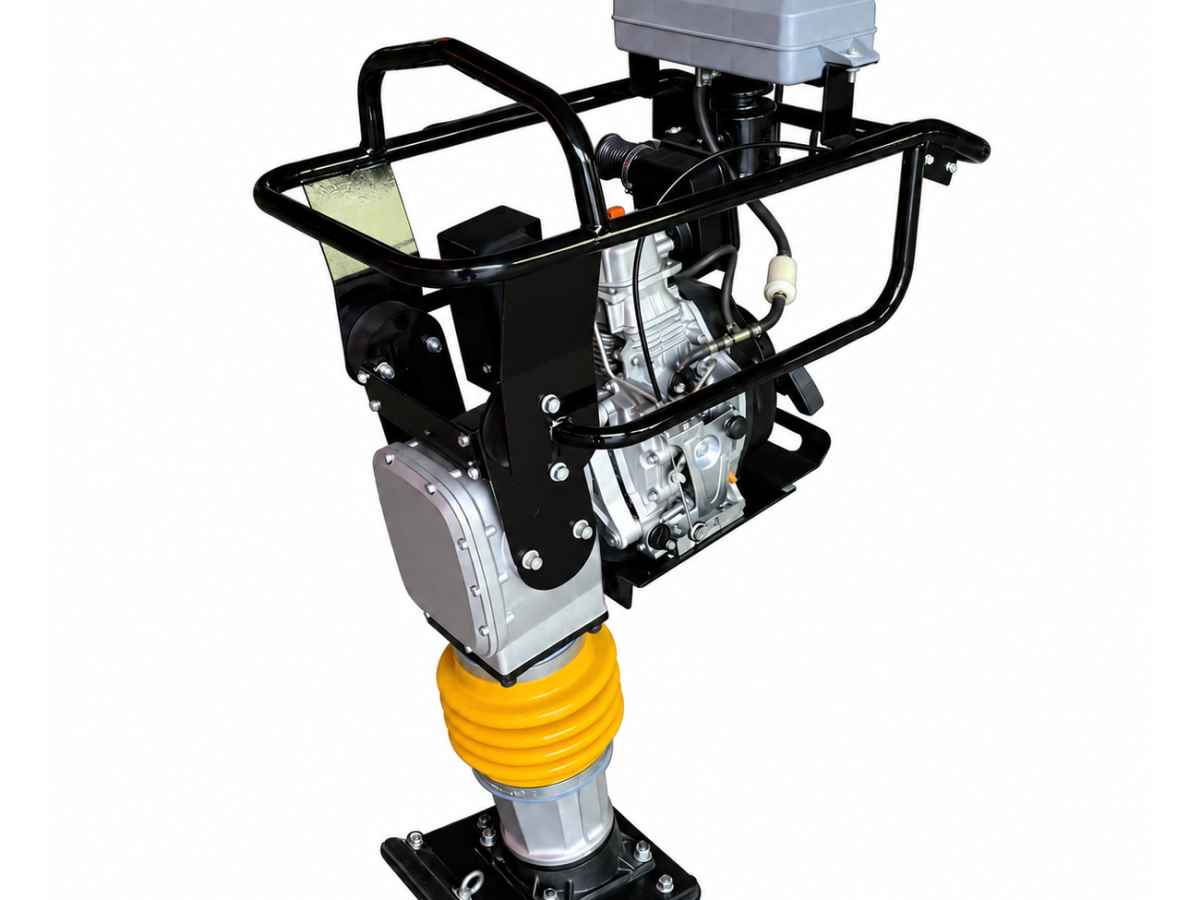

HCR-130D Diesel Tamping Rammer
The HCR-130D listing describes a diesel tamping rammer with an aluminum-alloy shell, 4 HP power and 95 kg source mass. It specifies a 280 × 320 mm foot. The source labels 13KN as impact energy; that unit conflict is not converted into a claimed energy rating.
- Listed power: 4 HP
- Source mass; scope to confirm: 95 kg
- Source overall dimensions: 1050 × 530 × 680 mm

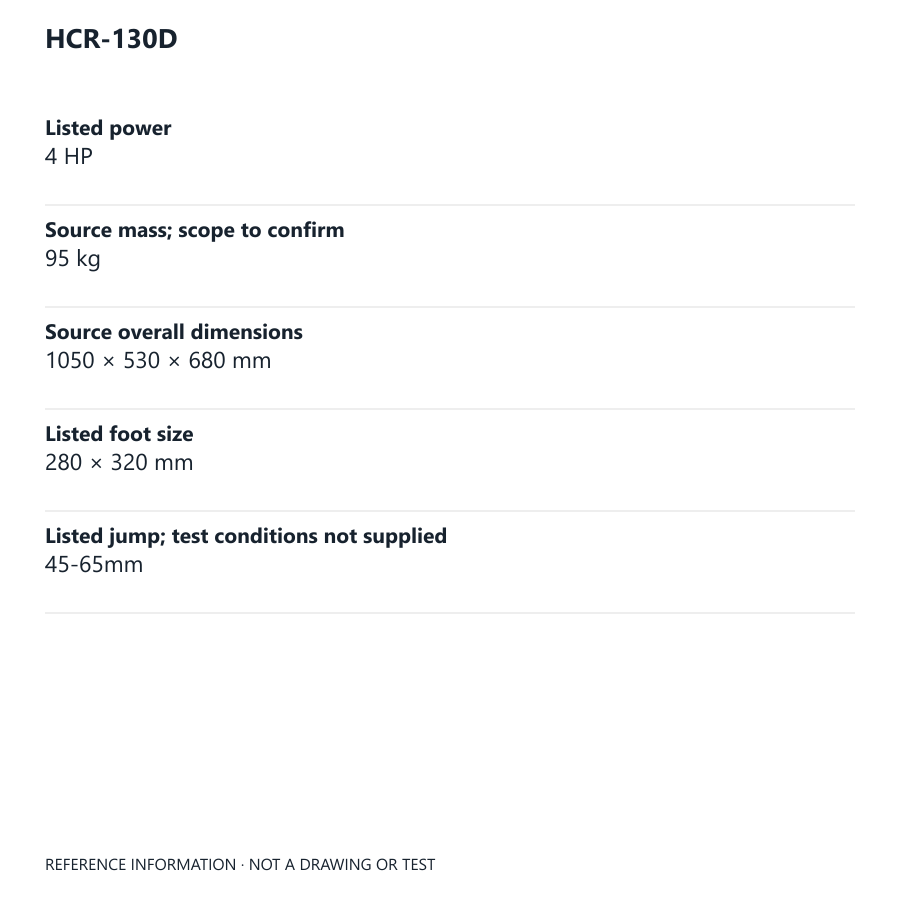

Technical Specifications
| Listed power | 4 HP |
|---|---|
| Source mass; scope to confirm | 95 kg |
| Source overall dimensions | 1050 × 530 × 680 mm |
| Listed foot size | 280 × 320 mm |
| Listed jump; test conditions not supplied | 45-65mm |
| Listed shell material; grade/scope unspecified | Aluminum alloy |
| Listed forward speed | 9-13m/min |
| Unresolved quantity/unit entry, not verified energy | 13KN |
| Source depth; soil/layer/test conditions absent | 35CM |
| Source impact notation; see unit notes | 450 -700 t/m |
Product Description
Do not turn a force unit into energy
The impact-energy field contains 13KN. kN is a force unit, not an energy unit; the source does not establish which quantity was intended. No joule value, verified energy or reclassified impact force is inferred. Request corrected documentation for the actual configuration before comparing it with another rammer.

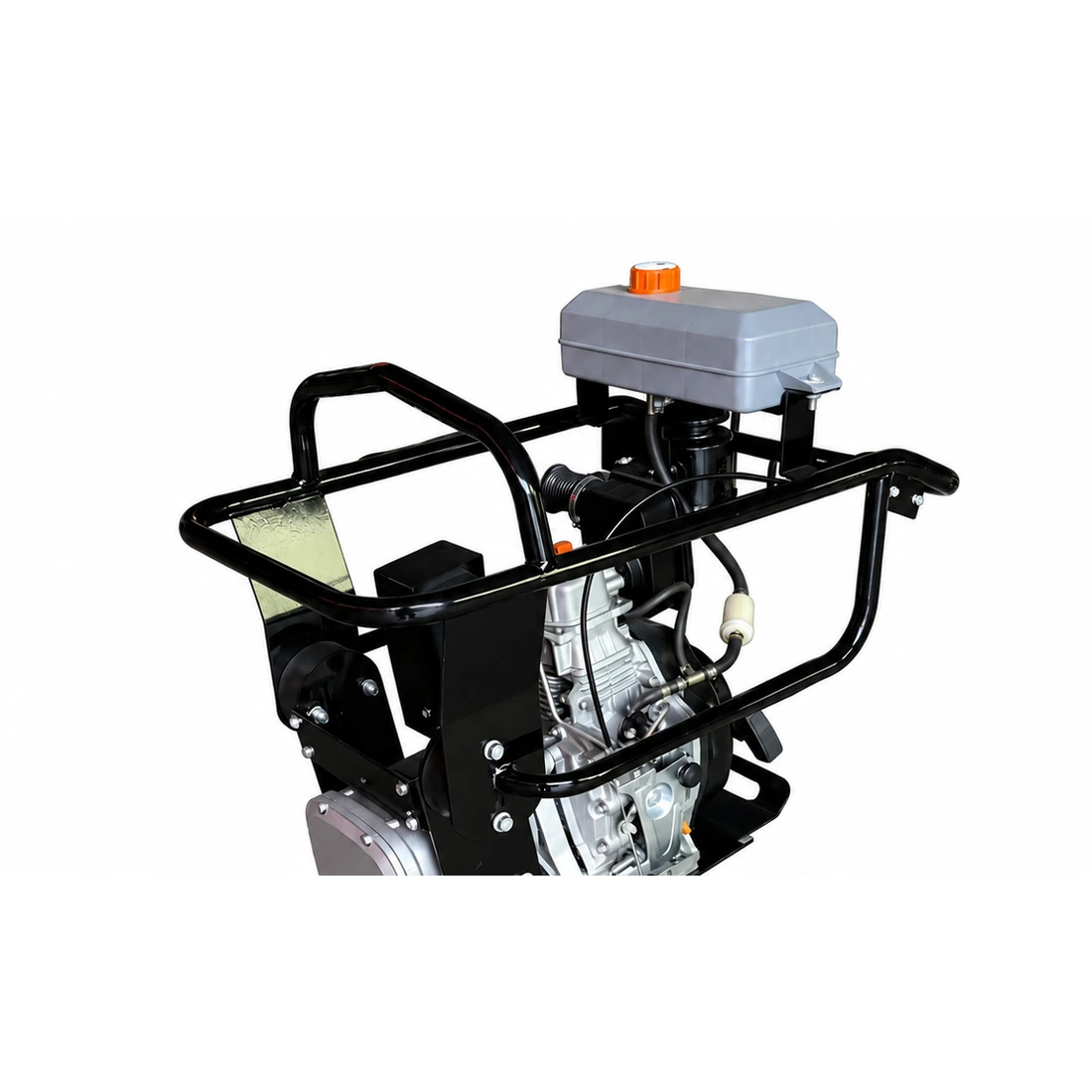

Diesel configuration and shell material
The title and product-name field identify diesel, while the generic engine field lists diesel/gasoline/electric alternatives. Confirm one engine configuration and starting arrangement. The shell is listed as aluminum alloy, unlike cast-iron entries on other models; do not transfer their material claim. The alloy grade and specific shell parts covered are not supplied.

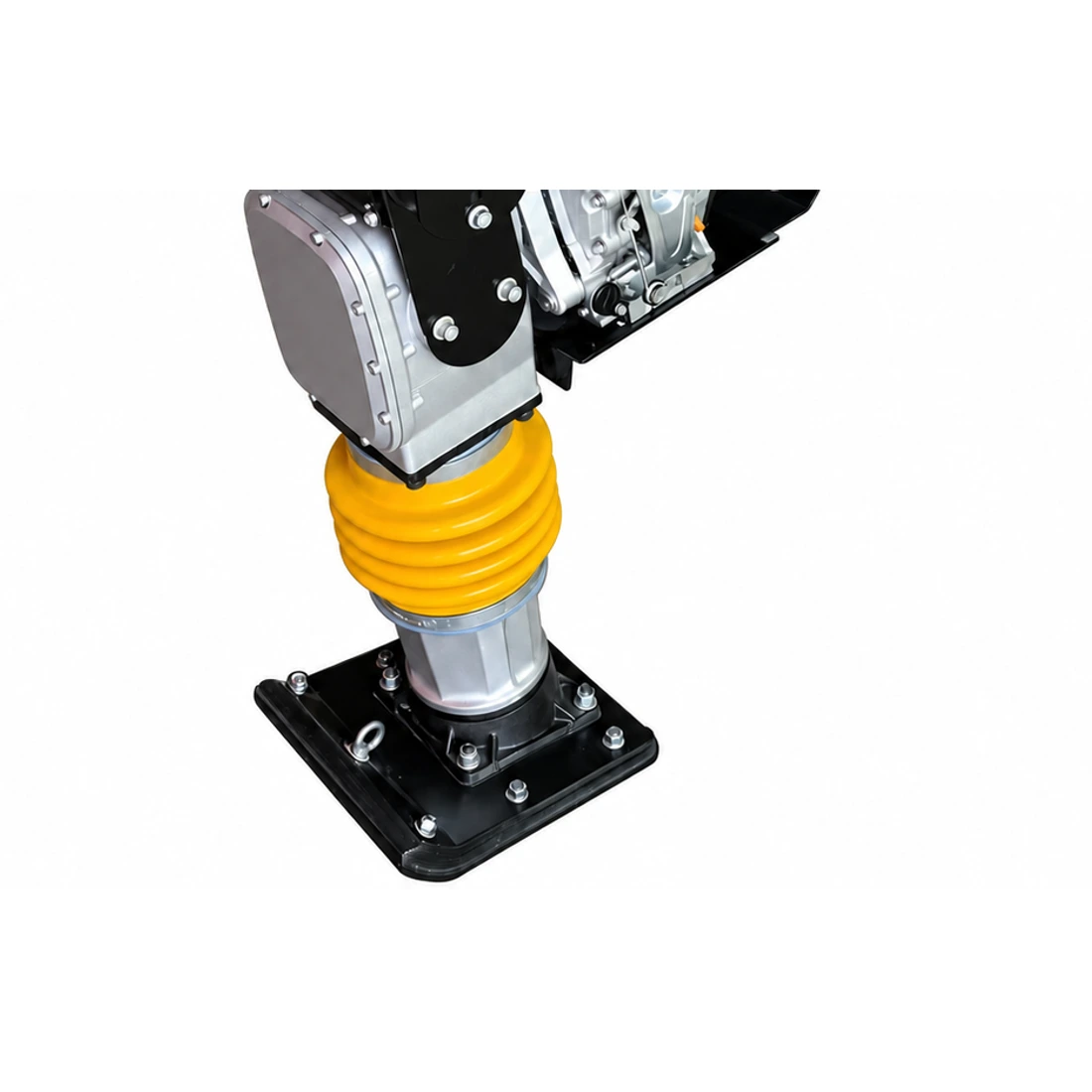

Foot and job conditions
The listing records 45–65 mm jump, 9–13 m/min forward speed and 35 cm depth; it gives 450–700t/m as the impact notation. No acceptance test or unambiguous frequency unit is established. Specify material, moisture, layer and the test requirement. For the 280 × 320 mm foot, confirm construction and mounting before replacement.
Parts, maintenance and the delivery scope
Match replacement bellows, feet and drive parts to the delivered machine identification and mounting drawings. Source pictures do not specify oil grade, fill quantity, tightening torque or service intervals. Request the applicable manual and a written packing list. Confirm net and packed weights, included spares and documents before shipment.

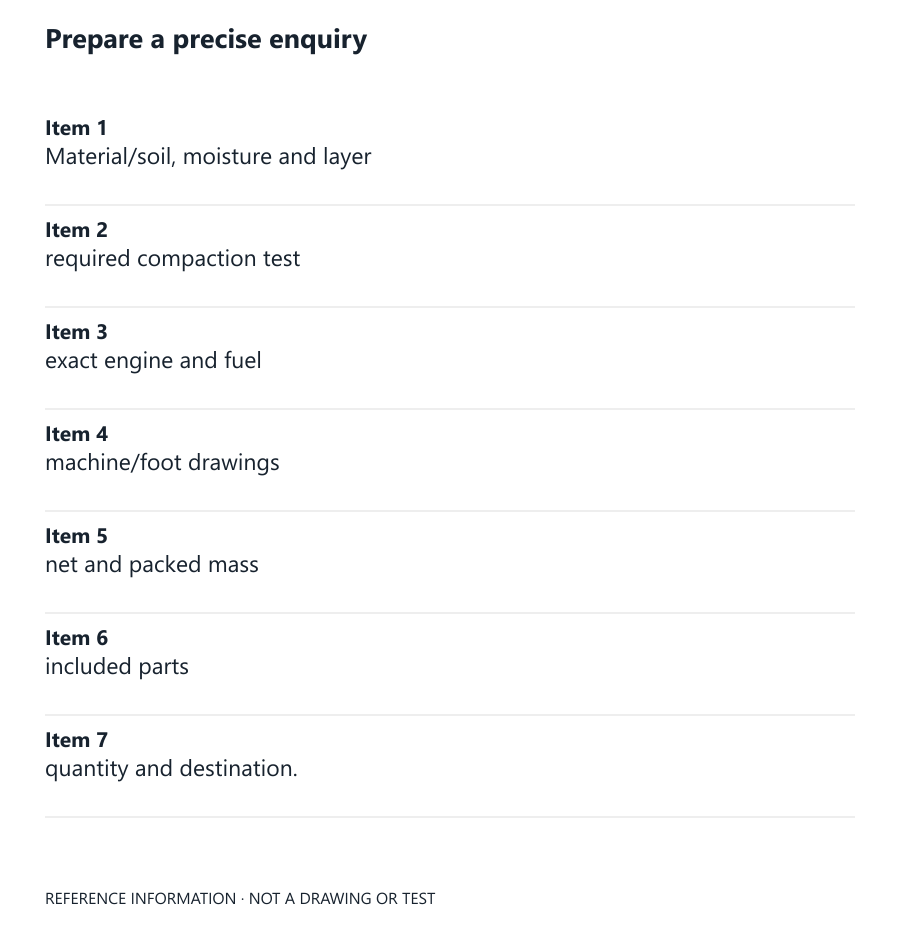

Prepare a clear product enquiry
Material/soil, moisture and layer; required compaction test; exact engine and fuel; machine/foot drawings; net and packed mass; included parts; quantity and destination.
Product FAQ
Is 13KN an energy specification?
No. The field and unit conflict; corrected technical information is required.
Is the shell cast iron?
This source lists aluminum alloy. Its grade and the covered components require confirmation.
Do the engine alternatives describe one machine?
They do not establish multiple drives in one unit. Select and document the supplied version.
