HCR110-1

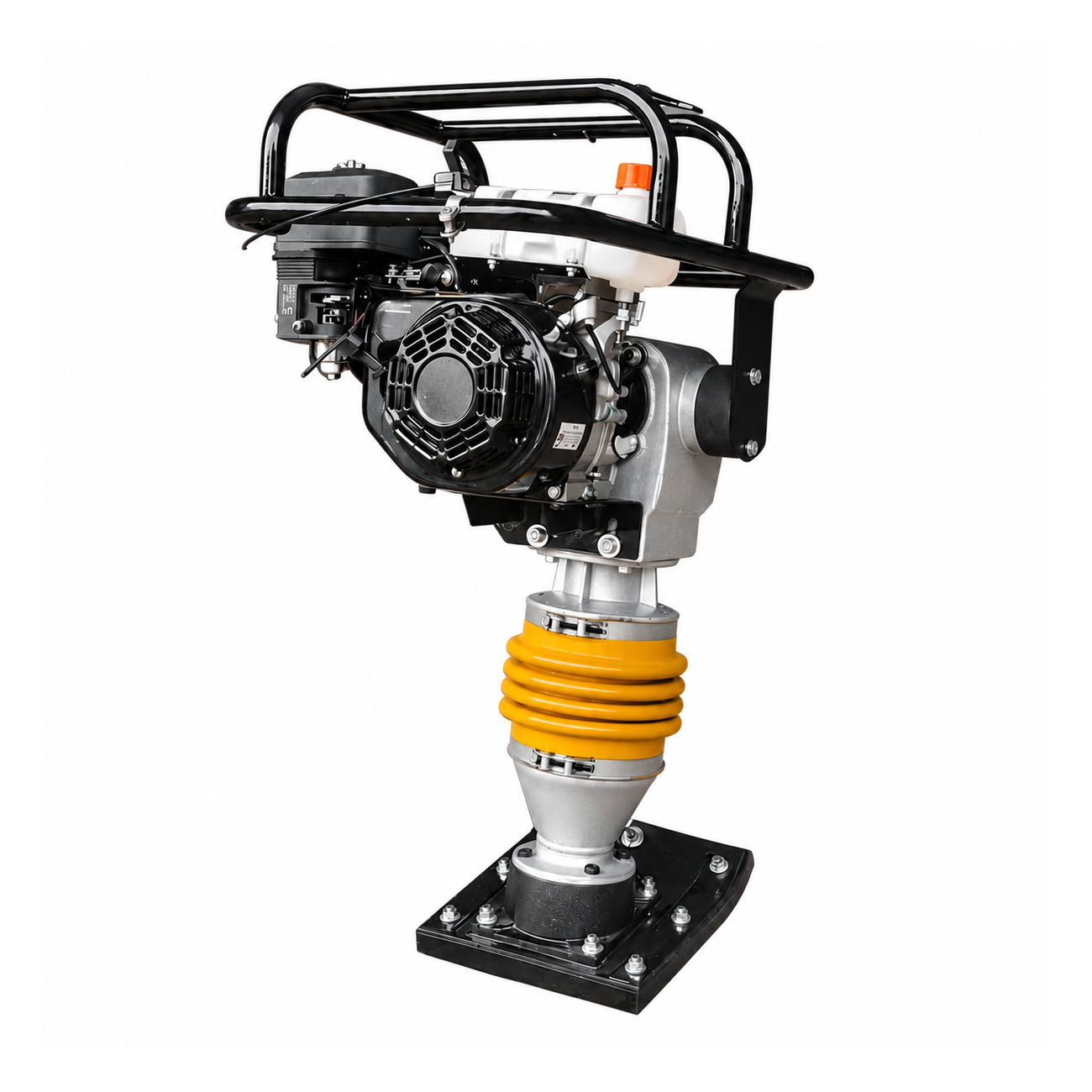

HCR110-1 Tamping Rammer
The source identifies HCR110-1 in its model selector and lists 5.5–6.5 HP and 11 kN impact force. Its weight attribute says 72 kg, while the title mentions 60 kg. The two values remain an unresolved weight discrepancy, not a confirmed net/gross pair.
- Listed power: 5.5–6.5 HP
- Source overall dimensions: 1000 × 490 × 620 mm
- Listed impact force: 11 kN

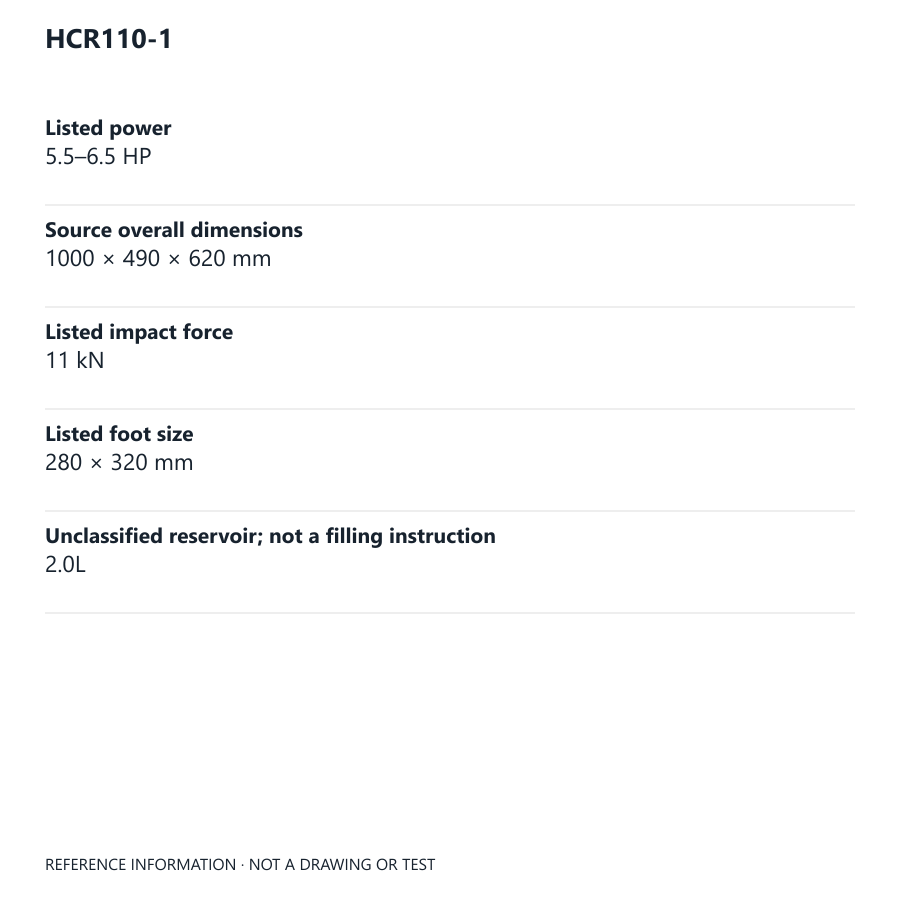

Technical Specifications
| Listed power | 5.5–6.5 HP |
|---|---|
| Source overall dimensions | 1000 × 490 × 620 mm |
| Listed impact force | 11 kN |
| Listed foot size | 280 × 320 mm |
| Unclassified reservoir; not a filling instruction | 2.0L |
| Source depth; soil/layer/test conditions absent | 35cm |
| Listed jump; test conditions not supplied | 45-65mm |
| Listed forward speed | 9-13m/min |
| Listed impact frequency; not a duty-cycle test | 450-700 times/min |
| Listed shell material; grade/scope unspecified | cast iron |
Product Description
Resolve mass before handling or shipping
Neither 60 kg from the title nor 72 kg from the attribute is adopted as verified selected-machine mass. Confirm the engine/foot configuration and measurement scope, then obtain net and packed weights. The source dimensions of 1000 × 490 × 620 mm also need their operating or transport position identified. Do not infer the mass of this -1 version from HCR110 or HCR110-5.

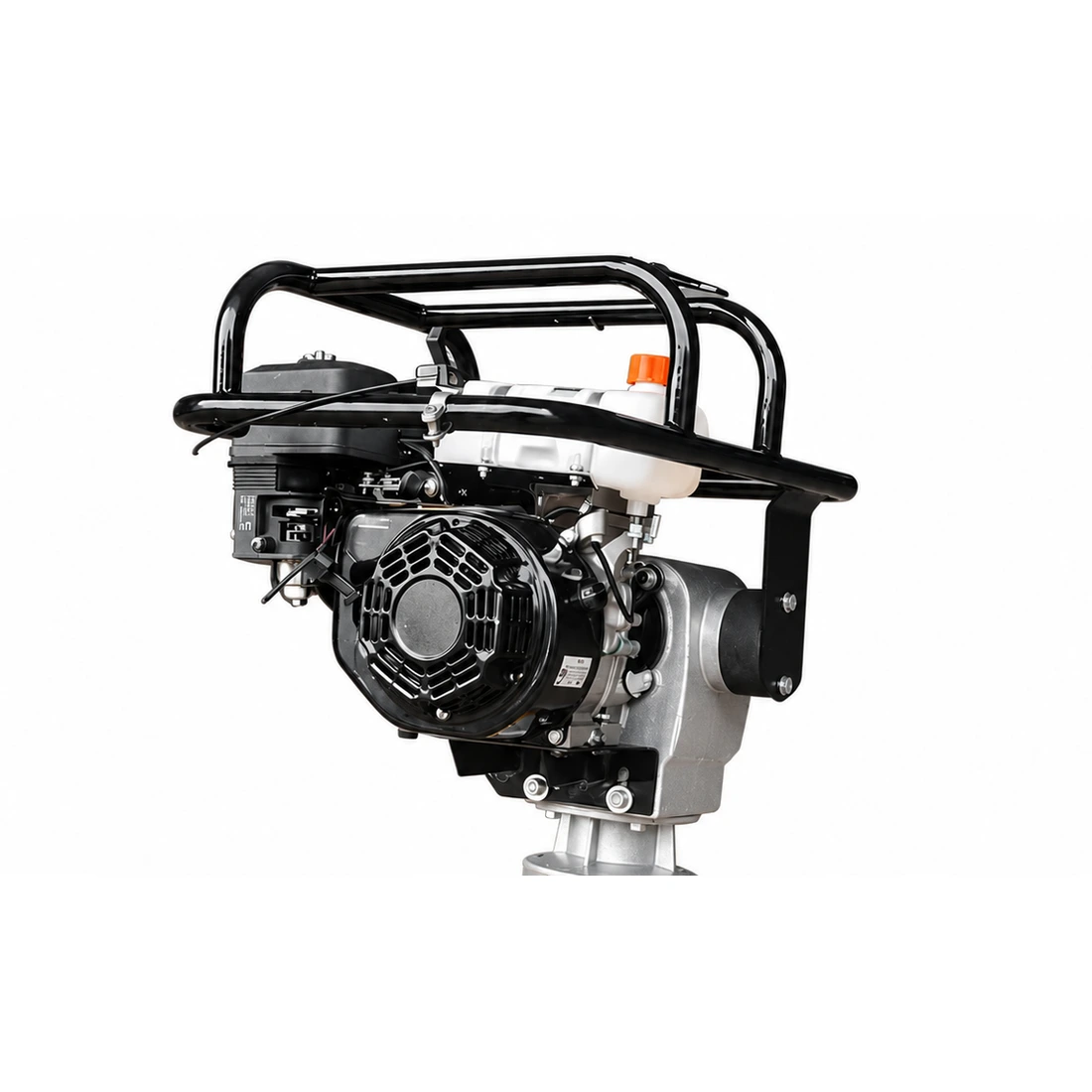

Engine and foot identification

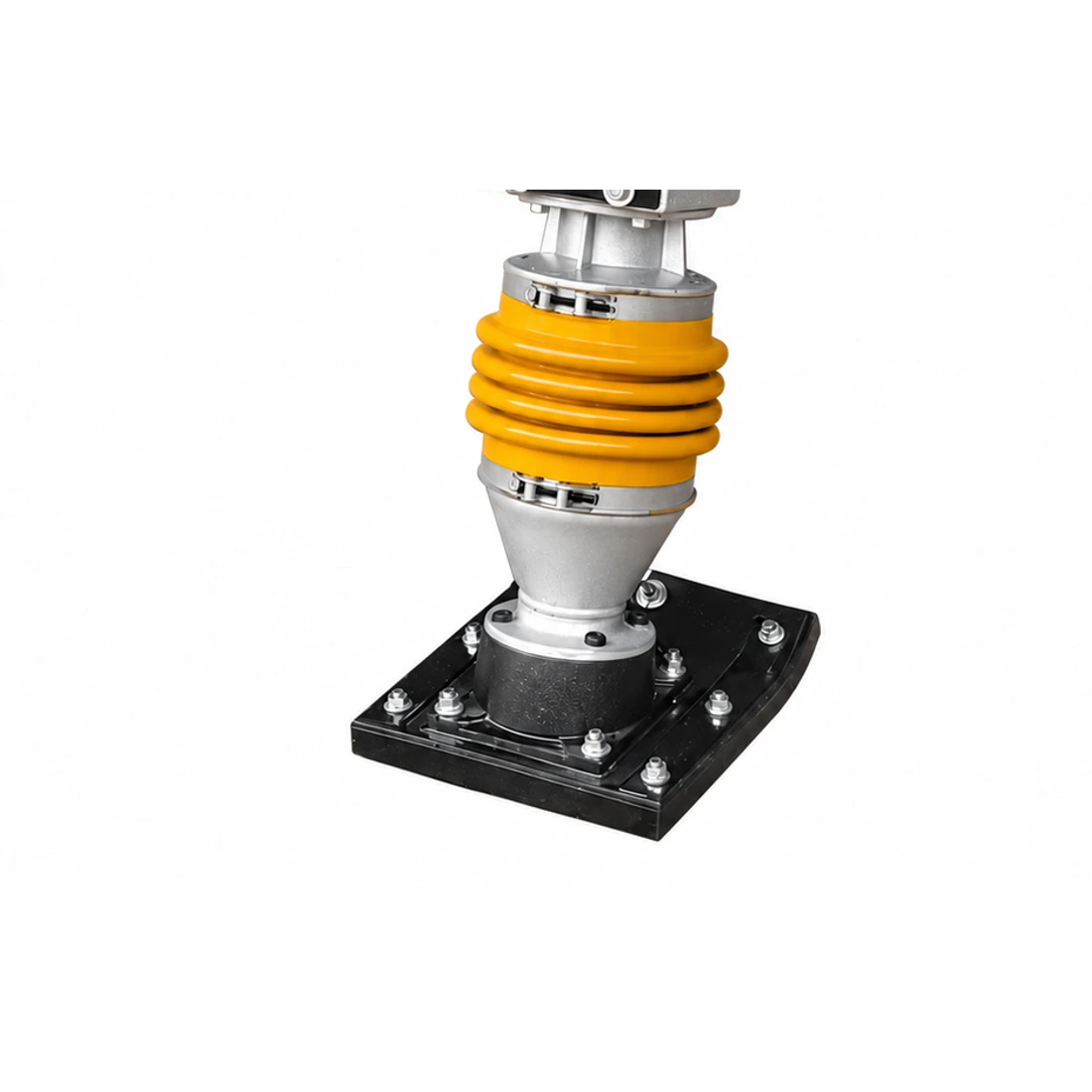

The engine-brand selector and 5.5–6.5 HP range are not a full engine specification. Confirm model, fuel, starting arrangement and replacement-part references. A 280 × 320 mm board and cast-iron-shell entry describe only the stated source scope; they do not prove interchangeable assemblies or a particular casting grade.
Reservoir and compaction conditions
The 2.0 L oil-pot entry is unclassified, so no fuel capacity or lubricant-fill quantity is assigned. The source also lists 450–700 times/min, 45–65 mm jump, 9–13 m/min forward speed and 35 cm depth. Those entries have no soil-specific acceptance protocol. Provide material, moisture, layer and the required test instead of treating the depth as a guaranteed result.
Parts, maintenance and the delivery scope
Match replacement bellows, feet and drive parts to the delivered machine identification and mounting drawings. Source pictures do not specify oil grade, fill quantity, tightening torque or service intervals. Request the applicable manual and a written packing list. Confirm net and packed weights, included spares and documents before shipment.

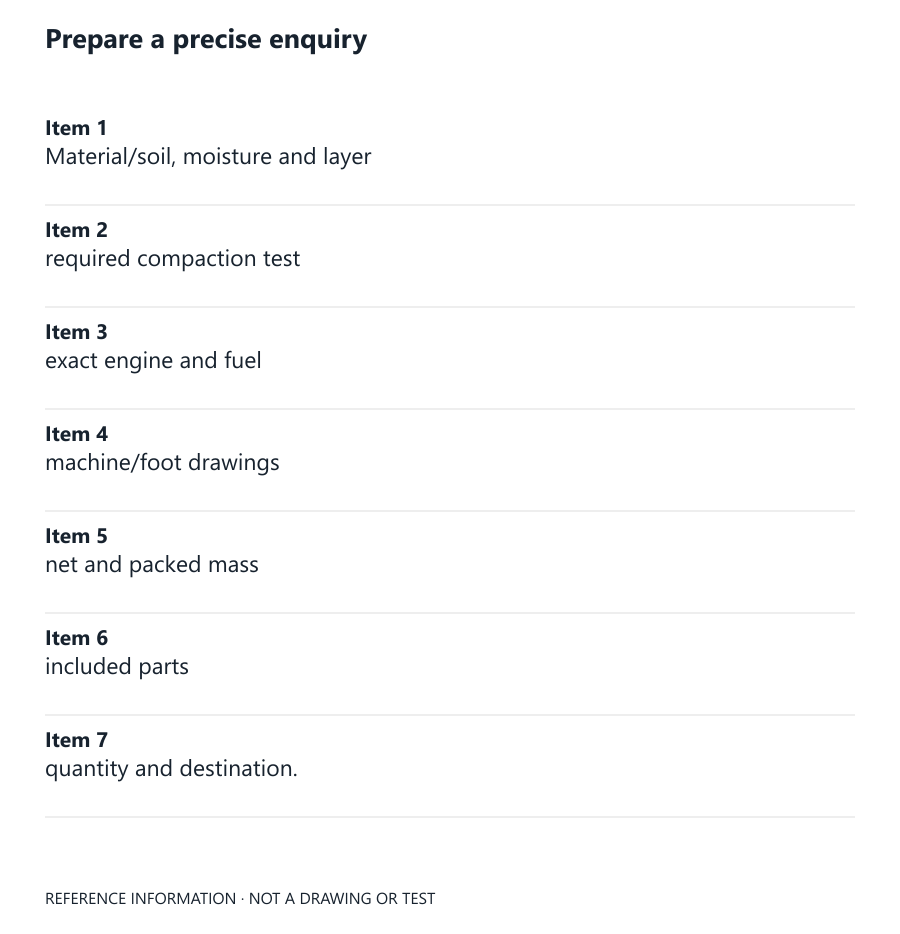

Prepare a clear product enquiry
Material/soil, moisture and layer; required compaction test; exact engine and fuel; machine/foot drawings; net and packed mass; included parts; quantity and destination.
Product FAQ
Is the weight 60 kg or 72 kg?
The source entries conflict. Request net and packed weights for the selected configuration.
Is this identical to HCR110-5?
No identity is established by shared figures. Confirm the suffix, engine and parts.
What oil volume should be filled?
No filling instruction is established here; follow the applicable manual.
