HCR110
HCR110 Tamping Rammer

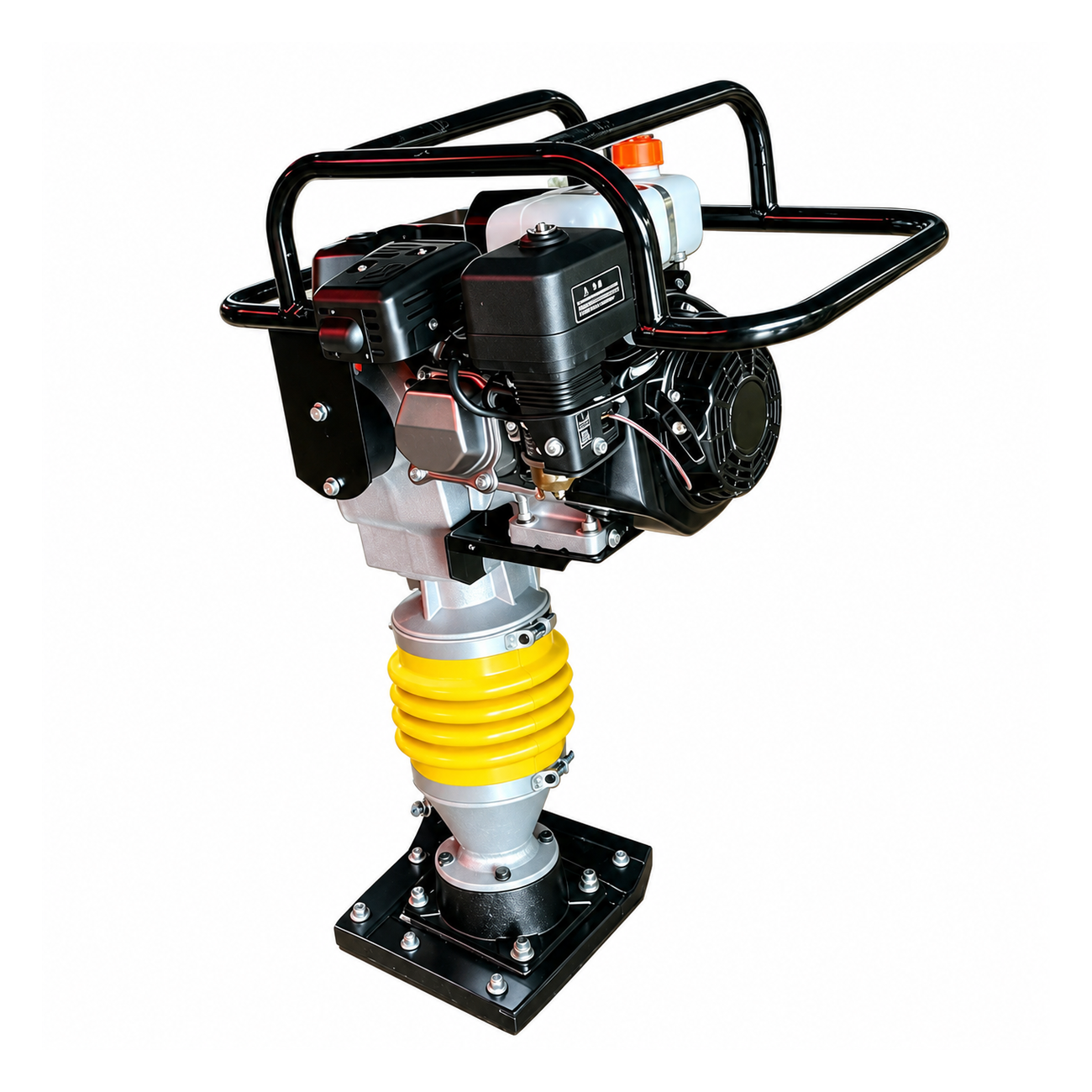

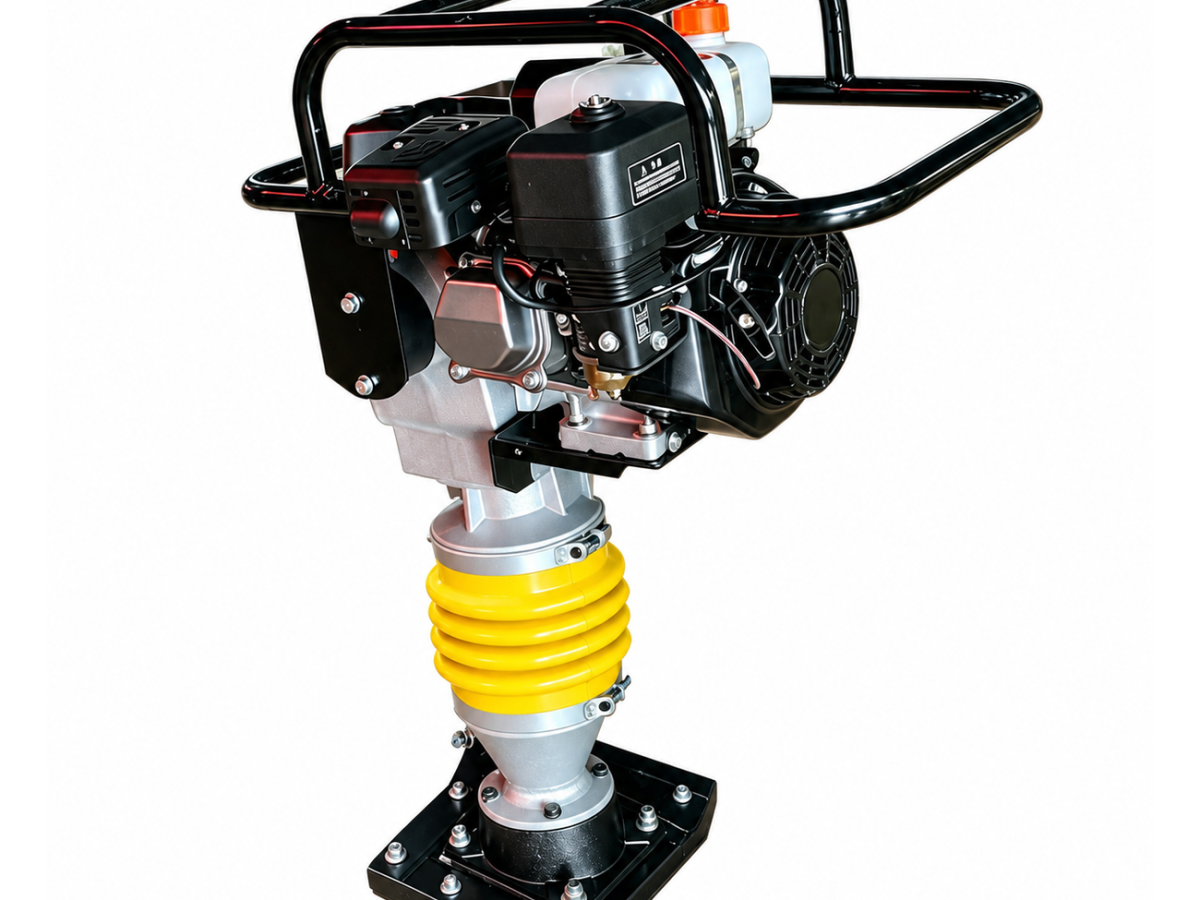

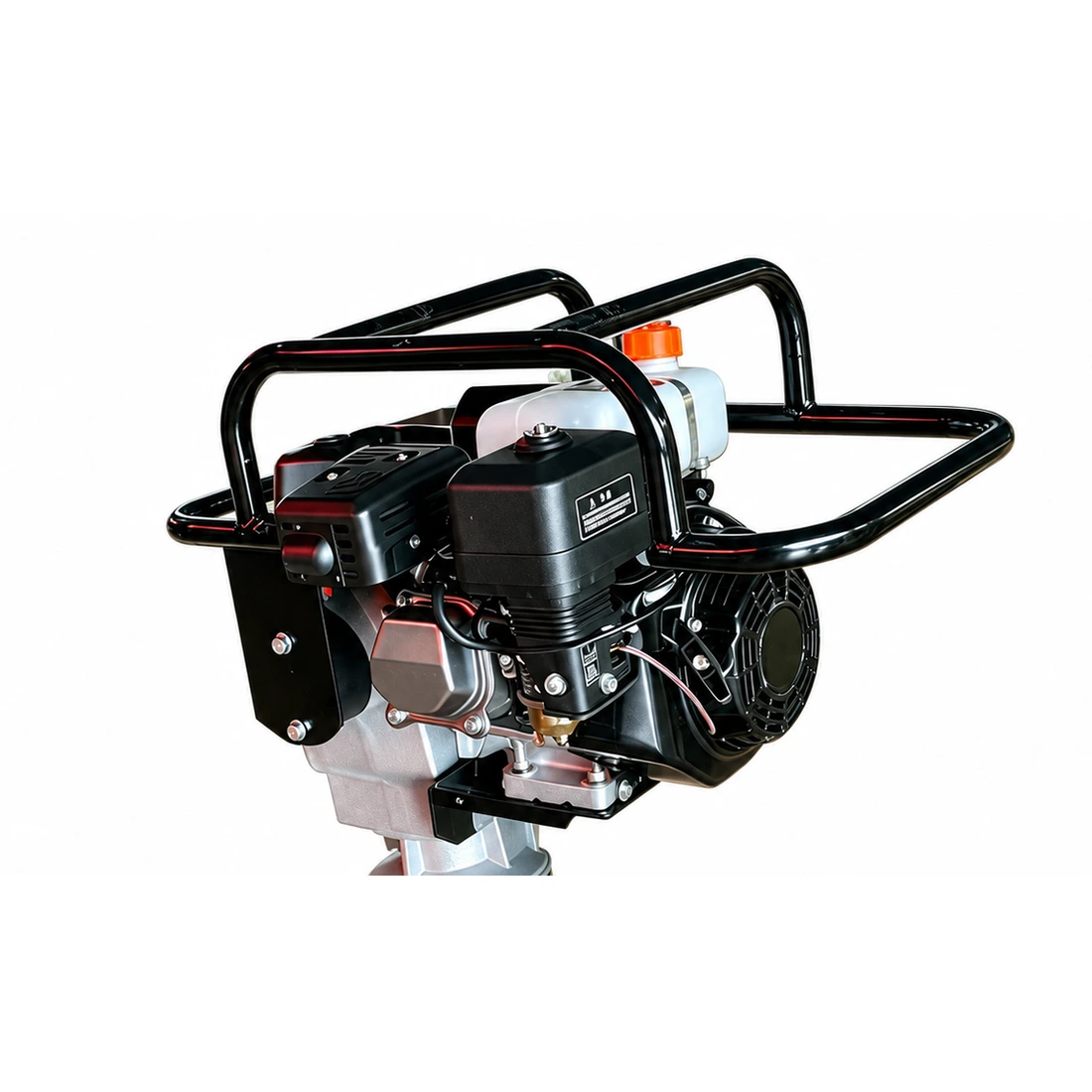

The HCR110 is listed with an engine-driven tamping arrangement, 5.5–6.5 HP power, 60 kg mass and 11 kN impact force. Source photographs show an engine, protective frame and bellows-foot assembly. The separate customized-voltage field does not establish an electric drive or generator outlet.
- Listed power: 5.5–6.5 HP
- Source mass; scope to confirm: 60 kg
- Source overall dimensions: 1000 × 490 × 620 mm

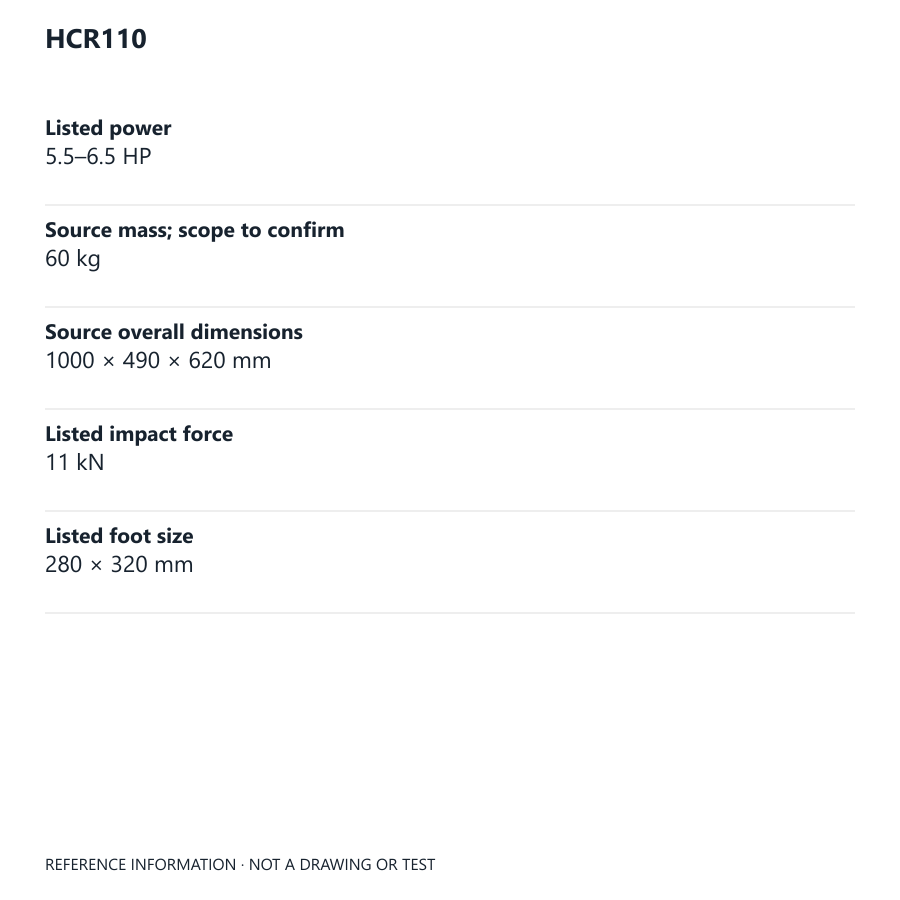

Technical Specifications
| Listed power | 5.5–6.5 HP |
|---|---|
| Source mass; scope to confirm | 60 kg |
| Source overall dimensions | 1000 × 490 × 620 mm |
| Listed impact force | 11 kN |
| Listed foot size | 280 × 320 mm |
| Unclassified reservoir; not a filling instruction | 2.0L |
| Source depth; soil/layer/test conditions absent | 35cm |
| Listed jump; test conditions not supplied | 45-65mm |
| Listed forward speed | 9-13m/min |
| Listed impact frequency; not a duty-cycle test | 450-700 times/min |
| Listed shell material; grade/scope unspecified | cast iron |
Product Description
A voltage field is not a drive description
The source model selector says HCR110 and the engine selector names a brand. A customized-voltage attribute does not override that engine context or prove a powered electrical accessory. Agree the actual engine, fuel, starting system and any electrical equipment in writing. Do not add a voltage rating or generator function where none is specified.

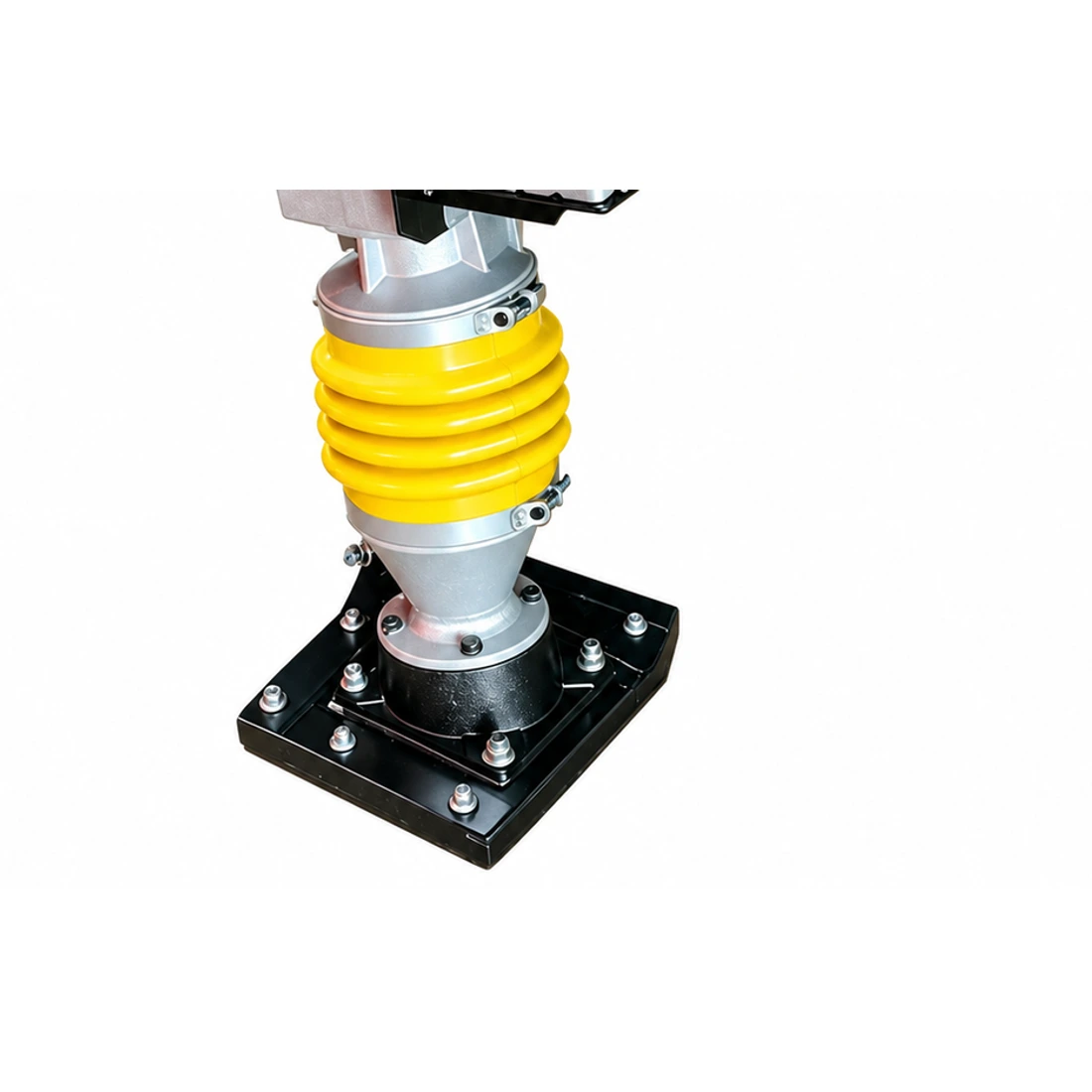

Foot construction and the unspecified reservoir
The source lists a 280 × 320 mm board and a cast-iron shell. Confirm the foot layers, material grade and mounting rather than assuming compatibility from outer dimensions. The 2.0 L oil-pot field does not identify the reservoir. Its value is not used as a fuel-tank claim or a lubricant filling instruction.
Read impact entries with the job conditions
The source lists 450–700 times/min, 45–65 mm jump and 9–13 m/min forward speed. These do not provide a duty-cycle test. The 35 cm compaction-depth entry also lacks soil, moisture and pass conditions. Define the required density/test and material layer before assessing suitability or comparing HCR110 with its suffixed versions.
Parts, maintenance and the delivery scope
Match replacement bellows, feet and drive parts to the delivered machine identification and mounting drawings. Source pictures do not specify oil grade, fill quantity, tightening torque or service intervals. Request the applicable manual and a written packing list. Confirm net and packed weights, included spares and documents before shipment.

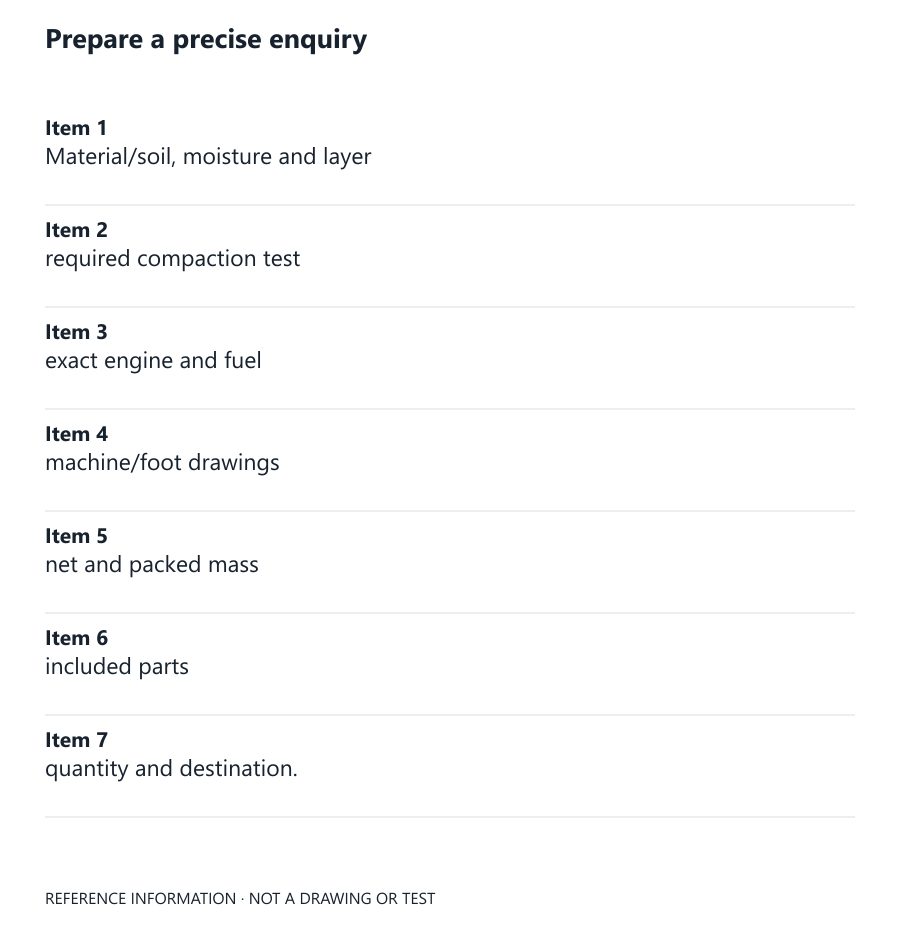

Prepare a clear product enquiry
Material/soil, moisture and layer; required compaction test; exact engine and fuel; machine/foot drawings; net and packed mass; included parts; quantity and destination.
Product FAQ
Does customized voltage mean an electric rammer?
That is not established. Confirm the actual delivered drive and electrical equipment.
Can the suffix be omitted when ordering parts?
Use the exact machine identification and part references; similar model names are not sufficient.
Is the oil-pot value a service instruction?
No. The reservoir type and applicable service requirements need the delivered manual.
