HCR125 Gasoline Tamping Rammer
HCR125 gasoline tamping rammer for confined compaction work. Listed 5.5–6.5 HP options and 78 kg; request the engine, foot dimensions and verified impact data.
View product →
RM80

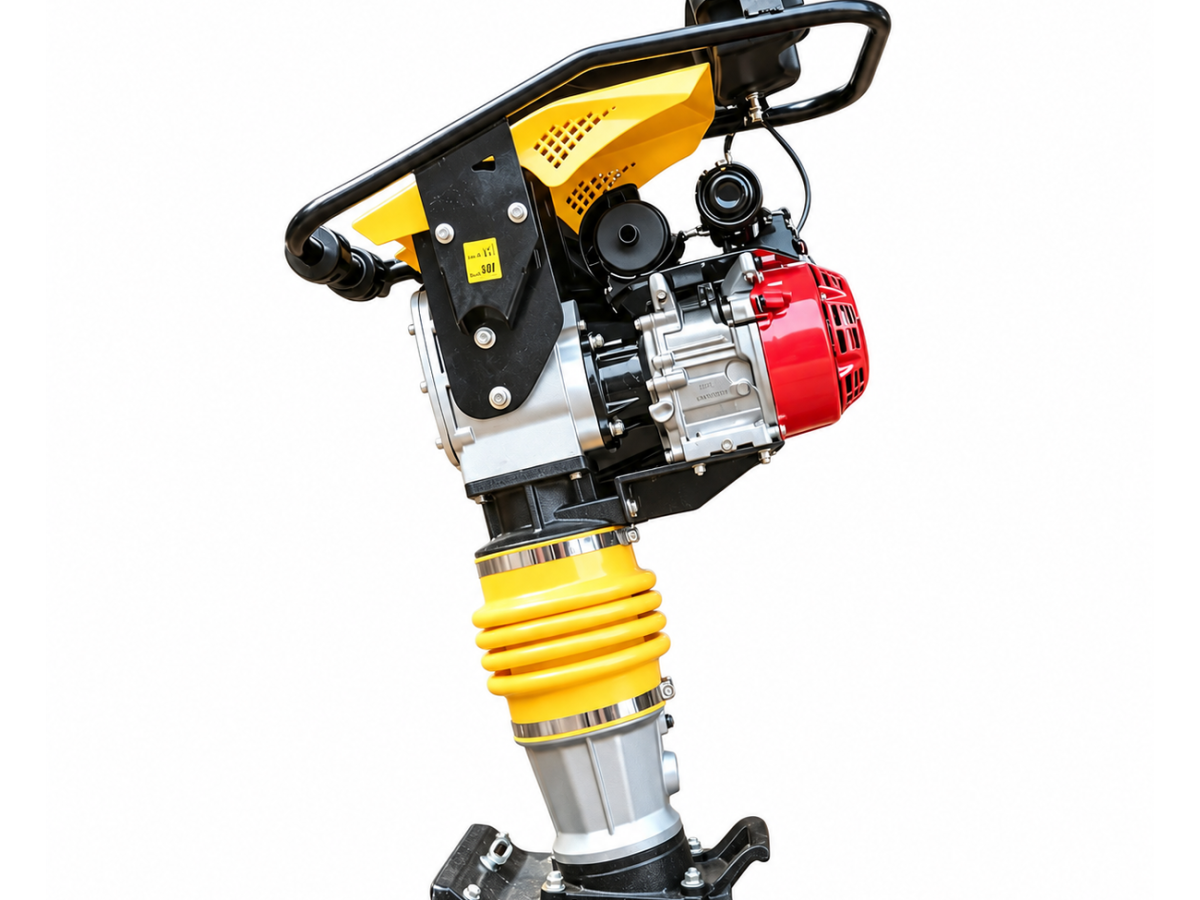

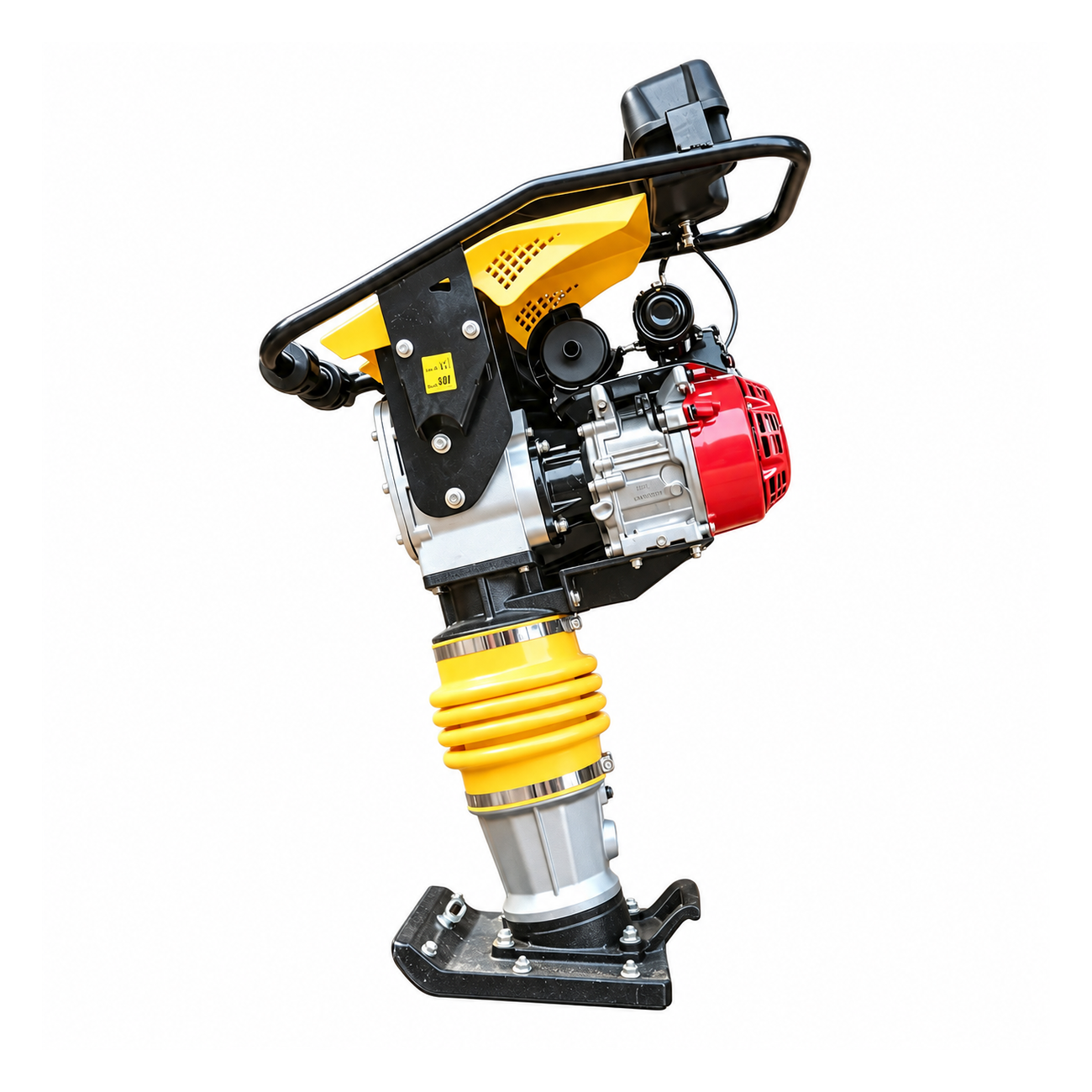

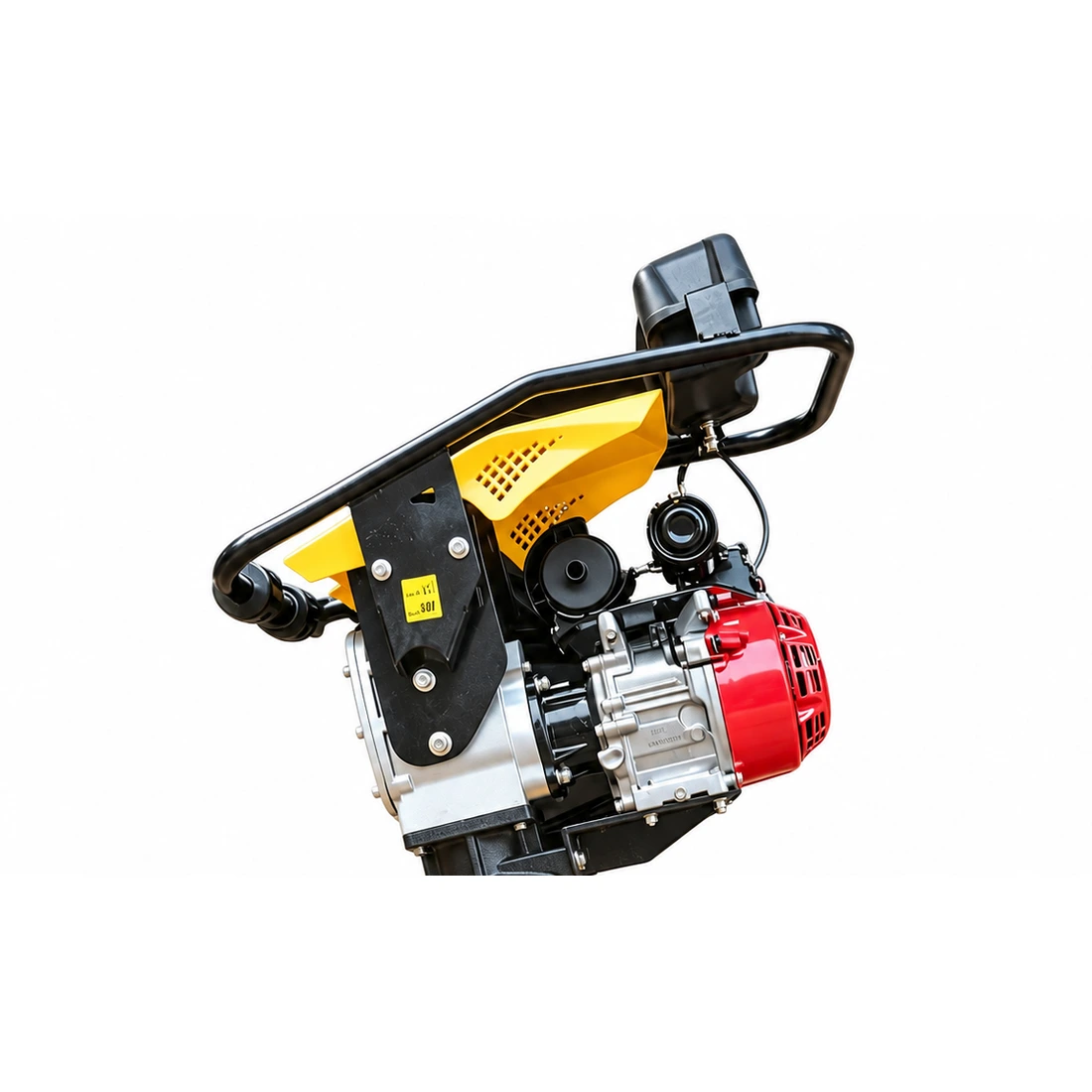

RM80 Tamping Rammer
An RM80 tamping rammer with a handle frame, engine arrangement and bellows-foot assembly. The source lists 5.5–6.5 HP, 90 kg, 13 kN impact force and a 280 × 330 mm foot. Engine alternatives require one selected configuration, not a claim that the machine includes multiple drive systems.
- Listed power: 5.5–6.5 HP
- Source mass; scope to confirm: 90 kg
- Source overall dimensions: 100 × 49 × 65 cm

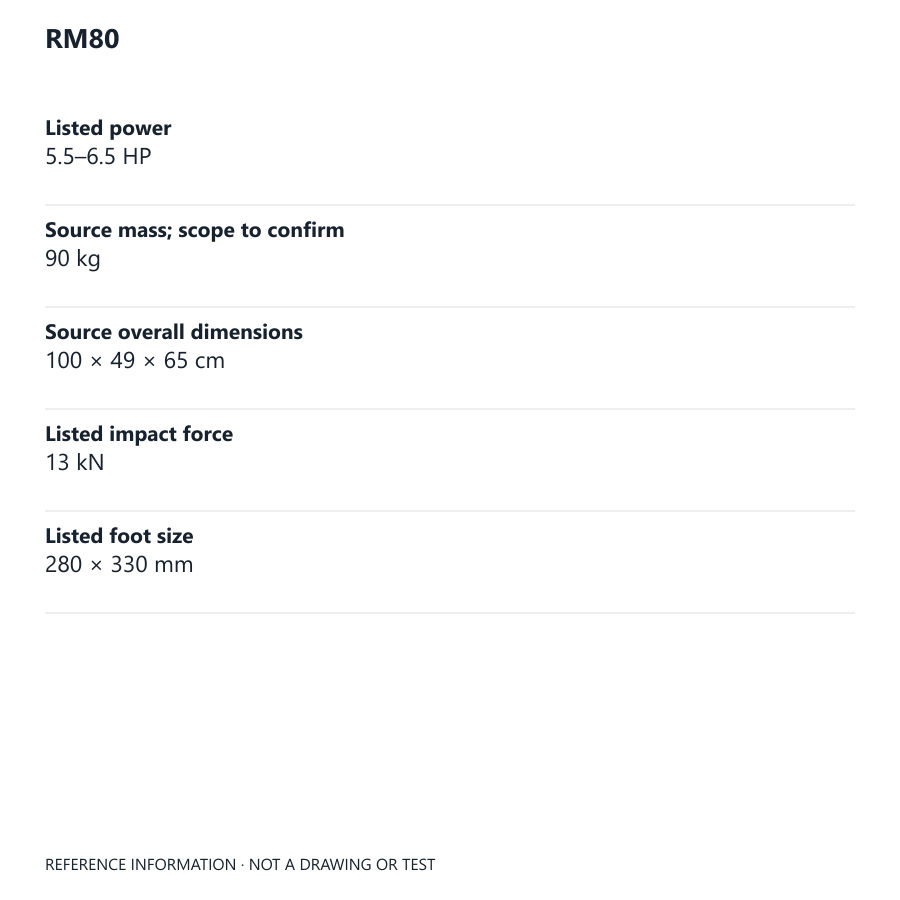

Technical Specifications
| Listed power | 5.5–6.5 HP |
|---|---|
| Source mass; scope to confirm | 90 kg |
| Source overall dimensions | 100 × 49 × 65 cm |
| Listed impact force | 13 kN |
| Listed foot size | 280 × 330 mm |
| Listed fuel tank | 2.5 L |
| Listed jump; test conditions not supplied | 45-75mm |
| Source frequency notation; unit unresolved | 400-700t/m |
Product Description
Choose the engine, not a hybrid specification
The RM80 selector names an engine brand while the attribute lists diesel/gasoline/electric alternatives. The listing title refers to gasoline. Confirm the exact drive, engine model, fuel and starting system together. The 2.5 L fuel-capacity entry is a source figure; it does not establish consumption, operating hours or compatibility with every alternative drive.

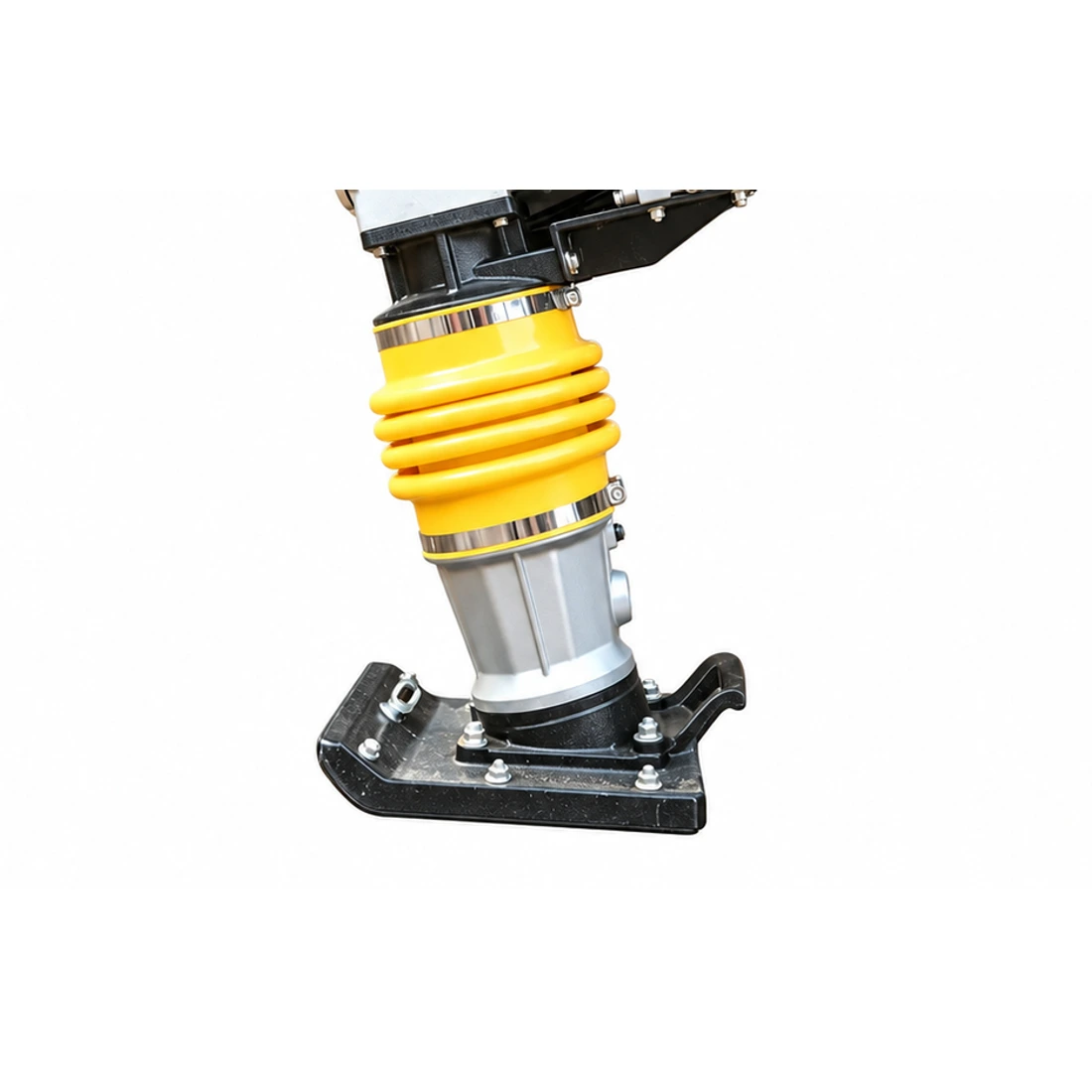

Foot dimensions and machine-size units
The overall dimensions are listed in centimetres: 100 × 49 × 65 cm. They are kept in their original unit instead of being silently copied as millimetres. The foot entry is 280 × 330 mm. Confirm the drawing and mounting details, as similar-looking rammers may use different feet, layers or fasteners.
Impact and frequency scope
The 13 kN impact-force and 45–75 mm jump entries lack a material-specific acceptance result. The frequency field says 400–700t/m, an ambiguous notation; no verified unit is inferred. Specify the material, moisture, layer and target test rather than comparing this field directly with another listing’s impacts per minute.
Parts, maintenance and the delivery scope
Match replacement bellows, feet and drive parts to the delivered machine identification and mounting drawings. Source pictures do not specify oil grade, fill quantity, tightening torque or service intervals. Request the applicable manual and a written packing list. Confirm net and packed weights, included spares and documents before shipment.

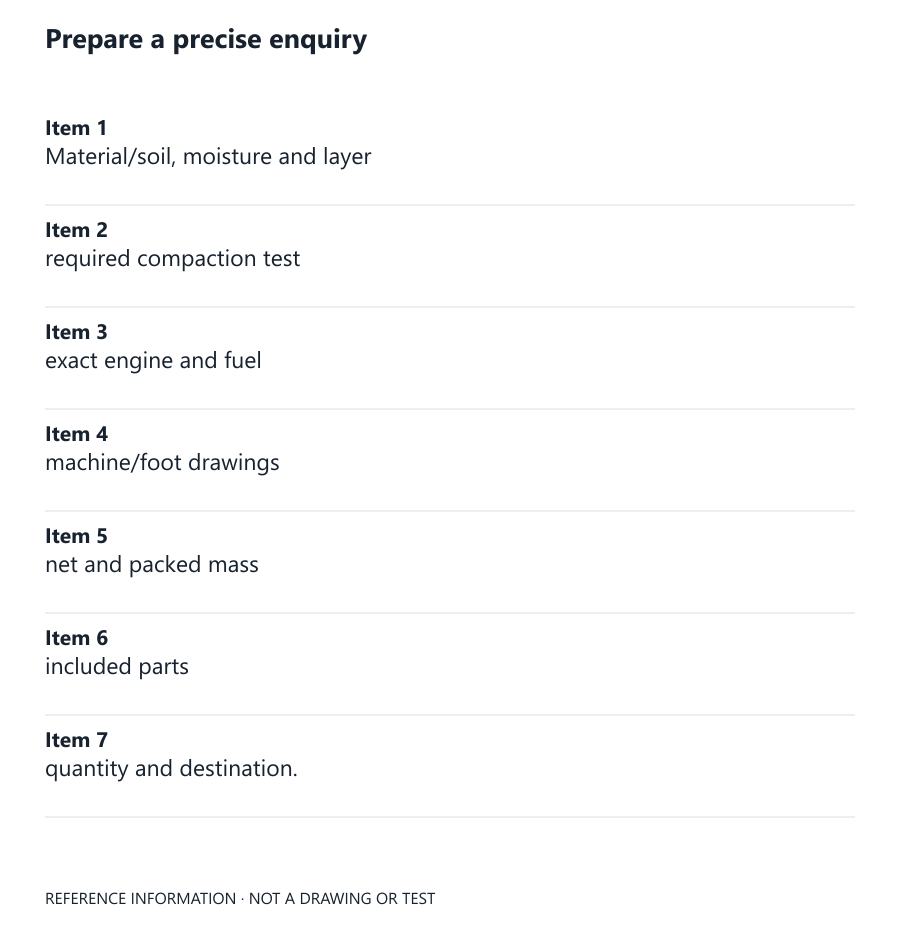

Prepare a clear product enquiry
Material/soil, moisture and layer; required compaction test; exact engine and fuel; machine/foot drawings; net and packed mass; included parts; quantity and destination.
Product FAQ
Are the overall dimensions in millimetres?
No. The source overall-size entry is in centimetres; the foot entry is in millimetres.
What does t/m mean in the frequency field?
The source does not define it sufficiently. Request corrected frequency documentation.
Can I order spares by RM80 alone?
Confirm engine, machine identification and part/mounting references as well.
