Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
DMS350
DMS350 is a walk-behind floor grinder for terrazzo, concrete and marble work. The handle steers the machine while the covered lower assembly carries the grinding tools.
| Operation type | Manual |
|---|---|
| Supply voltage | 380 V |
| Power field | 7.5KW |
| Source dimensions; assembled/packed scope to confirm | 850*540*980mm |
| Source weight; supply scope to confirm | 116 kg |
| Disc speed field | 2880r/min |
| Claimed area rate; conditions unspecified | 45-55 ㎡/h |
| Source application | Concrete Terrazzo Marble |
| Grinding-block field; fitted set to confirm | 32 |
| Working-width selection | 350mm |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |

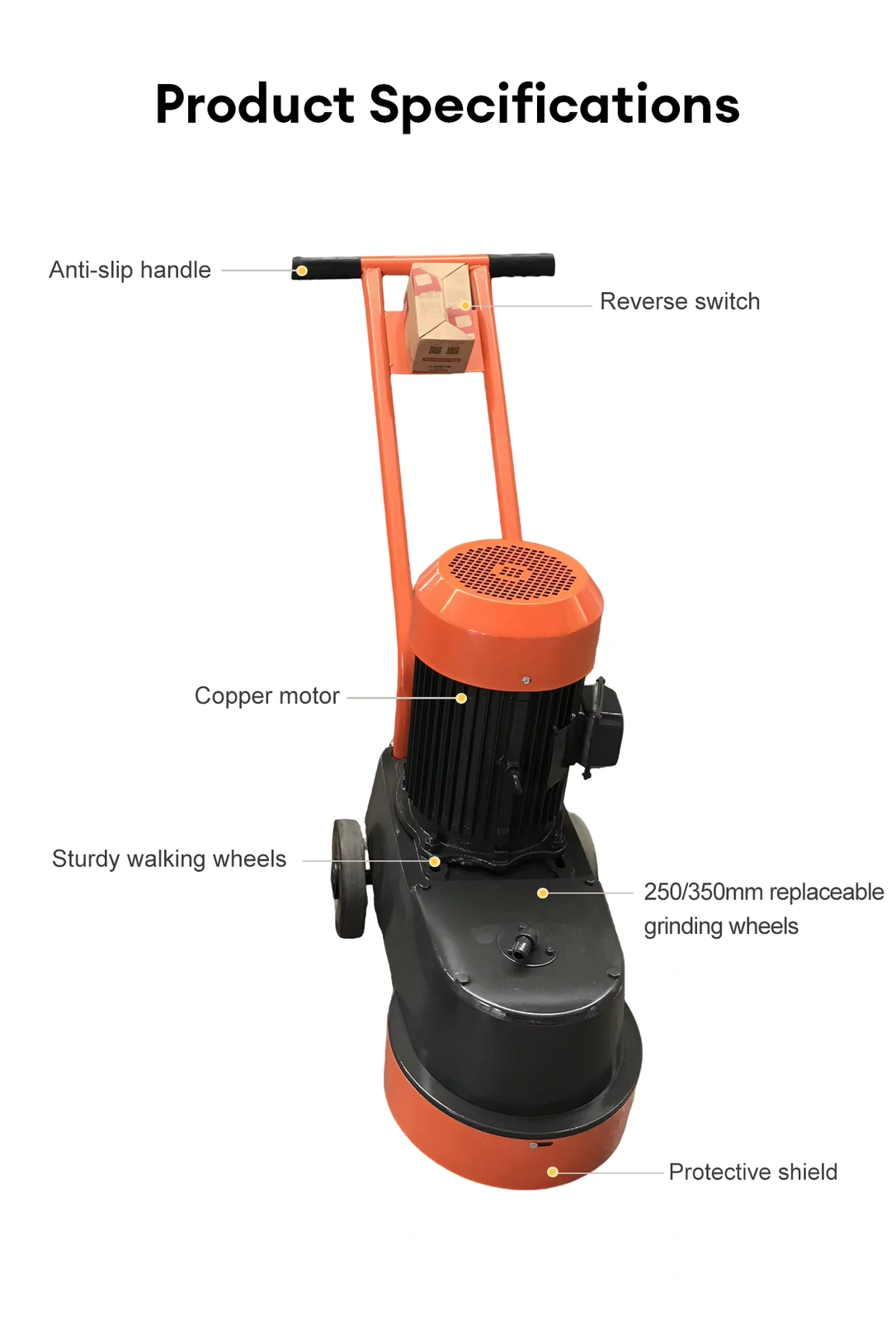

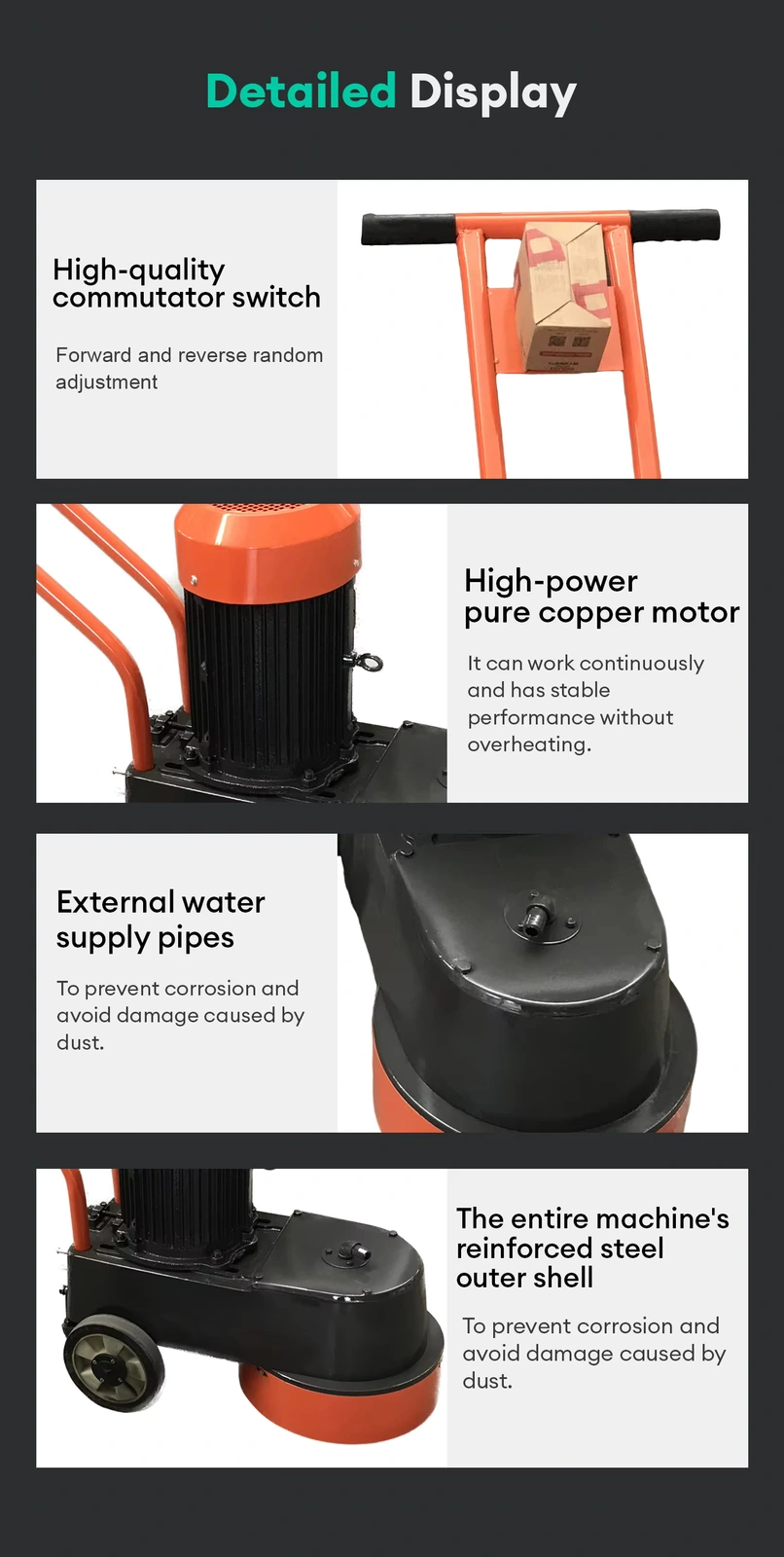

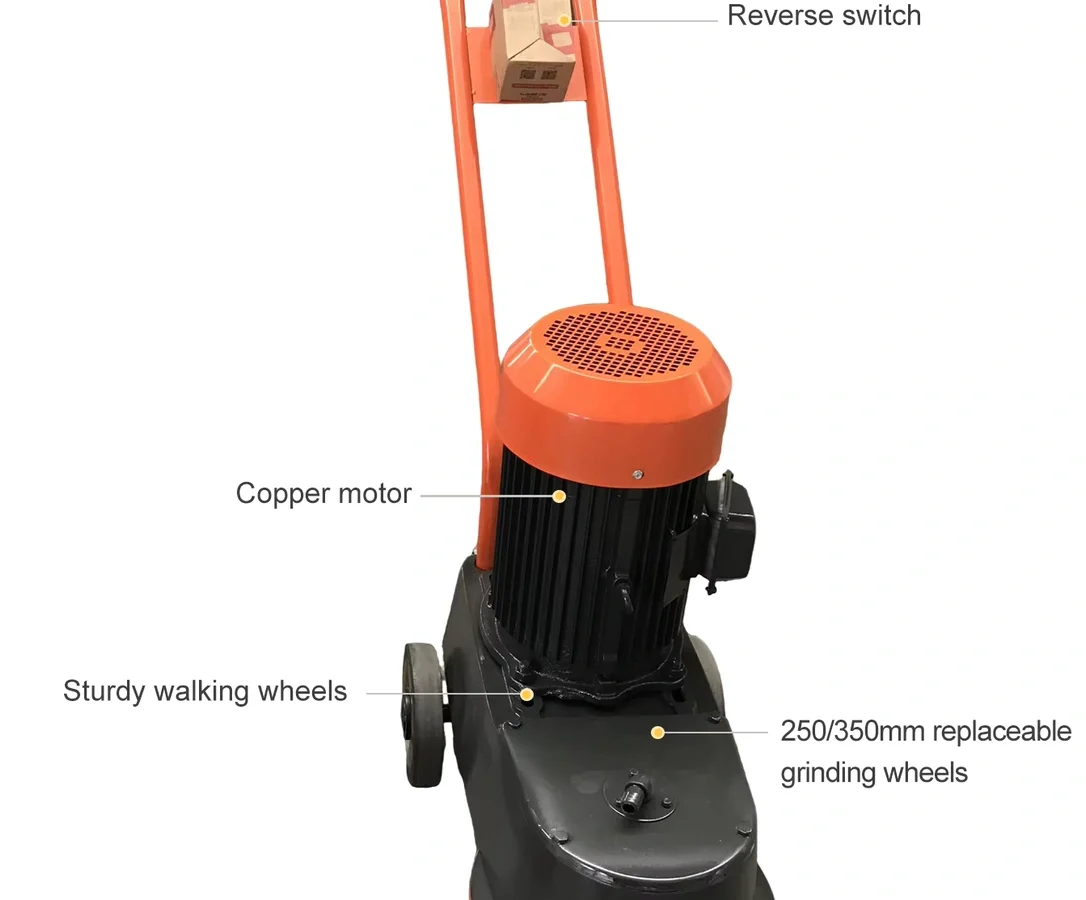

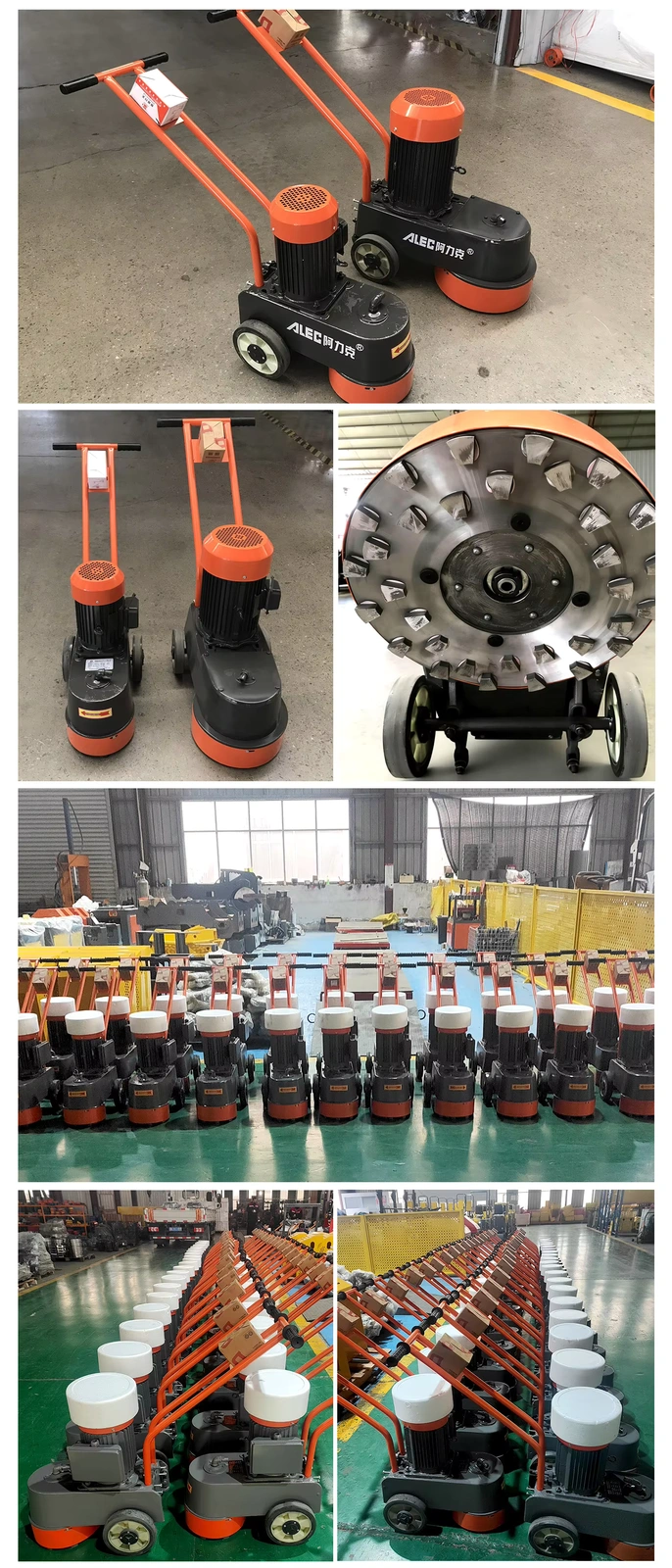

DMS350 is a walk-behind floor grinder for terrazzo, concrete and marble work. The handle steers the machine while the covered lower assembly carries the grinding tools. The original component panels show the switch, motor, wheels and protective cover; workshop panels show machines and tooling rather than an extra set of equipment included with one order.
The model selection gives a 350 mm working width, with 7.5 kW, 380 V and 116 kg in the attributes. Another panel refers to interchangeable 250/350 mm assemblies, so the quotation should identify the actual head and block arrangement. The stated 45–55 m²/h depends on the floor, abrasive and finish; it is not the same as a guaranteed polished area per hour.
Describe the floor material, existing coating, surface condition and required finish. Grinding and final polishing need a matched tooling sequence; a motor rating alone does not define the finished result. Confirm the attachment system and whether the selected head uses blocks, discs or another carrier.
Ask which water-supply or dust-collection arrangement is approved for the supplied machine and whether its fittings are included. For service, request the tooling holders, belt or drive parts, bearings and electrical diagram for that version. The factory panels are examples, not a complete delivery list.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
DMS350 is a walk-behind floor grinder for terrazzo, concrete and marble work. The handle steers the machine while the covered lower assembly carries the grinding tools. The original component panels show the switch, motor, wheels and protective cover; workshop panels show machines and tooling rather than an extra set of equipment included with one order.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
No universal tooling is established. Specify the surface material, coating and desired finish so the supplier can select the head and tooling sequence.
The source does not specify the test floor and finish. Request task-specific output information rather than treating that figure as a site guarantee.
Confirm the approved arrangement and each included fitting for this version. Their presence cannot be assumed from a component panel.
Use the supplied head and motor plates and request references for holders, drive components and bearings. Do not use another grinder’s parts list.
It is a supplier attribute, not an itemised tooling list. Confirm the head layout, attachment type, block quantity and abrasive grade for the quoted DMS350.
The model selection gives a 350 mm working width, with 7.5 kW, 380 V and 116 kg in the attributes. Another panel refers to interchangeable 250/350 mm assemblies, so the quotation should identify the actual head and block arrangement. The stated 45–55 m²/h depends on the floor, abrasive and finish; it is not the same as a guaranteed polished area per hour.
