7425D-2
7425D-2 Electric Concrete Ring Saw
7425D-2 electric ring saw with listed 410 mm tooling and 300 mm cutting depth. Confirm electrical requirements, material and the model-specific blade system.
- A ring saw for wall and concrete cutting
- Check the blade system and the electrical connection
Technical Specifications
| Listed input power | 8800 W |
|---|---|
| Supply | 220 V / 50 Hz |
| Blade diameter | 410 mm |
| Listed cutting depth | 300 mm |
| Listed weight | 16.9 kg |
| Parameters to confirm | Send an enquiry to confirm: Electrical connection/current; Blade mounting and included tooling; Permitted blade speed and material-specific depth. |
Product Description
A ring saw for wall and concrete cutting

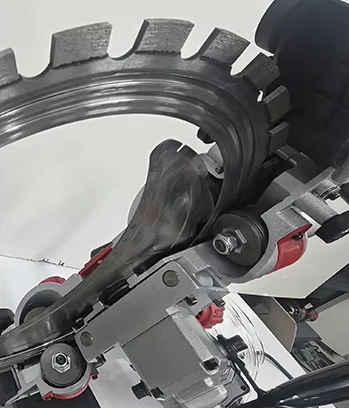

The 7425D-2 is an electric ring saw listed for cutting walls and concrete. Its blade arrangement differs from a conventional centre-mounted circular saw. It is considered for renovation cuts and openings when the material, access and cut dimensions suit the supplied system. The listing gives a 410 mm blade size and up to 300 mm cutting depth.
Check the blade system and the electrical connection
The source lists 8800 W and 220 V / 50 Hz. Have the supplier state the actual electrical connection and complete tool specification before planning a site supply. A blade with the same nominal diameter is not automatically compatible. Request the correct blade, permitted material, water arrangement and model-specific instructions; the catalogue maximum depth is not guaranteed for every cut.
Before ordering
Send an enquiry to confirm: Electrical connection/current; Blade mounting and included tooling; Permitted blade speed and material-specific depth.
Applications
The 7425D-2 is an electric ring saw listed for cutting walls and concrete. Its blade arrangement differs from a conventional centre-mounted circular saw. It is considered for renovation cuts and openings when the material, access and cut dimensions suit the supplied system. The listing gives a 410 mm blade size and up to 300 mm cutting depth.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm: Electrical connection/current; Blade mounting and included tooling; Permitted blade speed and material-specific depth.
Product FAQ

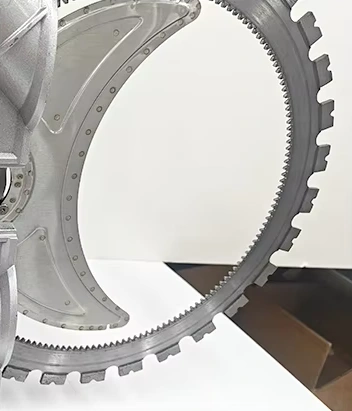

Can I fit a normal 410 mm circular blade?
Do not assume that. A ring saw needs a compatible model-specific blade and drive interface.
Is 300 mm available in every material?
It is a listed maximum, not a material-independent result. Submit the wall material and required cut dimensions for confirmation.
Does the voltage identify the site connection?
No. Confirm current, connection and protection requirements for the delivered machine with its documentation.
