Model to be confirmed

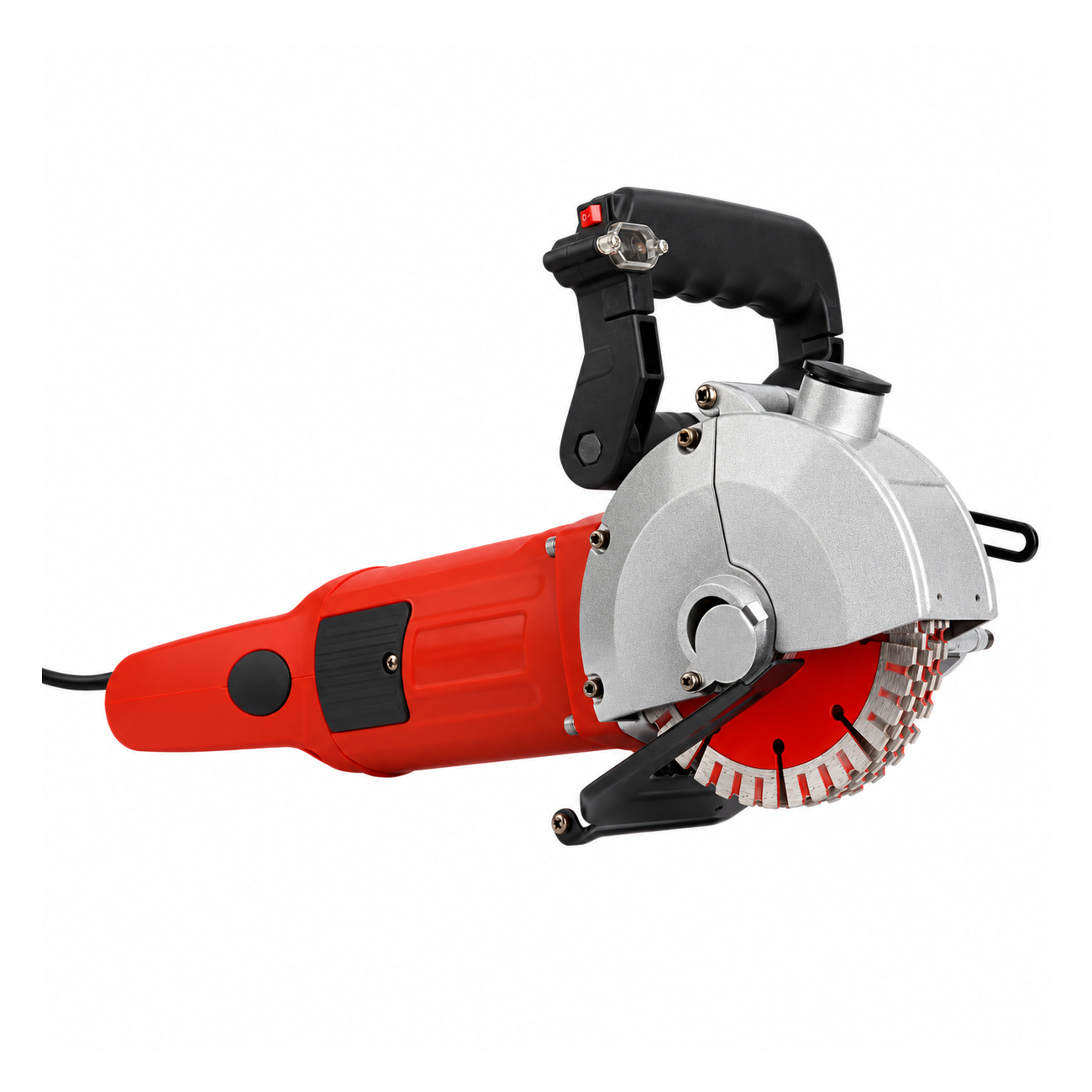

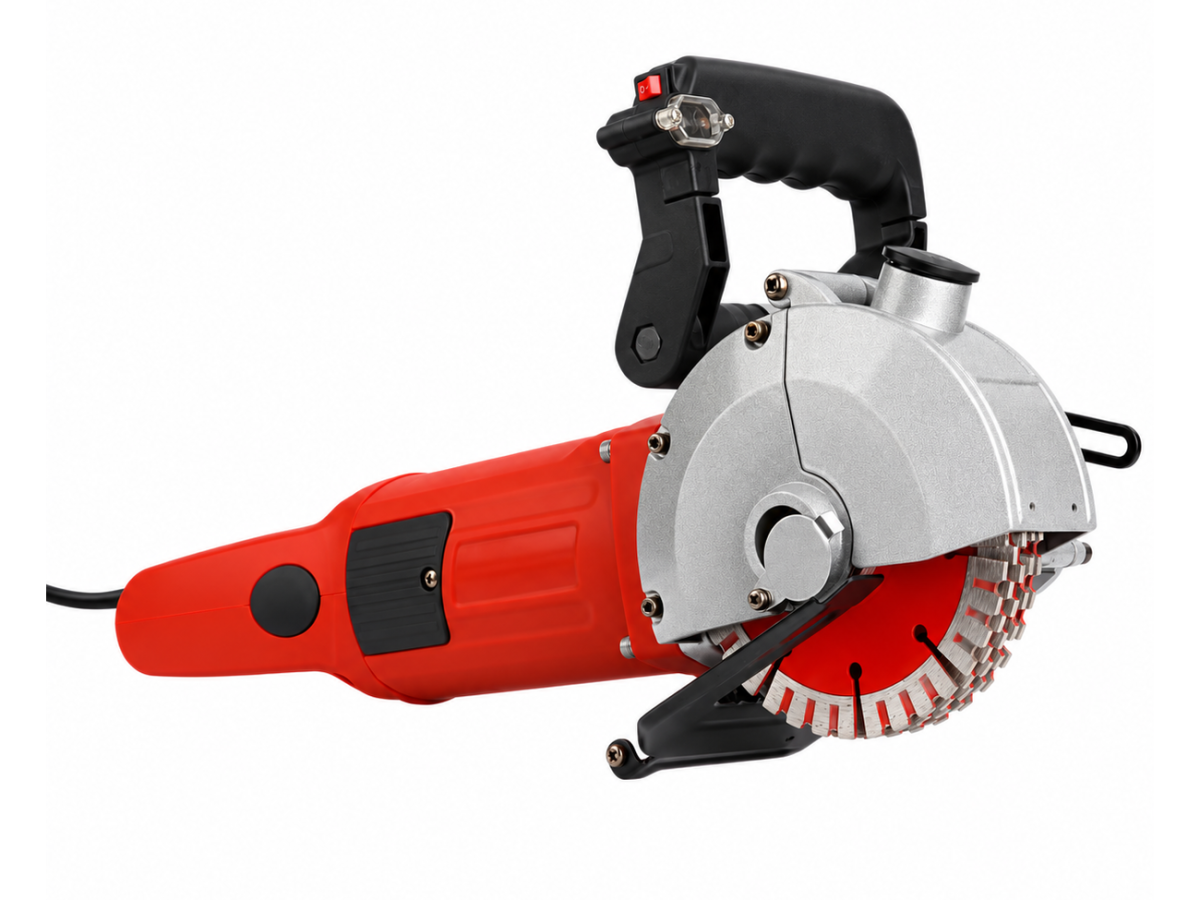

Electric Wall Chaser for Construction Grooves
An electric grooving tool for construction wiring and plumbing preparation. The source lists 38 mm working width, 36 mm working depth, 2500 W and 220 V. Match the groove requirement to the actual blade arrangement, wall material and extraction setup; these entries do not establish dust-free operation or permission to cut structural reinforcement.
- Source working width: 38mm
- Source working depth: 36mm
- Listed voltage: 220 V

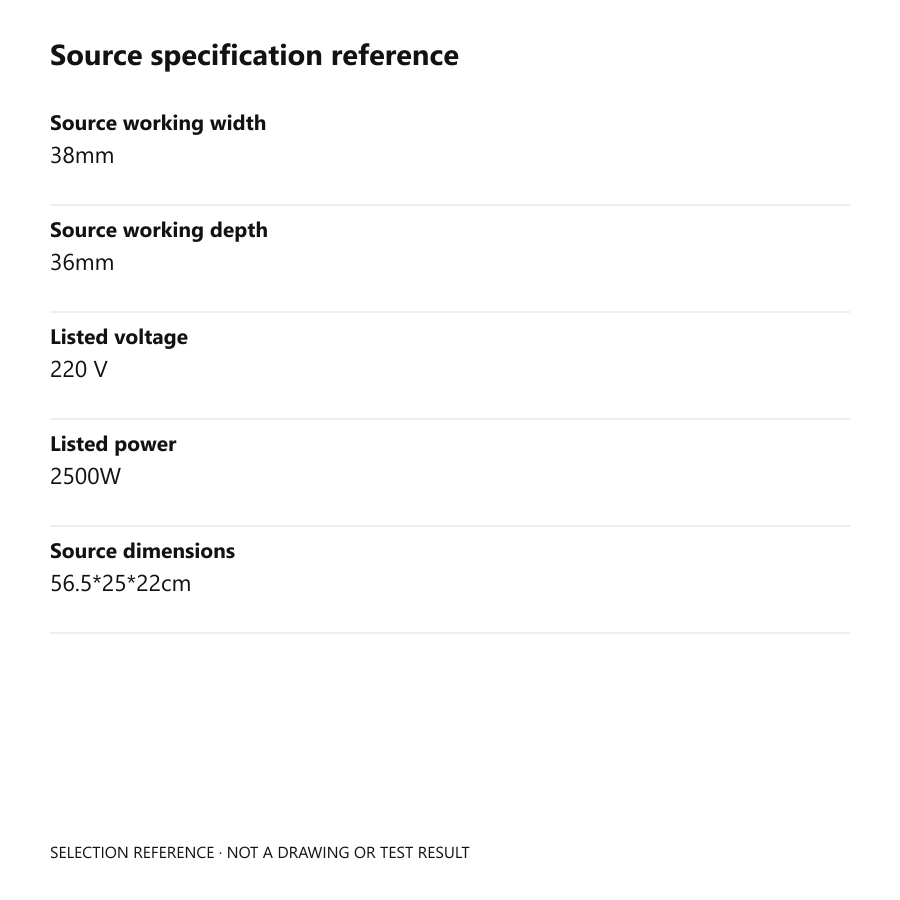

Technical Specifications
| Source working width | 38mm — Adjustment range and blade/spacer setup are not specified. |
|---|---|
| Source working depth | 36mm — Not a guaranteed depth for every material or blade configuration. |
| Listed voltage | 220 V |
| Listed power | 2500W |
| Source dimensions | 56.5*25*22cm |
| Source weight | 6.4 kg |
| Power type | Electric |
Product Description
Define the groove before choosing the tool
Specify the wall or road material, required channel width and depth, and the purpose of the work. The source uses broad construction and maintenance wording; this does not prove suitability for every stone, slab or reinforced structural element. Confirm the actual model reference and compatible blade specification. The working-width and depth entries are source values, not a complete adjustment chart.
Blades and spacing must match the requested channel

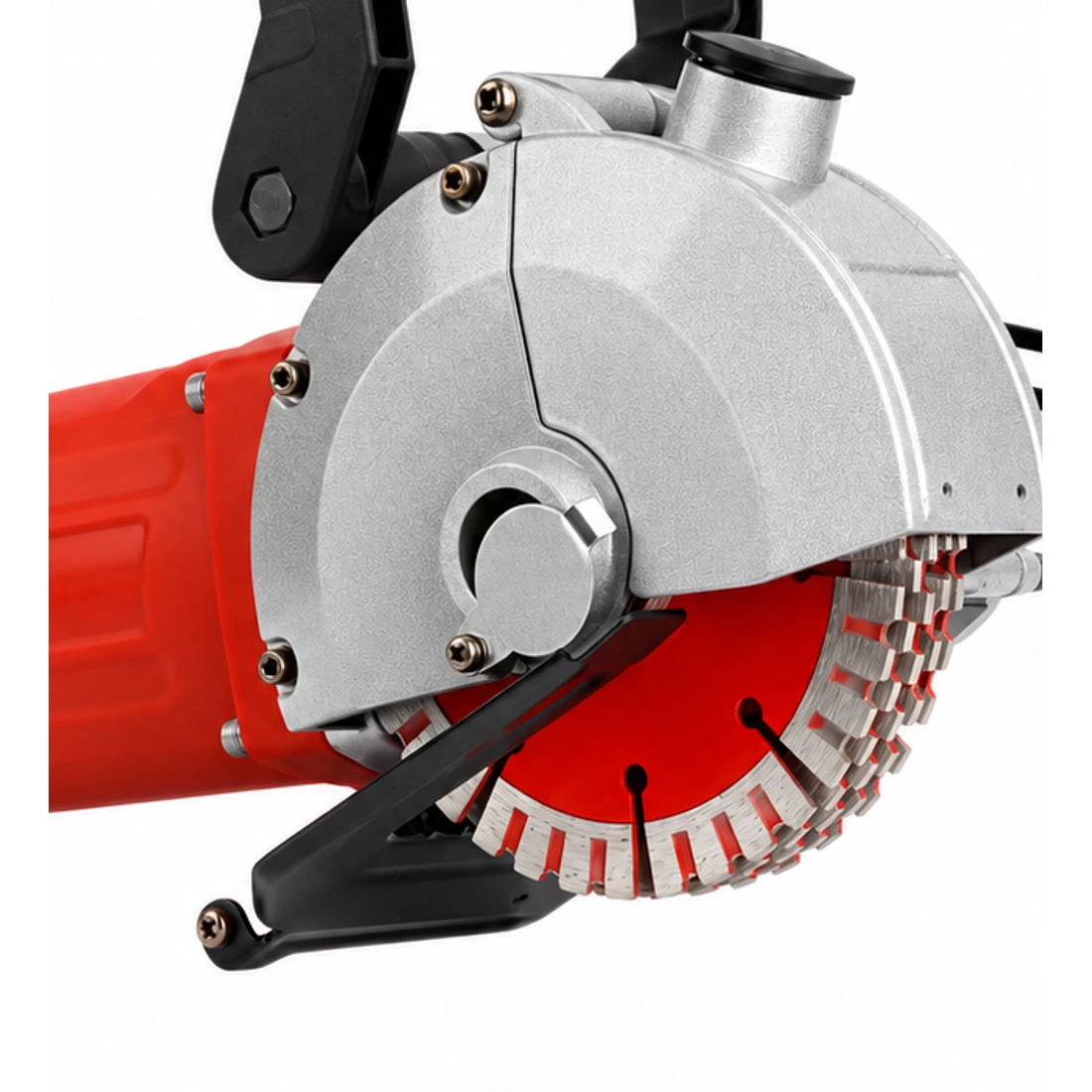

The source view shows a guarded multi-blade cutting arrangement. Blade count, diameter, bore, spacers, approved blade speed and included cutting tools require confirmation for the delivered product. Do not infer these specifications by counting image pixels or by adopting a different saw’s data. Ask which blades are included and which replacement references are required for the target material.
Dust control and hidden services
No dust-extraction connection size or measured dust-control performance is established in the available data. Request the extraction interface and compatible system rather than advertising the tool as dust-free. Before work, the site must assess concealed services and structural restrictions under the relevant procedures. The product page is not an operating method or a remote approval to groove a particular wall. Follow the actual tool manual and competent site assessment.
Supply configuration and included accessories
The listing’s 220 V and 2500 W entries do not identify frequency, plug type or the required supply protection. Confirm these, together with net/packed weight and a written accessory list. The source 6.4 kg weight and 56.5 × 25 × 22 cm dimensions are preserved as source entries without assuming their packaging state. Gallery close-ups derive from one edited source view; they do not prove additional supplied accessories or a second machine configuration.

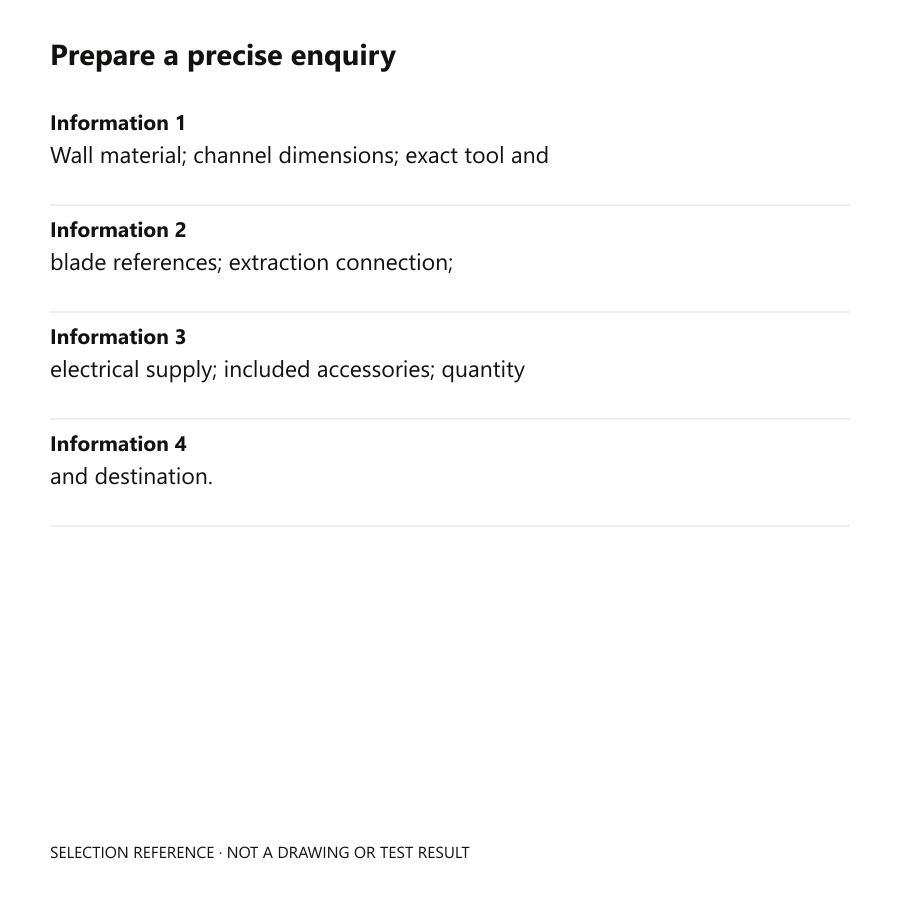

Prepare a clear product enquiry
Wall material; channel dimensions; exact tool and blade references; extraction connection; electrical supply; included accessories; quantity and destination.
Product FAQ
Is it dust-free?
That is not established. Confirm the extraction interface and an appropriate dust-control arrangement.
Does 38 mm mean a fully adjustable width range?
No adjustment range is provided. Ask for the blade and spacer chart for the exact configuration.
Are blades included?
The image is not a packing list. The quotation must identify included blades and their specifications.
