Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
TP5-800 Rail-Guided Wall Plastering Machine

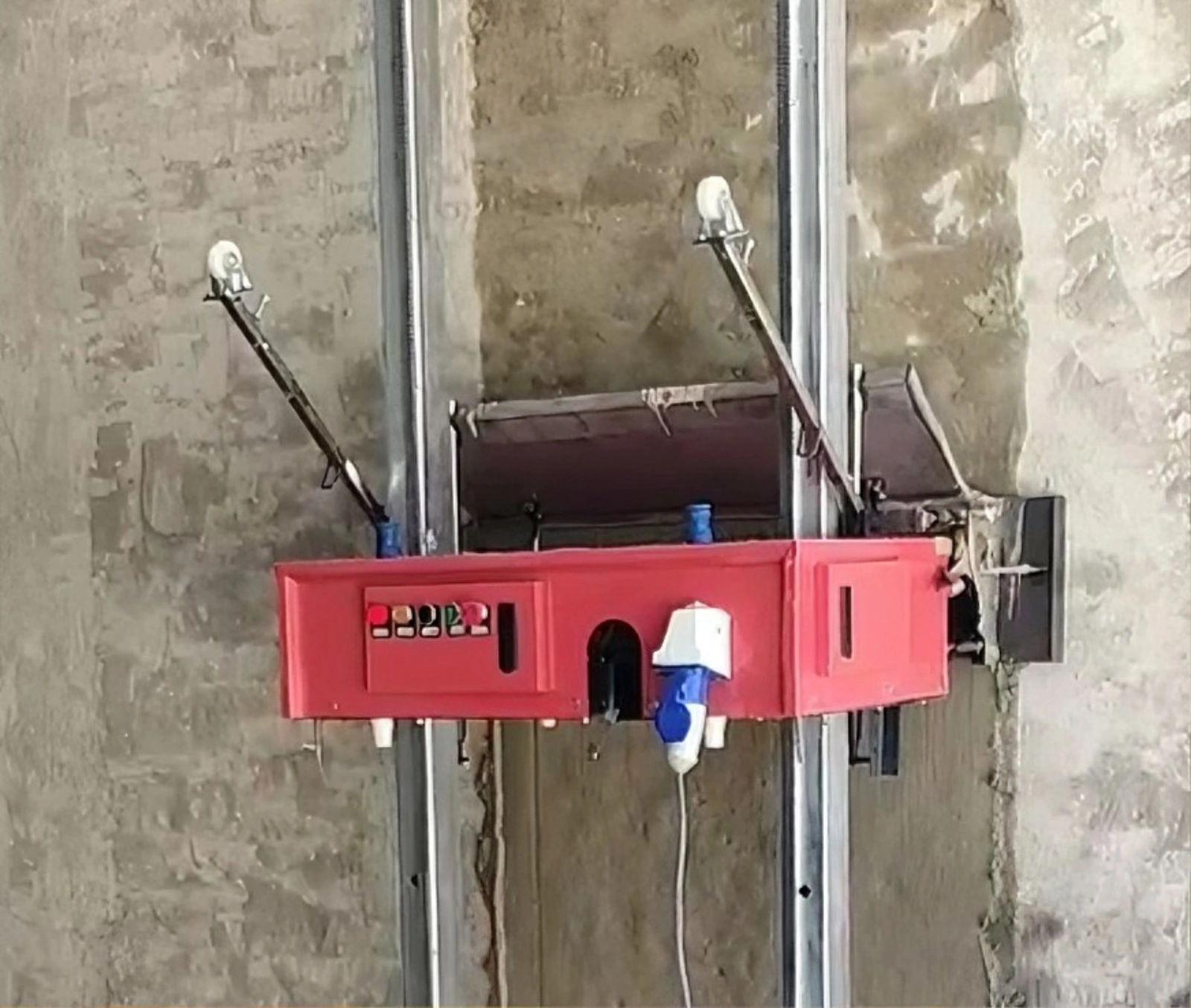

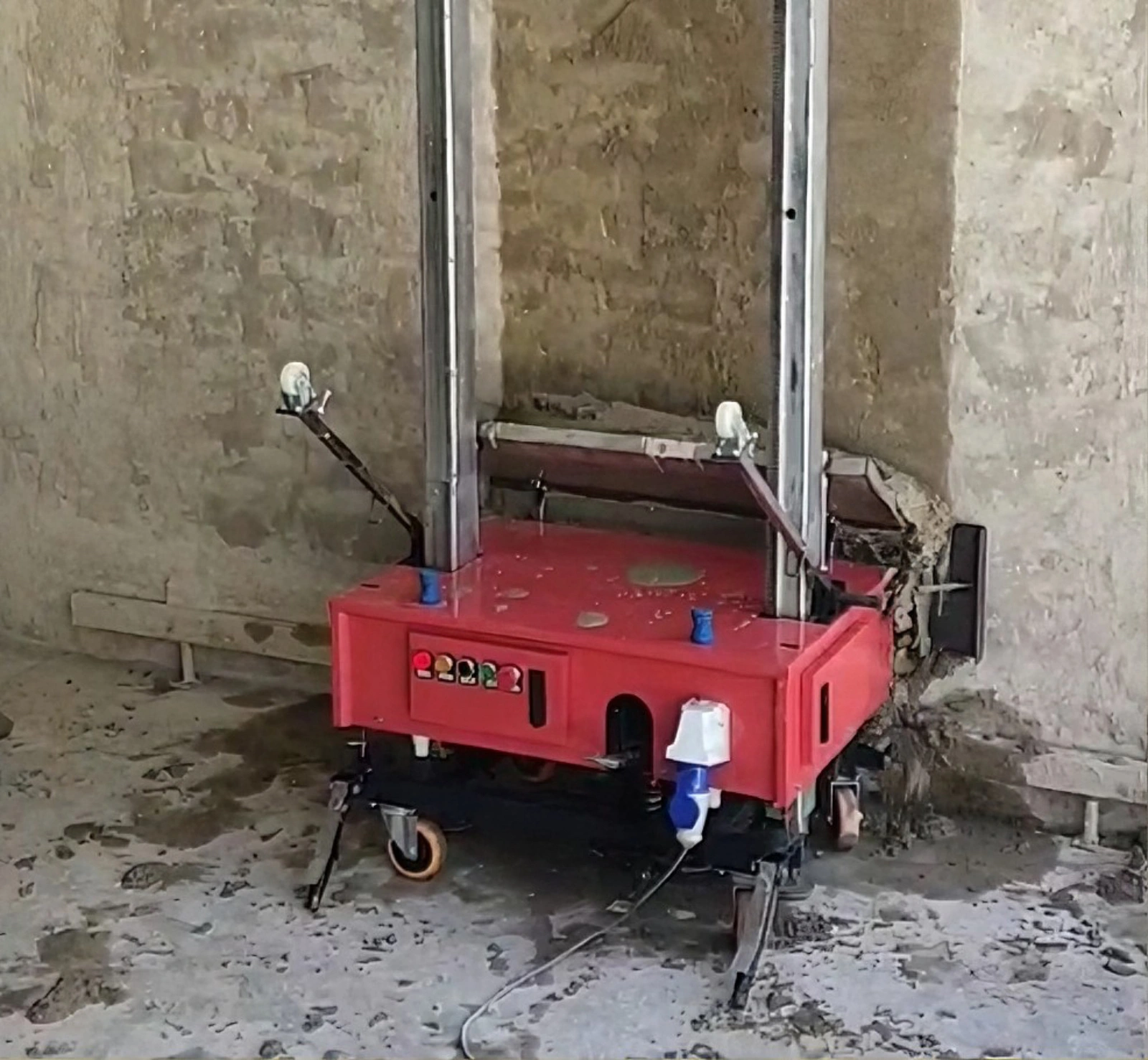

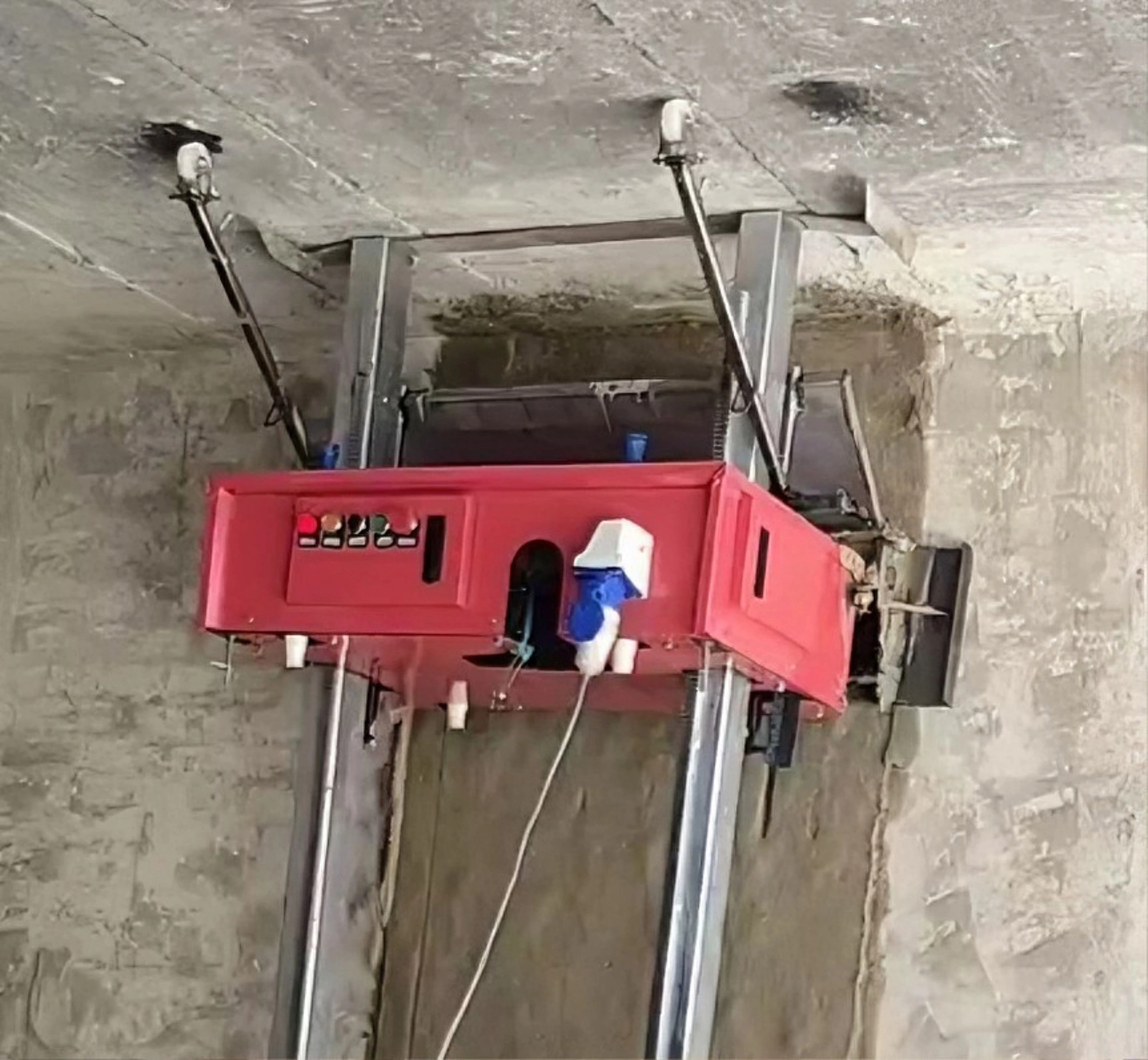

The TP5-800 uses vertical guides to move a mortar-spreading head along a prepared wall. Site photographs show the head at different heights; wall preparation, material consistency and guide setup remain separate work steps.
| Source power field | 1.5kw |
|---|---|
| Source layer range; material to confirm | 2-30mm |
| Source working height; guide setup to confirm | 4 m |
| Source overall dimensions; scope to confirm | 1100x 800x 540mm |
| Source weight; unit retained if stated | 260 kg |
| Guide travel arrangement | Gear wheel |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
The TP5-800 uses vertical guides to move a mortar-spreading head along a prepared wall. Site photographs show the head at different heights; wall preparation, material consistency and guide setup remain separate work steps.
Confirm the guide length, operating clearance and how the rails are secured for the actual room. The source package dimensions are inconsistent with the pictured full-height guides and are not used as a verified transport envelope.
Discuss room height, substrate, openings and mortar consistency. Agree the guide anchoring and head setup. Mixing, loading, corners and final detail work are separate operations, not automatically covered by a shift-output figure.
Request the delivered model identification, operating manual, parts list and an itemised equipment schedule. Consumables, accessories and transport items shown separately must be confirmed in the quote rather than assumed included.
Confirm missing parameters and delivery contents for the exact configuration.
The TP5-800 uses vertical guides to move a mortar-spreading head along a prepared wall. Site photographs show the head at different heights; wall preparation, material consistency and guide setup remain separate work steps.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing parameters and delivery contents for the exact configuration.
Not without a defined wall, mix, preparation and handling workflow.
Give wall height, working clearance, openings and guide-fixing conditions.
Discuss room height, substrate, openings and mortar consistency. Agree the guide anchoring and head setup. Mixing, loading, corners and final detail work are separate operations, not automatically covered by a shift-output figure.
Use the delivered model and component identification together with photographs and measured mounting interfaces.
Confirm the guide length, operating clearance and how the rails are secured for the actual room. The source package dimensions are inconsistent with the pictured full-height guides and are not used as a verified transport envelope.
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
