Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.
ZH-300 Gasoline Branch Chipper
The ZH-300 has a broad feed hopper, gasoline engine, wheels and a raised outlet. It is intended for processing branch and plant waste; the source pictures show the machine and examples of discharged material.

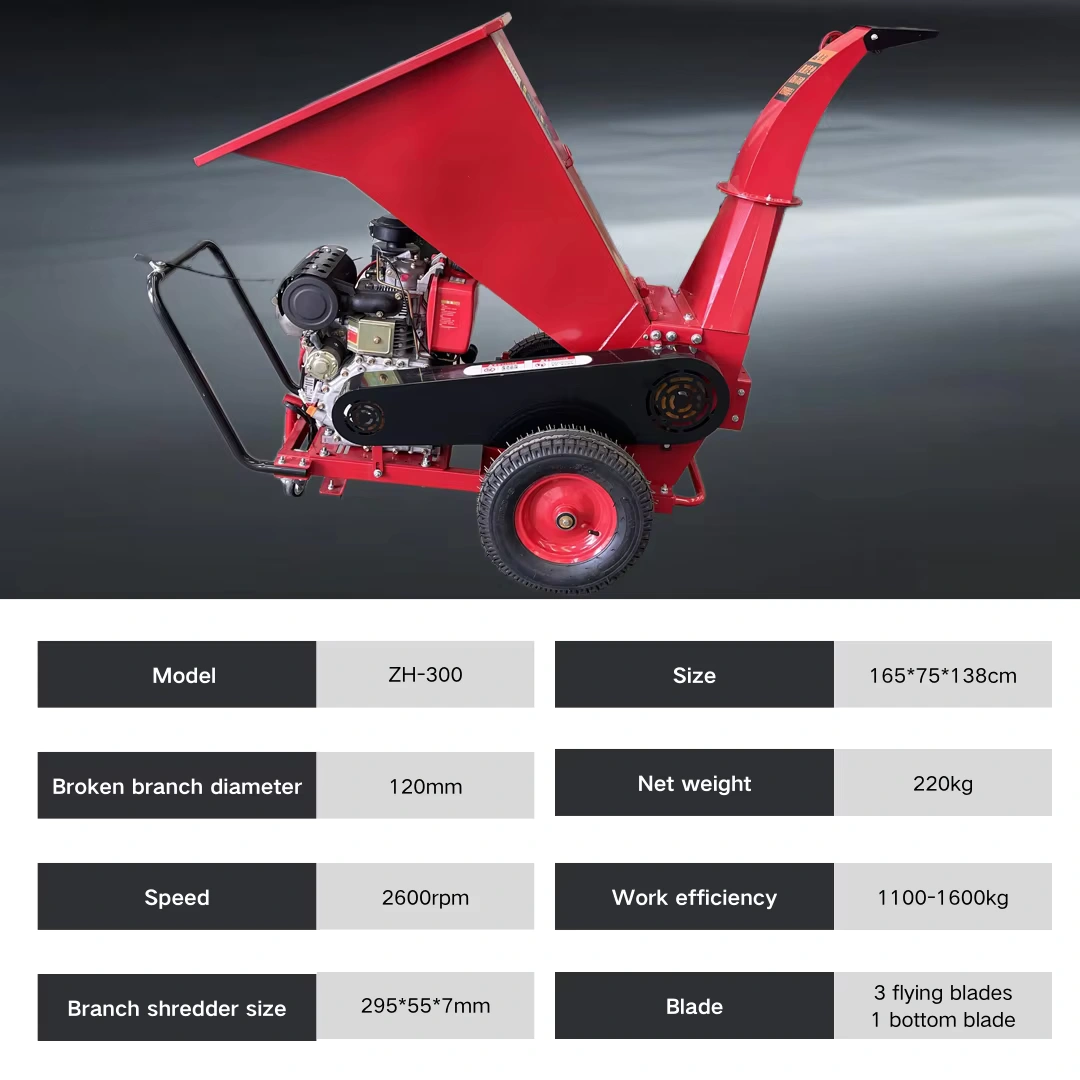

| Source dimensions; packing scope to confirm | 164*74*137cm |
|---|---|
| Source weight (unit not stated unless shown) | 222 |
| Listed branch diameter; material to confirm | 120mm |
| Listed cutter dimensions | 295*55*7mm |
| Listed rotor speed | 2600rpm |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
The ZH-300 has a broad feed hopper, gasoline engine, wheels and a raised outlet. It is intended for processing branch and plant waste; the source pictures show the machine and examples of discharged material.
The source mixes chip, shredder and sawdust wording. It does not establish a guaranteed particle size or suitability for every coconut shell or fibrous material. Confirm the feed material, moisture, maximum diameter and required output before a trial.
Describe the branch species, typical diameter, moisture and whether the feed contains leafy or fibrous material. Keep metal, stones and other contaminants out. A trial with representative material is more useful than a broad biomass or sawdust label.
Check machine clearance, hopper height and discharge direction for the site. Request cutter part references, access instructions and the supplied guards. Do not infer road-towing approval from wheels or a coupling in a photograph; confirm transport arrangements separately.
Confirm missing parameters and delivery contents for the exact configuration.
The ZH-300 has a broad feed hopper, gasoline engine, wheels and a raised outlet. It is intended for processing branch and plant waste; the source pictures show the machine and examples of discharged material.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing parameters and delivery contents for the exact configuration.
No material test conditions accompany that field. Agree species, moisture and feeding method before comparing it.
The source wording does not establish an output-size distribution. Request a representative trial and cutter specification.
No approval is established by the photographs. Specify how the machine will be transported and ask for applicable documentation.
Ask for the delivered cutter arrangement, blade reference and fastening specification rather than ordering by a generic chipper label.
The source mixes chip, shredder and sawdust wording. It does not establish a guaranteed particle size or suitability for every coconut shell or fibrous material. Confirm the feed material, moisture, maximum diameter and required output before a trial.
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
The AYS750-1 is a wheeled gasoline chipper with a feed hopper and raised discharge chute. The original workshop views show the engine, guarded cutting housing and the compact arrangement used for managing branch waste.
