4-35A Mobile Concrete Block Machine
4-35A Mobile Concrete Block Machine

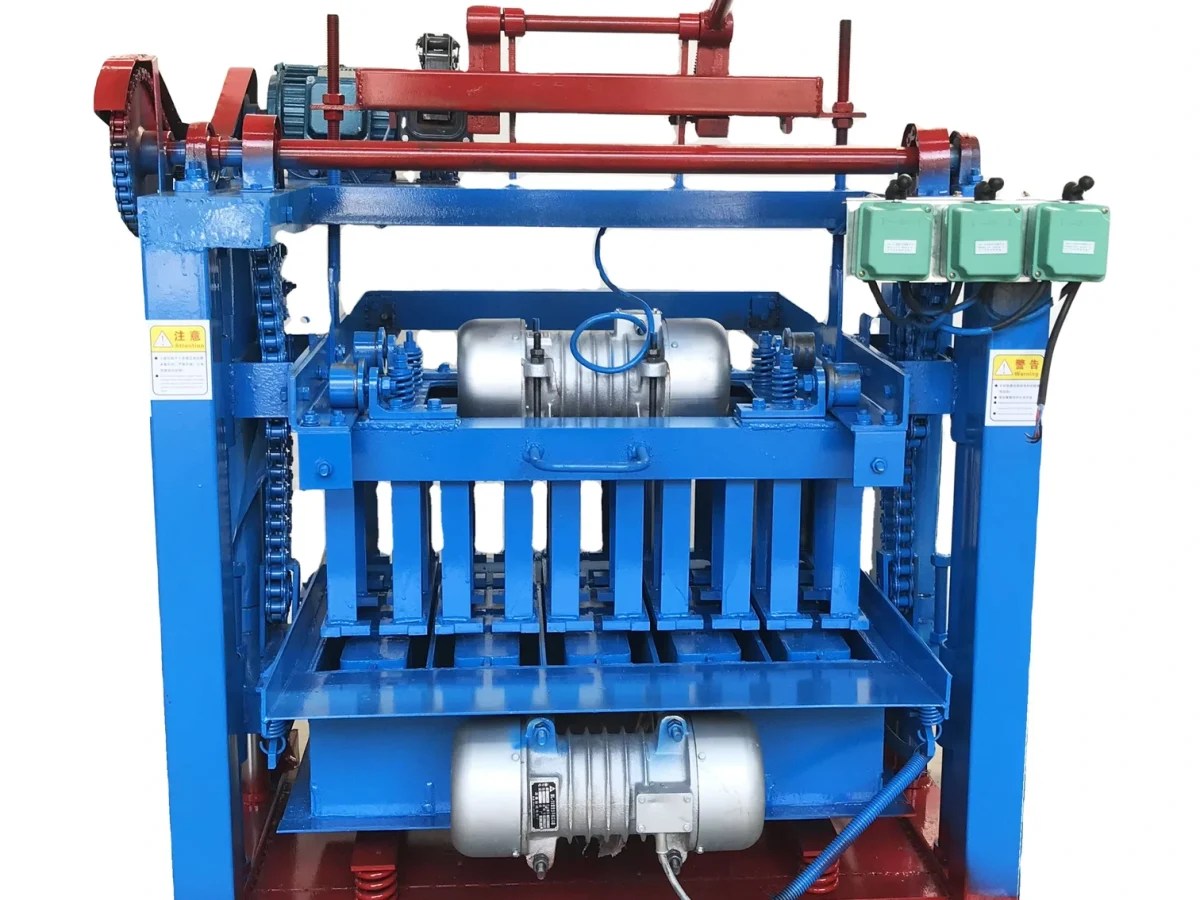

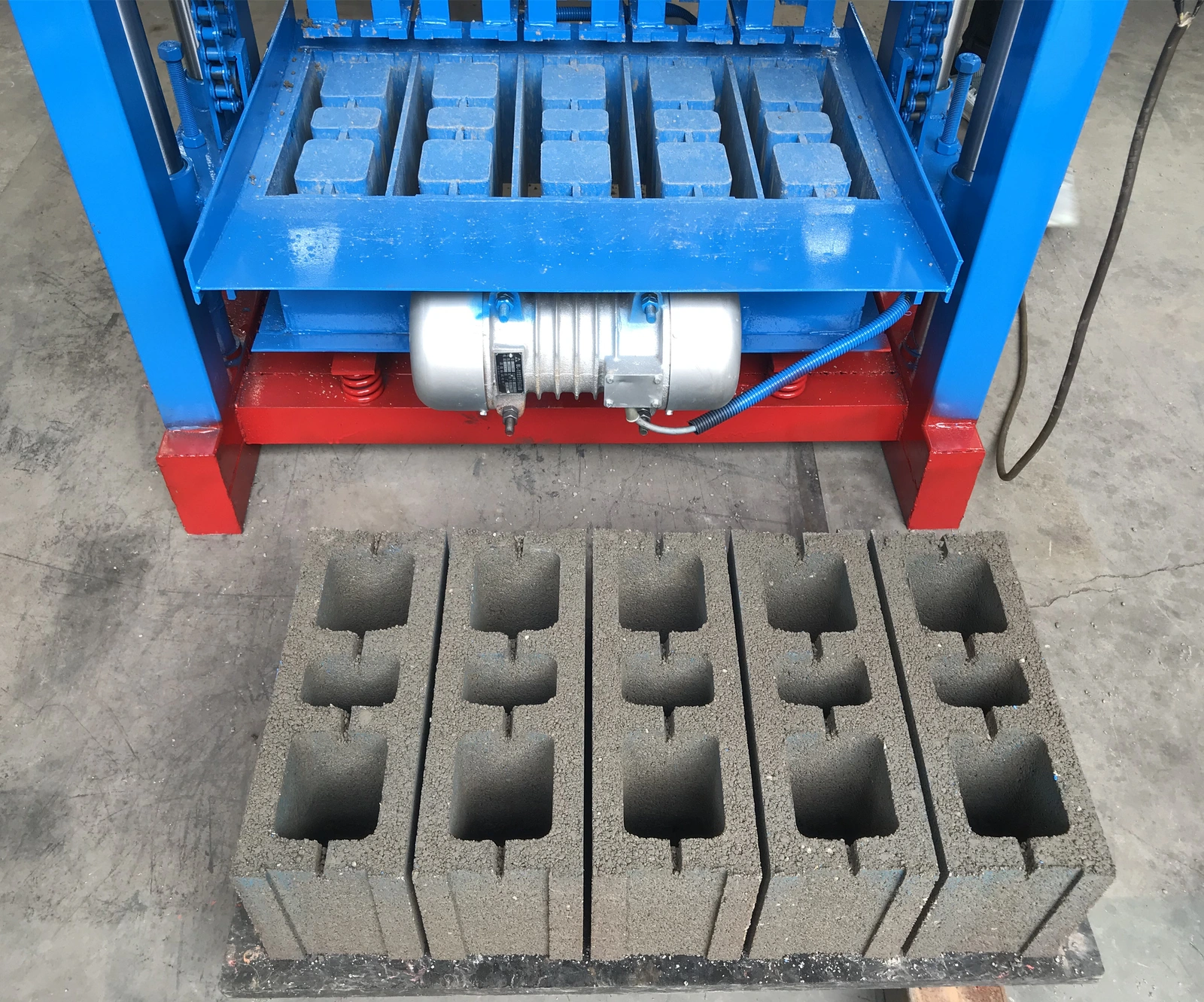

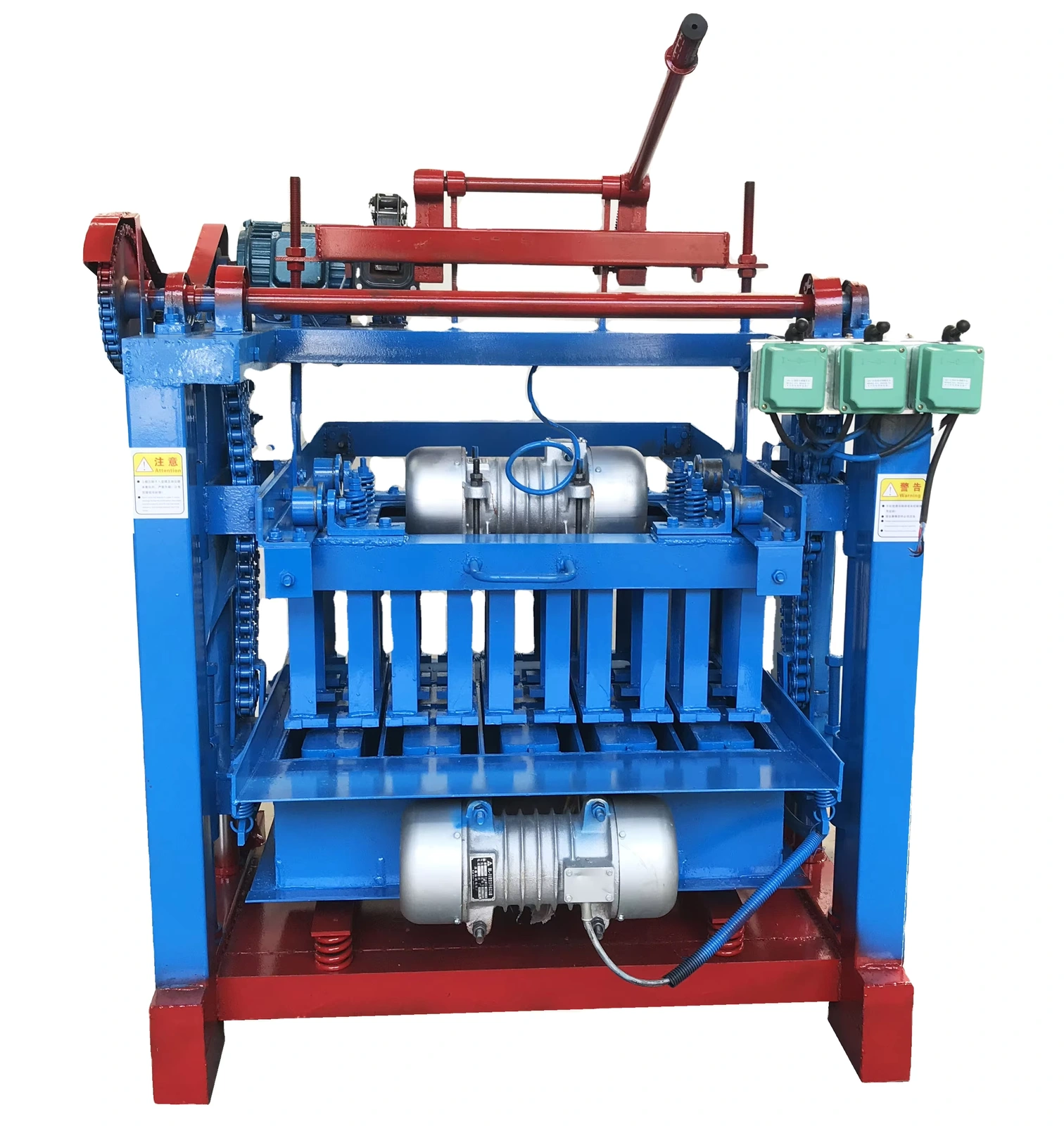

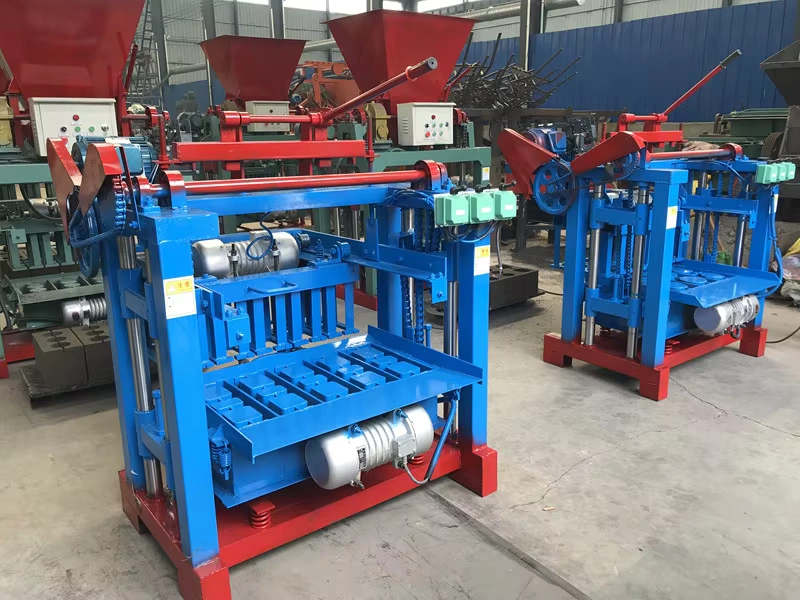

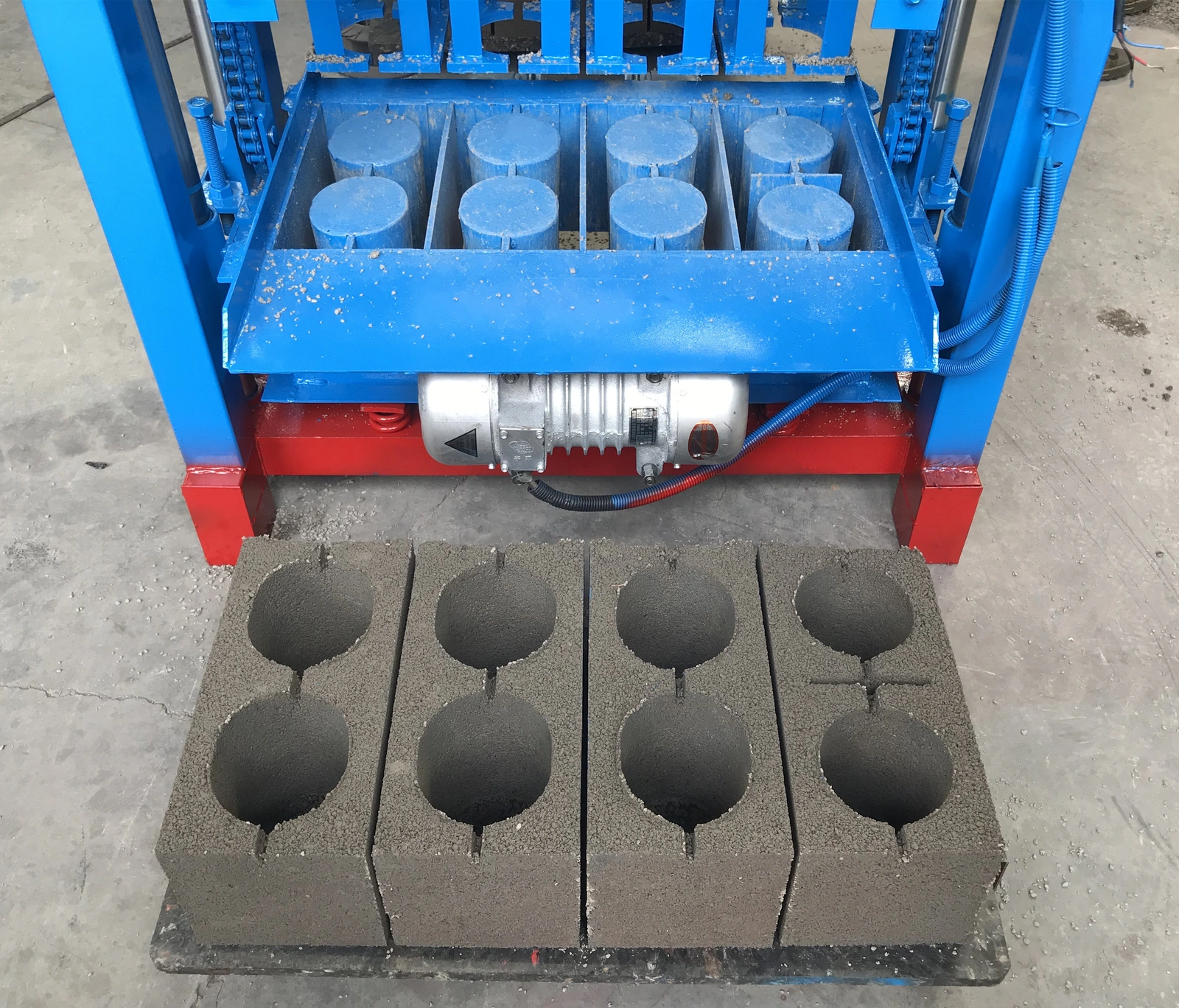

The 4-35A has a framed mould assembly with vibration motors and operating levers. The source pictures show different hollow-block moulds and output examples on the working surface.
- Product and application
- Choosing this configuration
- Mould, mix and working area
- Capacity and the delivery list
Technical Specifications
| Supply options | 220V/380V or customized |
|---|---|
| Listed dimensions; scope to confirm | 1340*1280*1610mm |
| Block-size examples; mould-dependent | 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm |
| Listed weight | 640 kg |
| Listed forming cycle | 35s |
| Listed operator requirement | 2-3Worker |
| Selected power option | 5.5KW |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The 4-35A has a framed mould assembly with vibration motors and operating levers. The source pictures show different hollow-block moulds and output examples on the working surface.
Choosing this configuration
An automatic source label does not identify which steps are powered. Confirm material feeding, mould lifting, machine travel and block removal separately. The quoted mould and control layout determine the practical workflow.
Mould, mix and working area
Send the finished-block drawing, cavity layout and proposed mix. Confirm whether blocks are formed on the ground or on pallets and how they are moved to curing. Mixing, handling and curing equipment should be listed separately from the forming machine.
Capacity and the delivery list
Request an output assessment tied to the selected mould and actual operating cycle. Include feeding, demoulding, changeovers and handling rather than comparing an unexplained shift maximum. Specify moulds, controls and ancillary equipment in the quote.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The 4-35A has a framed mould assembly with vibration motors and operating levers. The source pictures show different hollow-block moulds and output examples on the working surface.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Which mould should I order?
Start with the finished-block drawing and match its cavities and machine interfaces.
Is the shift output guaranteed?
A source capacity field needs a defined mould, mix, operating cycle and handling workflow before it can be compared.
Is mixing and curing equipment included?
Only if listed separately in the quotation. The forming machine does not replace these operations.
Can photographs prove block strength?
No. Ask for material trials and the testing applicable to the proposed block and use.
What needs checking for this particular listing?
An automatic source label does not identify which steps are powered. Confirm material feeding, mould lifting, machine travel and block removal separately. The quoted mould and control layout determine the practical workflow.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
