Compact Vibrating Block Mould
Compact Vibrating Block Mould

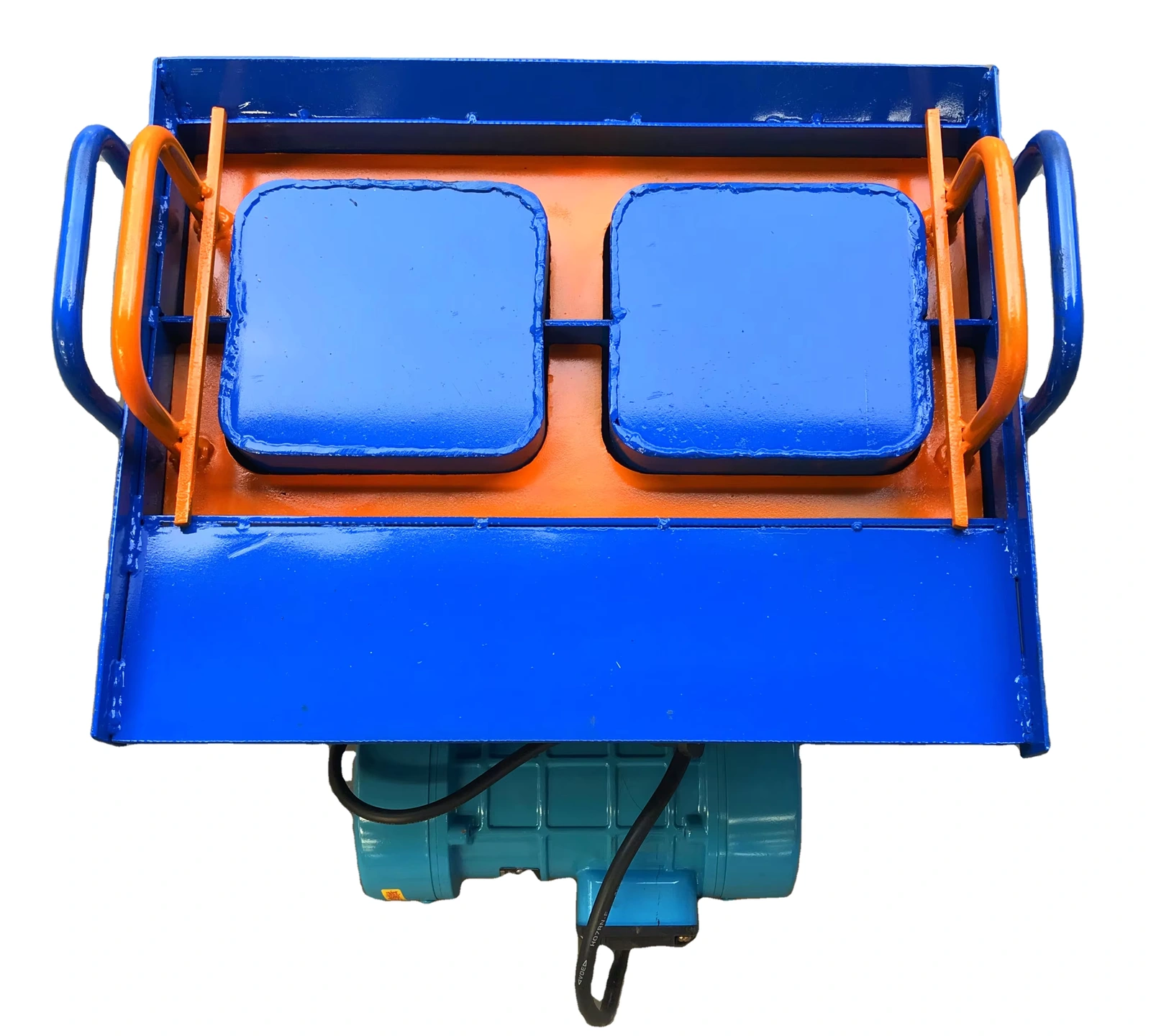

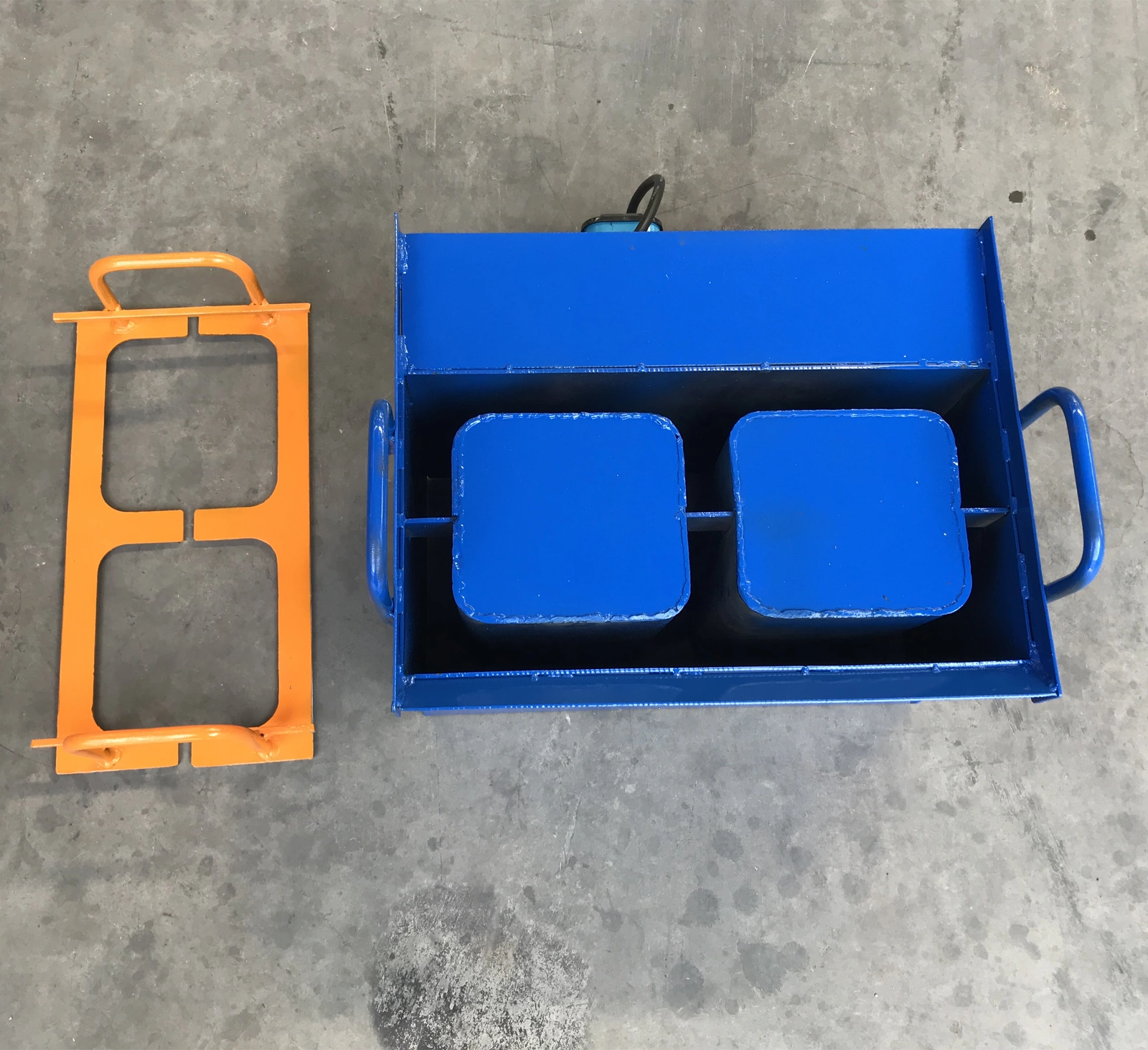

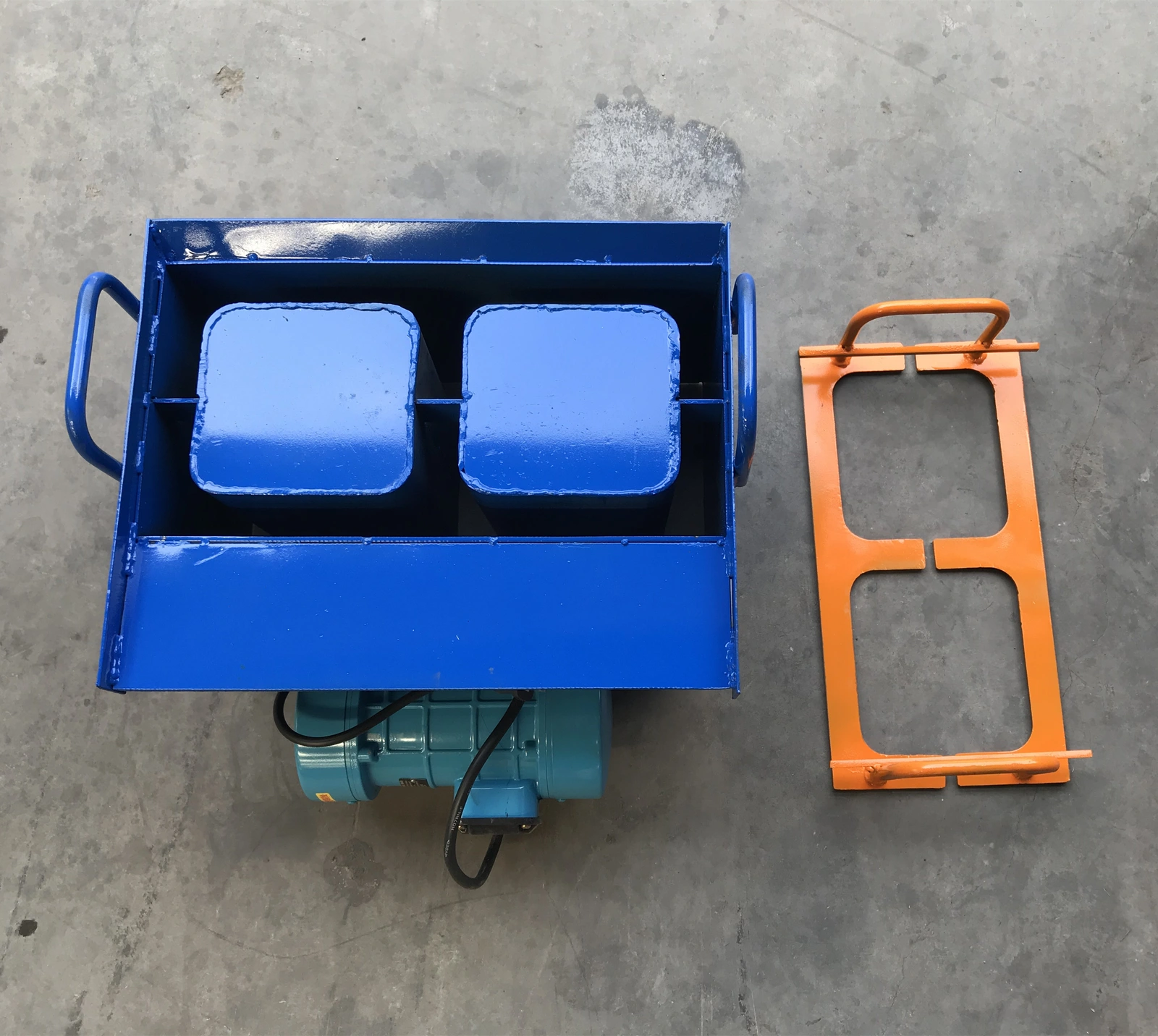

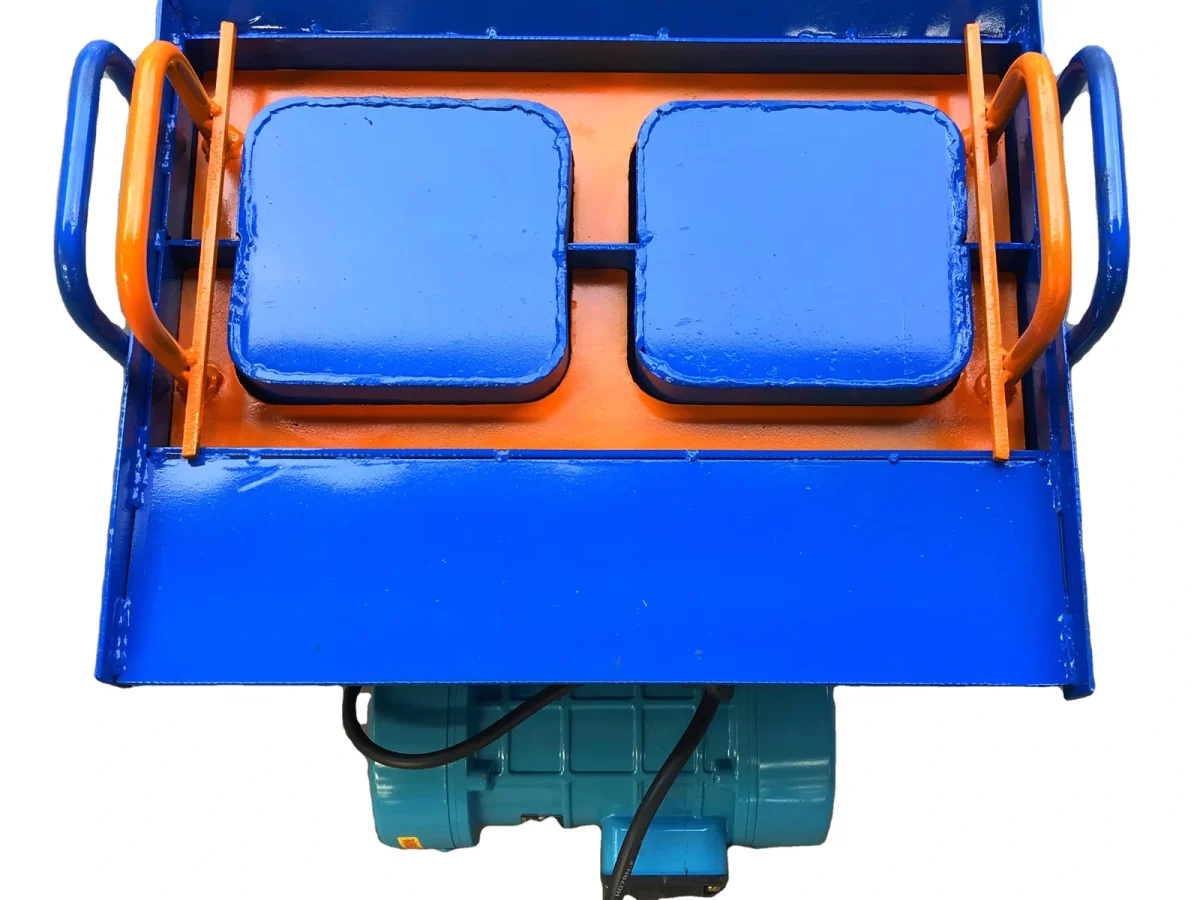

The photographs show a portable mould box with a motor below it and removable upper pieces. It makes sense as a compact block-forming tool, not the large automated brick machine implied by the old title.
- Product and application
- Choosing this configuration
- Choose the cavity first
- Motor and delivery contents
Technical Specifications
| Supply options | 220V or 380V |
|---|---|
| Listed dimensions; scope to confirm | 420*380*280mm |
| Block-size examples; mould-dependent | 200*100*60 mm, 240*115*90 mm, 400*200*200 mm, Other, 390*190*190 |
| Listed weight | 35 kg |
| Listed forming cycle | 45 S |
| Selected power option | 550w |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The photographs show a portable mould box with a motor below it and removable upper pieces. It makes sense as a compact block-forming tool, not the large automated brick machine implied by the old title.
Choosing this configuration
The source gives a mould-size field and a selected motor-power option. Confirm the cavity dimensions, actual motor plate and demoulding method. The vacuum-extruder field is inconsistent with the pictured vibration motor and is not used as a machine feature.
Choose the cavity first
Provide the block drawing and required cavity count. Ask how the upper pieces are fitted, the fresh block is removed and the box is supported during vibration. Material preparation and curing remain separate from this compact tool.

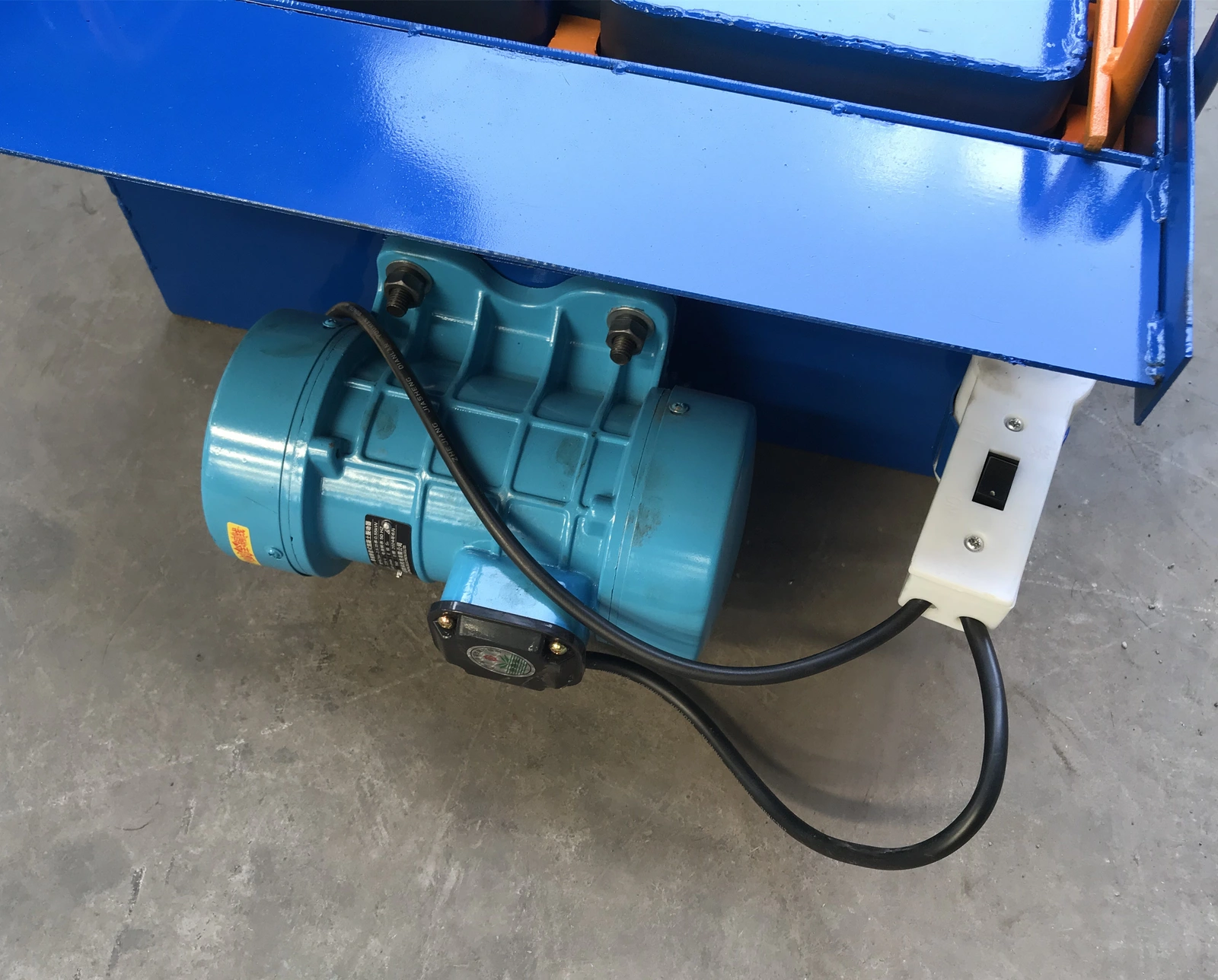

Motor and delivery contents
Verify the motor plate, supply connection and controls for the delivered version. List the box, inserts, upper pieces and motor separately. Do not treat a mixed source machine category as evidence of a complete production line.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The photographs show a portable mould box with a motor below it and removable upper pieces. It makes sense as a compact block-forming tool, not the large automated brick machine implied by the old title.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Which mould should I order?
Start with the finished-block drawing and match its cavities and machine interfaces.
Is the shift output guaranteed?
A source capacity field needs a defined mould, mix, operating cycle and handling workflow before it can be compared.
Is mixing and curing equipment included?
Only if listed separately in the quotation. The forming machine does not replace these operations.
Can photographs prove block strength?
No. Ask for material trials and the testing applicable to the proposed block and use.
What needs checking for this particular listing?
The source gives a mould-size field and a selected motor-power option. Confirm the cavity dimensions, actual motor plate and demoulding method. The vacuum-extruder field is inconsistent with the pictured vibration motor and is not used as a machine feature.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
