Manual Clay Block Press
Manual Clay Block Press

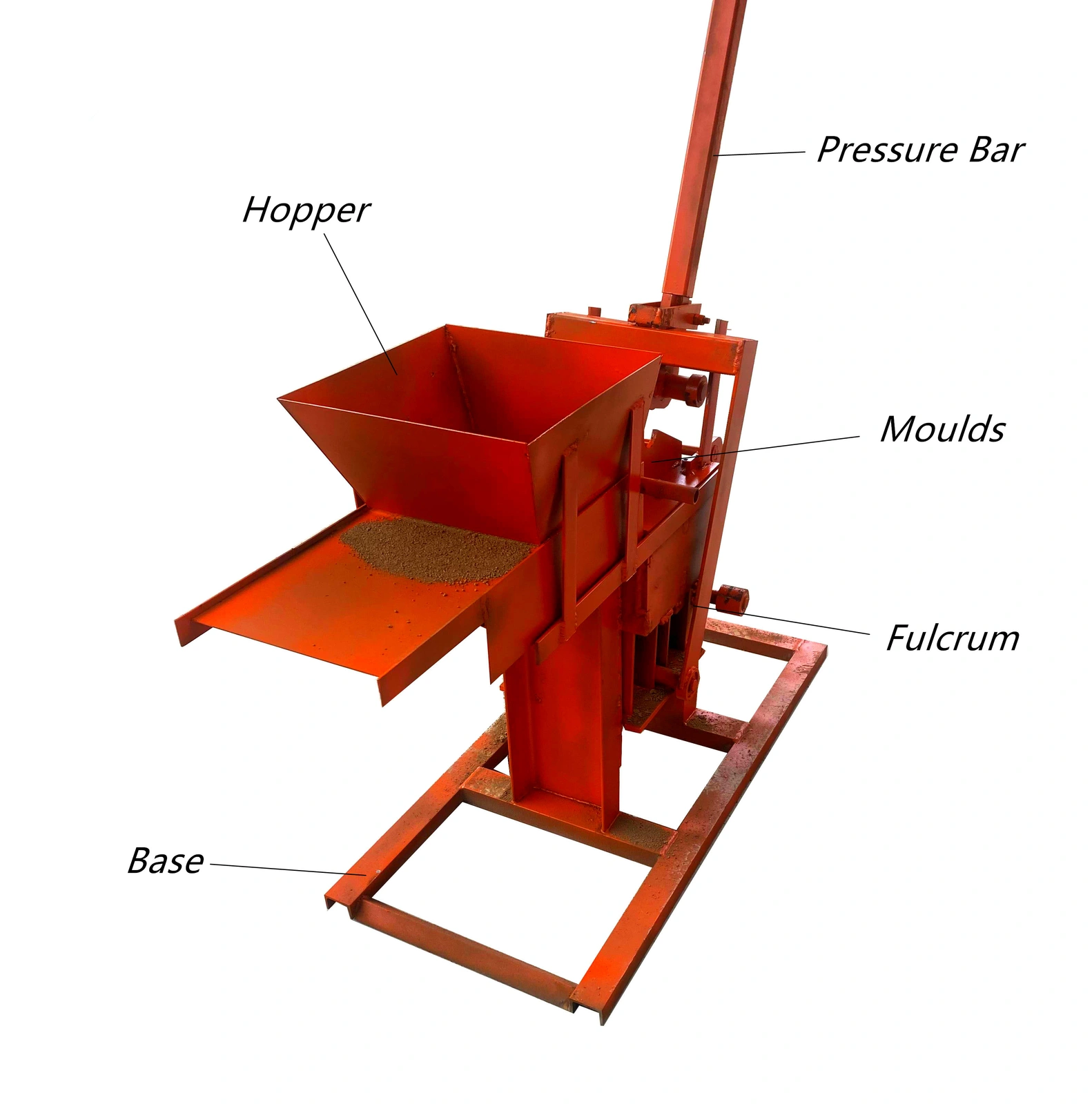

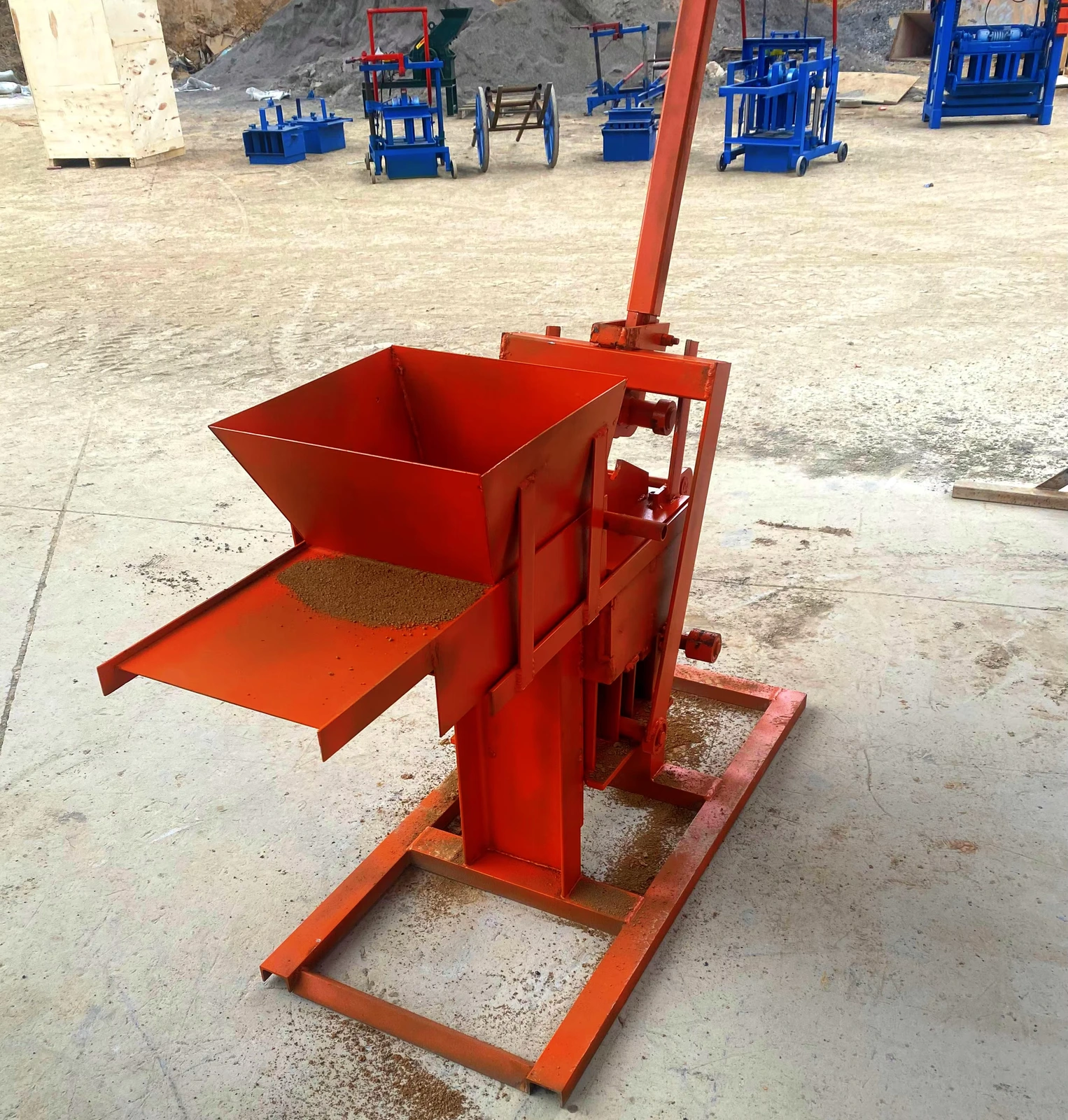

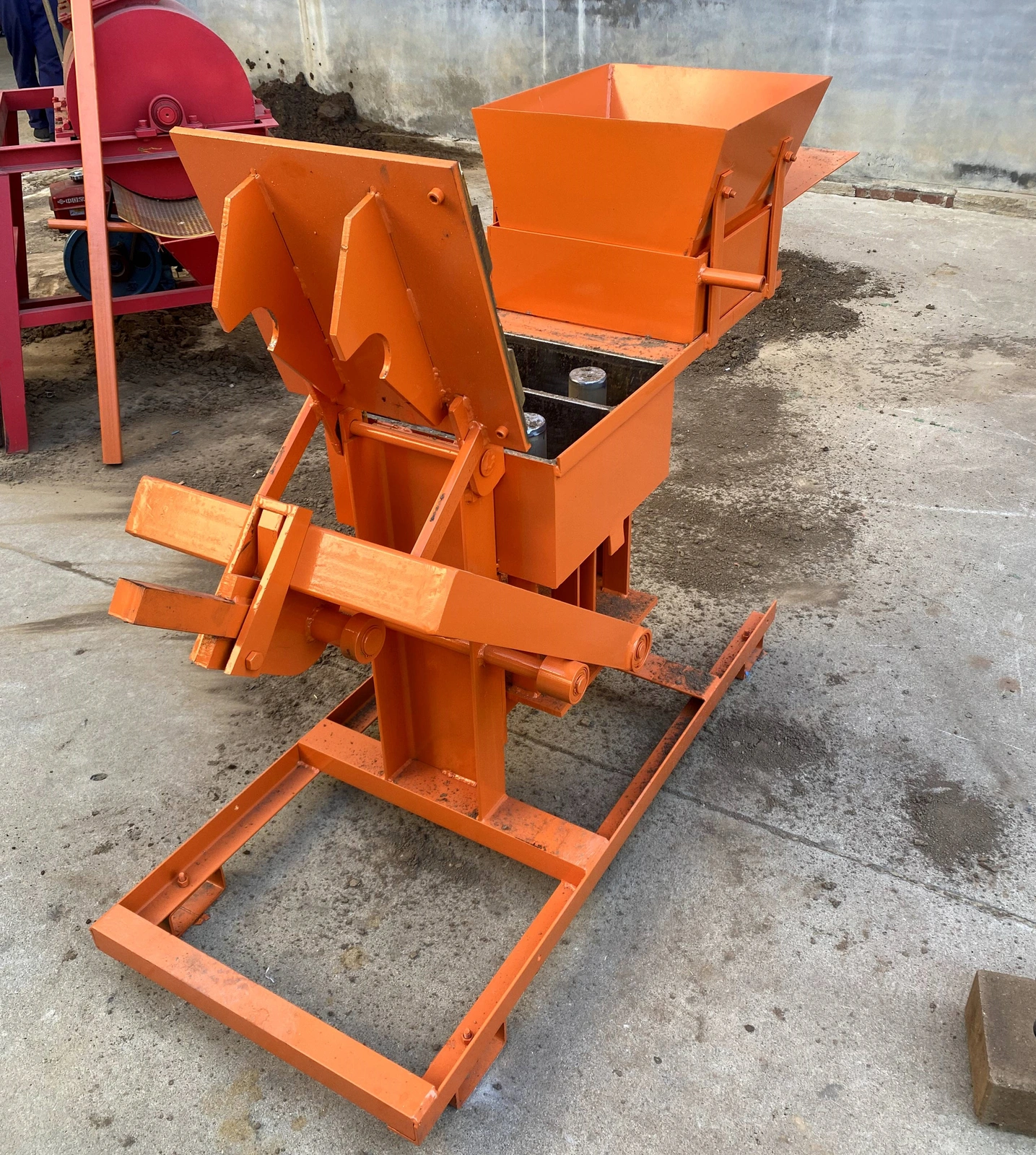

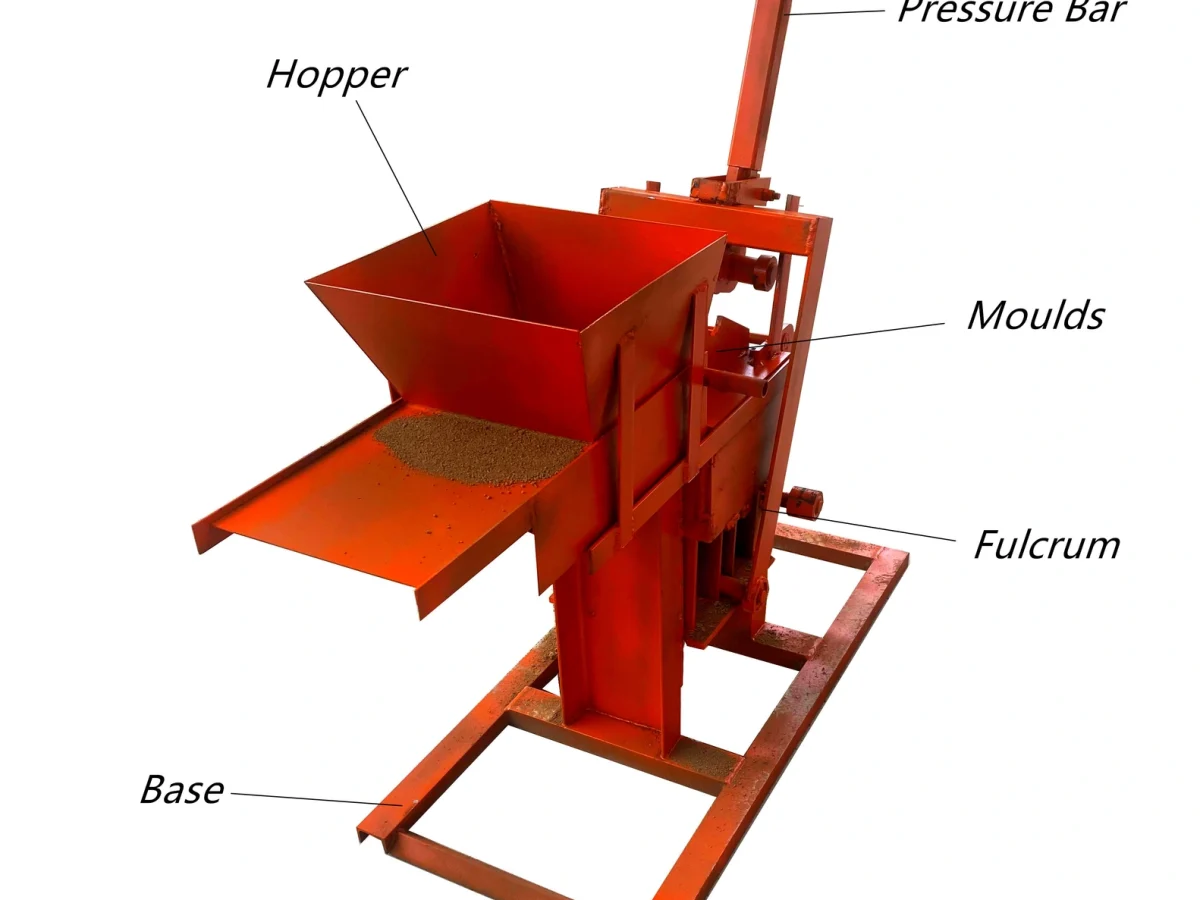

This lever-operated press has a hopper, hinged mould arrangement and a ground-supported frame. It is intended for forming blocks from a prepared mix; it is not the vacuum extrusion machine named in one source field.
- Product and application
- Choosing this configuration
- Preparing the block and mix
- Operating space and supplied tools
Technical Specifications
| Listed dimensions; scope to confirm | 1450*750*1400mm |
|---|---|
| Block-size examples; mould-dependent | 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm |
| Listed weight | 260 kg |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
This lever-operated press has a hopper, hinged mould arrangement and a ground-supported frame. It is intended for forming blocks from a prepared mix; it is not the vacuum extrusion machine named in one source field.
Choosing this configuration
The long lever and mould opening need working space around the machine. Send the required block drawing and the proposed soil or clay mix; neither a generic size list nor a shift-output claim establishes strength or suitability for construction.
Preparing the block and mix
Select the block drawing and the intended soil, clay or cement-stabilised mix with the supplier. Ask for material trials and applicable testing before treating a formed sample as a qualified building block. A photograph cannot establish strength.
Operating space and supplied tools
Leave room for the lever, hopper and removal of the fresh block. Confirm the mould set, replaceable components and machine manual. Material preparation, curing and finished-block handling are separate tasks, not additional functions of the lever press.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
This lever-operated press has a hopper, hinged mould arrangement and a ground-supported frame. It is intended for forming blocks from a prepared mix; it is not the vacuum extrusion machine named in one source field.

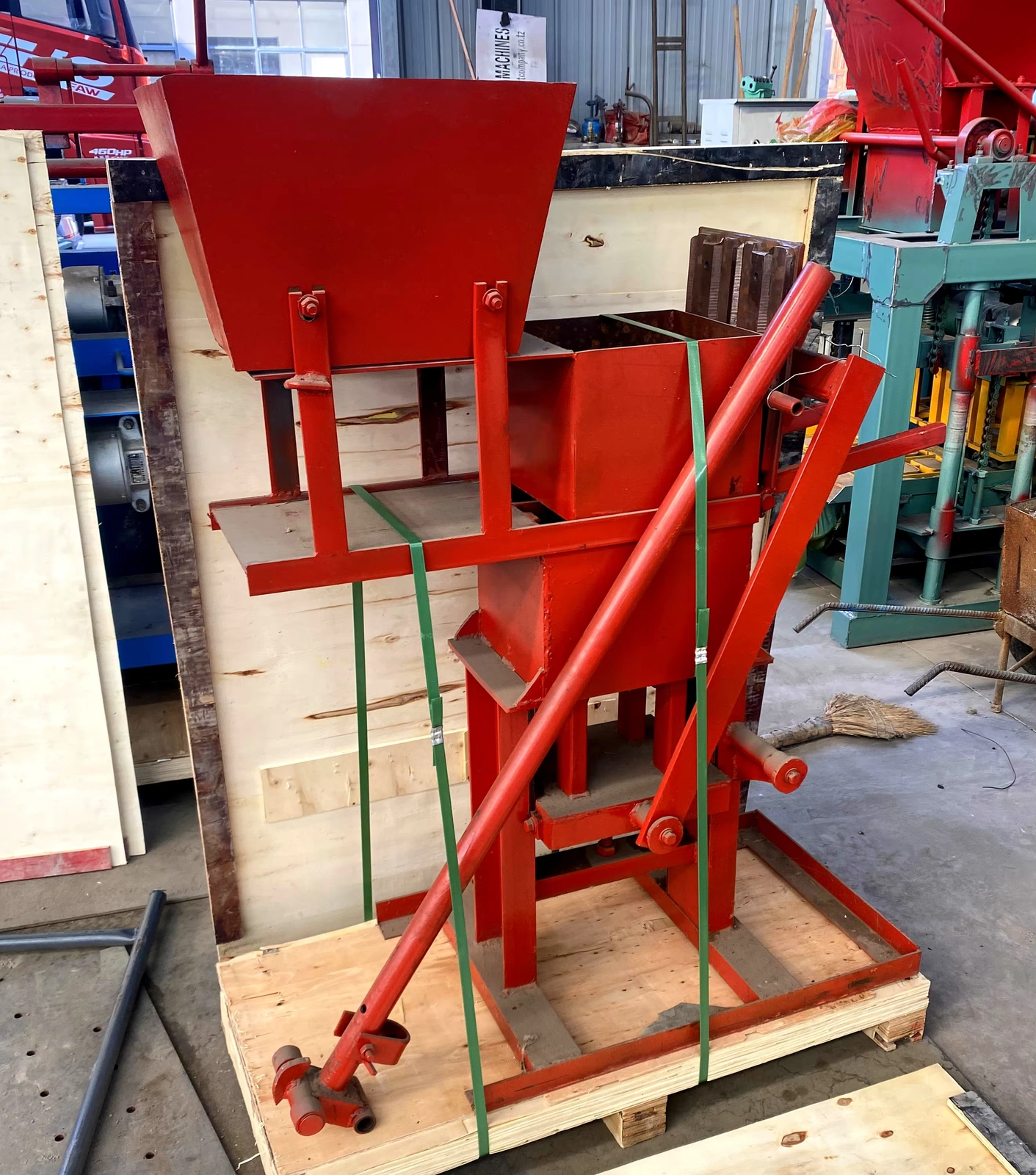

Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Which mould should I order?
Start with the finished-block drawing and match its cavities and machine interfaces.
Is the shift output guaranteed?
A source capacity field needs a defined mould, mix, operating cycle and handling workflow before it can be compared.
Is mixing and curing equipment included?
Only if listed separately in the quotation. The forming machine does not replace these operations.
Can photographs prove block strength?
No. Ask for material trials and the testing applicable to the proposed block and use.
What needs checking for this particular listing?
The long lever and mould opening need working space around the machine. Send the required block drawing and the proposed soil or clay mix; neither a generic size list nor a shift-output claim establishes strength or suitability for construction.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
