Source photographs and explicitly labelled close-up crops are shown. Five gallery materials do not imply five camera angles. Accessories, model variations and the delivered configuration require confirmation.
WG-26

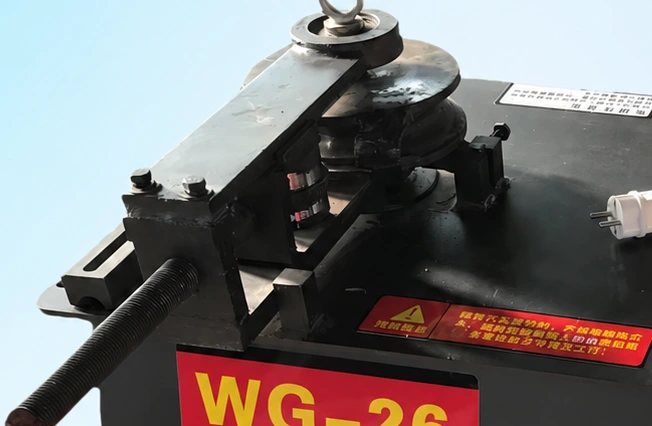

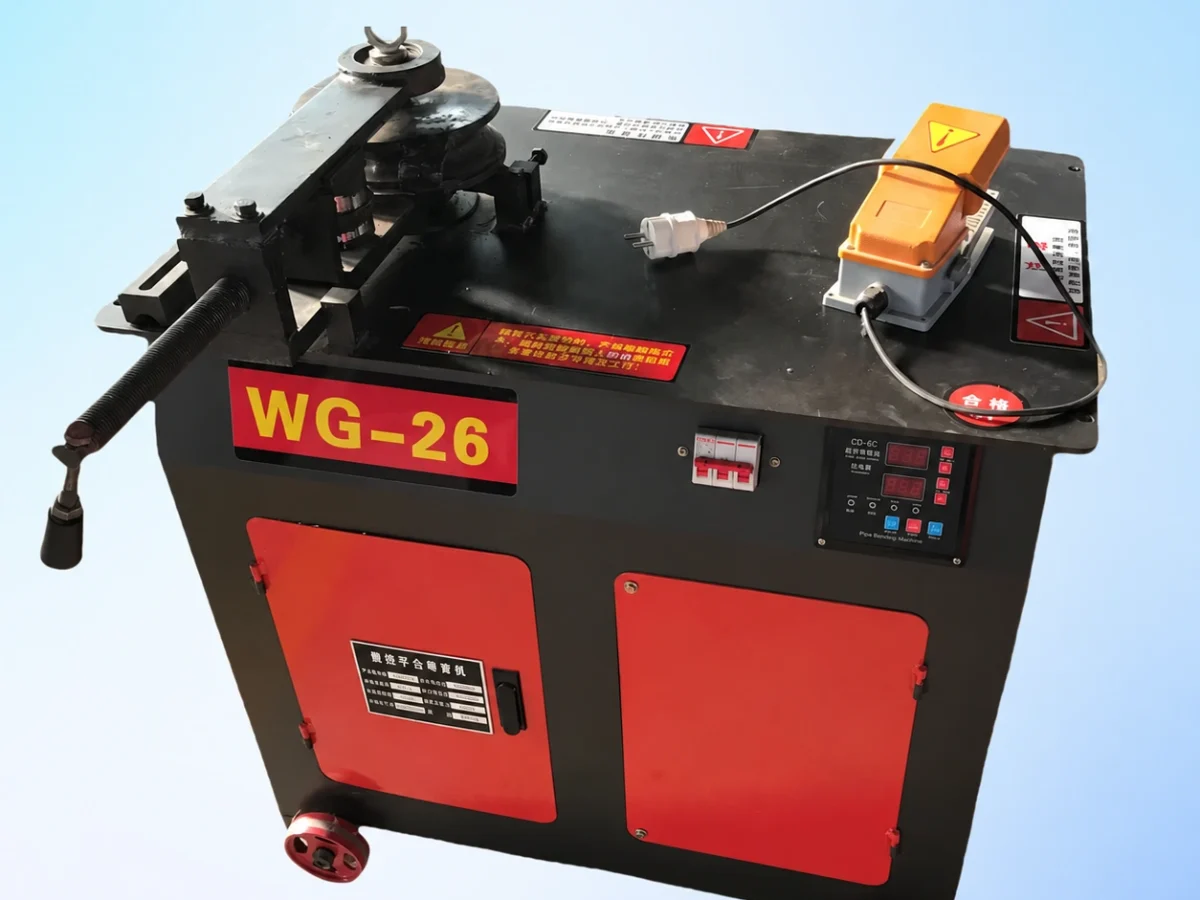

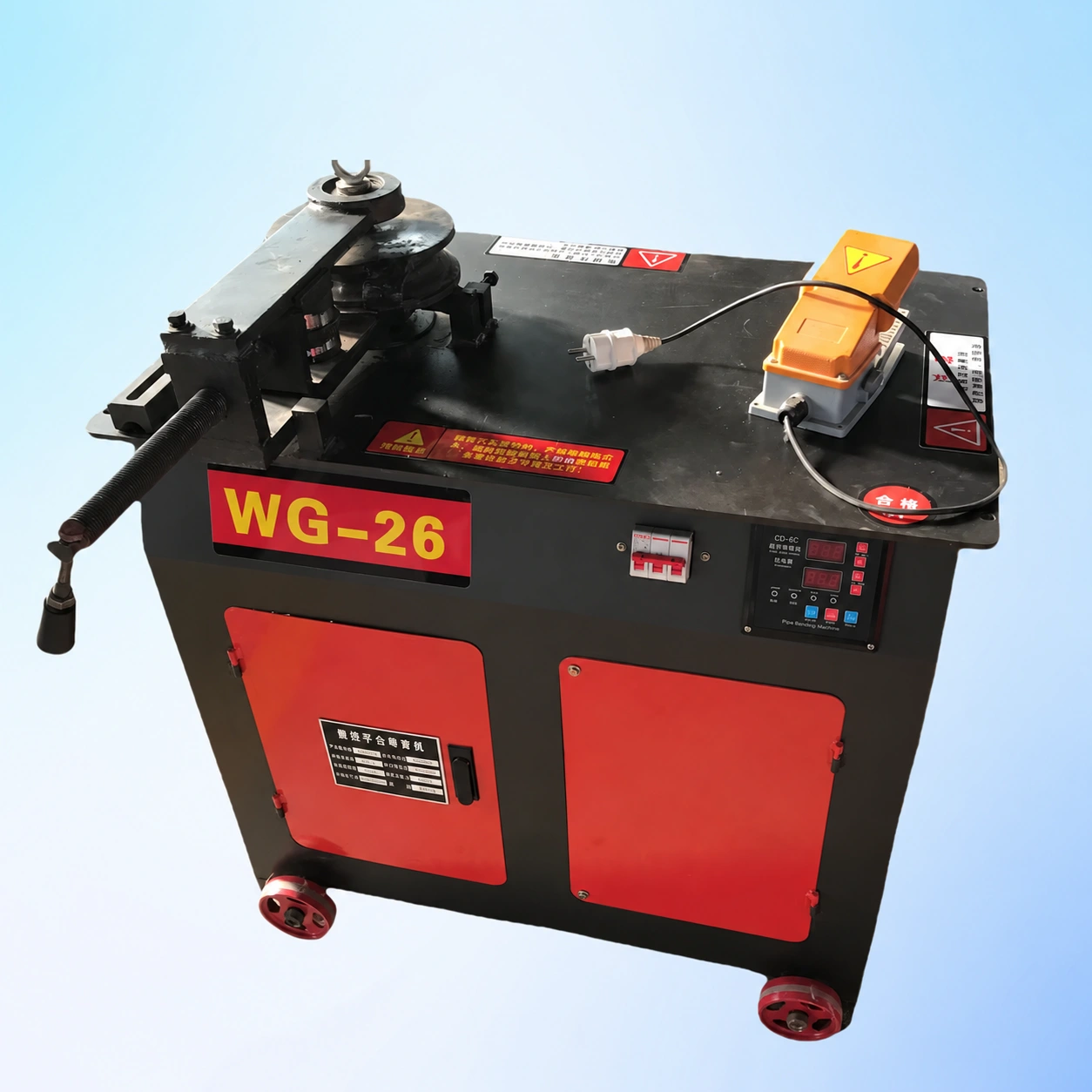

The WG-26 main photograph shows the labelled cabinet and rotary bending head. It is intended for forming pipe and tube parts with tooling matched to the workpiece, rather than selecting a bend only by the machine name.
| Source-listed maximum angle (deg) | 180 |
|---|---|
| Listed angle tolerance (deg) | ±1 |
| Listed motor power (kW) | 2.2 |
| Source-listed weight (kg) | 180 |
| Source-listed tube diameter; material/wall limits to confirm | 26mm |
| Listed bending speed | 20r/min |
| Listed overall dimensions | 800*650*900mm |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
The WG-26 main photograph shows the labelled cabinet and rotary bending head. It is intended for forming pipe and tube parts with tooling matched to the workpiece, rather than selecting a bend only by the machine name.
The source lists 26mm and 2.2 kW. It does not supply a confirmed bend-radius and wall-thickness chart. Other source panels depict WG-76; those panels are not additional views of this WG-26.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
The WG-26 main photograph shows the labelled cabinet and rotary bending head. It is intended for forming pipe and tube parts with tooling matched to the workpiece, rather than selecting a bend only by the machine name.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
No. Material, wall thickness, bend radius and tooling must match the quoted machine.
Source photographs do not establish inclusion. Request a die list with the quotation.
Send tube outside diameter, wall thickness, material, bend radius and a drawing of the bend sequence. Request the exact model, die set, control system and electrical configuration in the quotation.
The WG-76 source photograph and its cabinet marking identify the same model. Its rotary tooling bends a tube around a selected former. The material, wall thickness and required radius should be specified together before a die set is selected.
