Source photographs and explicitly labelled close-up crops are shown. Five gallery materials do not imply five camera angles. Accessories, model variations and the delivered configuration require confirmation.
WG-76

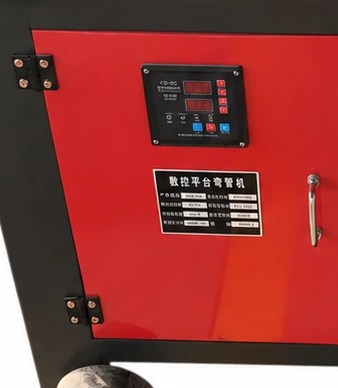

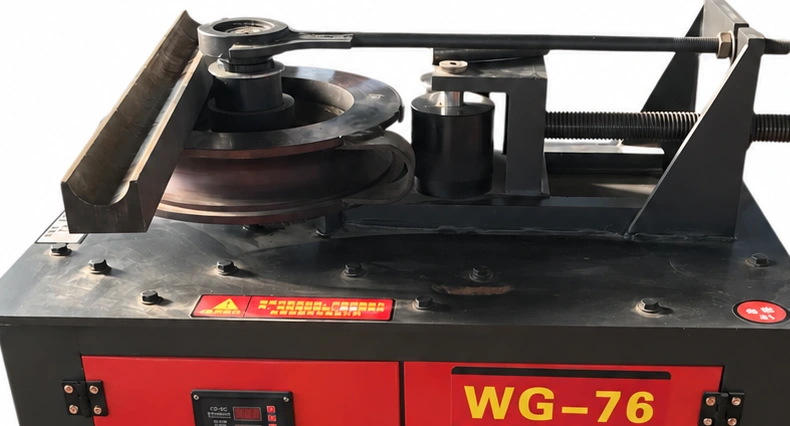

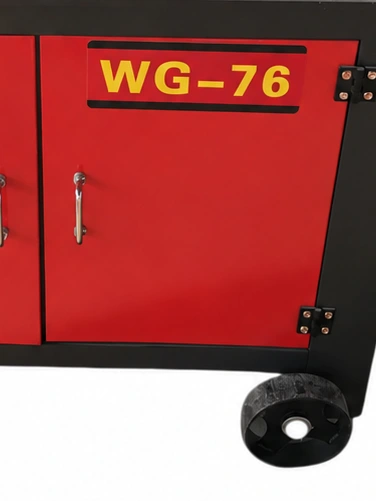

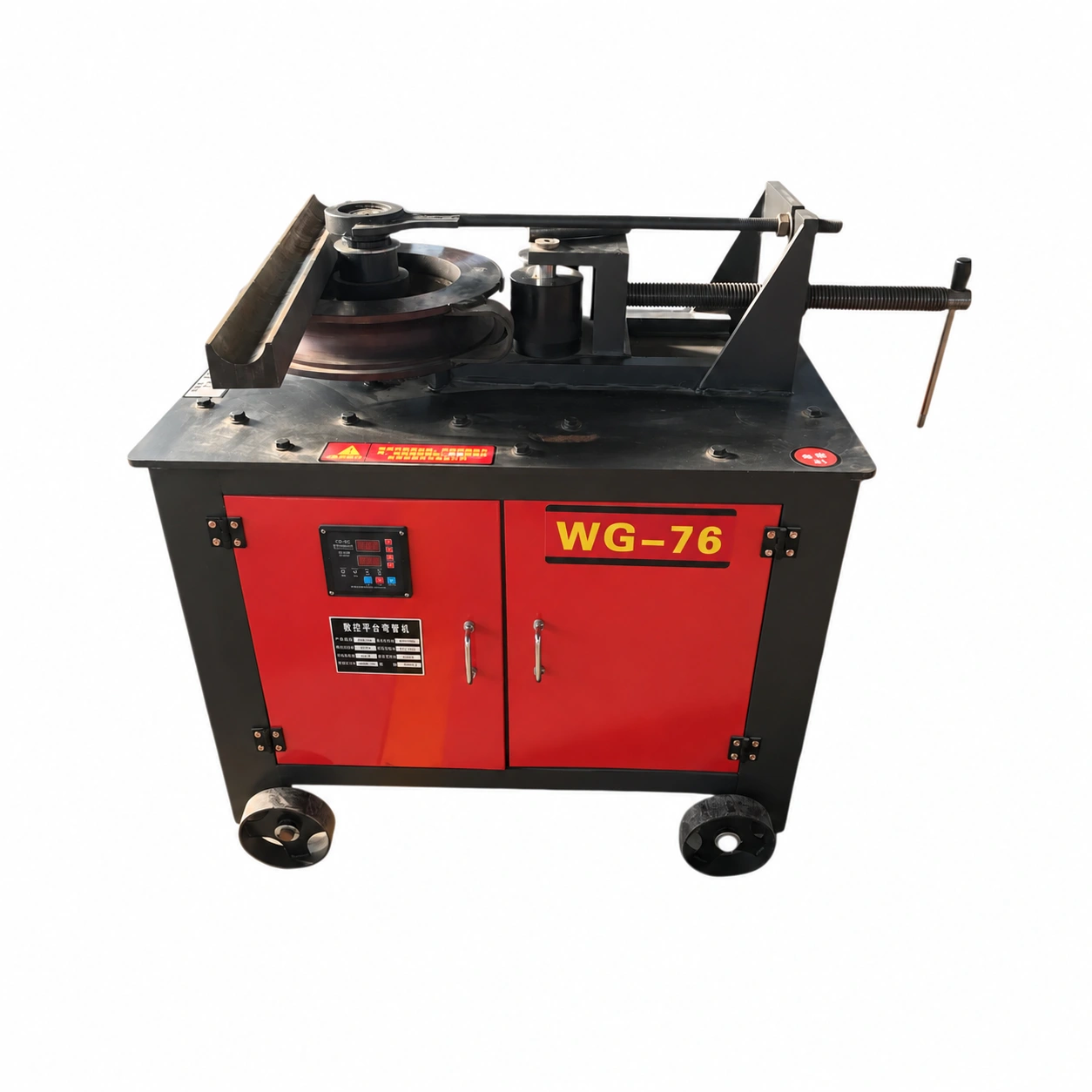

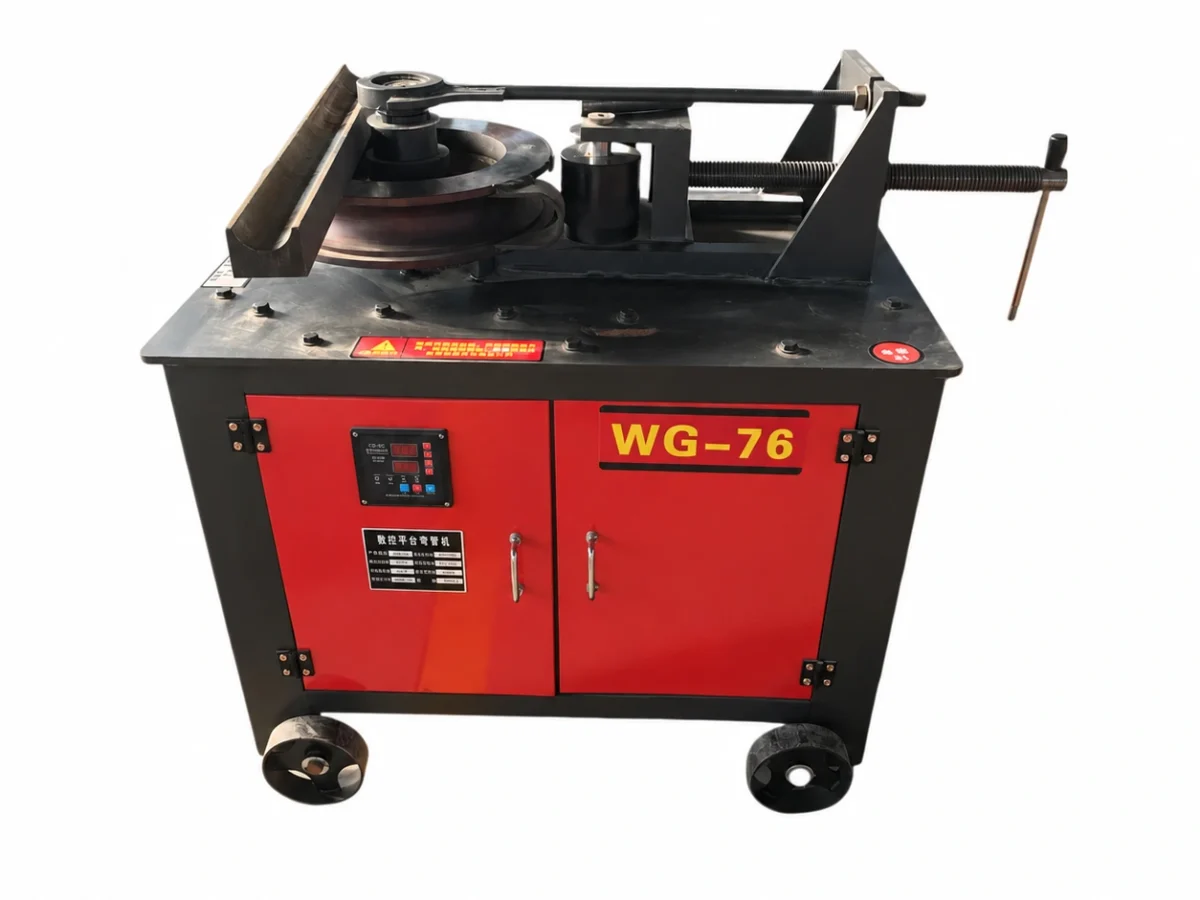

The WG-76 source photograph and its cabinet marking identify the same model. Its rotary tooling bends a tube around a selected former. The material, wall thickness and required radius should be specified together before a die set is selected.
| Source-listed maximum angle (deg) | 180 |
|---|---|
| Listed angle tolerance (deg) | ±1 |
| Listed motor power (kW) | 4 |
| Source-listed weight (kg) | 350 |
| Source-listed tube diameter; material/wall limits to confirm | 76mm |
| Listed bending speed | 8r/min |
| Listed overall dimensions | 1000*800*1100mm |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
The WG-76 source photograph and its cabinet marking identify the same model. Its rotary tooling bends a tube around a selected former. The material, wall thickness and required radius should be specified together before a die set is selected.
The listing gives 76mm and 4 kW. It also uses both automatic and manual descriptions, so the actual control sequence must be confirmed. Family photographs of smaller models are not evidence of this machine’s tooling or capacity.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
The WG-76 source photograph and its cabinet marking identify the same model. Its rotary tooling bends a tube around a selected former. The material, wall thickness and required radius should be specified together before a die set is selected.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
No. Material, wall thickness, bend radius and tooling must match the quoted machine.
Source photographs do not establish inclusion. Request a die list with the quotation.
Send tube outside diameter, wall thickness, material, bend radius and a drawing of the bend sequence. Request the exact model, die set, control system and electrical configuration in the quotation.
