Original supplier photographs and component panels. Engine, colour, fitted equipment and packing examples may differ from the quoted delivery.
90T

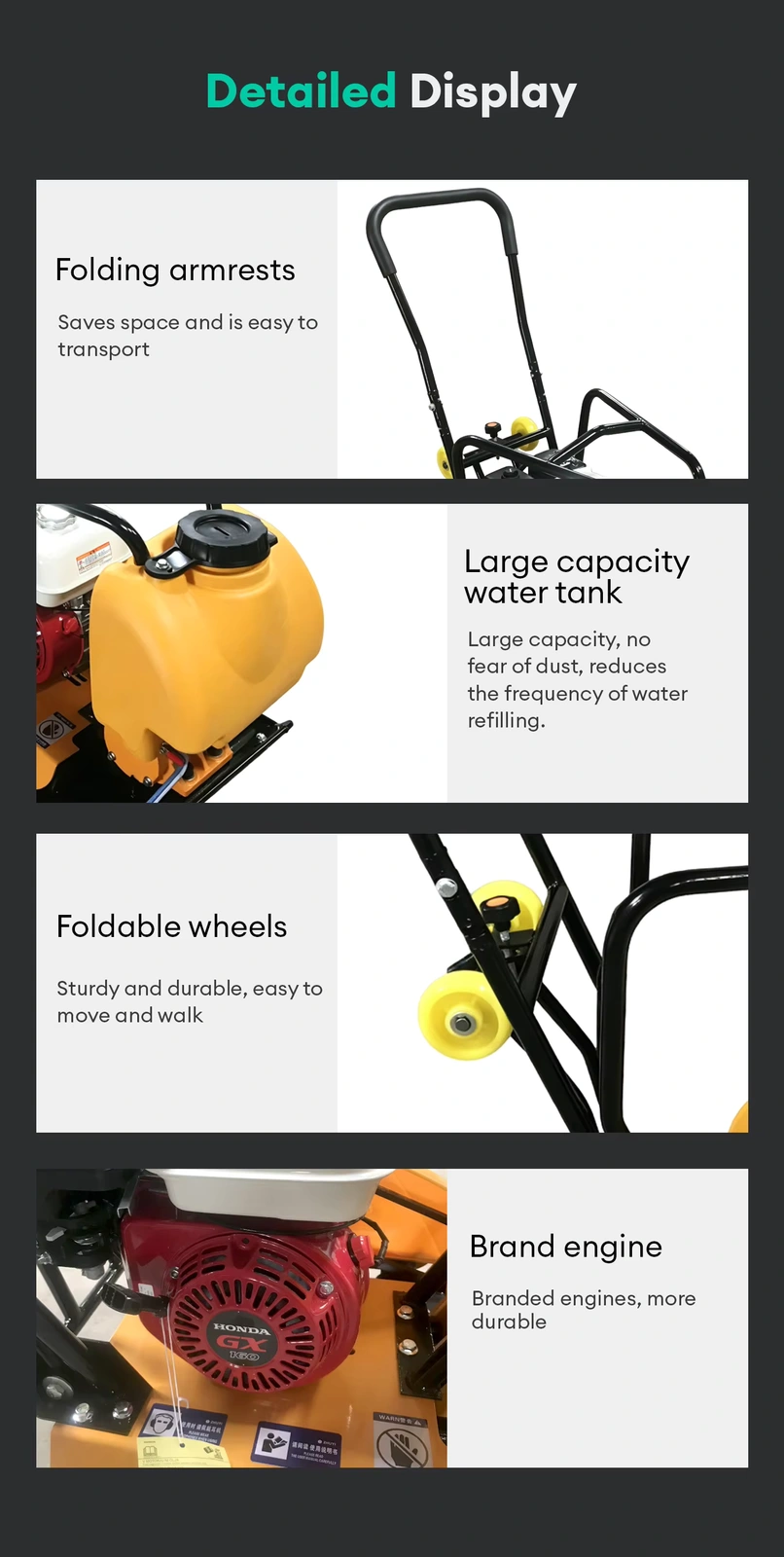

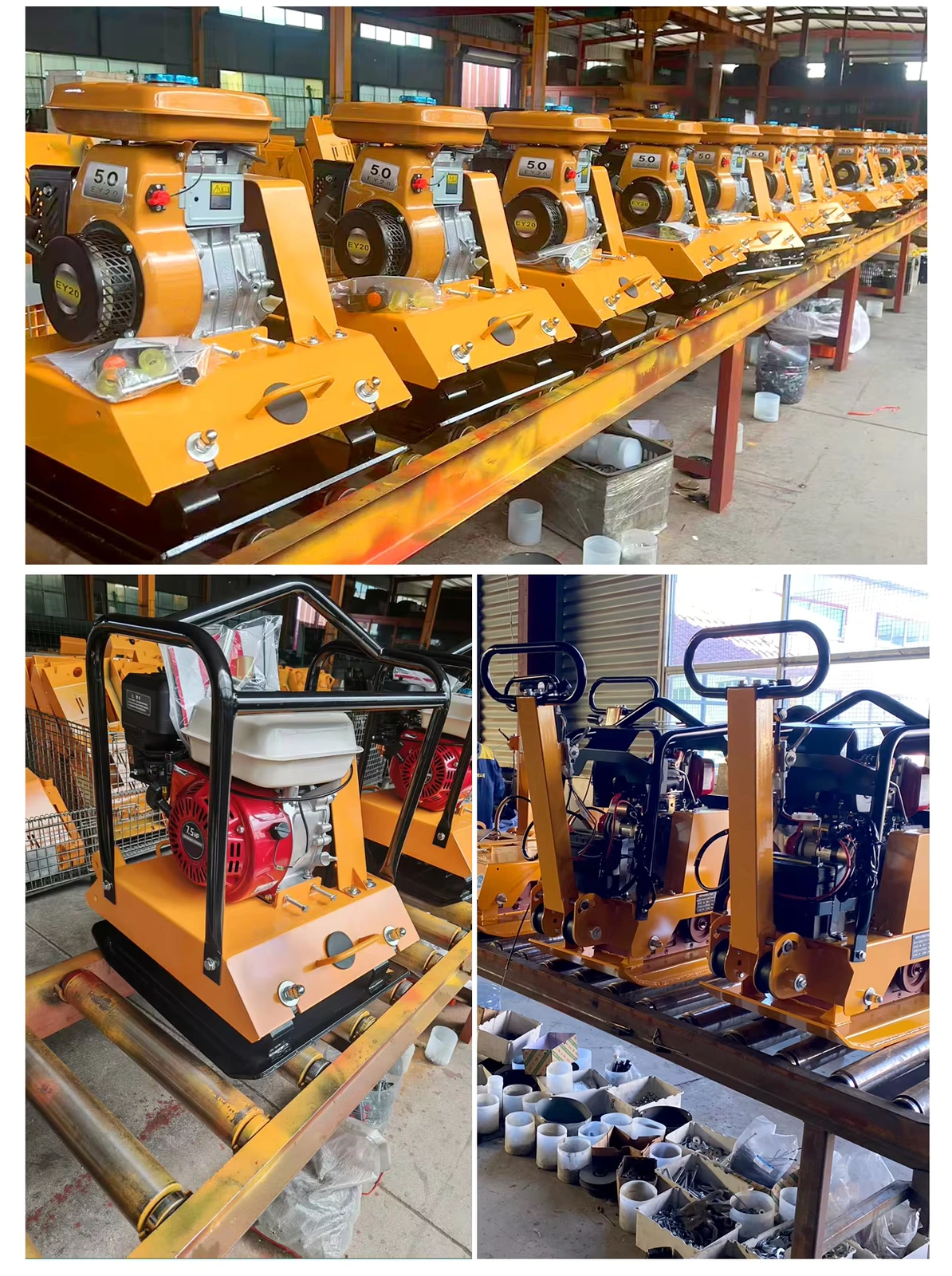

The 90T listing concerns a plate compactor for surface compaction, with a handle, engine and base plate. The source mixes a red machine picture with yellow assembly and workshop panels.
| Source-listed drive power; unit retained as supplied | 5.5/6.5HP |
|---|---|
| Listed overall dimensions | 840*520*600mm |
| Listed machine weight | 85 kg |
| Source-listed base plate size | 490*500mm |
| Source-listed travel speed; material dependent | 6-20m/min |
| Source-listed vibration rate | 5500 vpm |
| Source-listed centrifugal force | 24kN |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
The 90T listing concerns a plate compactor for surface compaction, with a handle, engine and base plate. The source mixes a red machine picture with yellow assembly and workshop panels. Those pictures illustrate the supplier’s configurations; they do not resolve the exact delivered plate, handle or engine for this model.
Listed values are 85 kg, plate 490*500mm, 24kN and 5.5/6.5HP options. The 30cm compaction-depth field is not a guaranteed acceptable lift thickness or density result. Ask for the exact model plate and a material-specific compaction assessment, including the direction of travel and any paving or asphalt accessories.
Describe the material, moisture conditions, layer thickness, trench or working width and target acceptance requirement. Plate area, force and travel speed help compare configurations, but they do not guarantee density on every material. Confirm the actual travel direction and whether the work needs a paving mat, water system or a different compaction machine.
Ask for the assembled and packed dimensions, documented lifting points and the status of transport wheels or a folding handle. Request the delivered engine manual and the machine’s service schedule, including available belts, mounts and exciter parts. Engine options and photographed accessories must be listed in the quote, not assumed from a family panel.
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
The 90T listing concerns a plate compactor for surface compaction, with a handle, engine and base plate. The source mixes a red machine picture with yellow assembly and workshop panels. Those pictures illustrate the supplier’s configurations; they do not resolve the exact delivered plate, handle or engine for this model.

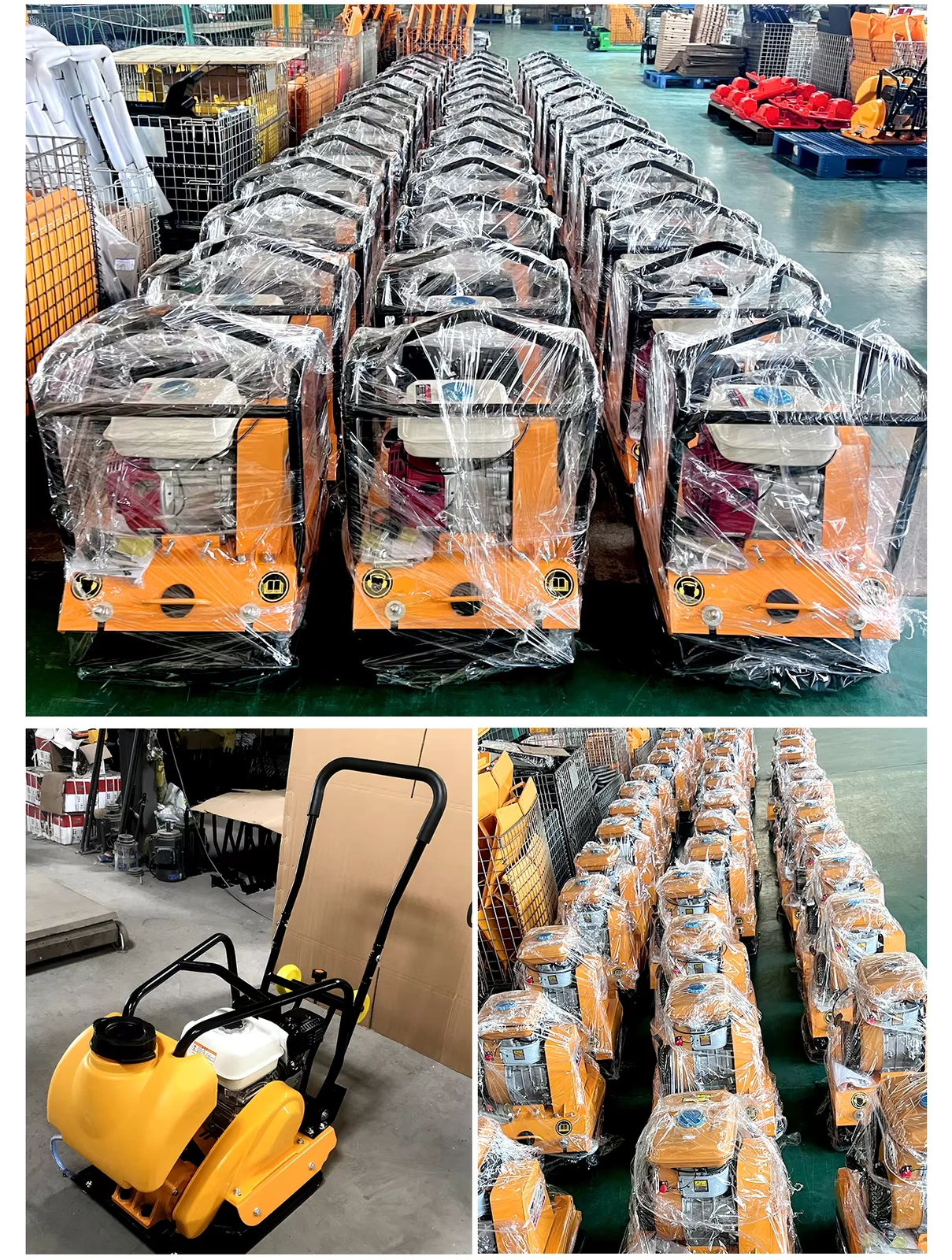

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
No site result is established. Material, moisture, layer thickness and acceptance criteria must be assessed for the task.
Not by the title alone. Ask for the actual travel control and reversing mechanism of the quoted assembly.
Photographed accessories are not an itemised delivery list. Specify those items in the quotation.
Use the actual machine and engine plates, plus the belt, mount and exciter parts diagrams. Similar photos do not establish interchangeability.
Listed values are 85 kg, plate 490*500mm, 24kN and 5.5/6.5HP options. The 30cm compaction-depth field is not a guaranteed acceptable lift thickness or density result. Ask for the exact model plate and a material-specific compaction assessment, including the direction of travel and any paving or asphalt accessories.
Describe the material, moisture conditions, layer thickness, trench or working width and target acceptance requirement. Plate area, force and travel speed help compare configurations, but they do not guarantee density on every material. Confirm the actual travel direction and whether the work needs a paving mat, water system or a different compaction machine.

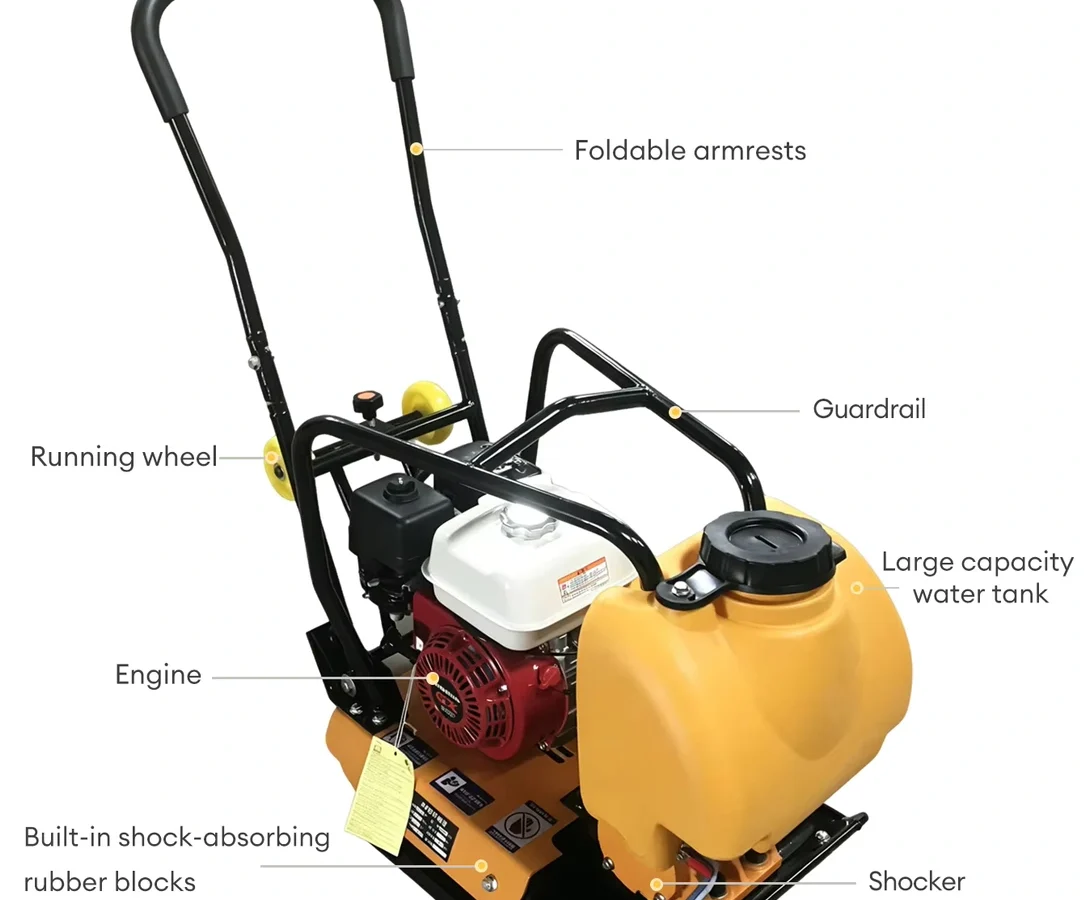

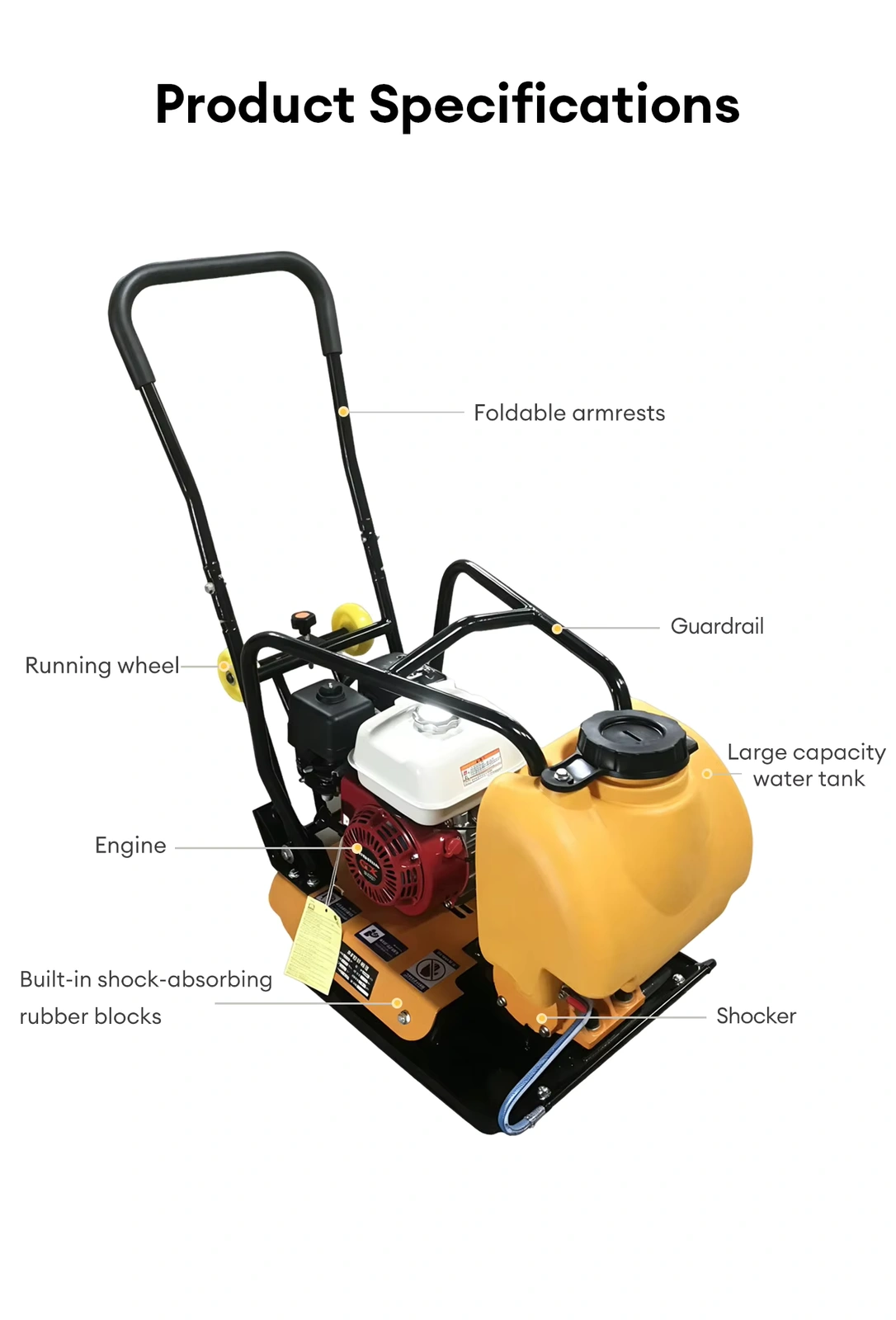

The selected originals show a plate compactor from the handle and drive sides, alongside a labelled assembly panel. It is a surface-compaction machine, not a jumping rammer or a concrete mixing tool.
