90T Plate Compactor
The 90T listing concerns a plate compactor for surface compaction, with a handle, engine and base plate. The source mixes a red machine picture with yellow assembly and workshop panels.
View product →
Original supplier photographs and component panels. Engine, colour, fitted equipment and packing examples may differ from the quoted delivery.
Model to be confirmed
Plate Compactor — Source-Listed 15KN

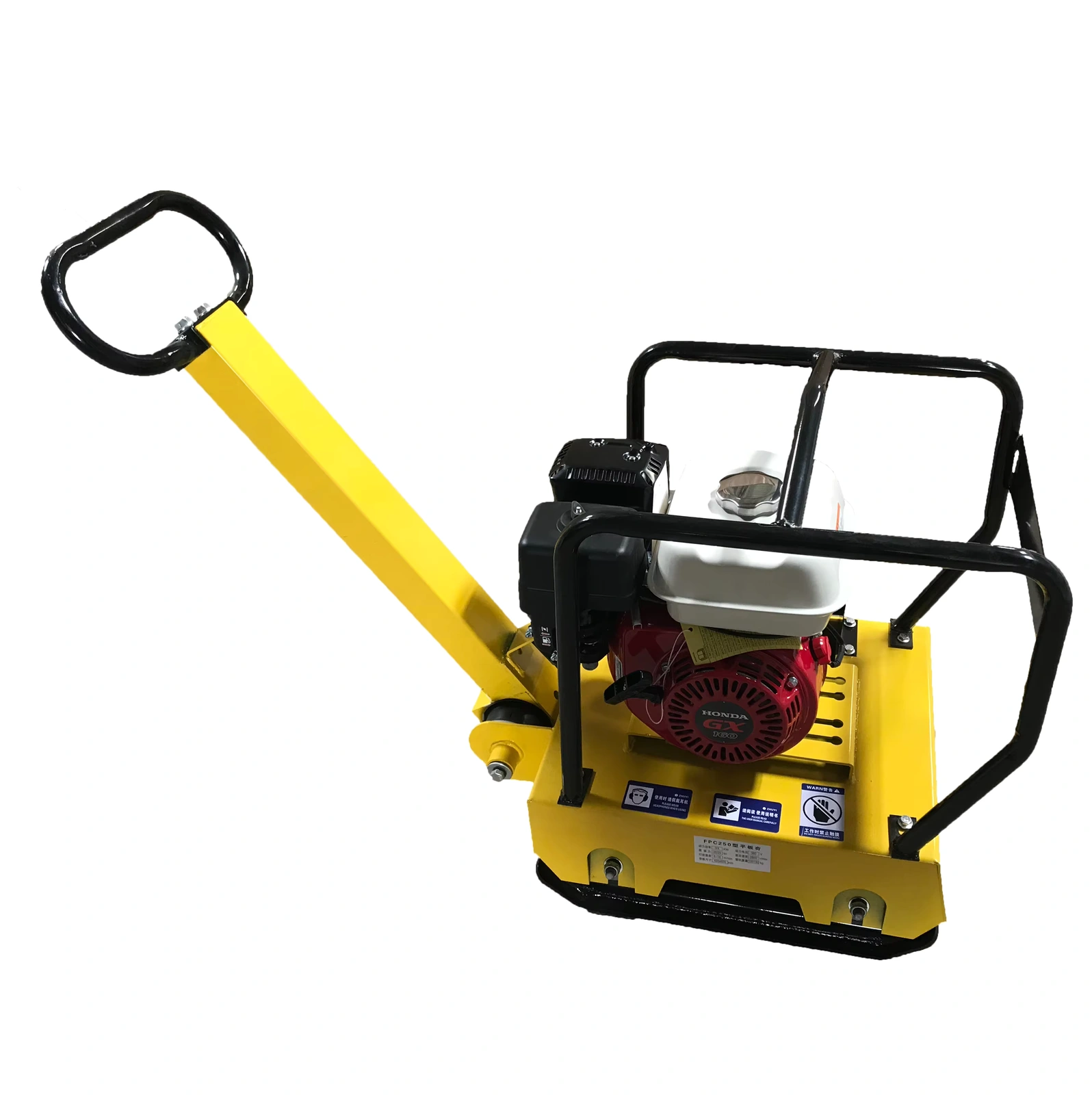

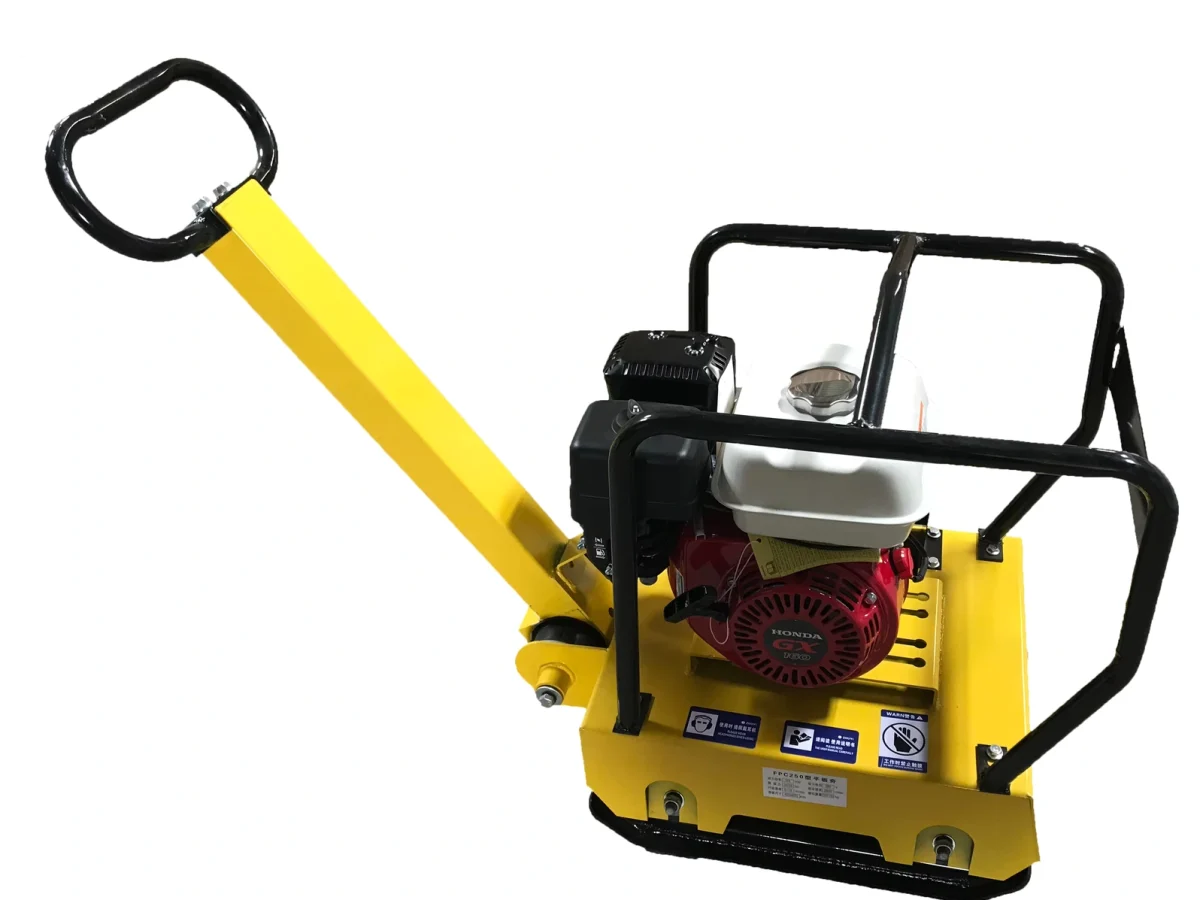

The selected originals show a plate compactor from the handle and drive sides, alongside a labelled assembly panel. It is a surface-compaction machine, not a jumping rammer or a concrete mixing tool.
- What this product is for
- Configuration and specification checks
- Choose for the material and access
- Transport and service parts
Technical Specifications
| Source-listed drive power; unit retained as supplied | 5.5-6.5HP |
|---|---|
| Listed overall dimensions | 890*430*660mm |
| Listed machine weight | 80 kg |
| Source-listed base plate size | 45x50cm |
| Source-listed travel speed; material dependent | 25cm/s |
| Source-listed centrifugal force | 15KN |
| Source-listed vibration rate | 5500 vpm |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for
The selected originals show a plate compactor from the handle and drive sides, alongside a labelled assembly panel. It is a surface-compaction machine, not a jumping rammer or a concrete mixing tool. The source title combines single way, reversible and diesel terminology; those words are not treated as confirmed functions of one machine.
Configuration and specification checks
The attributes give 80 kg, plate 45x50cm, 15KN and engine options 5.5-6.5HP. Engine brand strings contain altered lettering and are not a reliable identity document. Confirm fuel type, engine model and travel direction with the quote and plates. No site density result is established by the 30cm depth claim.
Choose for the material and access
Describe the material, moisture conditions, layer thickness, trench or working width and target acceptance requirement. Plate area, force and travel speed help compare configurations, but they do not guarantee density on every material. Confirm the actual travel direction and whether the work needs a paving mat, water system or a different compaction machine.
Transport and service parts
Ask for the assembled and packed dimensions, documented lifting points and the status of transport wheels or a folding handle. Request the delivered engine manual and the machine’s service schedule, including available belts, mounts and exciter parts. Engine options and photographed accessories must be listed in the quote, not assumed from a family panel.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
The selected originals show a plate compactor from the handle and drive sides, alongside a labelled assembly panel. It is a surface-compaction machine, not a jumping rammer or a concrete mixing tool. The source title combines single way, reversible and diesel terminology; those words are not treated as confirmed functions of one machine.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is the listed compaction depth guaranteed?
No site result is established. Material, moisture, layer thickness and acceptance criteria must be assessed for the task.
Is reverse travel confirmed?
Not by the title alone. Ask for the actual travel control and reversing mechanism of the quoted assembly.
Are the paving mat, water system and wheels included?
Photographed accessories are not an itemised delivery list. Specify those items in the quotation.
What should be checked when ordering service parts?
Use the actual machine and engine plates, plus the belt, mount and exciter parts diagrams. Similar photos do not establish interchangeability.
What needs confirmation in this particular listing?
The attributes give 80 kg, plate 45x50cm, 15KN and engine options 5.5-6.5HP. Engine brand strings contain altered lettering and are not a reliable identity document. Confirm fuel type, engine model and travel direction with the quote and plates. No site density result is established by the 30cm depth claim.
What should I send to select this product?
Describe the material, moisture conditions, layer thickness, trench or working width and target acceptance requirement. Plate area, force and travel speed help compare configurations, but they do not guarantee density on every material. Confirm the actual travel direction and whether the work needs a paving mat, water system or a different compaction machine.
