C120 Plate Compactor
C120 Plate Compactor

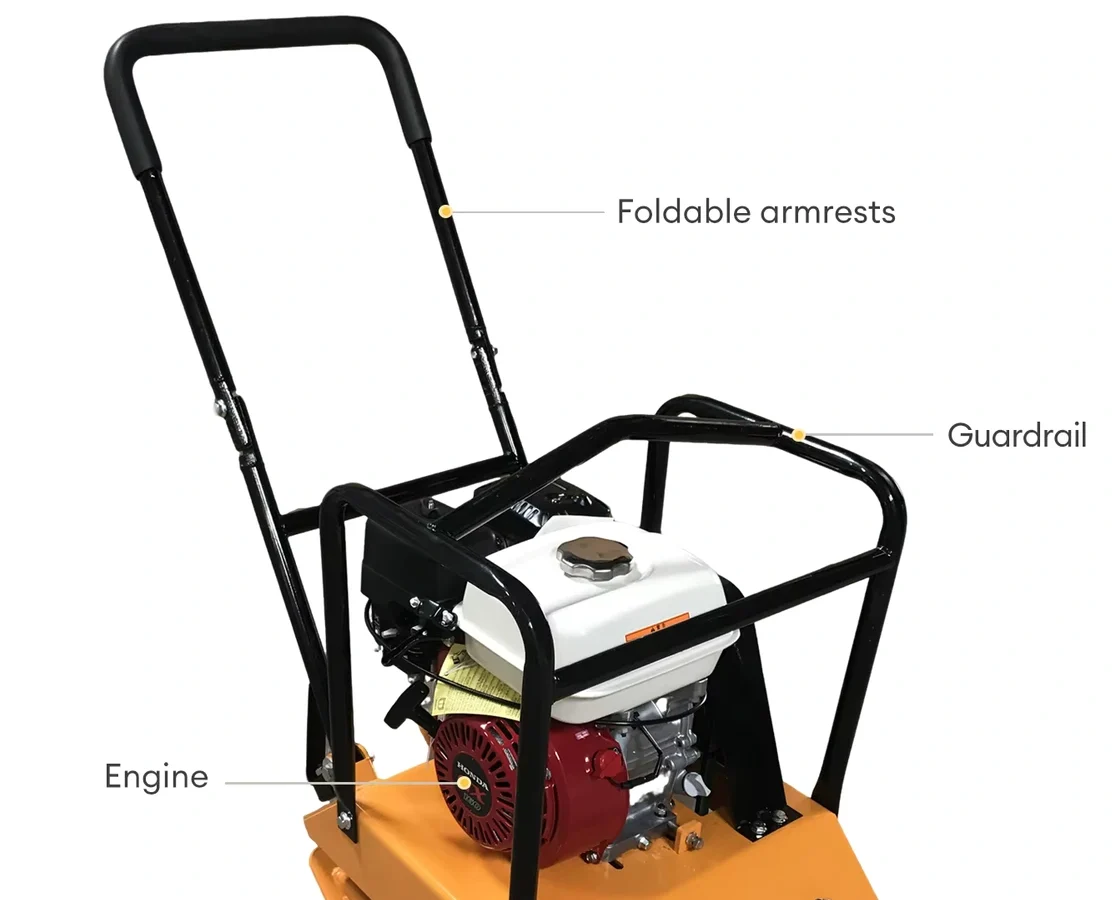

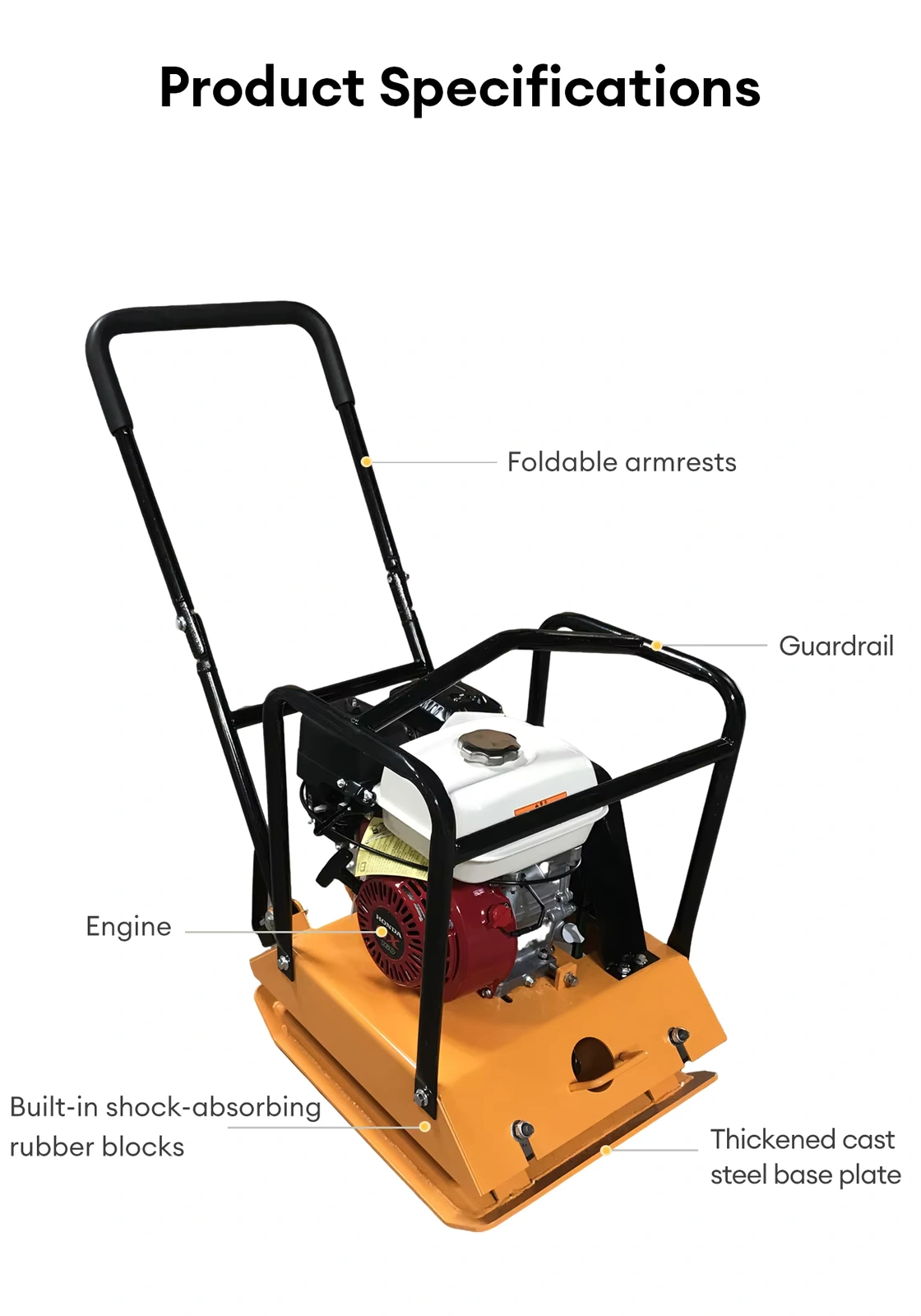

The C120 is a walk-behind plate compactor with an engine above its vibrating base. The source photographs show a rectangular plate, protective frame and folding handle for site handling.
- Product and application
- Choosing this configuration
- Matching the ground and access
- Engine, accessories and service
Technical Specifications
| Source power selection | 5.5/6.5HP |
|---|---|
| Listed dimensions; scope to confirm | 600*520*760mm |
| Listed weight; supply scope to confirm | 82 kg |
| Base plate dimensions | 440*530mm |
| Listed travel speed | 4-18m/min |
| Listed vibration frequency | 5500 vpm |
| Claimed depth; conditions unspecified | 30cm |
| Listed centrifugal force | 24kN |
| Listed gradient; conditions to confirm | ≤18° |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The C120 is a walk-behind plate compactor with an engine above its vibrating base. The source photographs show a rectangular plate, protective frame and folding handle for site handling.
Choosing this configuration
Use the plate dimensions, machine weight and listed centrifugal force to compare this configuration. The source compaction depth and travel speed are claims without test conditions; soil type, moisture and layer thickness still need to be discussed for the job.
Matching the ground and access
Describe the ground, planned layer thickness, moisture and any paving finish. Ask for an application assessment for that material and the selected machine. Consider access, turning space and the means of loading the compactor onto transport.
Engine, accessories and service

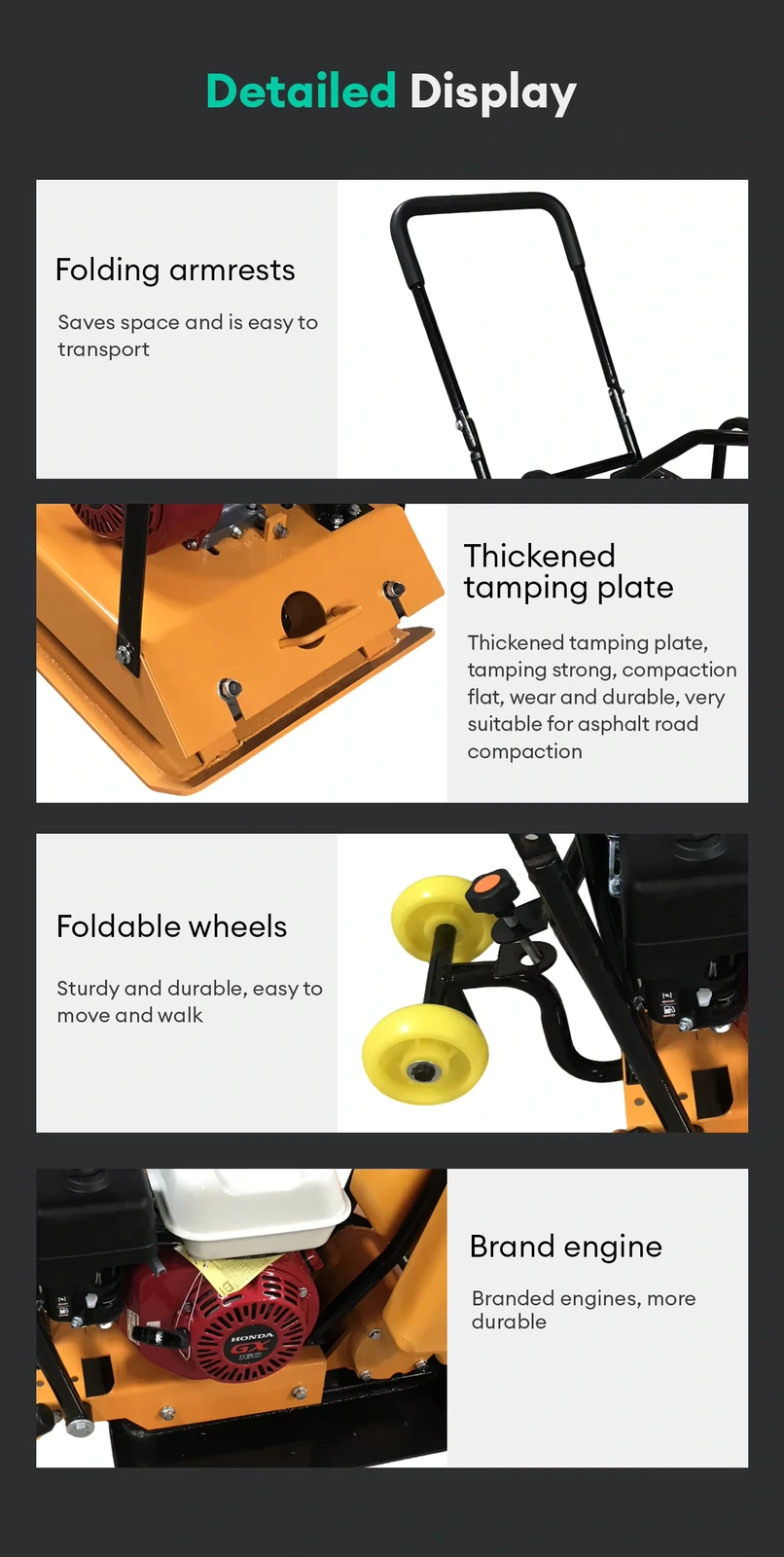

Confirm the actual engine plate and the supplied tank, wheels or paving mat. Ask for the engine and compactor manuals and the belt, bearing and vibration-assembly parts references. Do not substitute neighbouring-model specifications.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The C120 is a walk-behind plate compactor with an engine above its vibrating base. The source photographs show a rectangular plate, protective frame and folding handle for site handling.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Is the listed depth valid for all soils?
No test conditions are supplied with that field. Discuss material, moisture, layers and the required result.
Are wheels, tank or paving mat included?
Confirm these accessories individually in the delivery list.
Which engine is supplied?
Ask for the exact engine plate and the selected configuration rather than assuming every source option is included.
What is needed for service parts?
Provide the machine and engine identification and the component reference from the relevant manual.
What needs checking for this particular listing?
Use the plate dimensions, machine weight and listed centrifugal force to compare this configuration. The source compaction depth and travel speed are claims without test conditions; soil type, moisture and layer thickness still need to be discussed for the job.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
