C90-2

C90-2 Plate Compactor

The C90-2 source combines a field view with an annotated product assembly and workshop photographs. Its upright handle and transport-wheel arrangement can be checked in those materials, but a batch of machines in the workshop does not establish the configuration of an individual order..

What this product is for
Configuration and specification checks
Choose for the material and access
Transport and service parts

Get a Quote WhatsApp

Technical Specifications

Source-listed drive power; unit retained as supplied	5.5/6.5HP
Listed overall dimensions	800530685mm
Listed machine weight	76.1 kg
Source-listed base plate size	460*515mm
Source-listed travel speed; material dependent	6-15 m/min
Source-listed vibration rate	5500 vpm
Source-listed centrifugal force	15KN
Parameters to confirm	Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

Product Description

What this product is for

The C90-2 source combines a field view with an annotated product assembly and workshop photographs. Its upright handle and transport-wheel arrangement can be checked in those materials, but a batch of machines in the workshop does not establish the configuration of an individual order.

Configuration and specification checks

The source model field also mentions Plate Compactor C90. It lists 76.1 kg, base 460*515mm, 15KN and travel 6-15 m/min. Confirm the C90-2 versus C90 designation and plate dimensions in the order documents; do not substitute the 480*550mm plate used in another listing.

Choose for the material and access

Describe the material, moisture conditions, layer thickness, trench or working width and target acceptance requirement. Plate area, force and travel speed help compare configurations, but they do not guarantee density on every material. Confirm the actual travel direction and whether the work needs a paving mat, water system or a different compaction machine.

Transport and service parts

Ask for the assembled and packed dimensions, documented lifting points and the status of transport wheels or a folding handle. Request the delivered engine manual and the machine’s service schedule, including available belts, mounts and exciter parts. Engine options and photographed accessories must be listed in the quote, not assumed from a family panel.

Before ordering

Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

Original component detail panel

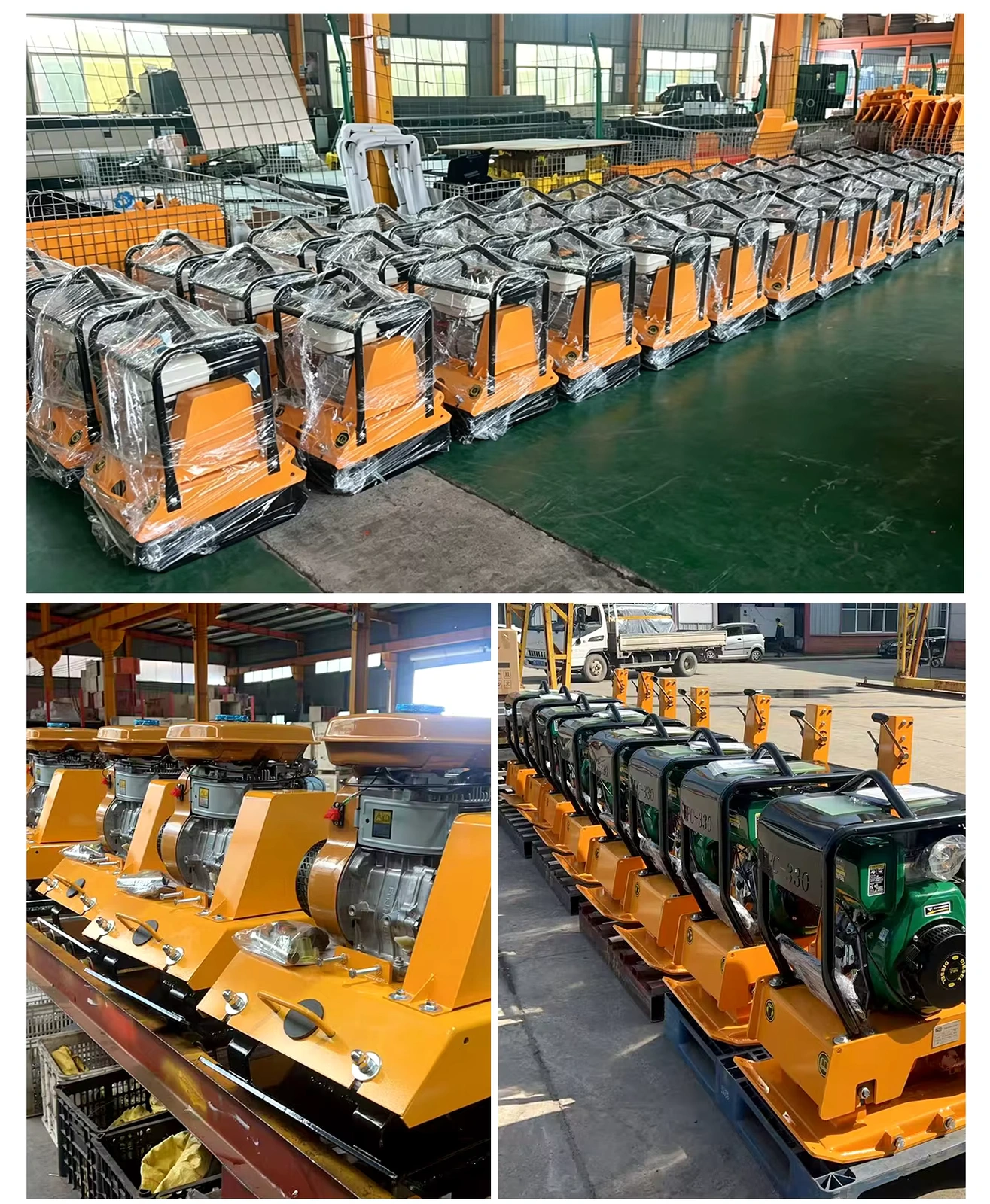

Original supplier workshop or packing example; exact supplied version to confirm

Applications

The C90-2 source combines a field view with an annotated product assembly and workshop photographs. Its upright handle and transport-wheel arrangement can be checked in those materials, but a batch of machines in the workshop does not establish the configuration of an individual order.

Packaging & Shipping

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.

Configuration Options

Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

Product FAQ

Is the listed compaction depth guaranteed?

No site result is established. Material, moisture, layer thickness and acceptance criteria must be assessed for the task.

Is reverse travel confirmed?

Not by the title alone. Ask for the actual travel control and reversing mechanism of the quoted assembly.

Are the paving mat, water system and wheels included?

Photographed accessories are not an itemised delivery list. Specify those items in the quotation.

What should be checked when ordering service parts?

Use the actual machine and engine plates, plus the belt, mount and exciter parts diagrams. Similar photos do not establish interchangeability.

What needs confirmation in this particular listing?

The source model field also mentions Plate Compactor C90. It lists 76.1 kg, base 460*515mm, 15KN and travel 6-15 m/min. Confirm the C90-2 versus C90 designation and plate dimensions in the order documents; do not substitute the 480*550mm plate used in another listing.

What should I send to select this product?
