C90 Gasoline Plate Compactor
C90 Gasoline Plate Compactor

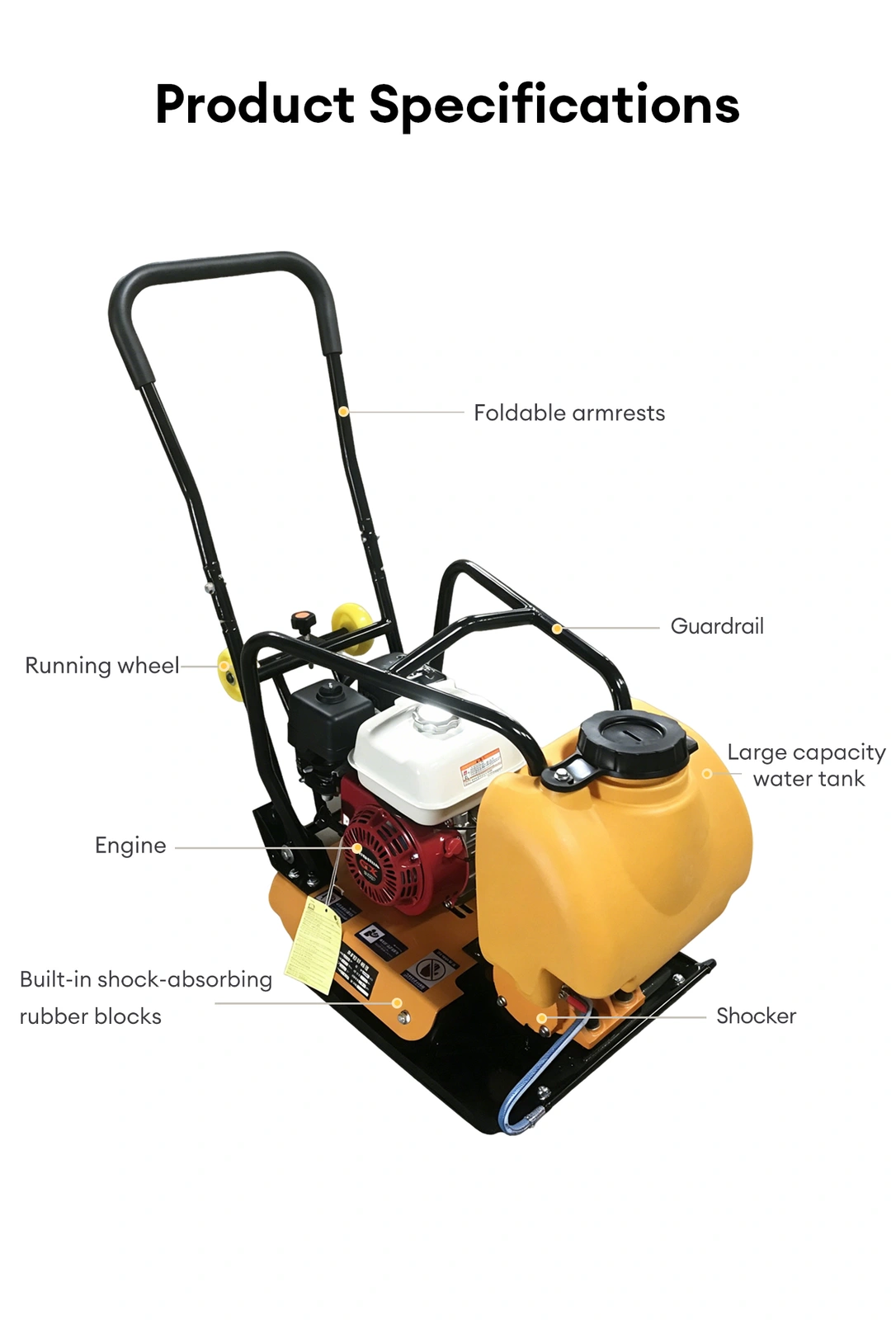

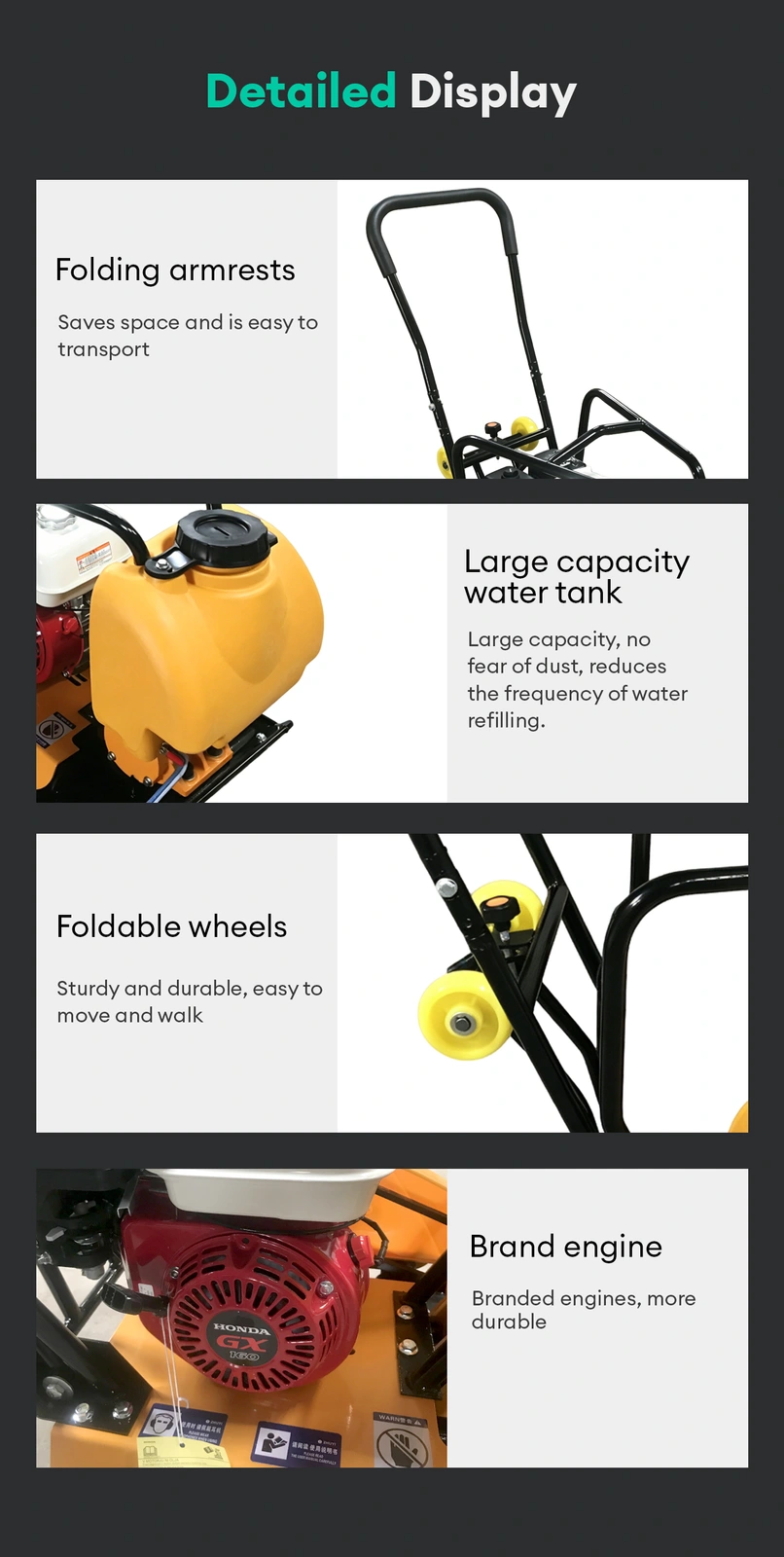

The C90 is a walk-behind plate compactor with a guarded engine, folding handle and transport-wheel arrangement. The base transfers vibration into the material; it is not a drum roller or a percussion rammer.
- Product and application
- Choosing this configuration
- Material, layers and engine
- Supply and service agreement

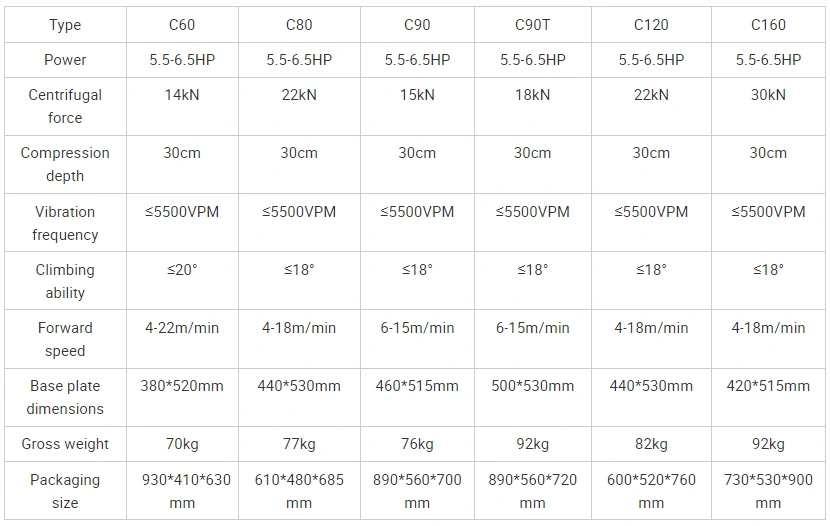

Technical Specifications
| Source overall dimensions; scope to confirm | 890*560*700mm |
|---|---|
| Source weight; unit retained if stated | 76 kg |
| Engine power options | 5.5/6.5HP |
| Base-plate dimensions | 460*515mm |
| Source forward-speed range | 6-15 m/min |
| Source vibration frequency | 5500 vpm |
| Source compaction-depth claim; material dependent | 30cm |
| Source centrifugal force | 15KN |
| Source drive/power choices | Gasoline or Diesel |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
Product Description
Product and application
The C90 is a walk-behind plate compactor with a guarded engine, folding handle and transport-wheel arrangement. The base transfers vibration into the material; it is not a drum roller or a percussion rammer.
Choosing this configuration
The gasoline option is the selected version; engine brands in the source are choices, not proof of the installed engine. Compaction depth varies with material and layer conditions, so the catalogue depth is not a guaranteed result for every site.
Material, layers and engine
Describe the material, moisture, access and required compaction result. Agree engine, base plate and any transport or paving accessories. No universal depth or asphalt suitability is inferred from the photographs.
Supply and service agreement
Request the exact model plate, operating manual, parts references and itemised delivery list. Quoted accessories, consumables and configuration choices should be recorded separately; workshop stock does not define the delivered set.
Before ordering
Confirm missing parameters and delivery contents for the exact configuration.
Applications
The C90 is a walk-behind plate compactor with a guarded engine, folding handle and transport-wheel arrangement. The base transfers vibration into the material; it is not a drum roller or a percussion rammer.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing parameters and delivery contents for the exact configuration.
Product FAQ
Is it a road roller?
No. The original images show a vibrating plate, not a roller drum.
Is the engine brand confirmed by a source option?
Request the actual engine plate and origin documentation; an option label alone is insufficient.
What job information should I provide?
Describe the material, moisture, access and required compaction result. Agree engine, base plate and any transport or paving accessories. No universal depth or asphalt suitability is inferred from the photographs.
What is needed for spare parts?
Identify the delivered model, component reference and measured mounting interface.
What needs checking for this particular listing?
The gasoline option is the selected version; engine brands in the source are choices, not proof of the installed engine. Compaction depth varies with material and layer conditions, so the catalogue depth is not a guaranteed result for every site.
How do I confirm the delivery contents?
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
