C90

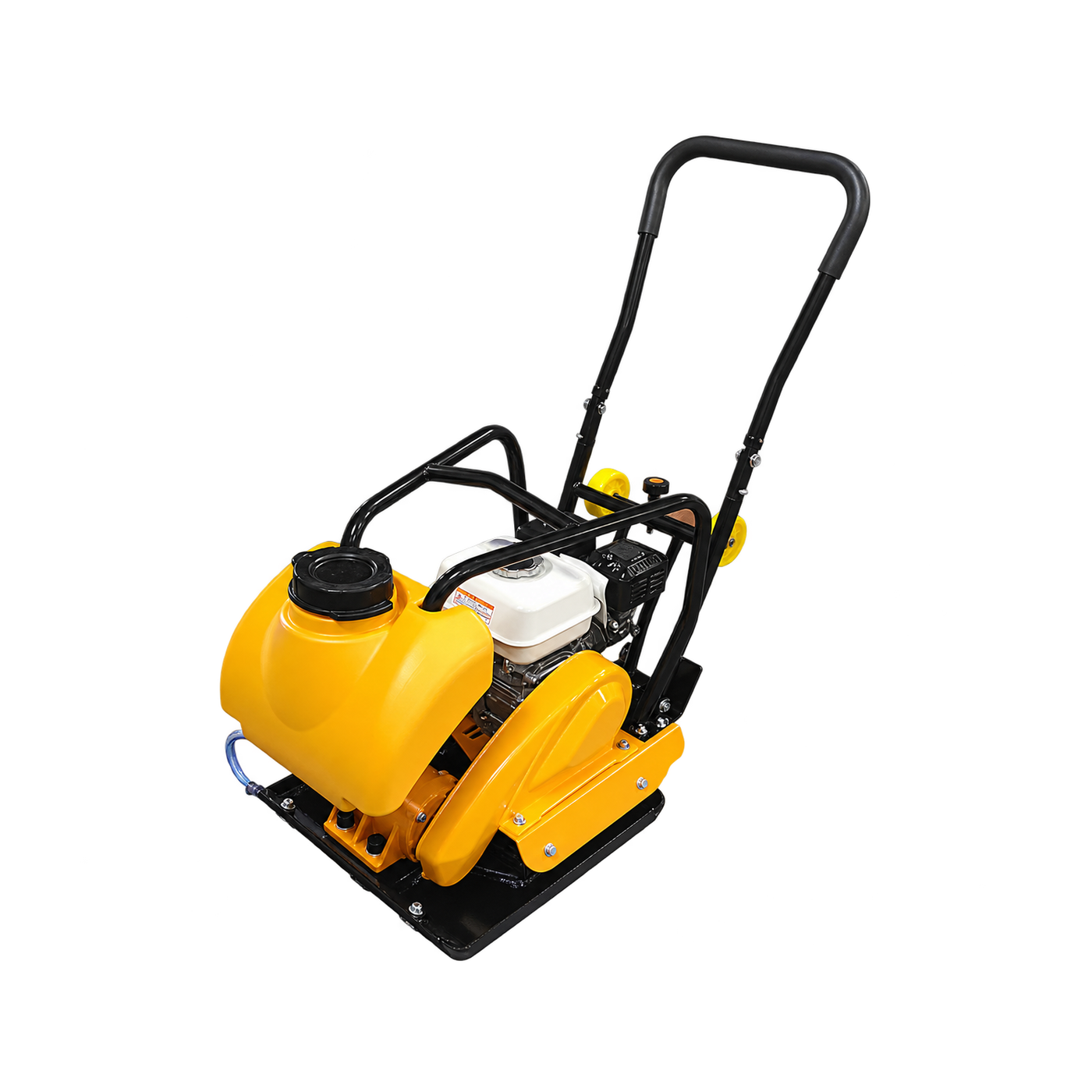

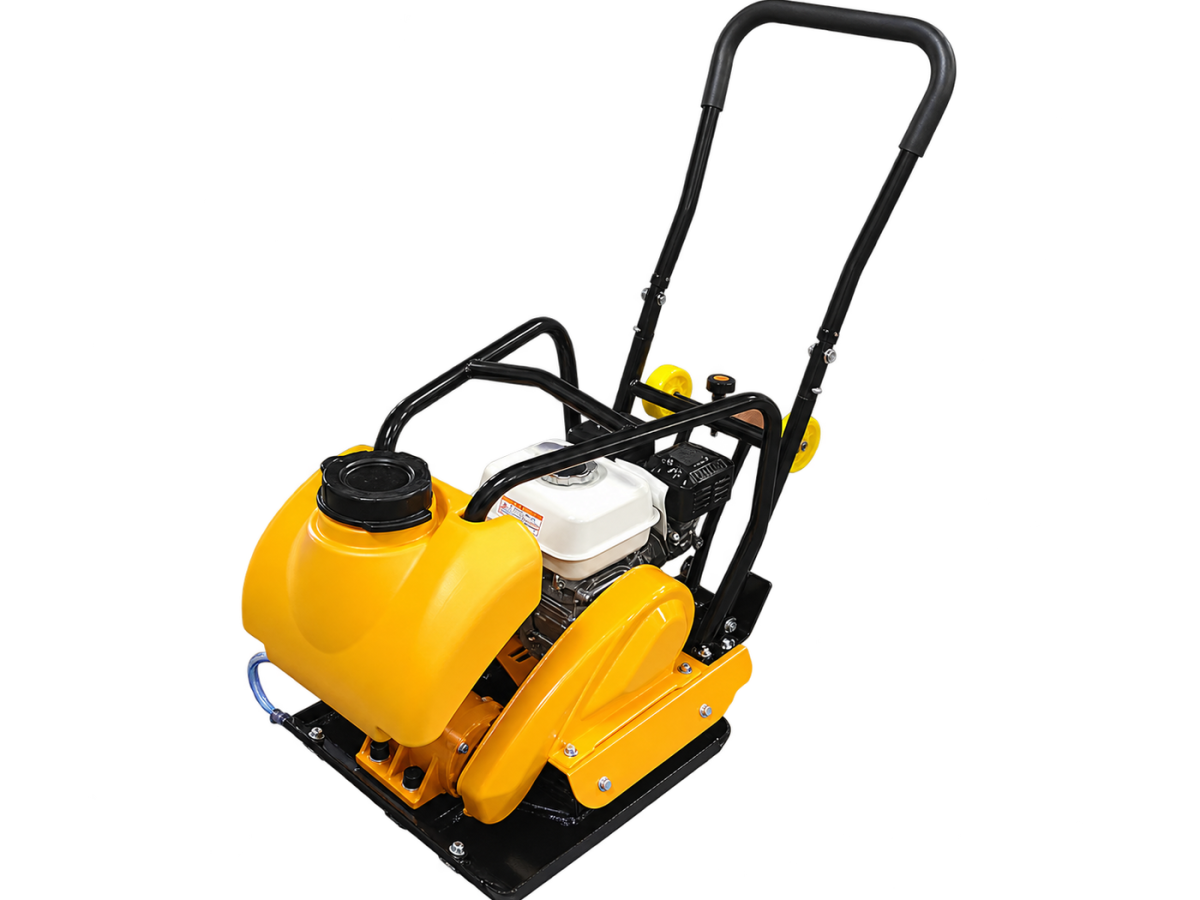

C90 Gasoline Plate Compactor — 15 kN
The C90 is a gasoline-powered plate compactor for construction compaction work. The supplier lists 15 kN centrifugal force, 75 kg machine weight and a 460 × 515 mm base plate. Its compact footprint suits enquiries for paths, small road-maintenance areas and site preparation, with final suitability assessed against the material and required compaction result.
- 15 kN listed force
- 75 kg listed weight
- 460 × 515 mm plate
Technical Specifications
| Model designation | C90 (source also lists T-90) |
|---|---|
| Centrifugal force | 15 kN |
| Listed machine weight | 75 kg — Net/operating-weight definition to be confirmed. |
| Base-plate dimensions | 460 × 515 mm |
| Listed overall dimensions | 960 × 540 × 680 mm — Handle/transport position not specified. |
| Listed engine-power range | 5.5–6.5 HP — A configuration range, not two installed engines; source uses HP despite its “Power(W)” heading. |
| Vibration frequency | 5,500 vibrations/min |
| Listed forward travel speed | 6–15 m/min — Actual movement depends on job conditions. |
Product Description
A compact machine for defined compaction work

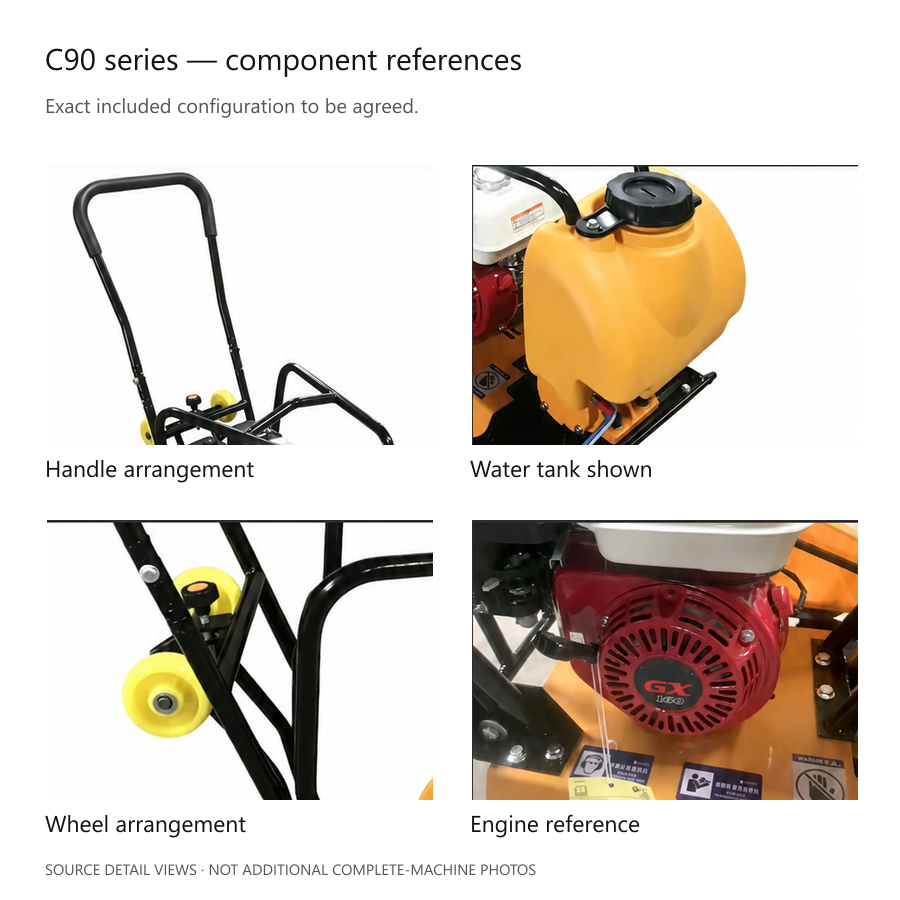

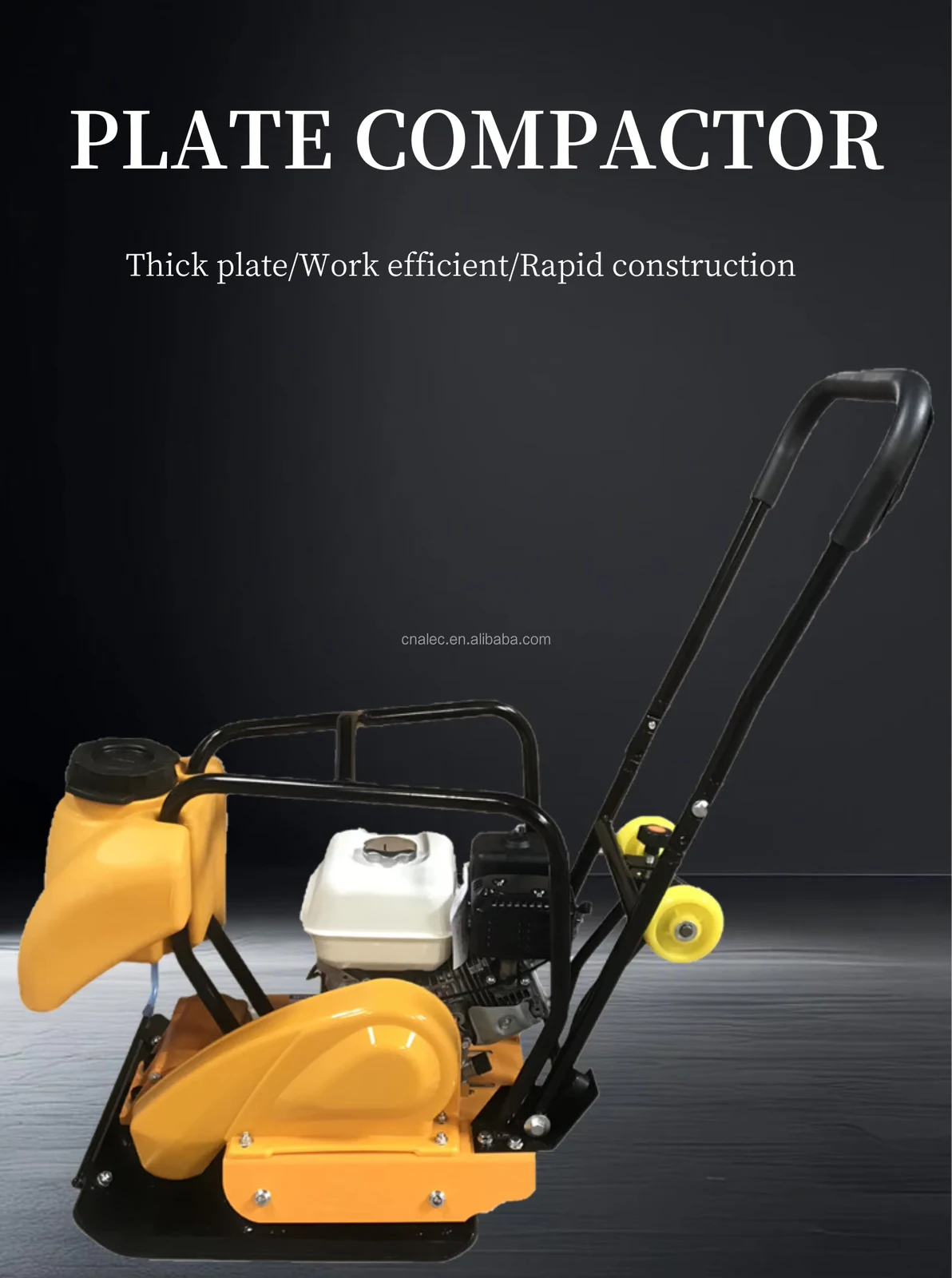

The gasoline engine allows outdoor compaction work without an electrical supply cable. The illustrated arrangement combines a base plate, engine frame, belt cover and operator handle. A water tank and transport-wheel arrangement appear in the supplier images; their inclusion in the selected configuration should be written into the quotation.

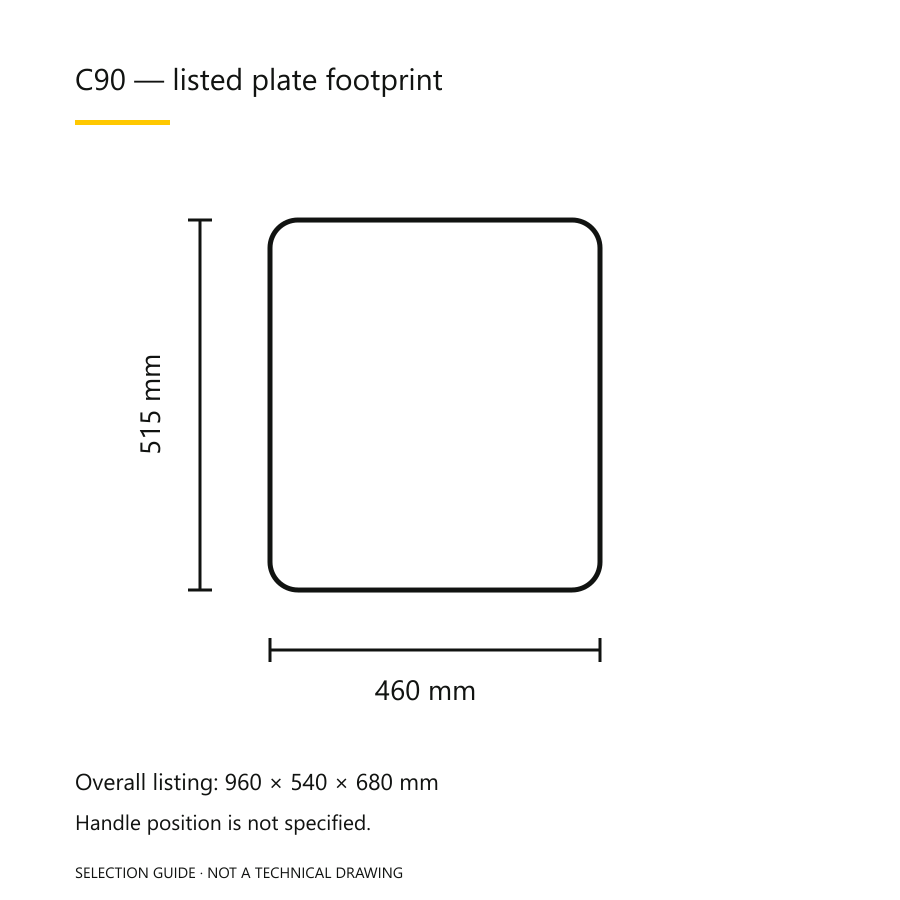

Use the 460 × 515 mm plate dimensions to assess access and the work area. The listed overall dimensions should not be treated as a confirmed folded transport envelope because the original listing does not identify the handle position.
Match the machine to the material
Discuss the soil or surface material, moisture, layer thickness, access and required density before choosing a plate compactor. The source refers to construction work and compaction; an asphalt enquiry should specifically confirm the water system and the selected base-plate arrangement. Paving work also requires confirmation of a suitable protective mat or accessory rather than assuming it is included.
The supplier’s depth claim is not presented here as a guaranteed result. Compaction depth and achieved density depend on the material and conditions, and the result should be checked using the project’s acceptance method. Engine horsepower alone is not a reliable measure of compaction performance.
Engine and service configuration
- Specify the required engine model and nominal power; the listed 5.5–6.5 HP range does not confirm a particular engine brand.
- Confirm water tank, transport wheels, handle arrangement and any paving accessory in the included-items list.
- Request the applicable engine and machine instructions, service schedule and spare-parts identification. Oil, belt and fastener servicing must follow those instructions.
- Confirm destination-market requirements and the actual operating environment. An image is not proof of certification or emissions compliance.
Packing and the information needed for a quote

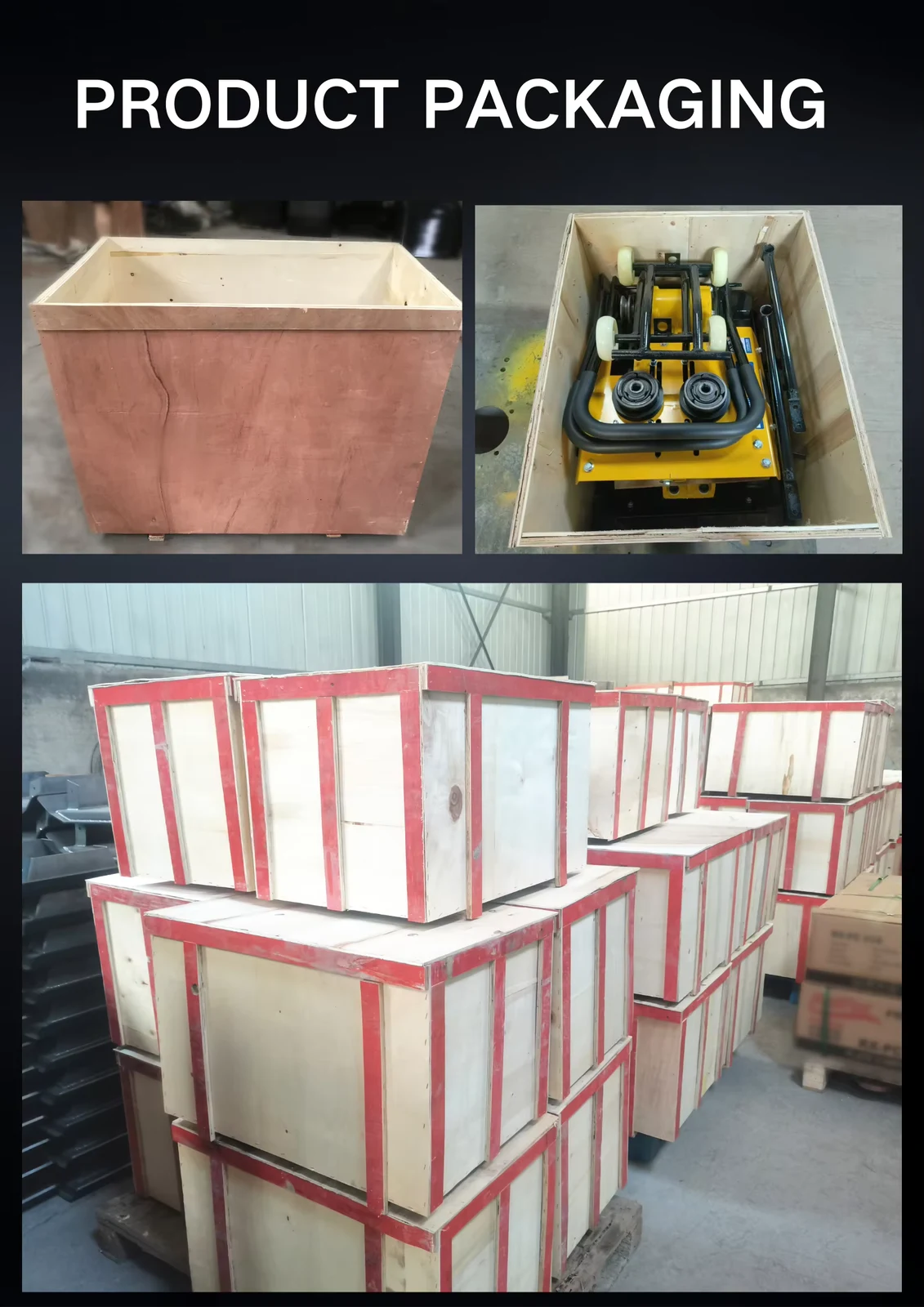

The supplied packing reference shows wooden crates. It demonstrates a packing approach, not the exact dimensions, gross weight or condition of a future shipment. Send the required quantity, engine preference, working material, accessory list and destination city so these items can be specified for the order.
Prepare a clear product enquiry
Working material; layer thickness; engine preference; accessories; quantity; destination city.
Product FAQ
Is C90 the same as T-90?
The supplier puts both names in one model field. They are retained as source designations, not a confirmed equivalence across other suppliers. Confirm the drawing and engine configuration for the ordered machine.
Does the 5.5–6.5 HP range identify the engine?
No. It is a listed configuration range. Engine model, brand and rating must be agreed separately; a brand visible in a series detail image is not a supply commitment.
Is compaction depth guaranteed?
Not from the source claim alone. Material, moisture, layer thickness and operating conditions affect the result. Use the job specification and appropriate testing to verify it.
