GQ45 Mechanical Rebar Cutter

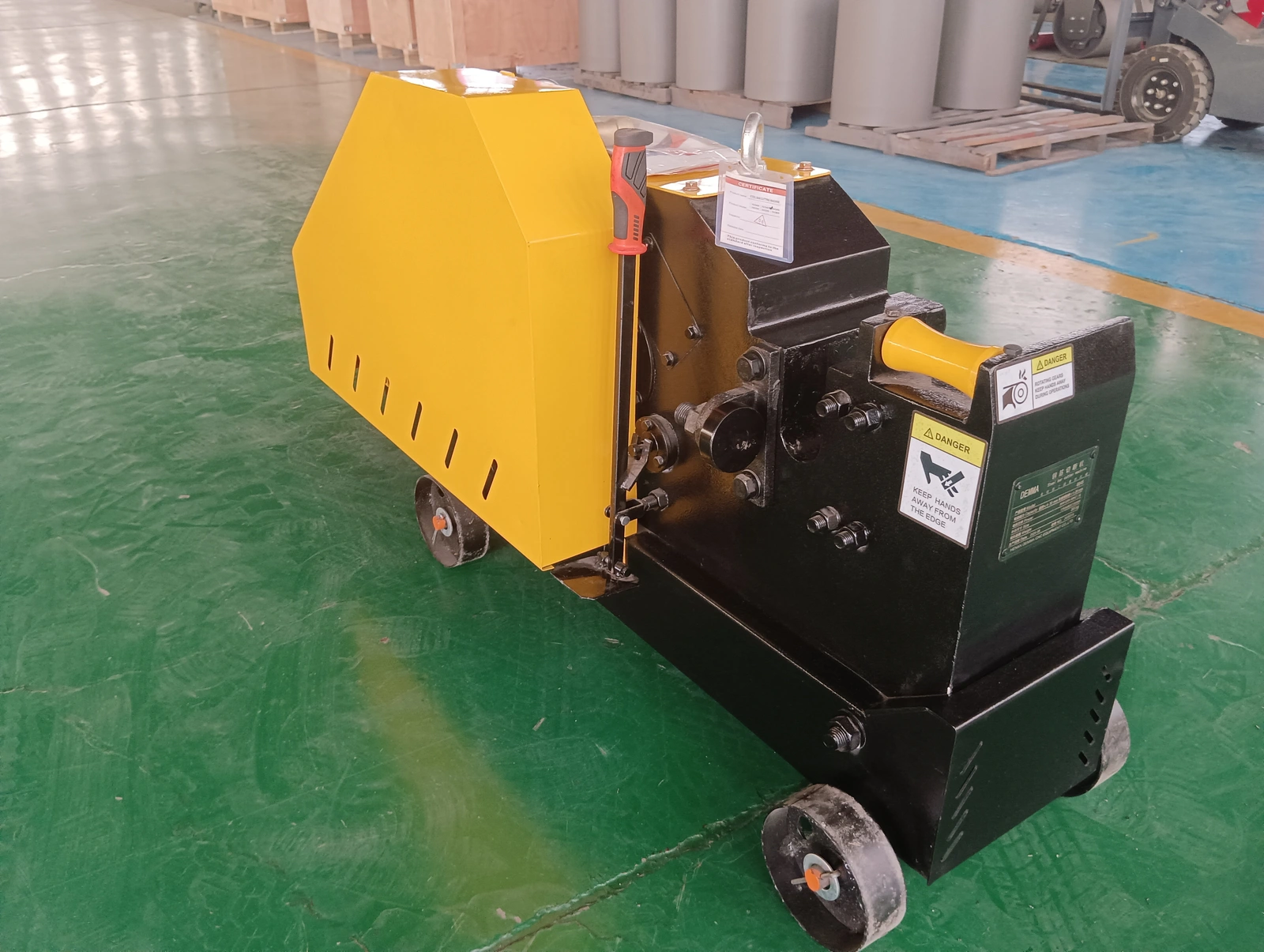

The GQ45 is a floor-standing steel-bar cutter with a mechanical drive, cutting opening and transport wheels. Workshop photographs show guarded motor and transmission arrangements and different finish colours.
| Voltage options; exact motor to confirm | 380V/220v |
|---|---|
| Source overall dimensions; scope to confirm | 1500*550*850mm |
| Source motor power, kW | 3 kW |
| Listed mass | 335 kg |
| Source cutting range; steel grade to confirm | 6-32mm |
| Source drive-rate field; cycle definition to confirm | 32r/min |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
The GQ45 is a floor-standing steel-bar cutter with a mechanical drive, cutting opening and transport wheels. Workshop photographs show guarded motor and transmission arrangements and different finish colours.
Compare the quoted bar range and steel strength rather than treating the model name as a maximum diameter. The voltage options require a specific motor selection; different workshop colours do not prove identical drive or capacity.
Specify bar grade, diameter, single or bundled stock and required lengths. Confirm blade condition, support and the selected motor; source drive speed is not an automatic production-rate guarantee.
Request the exact model plate, operating manual, parts references and itemised delivery list. Quoted accessories, consumables and configuration choices should be recorded separately; workshop stock does not define the delivered set.
Confirm missing parameters and delivery contents for the exact configuration.
The GQ45 is a floor-standing steel-bar cutter with a mechanical drive, cutting opening and transport wheels. Workshop photographs show guarded motor and transmission arrangements and different finish colours.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing parameters and delivery contents for the exact configuration.
No. Use the capacity for the quoted steel grade and selected machine.
The photographs show a cutting station; feeding and handling equipment must be specified separately.
Specify bar grade, diameter, single or bundled stock and required lengths. Confirm blade condition, support and the selected motor; source drive speed is not an automatic production-rate guarantee.
Identify the delivered model, component reference and measured mounting interface.
Compare the quoted bar range and steel strength rather than treating the model name as a maximum diameter. The voltage options require a specific motor selection; different workshop colours do not prove identical drive or capacity.
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
The GQ50 uses a motor-driven mechanical cutting head to shear a supported steel bar. Its wheeled body and guarded drive suit a fixed cutting station where the operator positions stock and removes the cut lengths.
