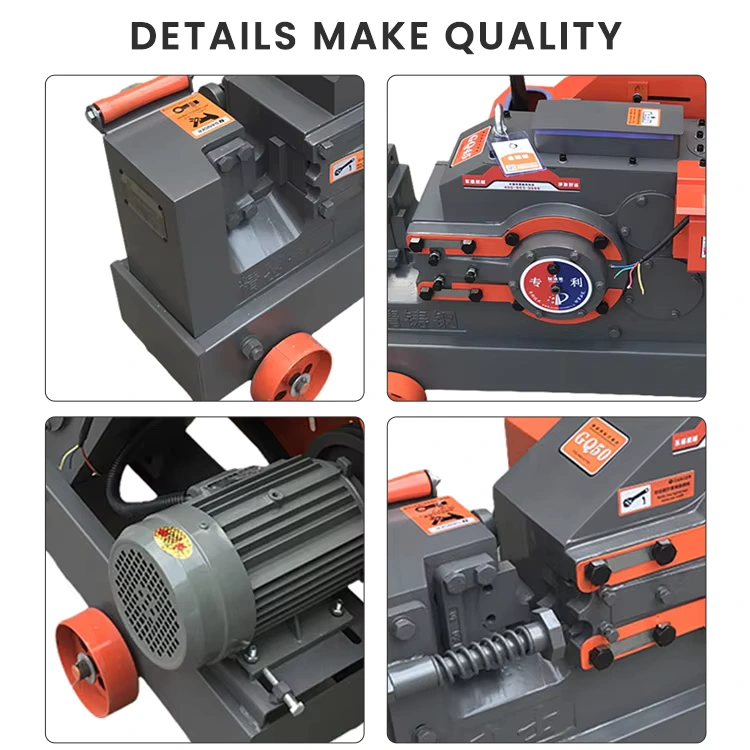

Original photographs and labelled component panels. Installed machines, colours and workshop stock illustrate configurations; the quotation defines what is supplied.

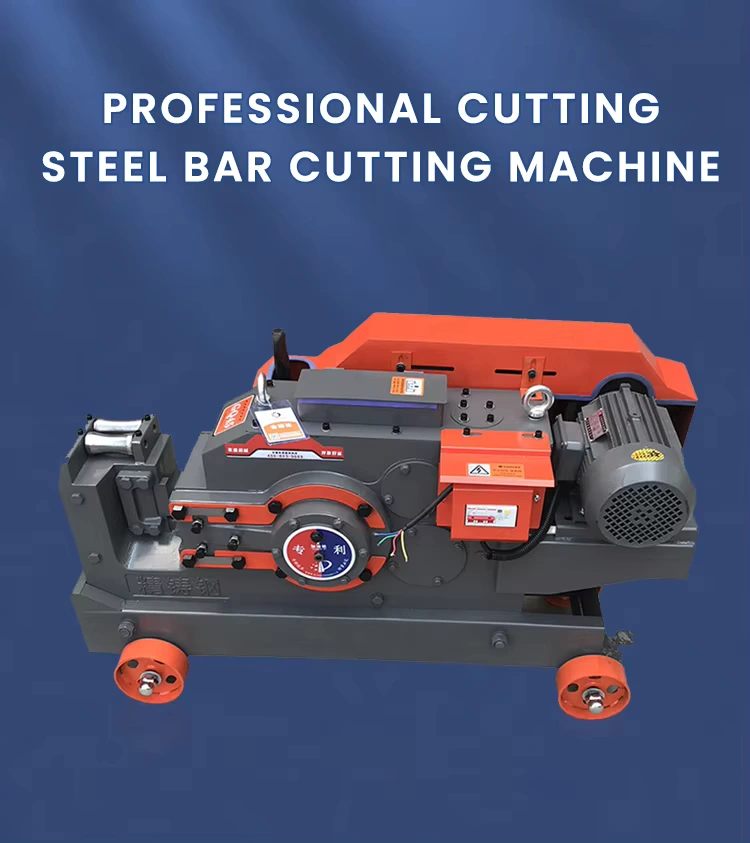

GQ50 Steel Bar Cutting Machine

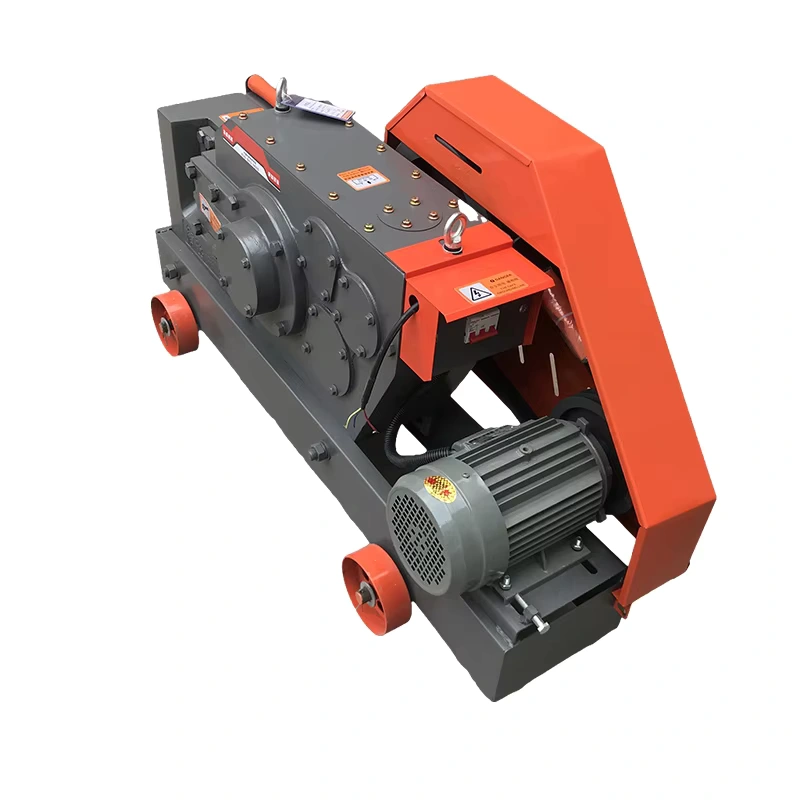

The GQ50 uses a motor-driven mechanical cutting head to shear a supported steel bar. Its wheeled body and guarded drive suit a fixed cutting station where the operator positions stock and removes the cut lengths.
| Voltage options; exact motor to confirm | 220 V |
|---|---|
| Source overall dimensions; scope to confirm | 1500*450*750mm |
| Source motor power, kW | 4 kW |
| Listed mass | 480 kg |
| Source cutting range; steel grade to confirm | 6-40mm |
| Source drive-rate field; cycle definition to confirm | 28r/min |
| Parameters to confirm | Confirm missing parameters and delivery contents for the exact configuration. |
The GQ50 uses a motor-driven mechanical cutting head to shear a supported steel bar. Its wheeled body and guarded drive suit a fixed cutting station where the operator positions stock and removes the cut lengths.
The model suffix is not an assurance that every bar of that diameter can be cut. The source cutting range must be checked against steel grade, bar arrangement and blade specification. Its drive-rate field does not define finished pieces per minute.
Specify bar grade, diameter, single or bundled stock and required lengths. Confirm blade condition, support and the selected motor; source drive speed is not an automatic production-rate guarantee.
Request the exact model plate, operating manual, parts references and itemised delivery list. Quoted accessories, consumables and configuration choices should be recorded separately; workshop stock does not define the delivered set.
Confirm missing parameters and delivery contents for the exact configuration.
The GQ50 uses a motor-driven mechanical cutting head to shear a supported steel bar. Its wheeled body and guarded drive suit a fixed cutting station where the operator positions stock and removes the cut lengths.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Confirm missing parameters and delivery contents for the exact configuration.
No. Use the capacity for the quoted steel grade and selected machine.
The photographs show a cutting station; feeding and handling equipment must be specified separately.
Specify bar grade, diameter, single or bundled stock and required lengths. Confirm blade condition, support and the selected motor; source drive speed is not an automatic production-rate guarantee.
Identify the delivered model, component reference and measured mounting interface.
The model suffix is not an assurance that every bar of that diameter can be cut. The source cutting range must be checked against steel grade, bar arrangement and blade specification. Its drive-rate field does not define finished pieces per minute.
State the model or part, measurements and quantity. Ask for equipment, accessories and documents to be itemised separately.
