Y600 Gasoline Ring Saw
Y600 is the gasoline ring-saw option in this listing. Its original photograph shows an orange engine housing, surrounding handle, blade-drive assembly and water connections.
View product →
Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
7425C-2
7425C-2 Electric Ring Saw

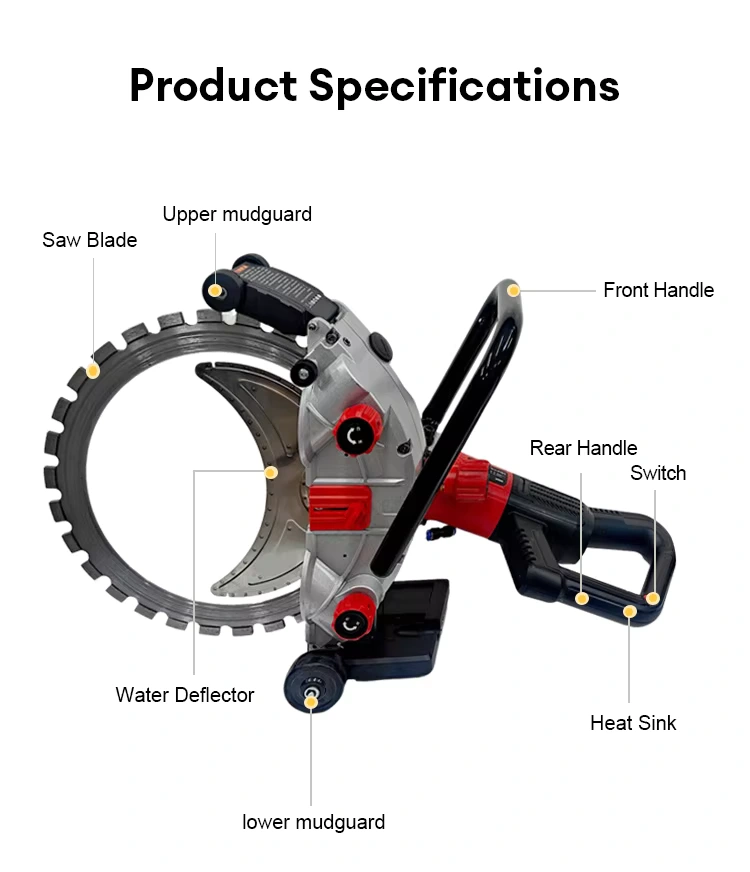

7425C-2 is an electric ring-saw listing for wall and concrete work. The supplier’s original labelled panel shows the grip layout, switch, guards and water-deflection parts.
- Product and application
- Choosing this configuration
- Plan the cut around the workpiece
- What to include with the machine
Technical Specifications
| Claimed cutting-depth field; configuration-dependent | 300mm |
|---|---|
| Speed field; component to confirm | 3000r/min |
| Supply voltage | 220 V |
| Power field | 8800W |
| Source weight; supply scope to confirm | 12 kg |
| Source dimensions; assembled/packed scope to confirm | 975*580*290mm |
| Power type | Electric |
| Source application | Brick Saw, Stone Saw |
| Blade-diameter selection | 410mm |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |
Product Description
Product and application

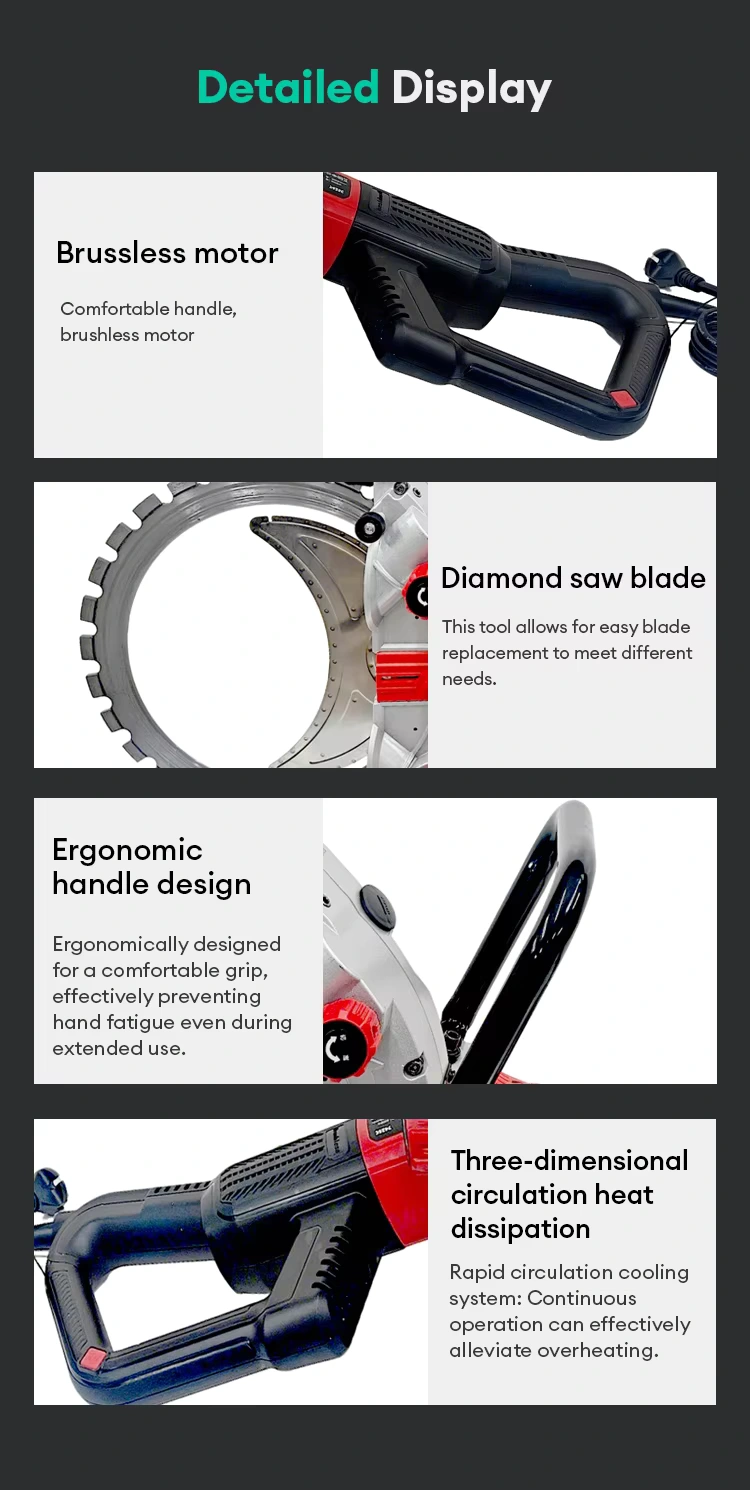

7425C-2 is an electric ring-saw listing for wall and concrete work. The supplier’s original labelled panel shows the grip layout, switch, guards and water-deflection parts. A separate component panel shows the motor housing and handling features; the multi-model comparison is not used as the main photograph of this one model.
Choosing this configuration
This listing records 12 kg with 8800 W, 220 V, 3000 r/min and a 410 mm blade option. The body dimensions are 975 × 580 × 290 mm and claimed depth 300 mm. Do not replace the 12 kg field with the 17 kg figure from 7425C-1. Ask whether the weight includes the blade and accessories, and obtain a current plate for the quoted version.
Plan the cut around the workpiece
Give the wall material, thickness, required opening and access conditions. Ask for a blade, guide and water arrangement matched to that cut. The ring profile and drive system matter as well as diameter. Confirm the electrical supply and connection for the actual machine, rather than treating the source voltage as permission to use any outlet.
What to include with the machine
Specify the ring blade, guide/drive rollers, water fittings and any track separately in the quotation. Ask for the operating and inspection instructions and parts diagram for the delivered model. Installation and service photographs show examples of use; they do not establish universal blade or track compatibility.
Before ordering
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Applications
7425C-2 is an electric ring-saw listing for wall and concrete work. The supplier’s original labelled panel shows the grip layout, switch, guards and water-deflection parts. A separate component panel shows the motor housing and handling features; the multi-model comparison is not used as the main photograph of this one model.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Product FAQ
Does every 410 mm ring fit?
No. The inner drive profile, guides, ring width and approved machine combination must also match.
Is the maximum depth achieved in every material?
That is not established. Request confirmation for the wall material, blade assembly and required cut, rather than applying a maximum field to all work.
Is a track included?
Only if the quotation lists the compatible rail, carriage and fixing hardware. The saw and guide accessory have separate specifications.
Which parts need matching when replacing the blade?
Ask for the blade, guide and drive-roller references for the actual model and the manufacturer’s inspection and replacement instructions.
Why does this page give 12 kg rather than 17 kg?
Those are different source records. The supplied version and weighing conditions need confirmation; the lighter figure is not proof of a performance improvement.
What information is needed to confirm this configuration?
This listing records 12 kg with 8800 W, 220 V, 3000 r/min and a 410 mm blade option. The body dimensions are 975 × 580 × 290 mm and claimed depth 300 mm. Do not replace the 12 kg field with the 17 kg figure from 7425C-1. Ask whether the weight includes the blade and accessories, and obtain a current plate for the quoted version.
