7425D-1
7425D-1 Electric Ring Saw
The 7425D-1 source shows a ring saw resting on its guide assembly, with an upright front handle and rear motor grip. It is intended for cuts in concrete walls and similar building materials using the matched ring-saw equipment.
- Product and application
- Choosing this configuration
- Plan the cut around the workpiece
- What to include with the machine
Technical Specifications
| Claimed cutting-depth field; configuration-dependent | 300mm |
|---|---|
| Speed field; component to confirm | 3000r/min |
| Supply voltage | 220V/50HZ |
| Power field | 8800W |
| Source weight; supply scope to confirm | 16.8 kg |
| Source dimensions; assembled/packed scope to confirm | 975*580*300mm |
| Power type | Electric |
| Source application | Building Material Shops |
| Blade-diameter selection | 410mm |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |
Product Description
Product and application

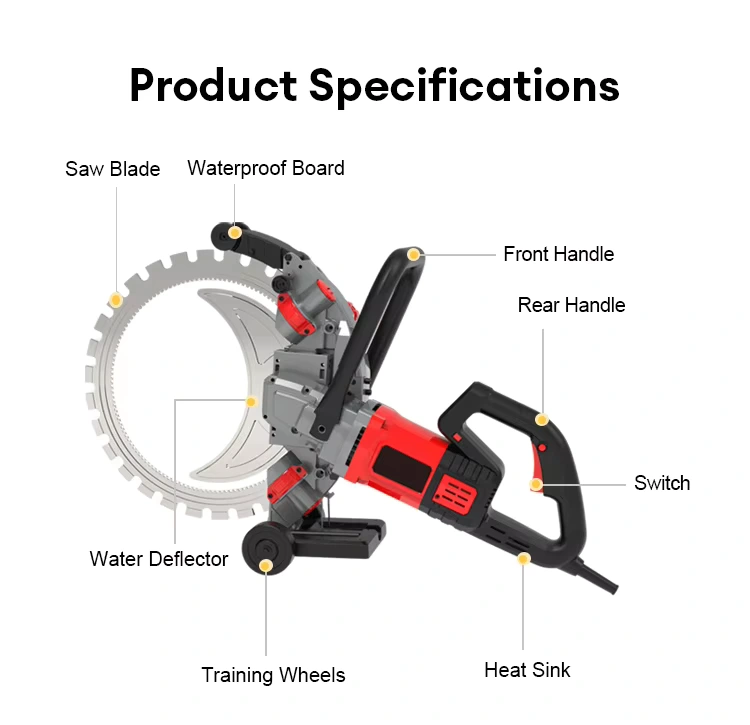

The 7425D-1 source shows a ring saw resting on its guide assembly, with an upright front handle and rear motor grip. It is intended for cuts in concrete walls and similar building materials using the matched ring-saw equipment. The labelled view identifies the handles, switch and blade-side components without replacing the machine with a different model from the comparison panel.
Choosing this configuration
For 7425D-1, the source gives 16.8 kg and 975 × 580 × 300 mm, alongside 8800 W, 220 V/50 Hz, 3000 r/min and a 410 mm blade option. The related 7425D record is not an interchangeable specification. Confirm the 300 mm depth claim, electrical connection and delivered blade/guide parts for this exact model.
Plan the cut around the workpiece
Give the wall material, thickness, required opening and access conditions. Ask for a blade, guide and water arrangement matched to that cut. The ring profile and drive system matter as well as diameter. Confirm the electrical supply and connection for the actual machine, rather than treating the source voltage as permission to use any outlet.
What to include with the machine
Specify the ring blade, guide/drive rollers, water fittings and any track separately in the quotation. Ask for the operating and inspection instructions and parts diagram for the delivered model. Installation and service photographs show examples of use; they do not establish universal blade or track compatibility.
Before ordering
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Applications
The 7425D-1 source shows a ring saw resting on its guide assembly, with an upright front handle and rear motor grip. It is intended for cuts in concrete walls and similar building materials using the matched ring-saw equipment. The labelled view identifies the handles, switch and blade-side components without replacing the machine with a different model from the comparison panel.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Product FAQ
Does every 410 mm ring fit?
No. The inner drive profile, guides, ring width and approved machine combination must also match.
Is the maximum depth achieved in every material?
That is not established. Request confirmation for the wall material, blade assembly and required cut, rather than applying a maximum field to all work.
Is a track included?
Only if the quotation lists the compatible rail, carriage and fixing hardware. The saw and guide accessory have separate specifications.
Which parts need matching when replacing the blade?
Ask for the blade, guide and drive-roller references for the actual model and the manufacturer’s inspection and replacement instructions.
Which dimensions distinguish this source record?
It gives 975 × 580 × 300 mm rather than the 290 mm final dimension in the 7425D listing. Confirm assembled and packing dimensions separately.
What information is needed to confirm this configuration?
For 7425D-1, the source gives 16.8 kg and 975 × 580 × 300 mm, alongside 8800 W, 220 V/50 Hz, 3000 r/min and a 410 mm blade option. The related 7425D record is not an interchangeable specification. Confirm the 300 mm depth claim, electrical connection and delivered blade/guide parts for this exact model.
