200L Electric Drum Concrete Mixer

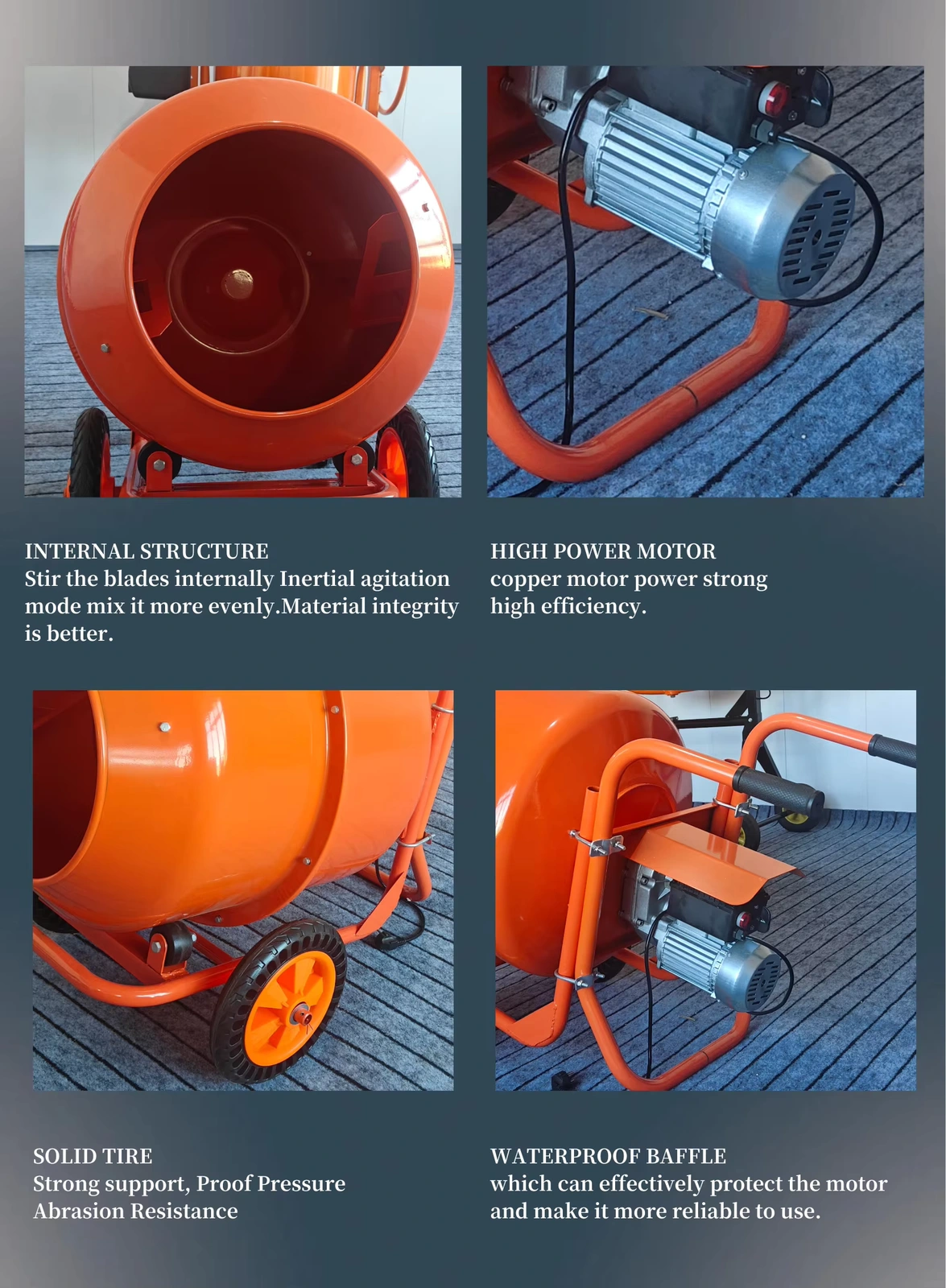

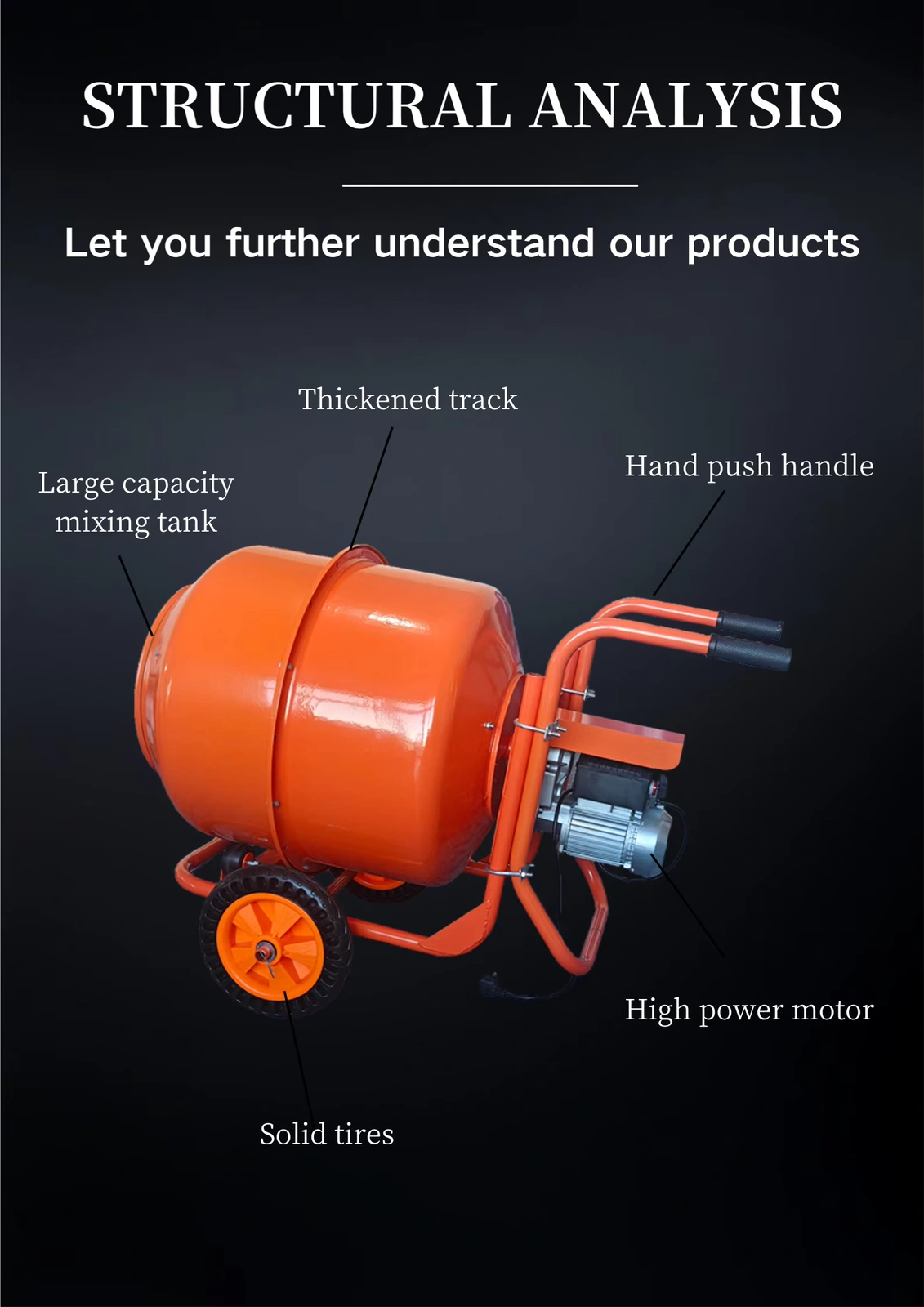

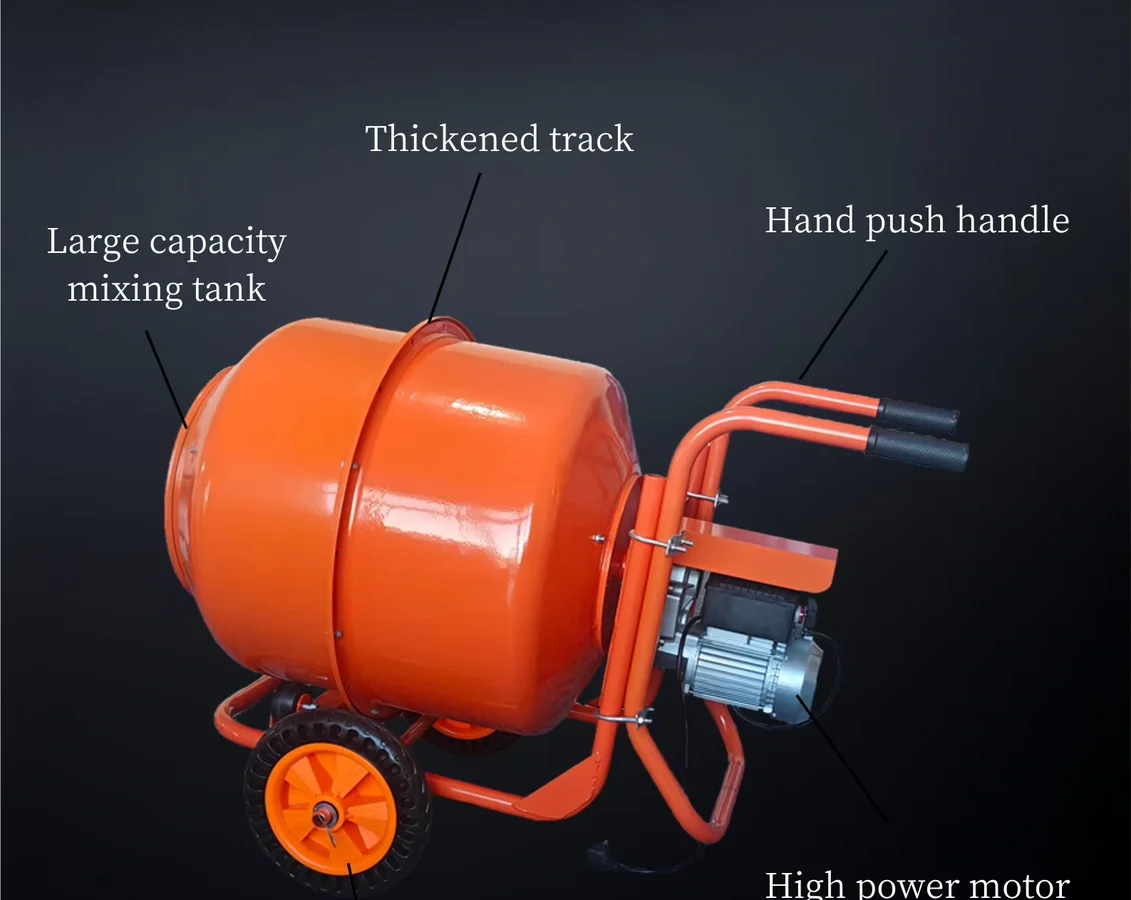

The pictured hand-push mixer uses an electric drive and tipping handles to discharge a small batch. The original structure and component panels show the motor, drum and wheels.
- What this product is for
- Configuration and specification checks
- Size the mixer around the batch
- Delivery parts and upkeep
Technical Specifications
| Source-listed charging capacity | 200L |
|---|---|
| Source-listed discharge capacity | 200L |
| Source-listed rotation speed | 29r/min |
| Listed overall dimensions | 865*690*450mm |
| Supplier output claim; site conditions to confirm | 2M³/H |
| Listed machine weight | 56 kg |
| Electrical options; selected version to confirm | 110 /220 V / Customizable |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for
The pictured hand-push mixer uses an electric drive and tipping handles to discharge a small batch. The original structure and component panels show the motor, drum and wheels. The listing remains separate from the visually similar 240L mixer: appearance alone does not establish the same capacity or motor.
Configuration and specification checks
Capacity is listed as 200L, but motor fields disagree: 2800W appears alongside 2.5kW and 2500W. Request a readable motor plate for the supplied version rather than select one value. Both charging and reclaiming fields say 200L; confirm the practical batch quantity, electrical option and assembled dimensions.
Size the mixer around the batch
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
Delivery parts and upkeep
Ask whether the drum, frame, wheels, motor and tipping controls arrive assembled or packed separately. Request the correct operating manual and availability of the belt, gears, bearings and other wear parts for this actual version. Confirm the cleaning and inspection schedule with the supplier rather than borrowing a procedure from a visually similar mixer.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
The pictured hand-push mixer uses an electric drive and tipping handles to discharge a small batch. The original structure and component panels show the motor, drum and wheels. The listing remains separate from the visually similar 240L mixer: appearance alone does not establish the same capacity or motor.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is nominal drum capacity the usable batch?
Do not assume so. Confirm useful charging and mixed output for the intended recipe.
Can one motor use every listed voltage?
The source lists options, not a confirmed multi-voltage motor. Specify the site supply and request the supplied motor plate.
Is water supply automatic?
Do not infer that from a general attribute or a photo. Agree the included water equipment and dosing arrangement separately.
What is required for delivery and maintenance?
Confirm assembly state, package dimensions, motor version, tipping mechanism and the matching wear-parts list and manual.
What needs confirmation in this particular listing?
Capacity is listed as 200L, but motor fields disagree: 2800W appears alongside 2.5kW and 2500W. Request a readable motor plate for the supplied version rather than select one value. Both charging and reclaiming fields say 200L; confirm the practical batch quantity, electrical option and assembled dimensions.
What should I send to select this product?
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
